Innovative Temperature Sensor Module Kit of 2 Designed for Ease of Integration
DESCRIPTION

Features:

*Temperature Sensor Kit: This kit includes a for pull-up resistor on the adapter , allowing for direct connection to the for GPIO of the for Raspberry Pi for easy integration.

*Direct Insertion Sensor Chip: The kit features a programmable resolution 1-wire digital thermometer that requires the use of a for pull-up resistor for proper functionality.

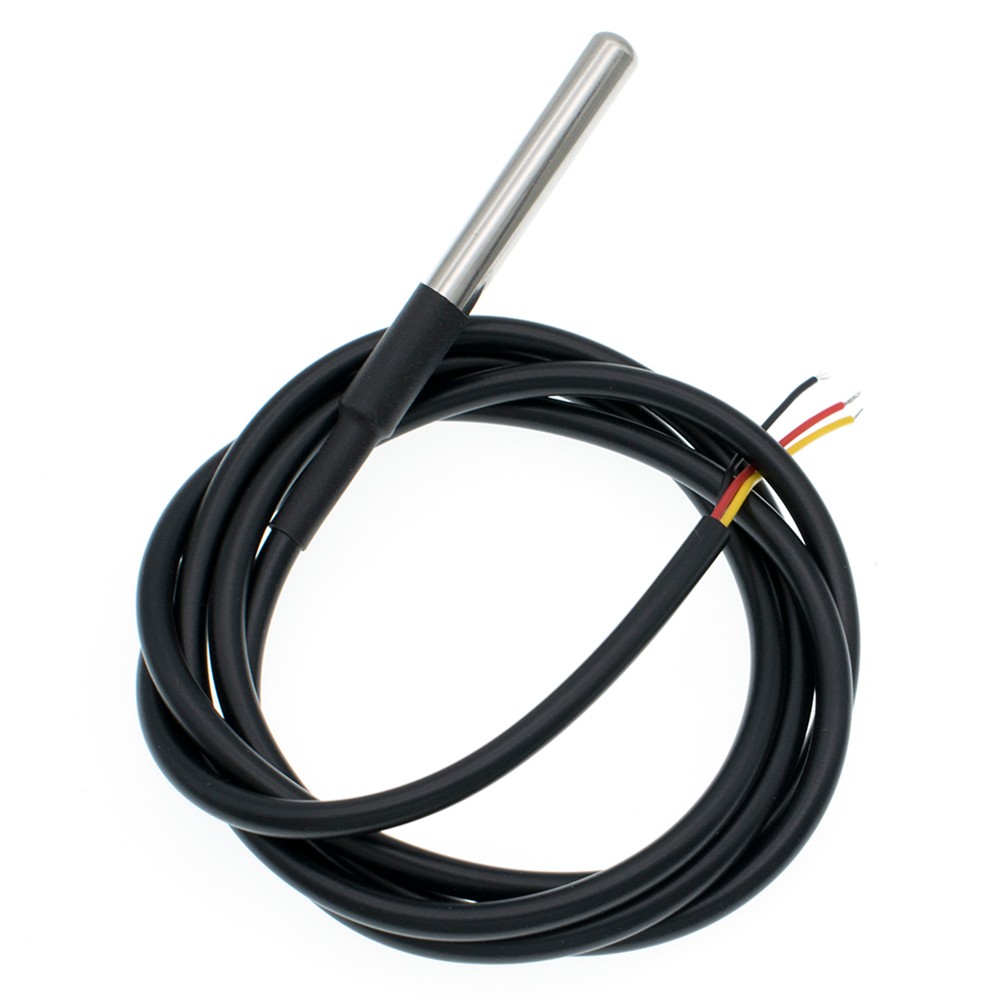

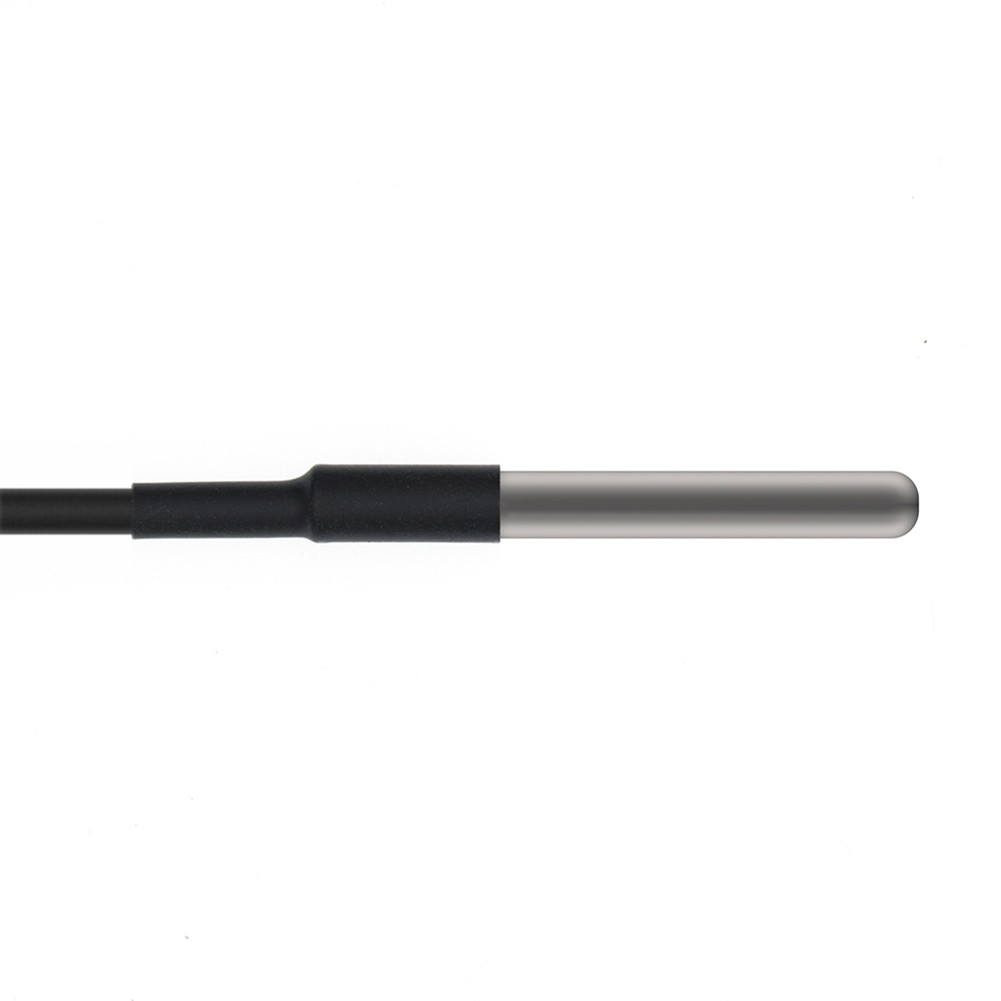

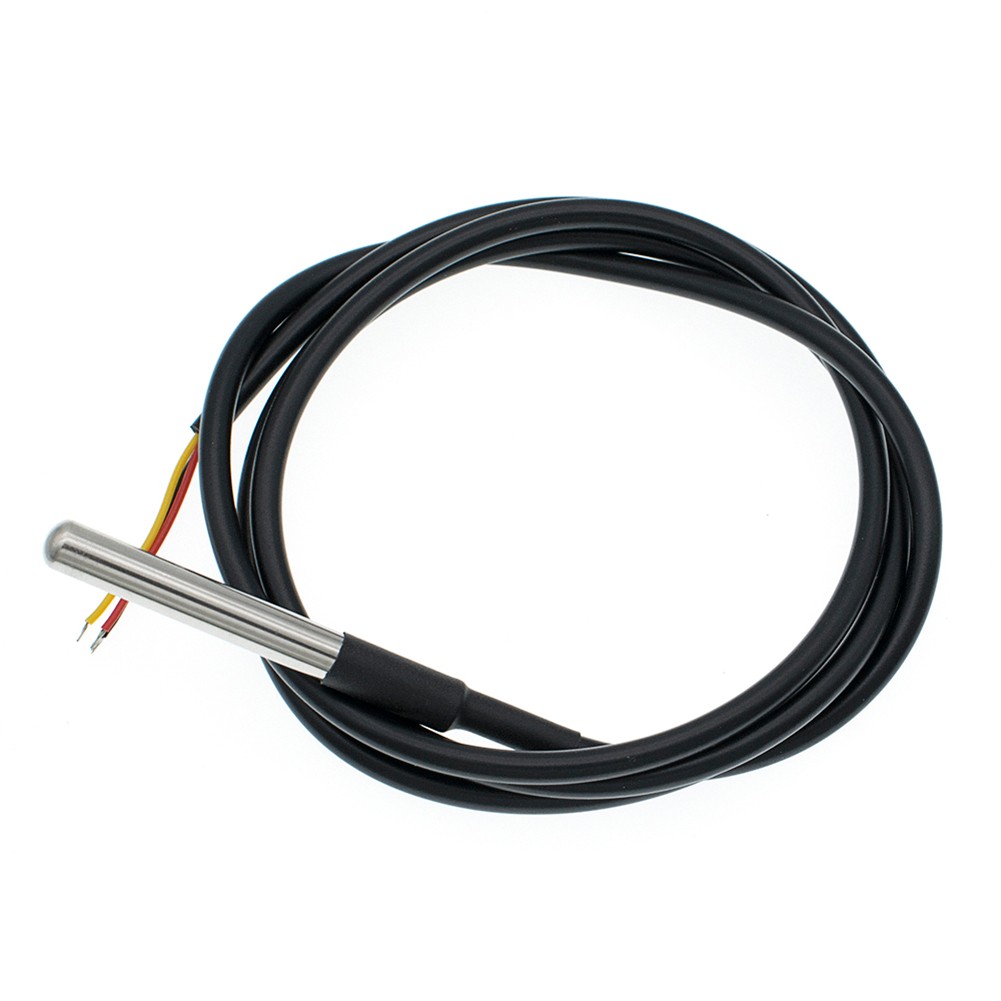

* for Versatile Measurement Capability: The stainless steel probe is designed for direct temperature measurement in water or soil, making it great for temperature monitoring in applications such as fish tanks, equipment, machinery, and greenhouses.

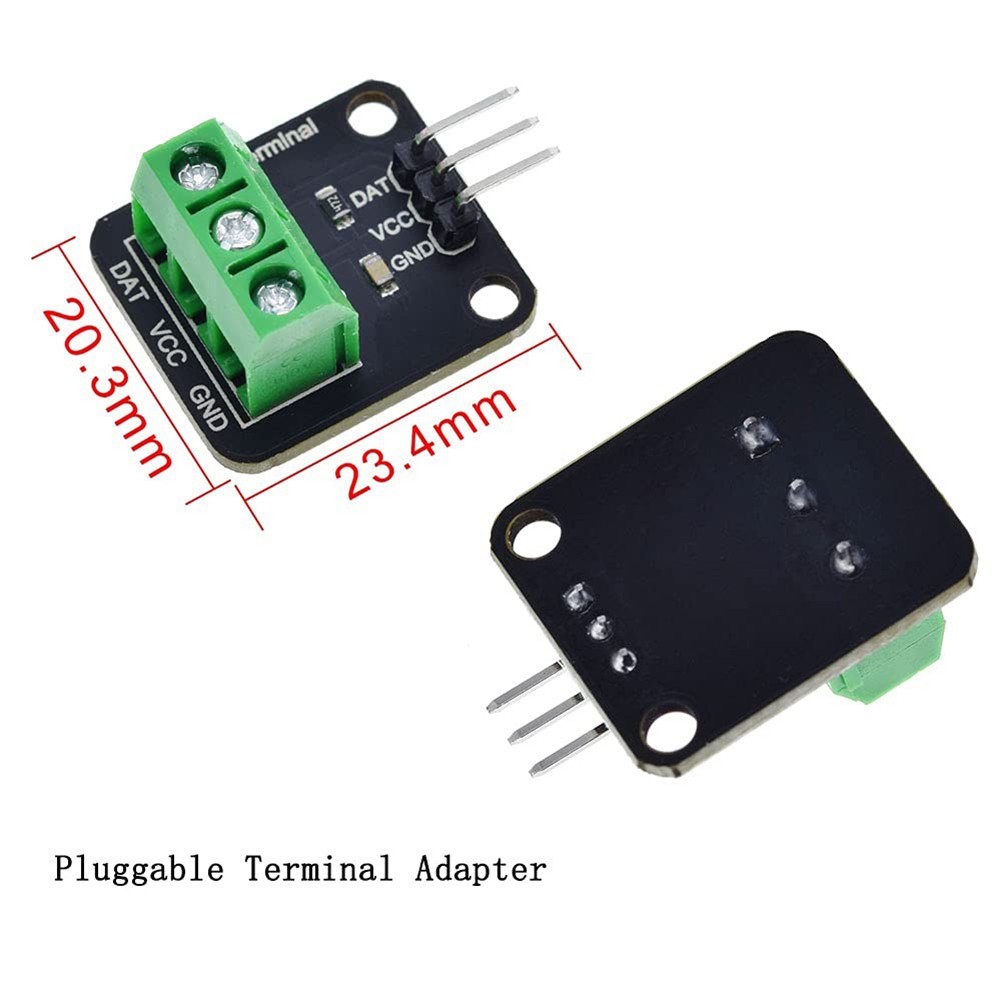

*Included Components: The package contains two sets of the Temperature Sensor Kit, which includes temperature sensors, pluggable terminal adapters, and 3-pin cables, along with two direct insertion temperature sensor chips.

*Easy to install: Easy to install and easy to use.


Specifications:

Part Name: Temperature Sensor Kit

Material: Metal,Plastic

Size: Standard

Color: Black

Temperature sensor supply voltage: 3.0V ~ 5.5V

Temperature sensor resolution: 9 to 12 adjustable resolution

Temperature range: -55°C ~ +125°C

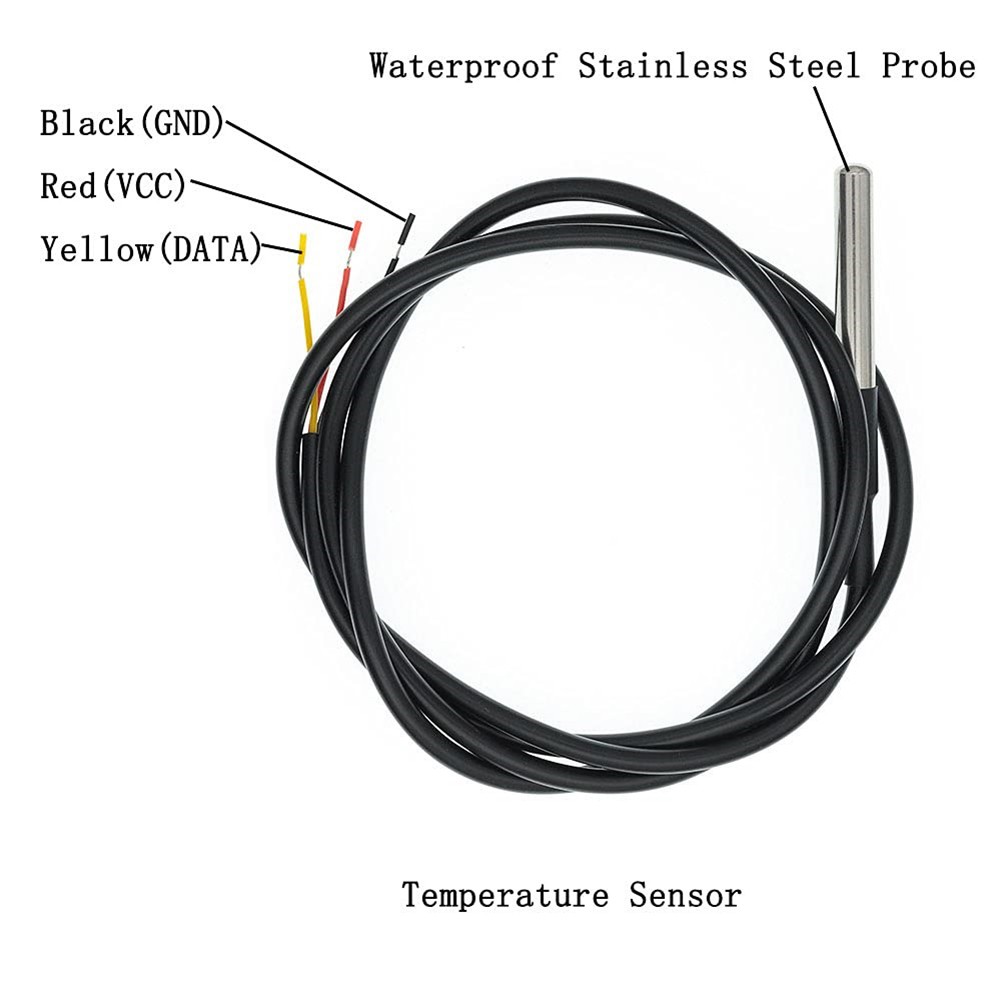

Temperature Sensor Output Wire: Yellow(DATA) Red(VCC) and Black(GND)

Adapter Cables: for DATA, for VCC, for BLK

Suitable platform: for Arduino and for Raspberry Pi

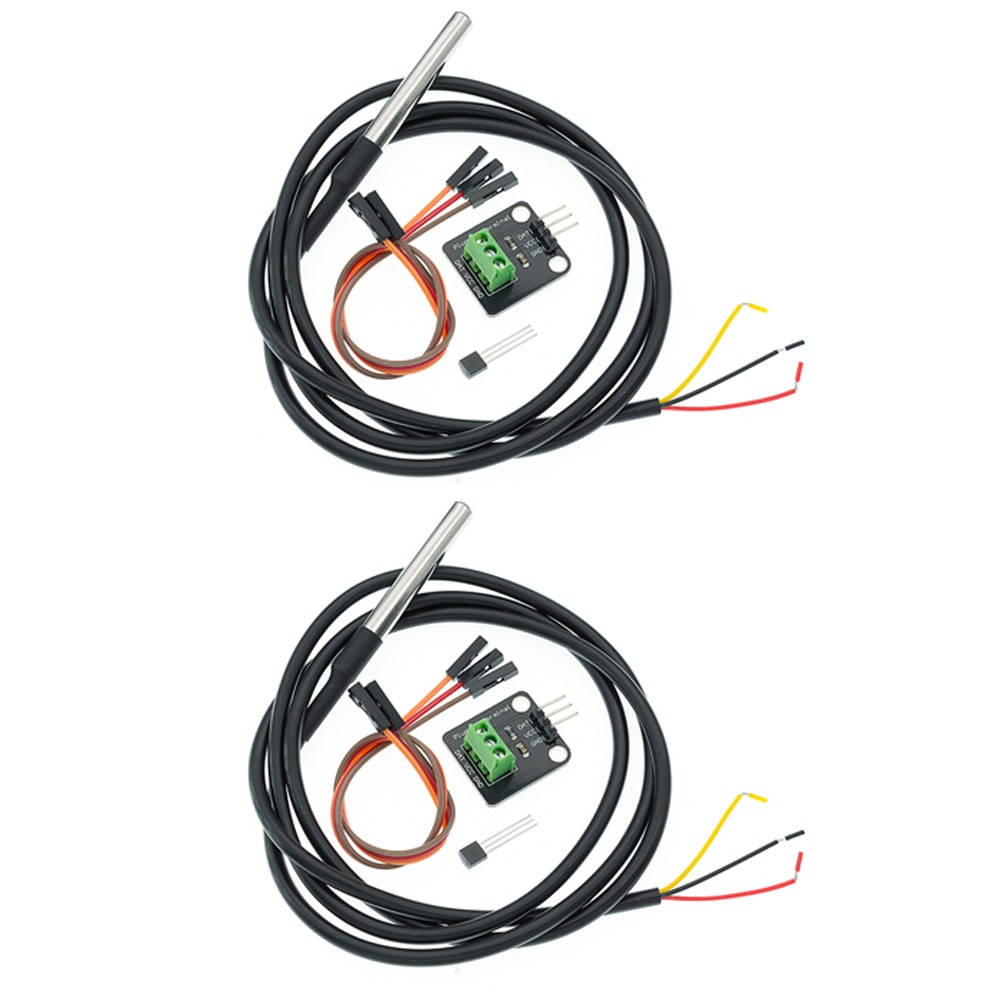

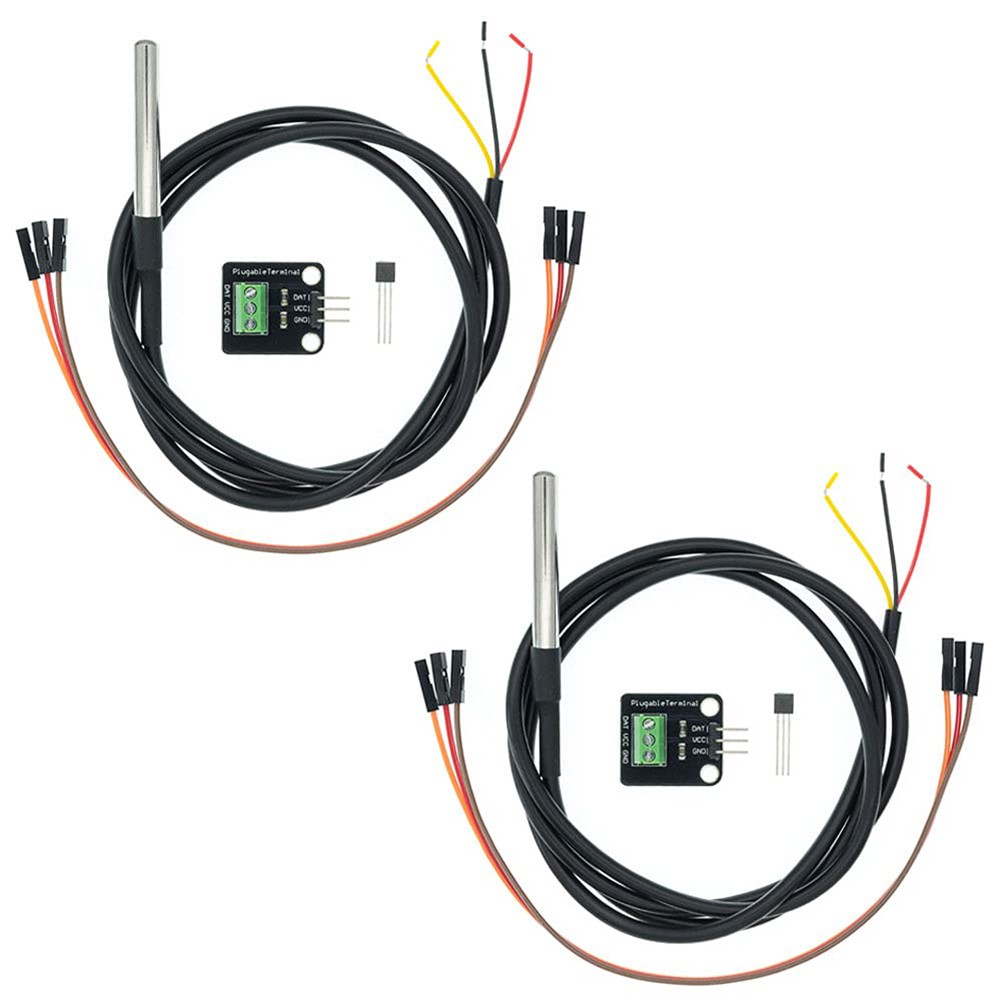

Package Content:

for 2 x temperature sensors

for 2 x pluggable terminal adapters

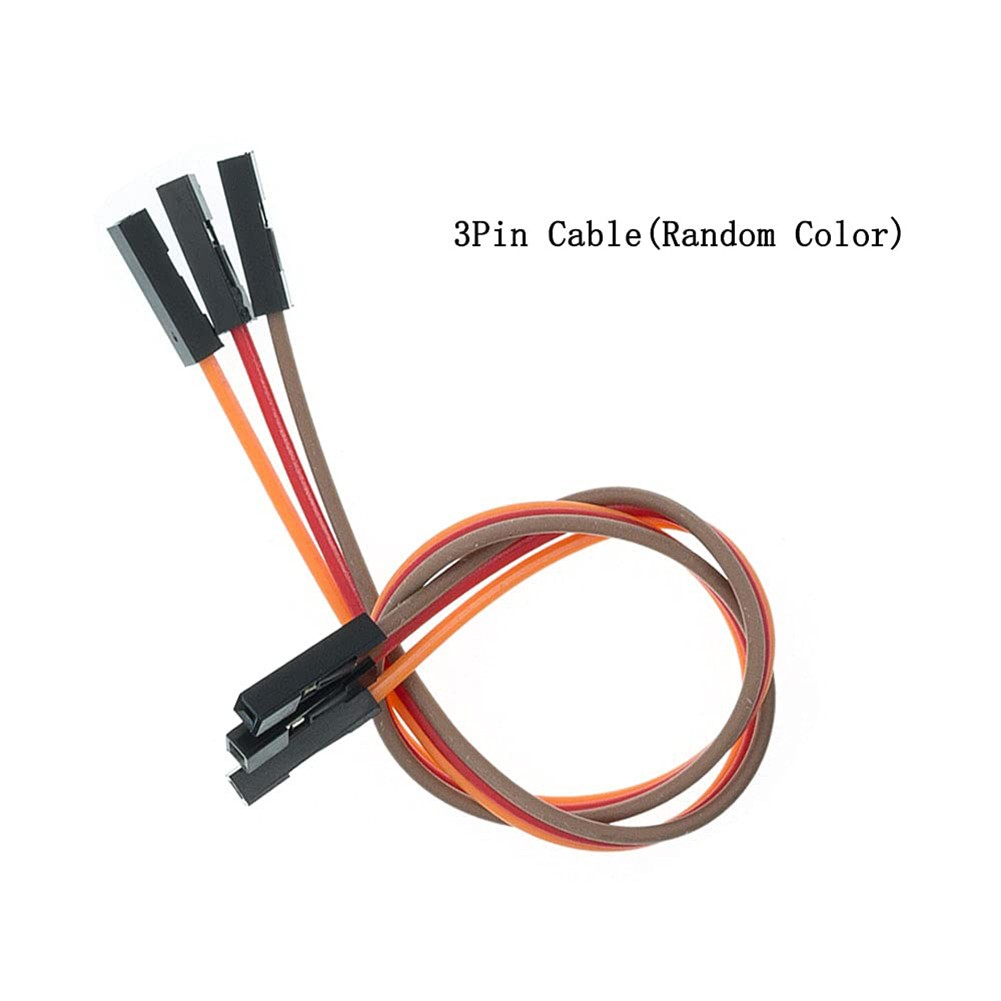

for 2 x 3-pin cables

for 2 x temperature sensor chips.


Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
for 2. Please allow slight manual measurement deviation for the data.
