AI Solution
ASUS AI
Solutions – including AI Cache Boost to supercharge large language model
(LLM) workflows, AI Advisor as your technical expert with expertise in
PC performance, and AI Cooling II for thermal control.
Premium Power
Design
Stable
power is crucial for maximizing the performance of AMD processors. The
motherboard is designed to meet the needs of high-core-count CPUs. It
features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side
and low-side MOSFETs and drivers into packages rated for up to 80A each.
This configuration ensures optimal power delivery, efficiency, stability
and performance for both current and future AMD processors.
DDR5 Dominance
For users
looking to push well beyond stock DDR5 speeds, this motherboard is
engineered for enthusiast-grade performance with broad AMD Extended
Profiles for Overclocking (EXPO) support and an upgraded memory design
tuned for stability at ultra-high frequencies. Veterans can further
tweak performance via an extensive array of settings in the UEFI.
ASUS AEMP
ASUS
Enhanced Memory Profile (AEMP) is an exclusive firmware feature for
PMIC-restricted memory modules. AEMP automatically detects the memory
chips on your kit and then presents optimized frequency, timing and
voltage profiles that you can quickly apply.
M.2 PCIe 5.0
Support
This
motherboard also features one PCIe 5.0 M.2 slot to enjoy the fastest
data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID
configurations to take advantage of the latest available speeds.
Cooler
Compatibility
ASUS AIO
coolers offer robust performance, high overclocking potential, bold
aesthetics and customizable functionality for new TUF Gaming
motherboards, empowering you to build your dream gaming rig.
Empowering
Connection
This
motherboard offers a versatile range of connectivity with PCIe 5.0,
front USB 20Gbps Type-C connector, rear two USB 10Gbps Type-C ports,
front three USB 2.0 headers and Thunderbolt (USB4) header support.
PCIe 5.0 for
Graphics Card
PCIe 5.0
offers twice the data transfer speed of PCIe 4.0, making it robust
enough to handle new data-heavy tasks. PCIe 5.0 also brings other
benefits, such as electrical changes to improve signal integrity,
backward-compatible CEM connectors for add-in cards and backward
compatibility with previous versions of the PCIe bus.

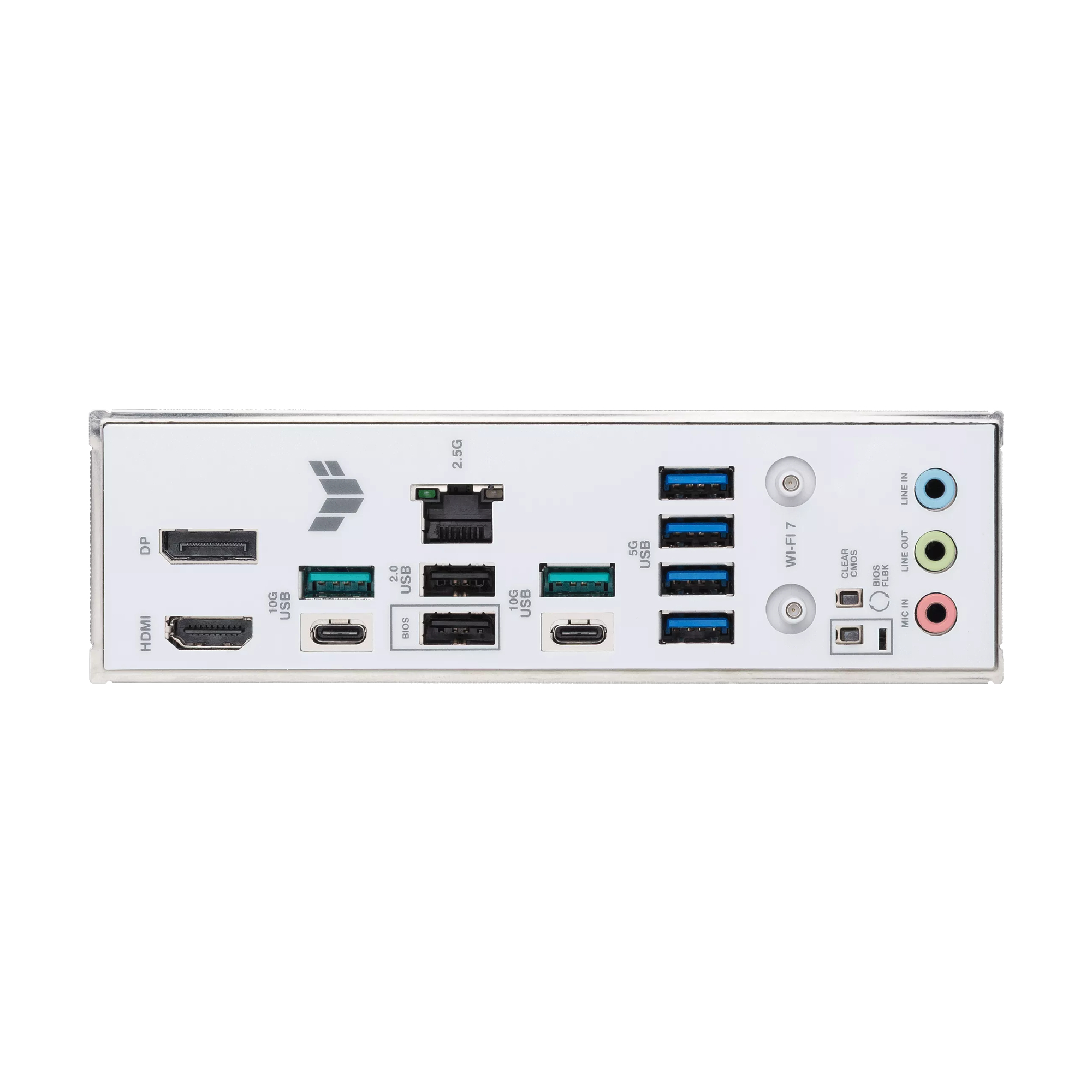

Rear two USB
10Gbps Type-C
Extensive
USB support ensures connections to a wide array of external devices.
This motherboard includes two USB 10Gbps Type-C ports on the rear I/O
panel that delivers transfer speeds of up to 10Gbps.
Front USB 20Gbps
Type-C
This
motherboard features a USB 20Gbps Type-C front panel connector for
speedy data transfers of up to 20Gbps.
Three USB 2.0
Headers
Three USB
2.0 headers ensure broad compatibility with AIO coolers, chassis fan
hubs, front USB modules, and popular third-party components.
PCIe Slot
Q-Release
A physical
lever unlocks the first PCIe slot’s security latch with one tap, greatly
simplifying the process of detaching a PCIe card from the motherboard
when it’s time to upgrade to a new GPU or other compatible device.
DIY
Build
With Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted
PC component brands to ensure compatibility across a wide range of
parts, such as PC cases, power supplies, CPU coolers, memory kits and
more. With new partnerships and components being added regularly, the
TUF GAMING Alliance will continue to grow even stronger.
Realtek 7.1
Channel Audio
This
motherboard utilizes an audio codec designed in close collaboration with
Realtek — the Realtek® ALC1220P. It features an unprecedented 120 dB
signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for
the line in, providing pristine audio quality. Additionally, an
impedance-sensing circuit automatically adjusts gain to ensure an
optimal volume range for your headphones.
Outshine The
Competition
ASUS Aura
Sync offers synchronized lighting with other Aura Sync products,
including motherboards, graphics cards, monitors and peripherals.
Addressable RGB
Gen 2 Headers
Automatically
optimize lighting effects for the number of LEDs present in compatible
ARGB gear.
Condition Status: Refurbished
| Specification Type | motherboard |
|---|---|
| Specification Type | motherboard |
| Category Type | Components |
| Brand | ASUS |
| Motherboard MPN | 90MB1NW0-M0EAY0 |
| Condition | New |
| Type | Motherboard |
| EAN | 4711636435994 |
| Model | TUF GAMING B850-PRO WIFI7 |
| Series | TUF |
| Brand Filter | ASUS |
| Series Filter | TUF |
| Box Condition | Refurbished - Excellent |
| Motherboard Form Factor | ATX |
| Socket Type | AMD Socket AM5 |
| Chipset | AMD B850 |
| CPU | Supports AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors |
| Memory Slot Support | Up to 256 GB |
| Memory Slots | 4 x DDR5 Slots |
| Motherboard Connectivity | DisplayPort | HDMI | USB-C | USB 2.0 | RJ-45 |
| Motherboard Sata Support | 4 x SATA 6Gb/s |
| Motherboard Mtwo Slot | 3x M.2 |
| Motherboard Pcie Xone Slot | 2x PCIe X1 |
| Motherboard Pcie Xsixteen Slot |
|
| Motherboard Internal Usb Connectors | 1 x USB 20Gbps | 1 x USB 5Gbps | 3 x USB 2.0 |
| Motherboard Rear Usb Ports | 4 x USB 10Gbps (2 x Type-A + 2 x USB Type-C) | 4 x USB 5Gbps (4 x Type-A) | 2 x USB 2.0 |
| Motherboard Displayport Connector | 1 x DisplayPort |
| Motherboard Hdmi Connector | 1 x HDMI Port |
| Motherboard Pcie Slots Filter | 3x PCIe X16 |
| Wifi Support Filter | Yes |
| Ethernet | 1 x Realtek 2.5Gb Ethernet | TUF LANGuard |
| Bluetooth Support Filter | Yes |
| Audio | Realtek ALC1220P 7.1 Surround Sound HD Audio Codec |
| Storage Support Filter | SATA III, M.2 |
| Pcie Standard Filter | PCIe 5.0 |
| Wireless & Bluetooth | Wi-Fi 7, Bluetooth 5.4 |
| Most Suitable for | Gaming |
| Dimensions | 305 x 244 mm |
| Colour | White |
| Warranty | 1 Year |
| Memory Type | DDR5 |
| Colour Filter | White |
| Compatible CPU Brand | AMD |
| Integrated Graphics | Requires Processor Graphics or Discrete GPU |
