MaXpeedingrods Wireless Air Spring Bag Compressor Controller Kit For Ford Ranger all PX models Mazda BT-50 2012-2020

Introduction:

Maxpeedingrods Air Suspension Kit + The electronic controller kit allows you to adjust the air springs from inside and outside the cab using a handheld remote controller or phone, eliminating the need for wiring and drilling holes in the cab. Moreover, it can be pre-set to meet your needs in different situations. Compatible with Maxpeedingrods air spring bag kit, Restore the original ride height and improve ride quality

Application:

For Ford Rangers PX models XLT XL 4x4

For Mazda BT50 4x4 & 4x2  2012-2020


Note：

1. Does not fit the Light-Duty RWD Ute

2. Does not fit ranger raptor

3. Fit 4X4 and 4X2 vehicles with the rear leaf sitting on top of the axle

4. Also fits vehicle with 2 inch suspension lift.

Item Specifications:

Condition: Brand New

Placement on Vehicle: Rear left and right

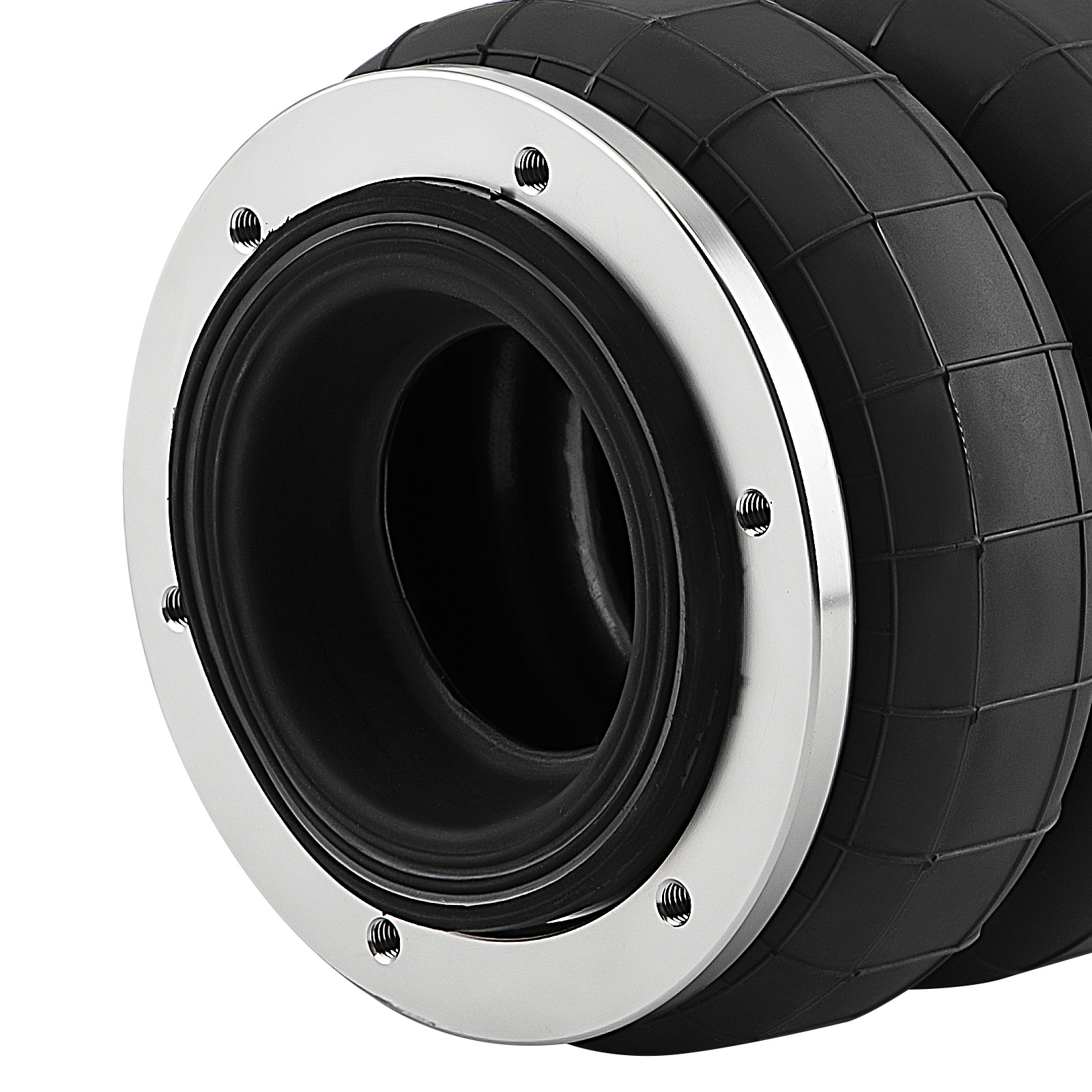

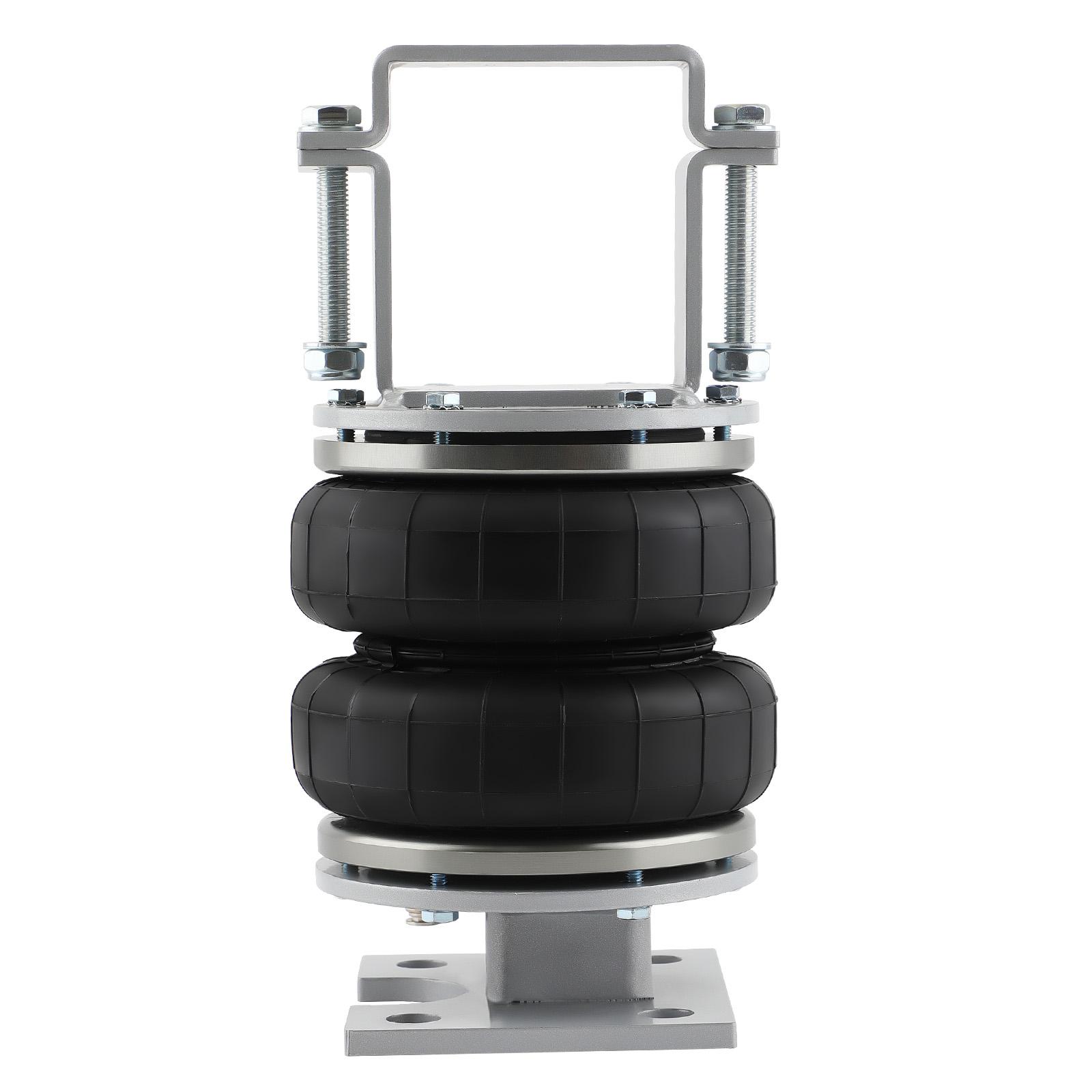

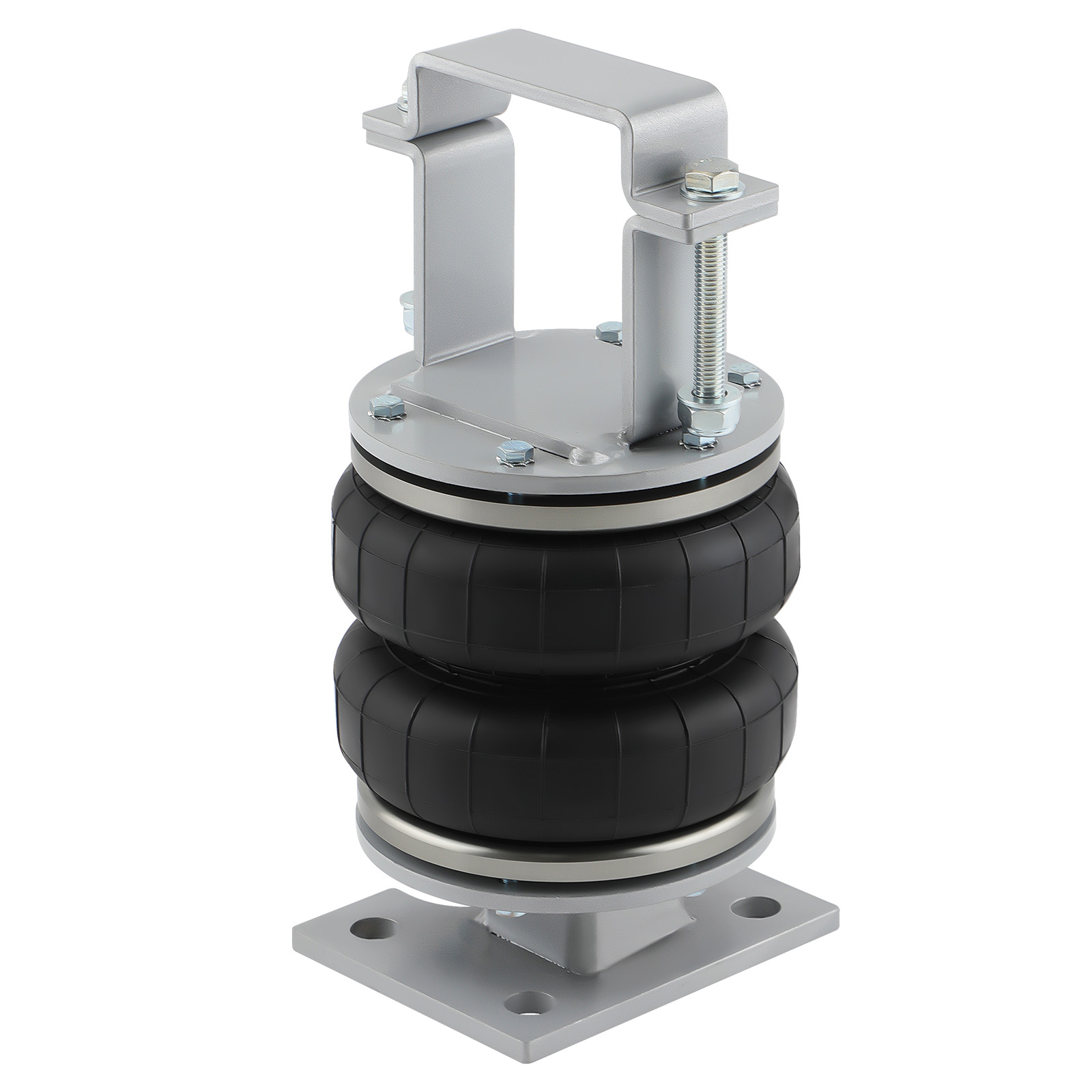

Air Spring

Load capacity：Up to 5000 LBS

Design height:152 mm

Stroke:  110 mm

Max. Extended: 175mm

Min. Compressed: 65mm

Minimum height of whole kit: 184 mm

Maximum height of whole kit: 294 mm

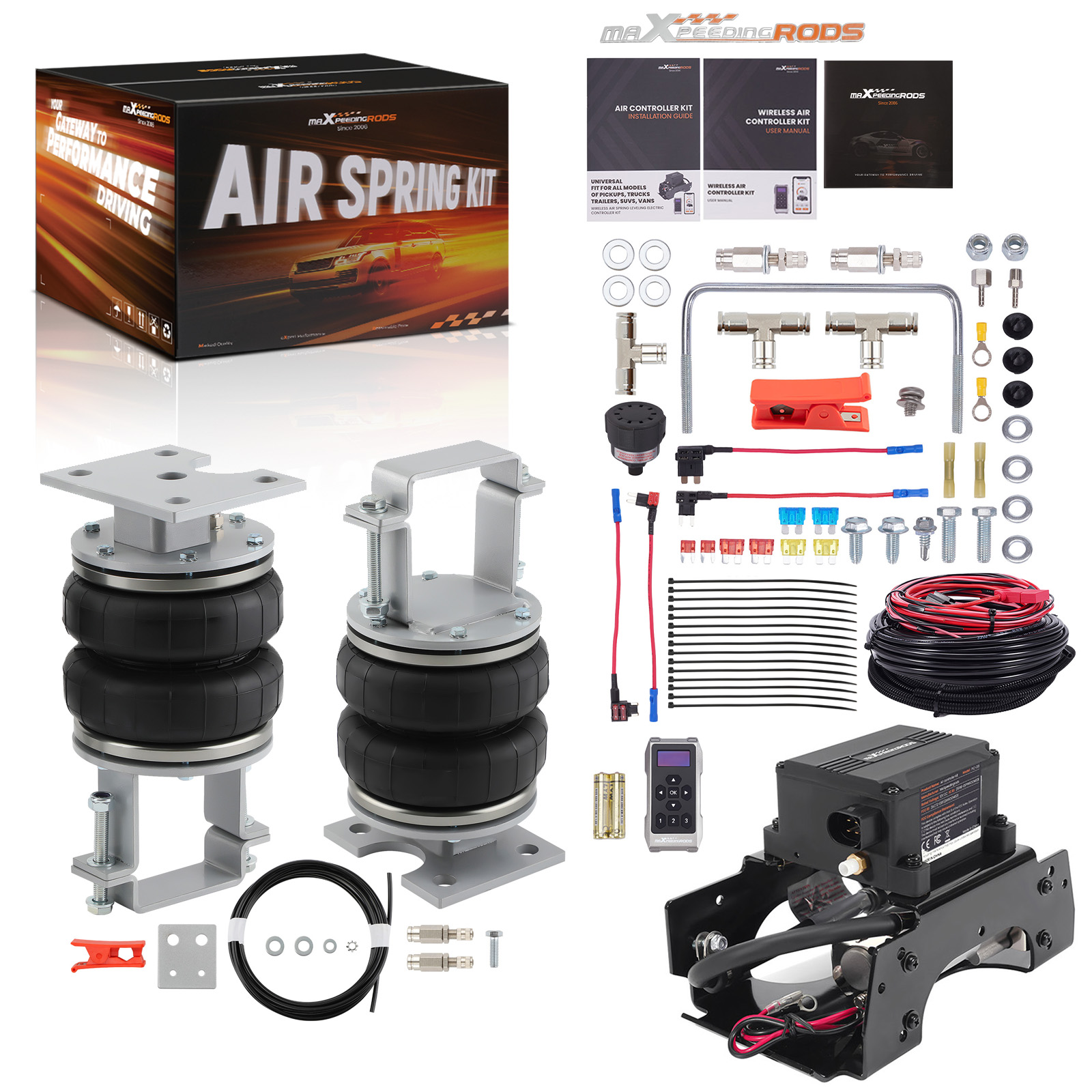

Package includes（as the picture shows）:

2x Heavy Duty Double Bellow Air Ride Suspension bags

4x Upper and lower mounting brackets

1x Air line 6m

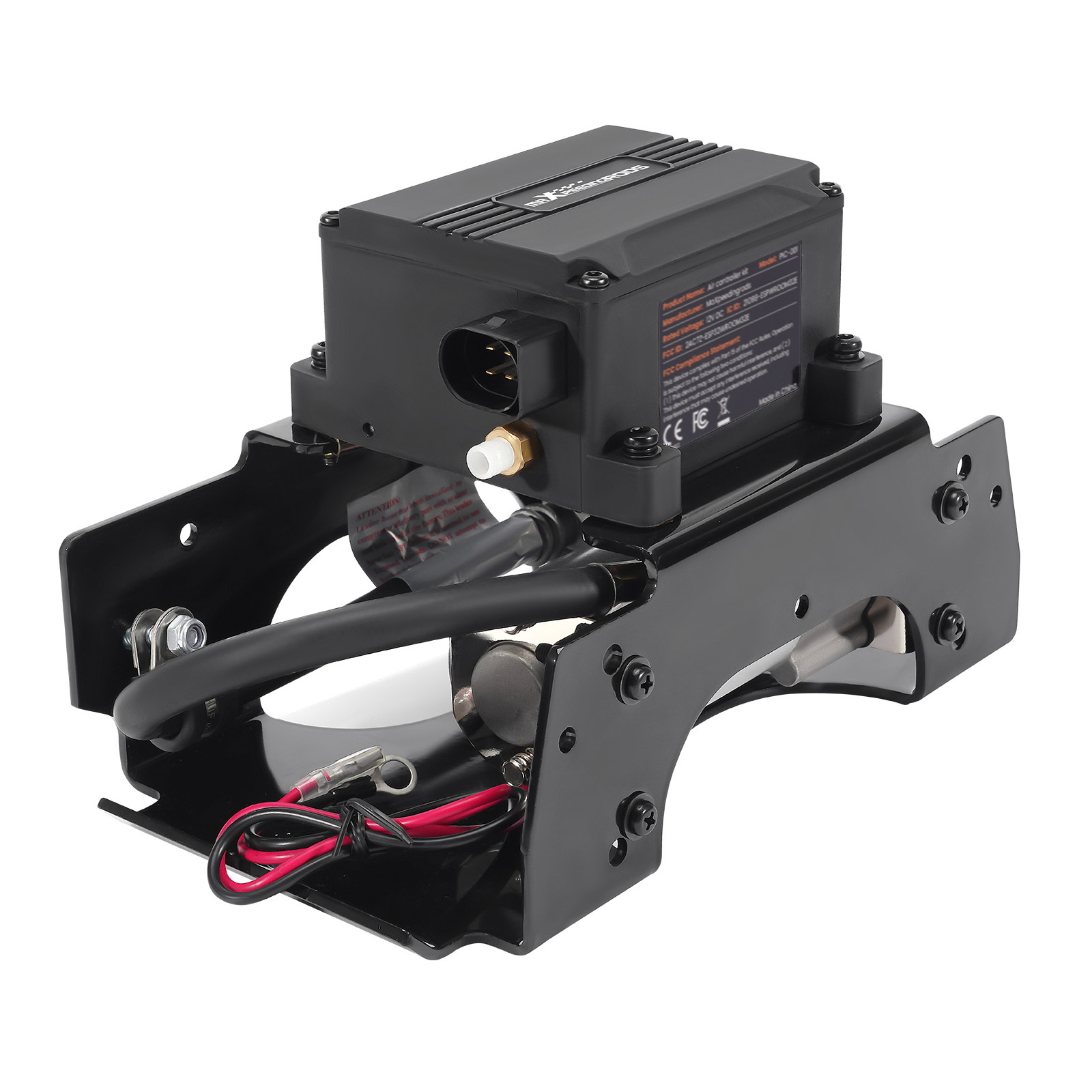

1 x Compressor control system assembly

1 x Wireless controller

1 x Air Line φ6*1 (12M)

1 x Air filter

1 x Wire harness (6 M)

1 x Relay harness (1M)

3 x T Connectors

And some other accessories

Features:

Maxpeedingrods Air Suspension Kit:

- Stress Test Over 5,000,000 Times：Durable and Safe
- Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise
- Air Tightness Test ≤ 0.02MPa：100% Air Tightness Guarantee
- Temperature Range ≥ -40℃/ ≤ 70℃：Premium Natural Rubber Material
- Use high-quality steel with high load-bearing capacity and long life.
- Excellent and practical bolt-on installation.
- Safe carrying capacity and stability
- Restore the original ride height and improve ride quality
- Ensure our driving comfort and reduce tire wear.

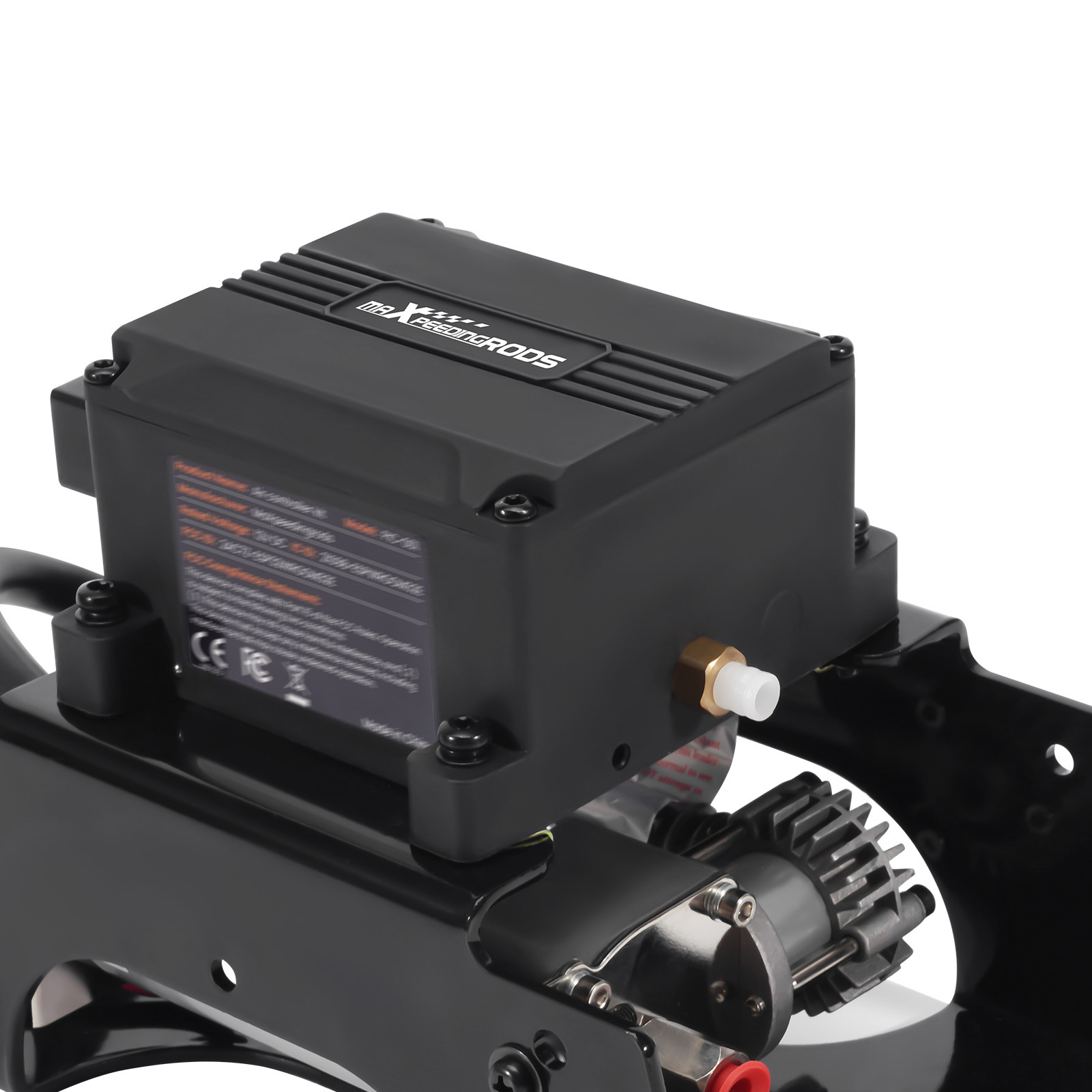

Maxpeedingrods Air Controller Kit:

- Single-path controls let you adjust 1 pair of any brand air springs.

- Heavy-duty compressor, Maximum air pressure is 120 psi.

- Convenient and quick all-in-one installation.

- Professionally designed integrated manifold.

- No air lines or wiring harnesses are required in the cab.

- A wireless controller can activate the compressor from inside or outside the cab.

- Free app turns your phone into a fully functional controller.

- Three preset values can be customized to meet the needs of different scenarios.

- The integrated installation can meet the installation requirements of various models.

- 100% factory tested to be leak free.

- Recommended working pressure：50-70 PSI.

- The compressor undergoes rigorous fatigue testing to ensure quality.

- The air controller kit has passed the rigorous salt spray testing.

- The connection signal between the remote control and the application APP is very stable within a range of about 20 meters from the vehicle.

- The wireless remote control is factory matched to be used directly.

Notice:

- The recommended operating temperature range is -40℃ to 85℃.

- Install the product inside the vehicle if operating temperatures regularly fall below 0°C. If too hot, shorten pump runtime and extend cooling time.

- All modifications must be performed by qualified personnel and in compliance with your local modification regulations.

- It is important to read and understand the installation instruction before you install it.

- Press any button for 3S to activate the wireless controller, and the screen will display the last working pressure.

- Before using the remote control, be sure to install the batteries, which are included in the accessories.

- After downloading the APP, please make sure that the permission of Nearby devices is turned on. If it is not turned on, it will definitely crash directly.

- To prevent the vehicle battery voltage from being drained, always operate this system with the ignition on.

FAQ

1.
Q: Why does the kit need to have a power wire to the battery and one into the fuse panel? Do they do different things or could this be 1 wire?
A: The one connected to the fuse is needed to activate the system motherboard after the car is ignited, and the one connected to the battery is the power supply line of the air pump. They have different functions and both need to be connected.

2.
Q: Why does the compressor not run after receiving the inflate command?
A: The compressor duty cycle limits the compressor running time to ensure the life of the compressor. When the compressor exceeds or accumulates a running time of about 3 minutes, the system will not inflate, you need to turn off the engine and wait 10 seconds before restarting. Then, give the pressure setting command again, and the compressor will run normally. (The best way is to wait about 15 minutes before running the compressor again.)


3.
Q: Why is the connection signal not so good?
A: Please do not operate the remote control or mobile phone APP when there are obvious obstructions (such as direct blocking walls, large corners, large vehicles, or multiple vehicles).


4.
Q: Why does the air pump stop working before reaching the set air pressure?
A: In order to prevent the compressor from continuing to work due to air leakage, if the air pressure value does not rise by 10 psi within 30 seconds compared with before, the air pump will stop working and the ignition switch will be turned back on to resume normal function.


5.
Q: Will the system automatically inflate when the actual pressure is lower than the set pressure?
A: Yes. If the actual pressure is lower than the set pressure about 4psi, the system will automatically inflate. If the actual pressure is higher than the set pressure, no correction will be made.
