Receiver Module WVB-0860N-03A 1PC 28dB Sensitivity 3. for 3v Operating Voltage
DESCRIPTION

describe:

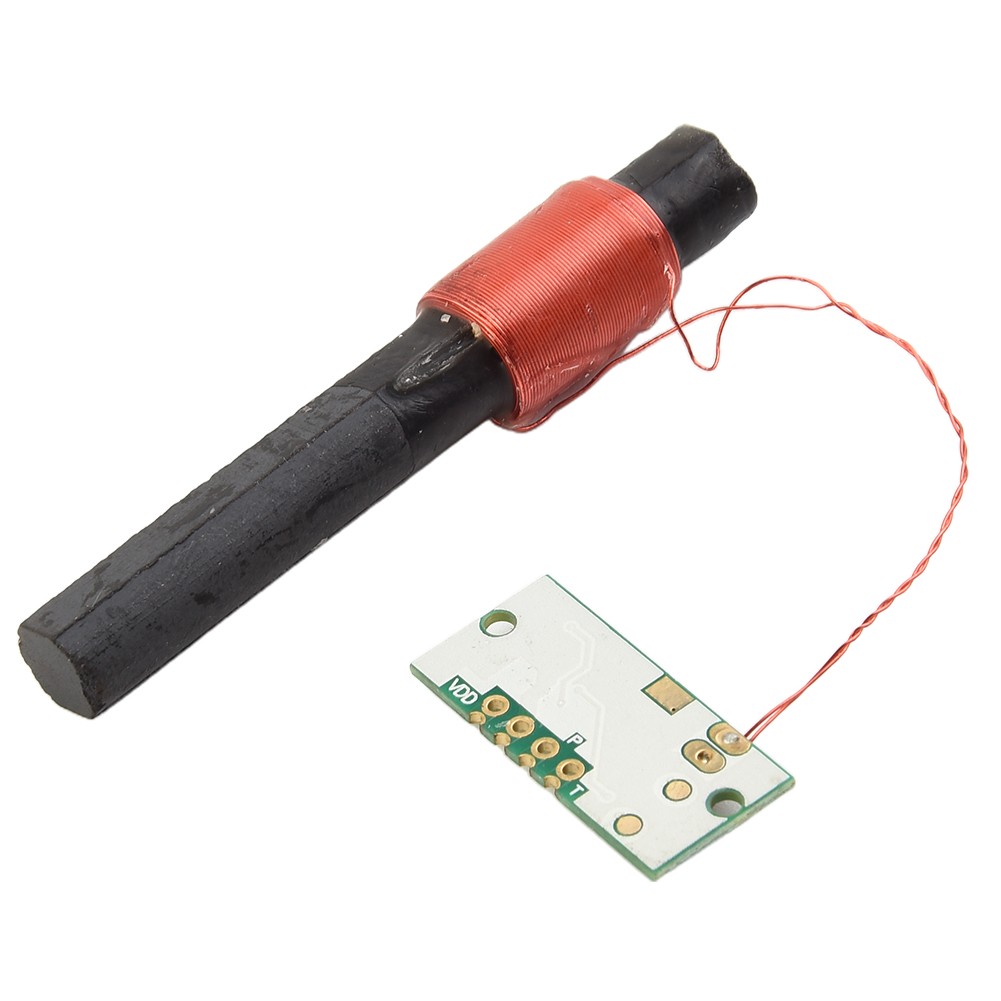

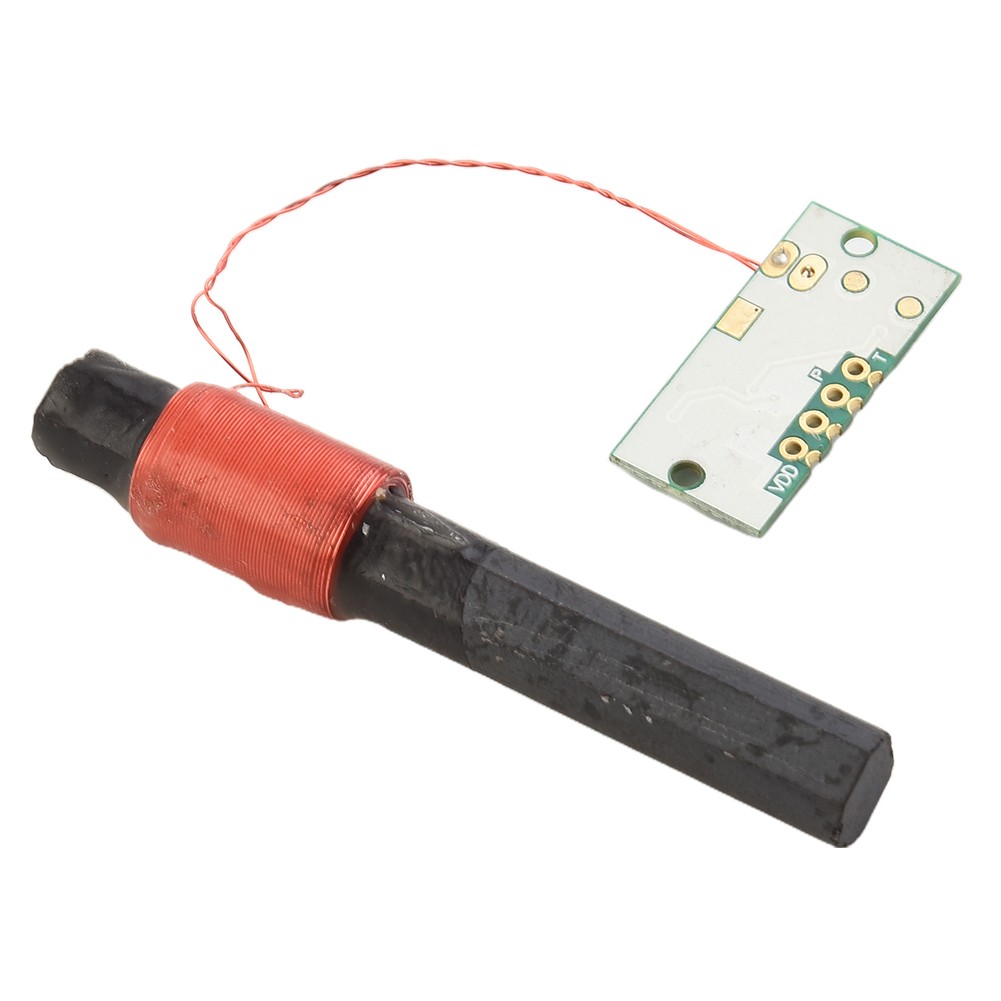

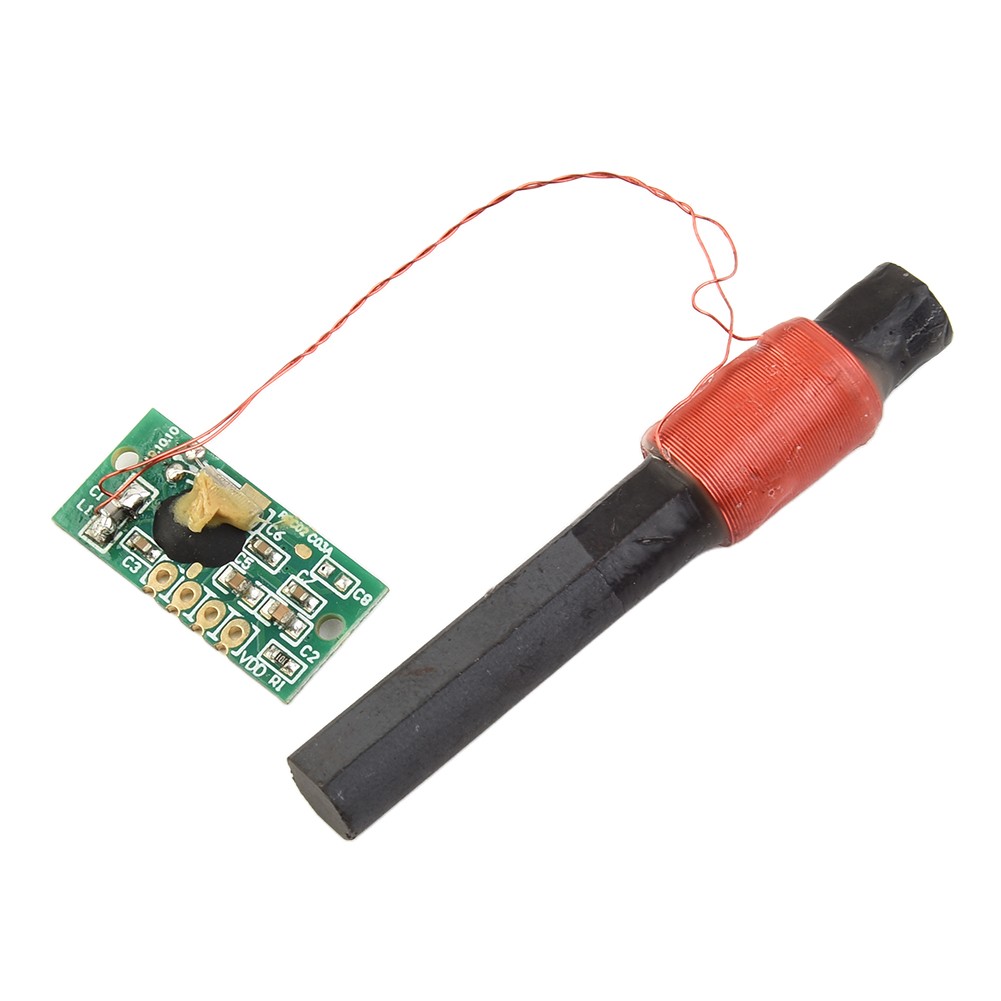

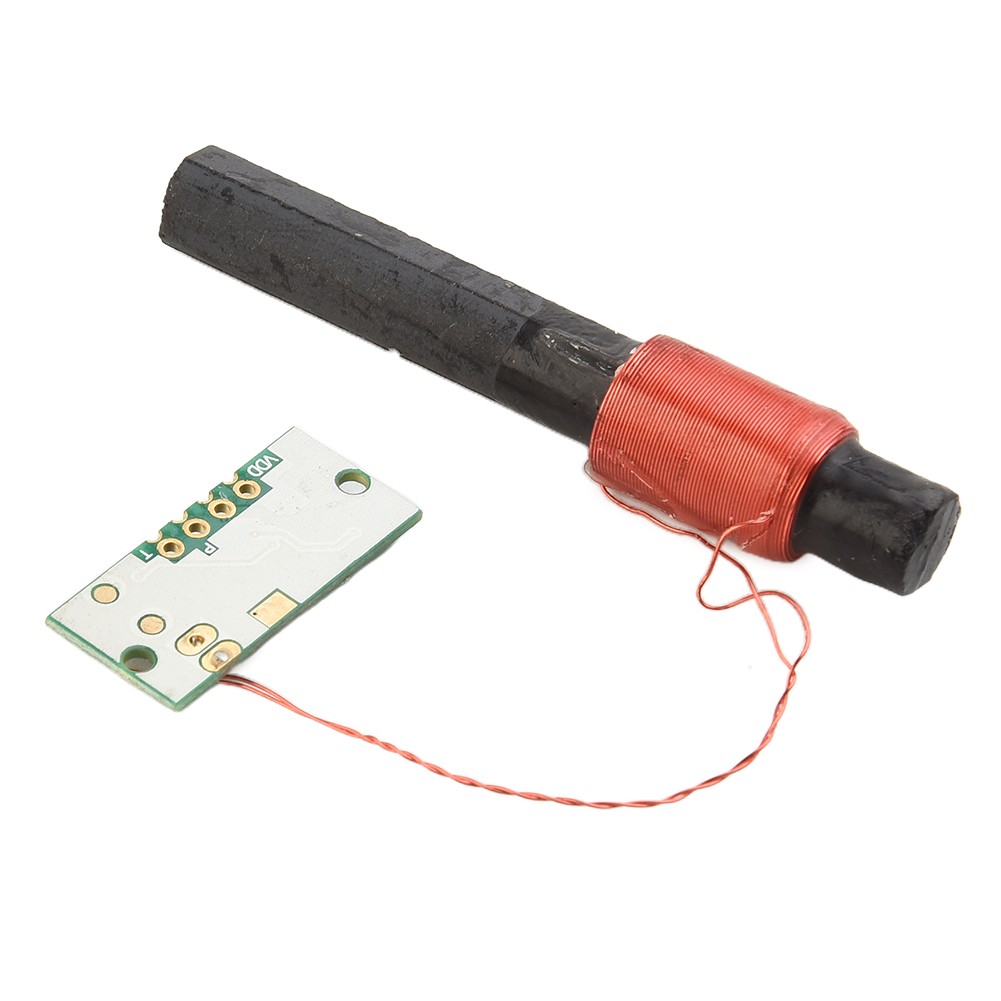

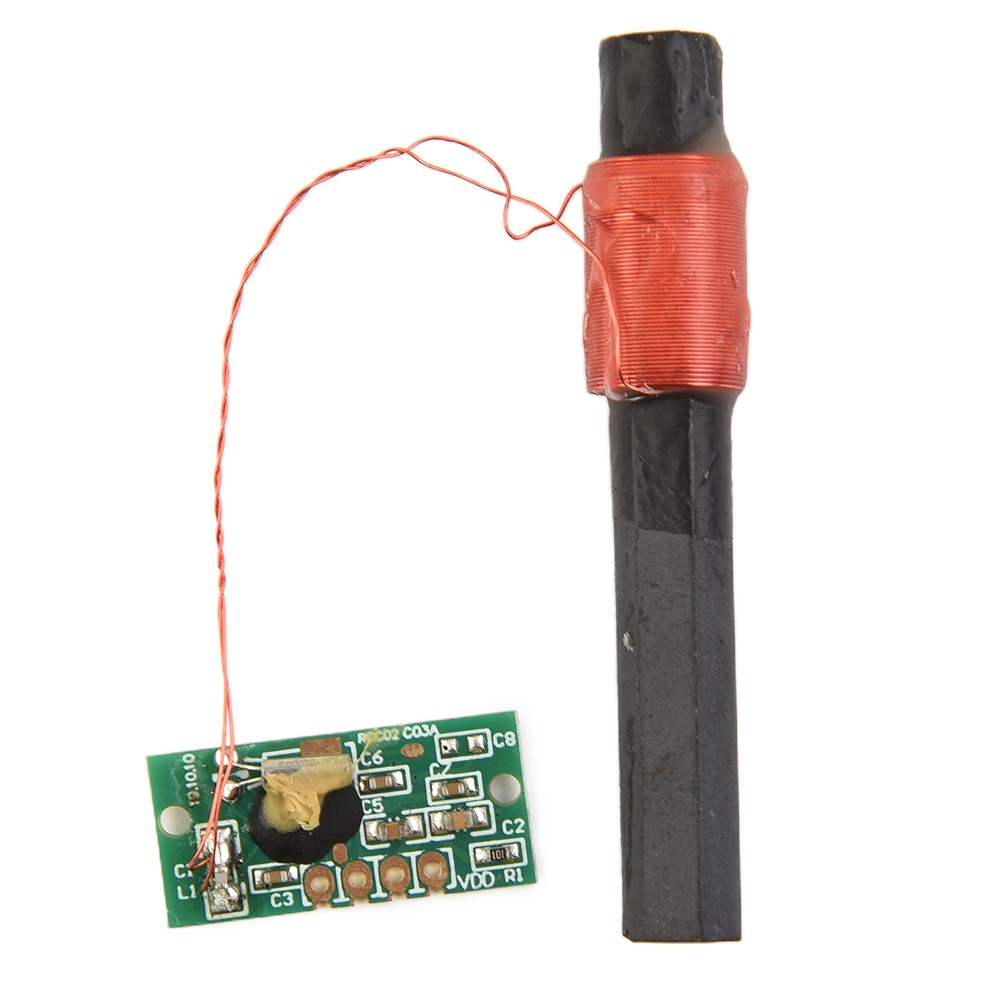

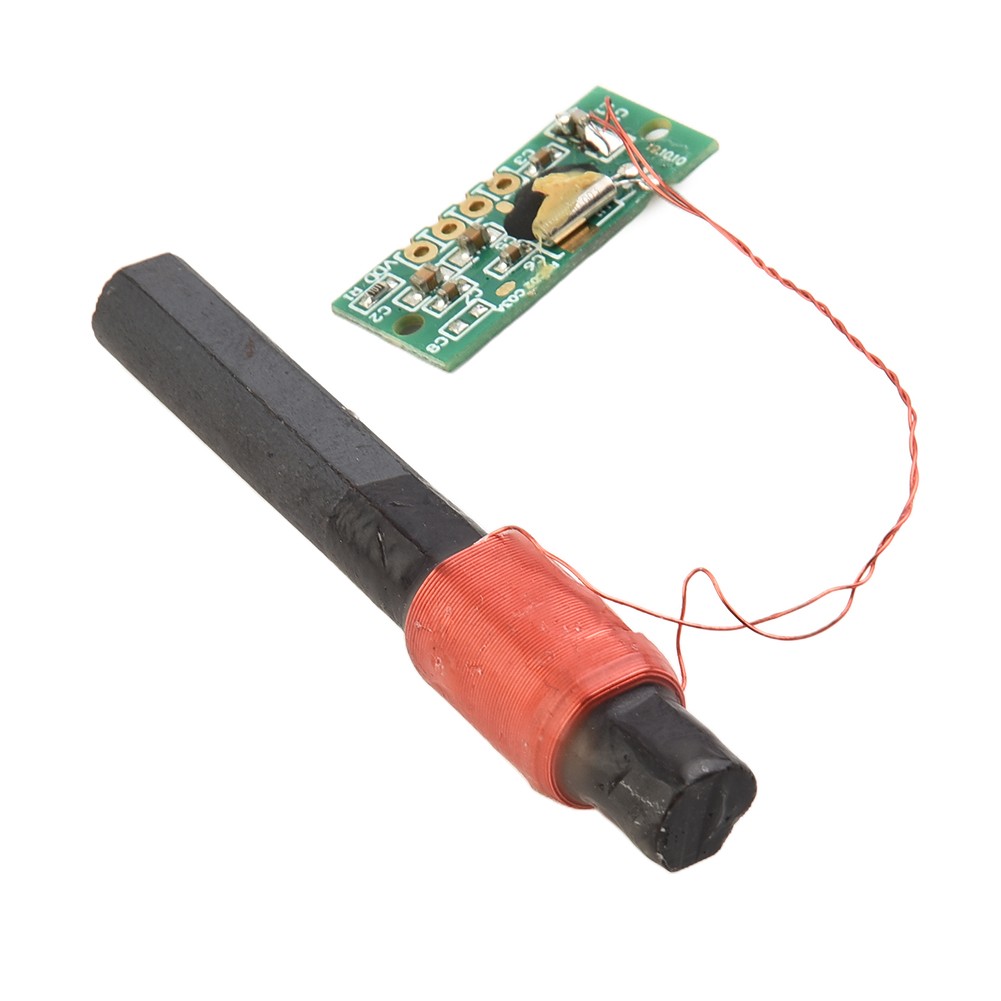

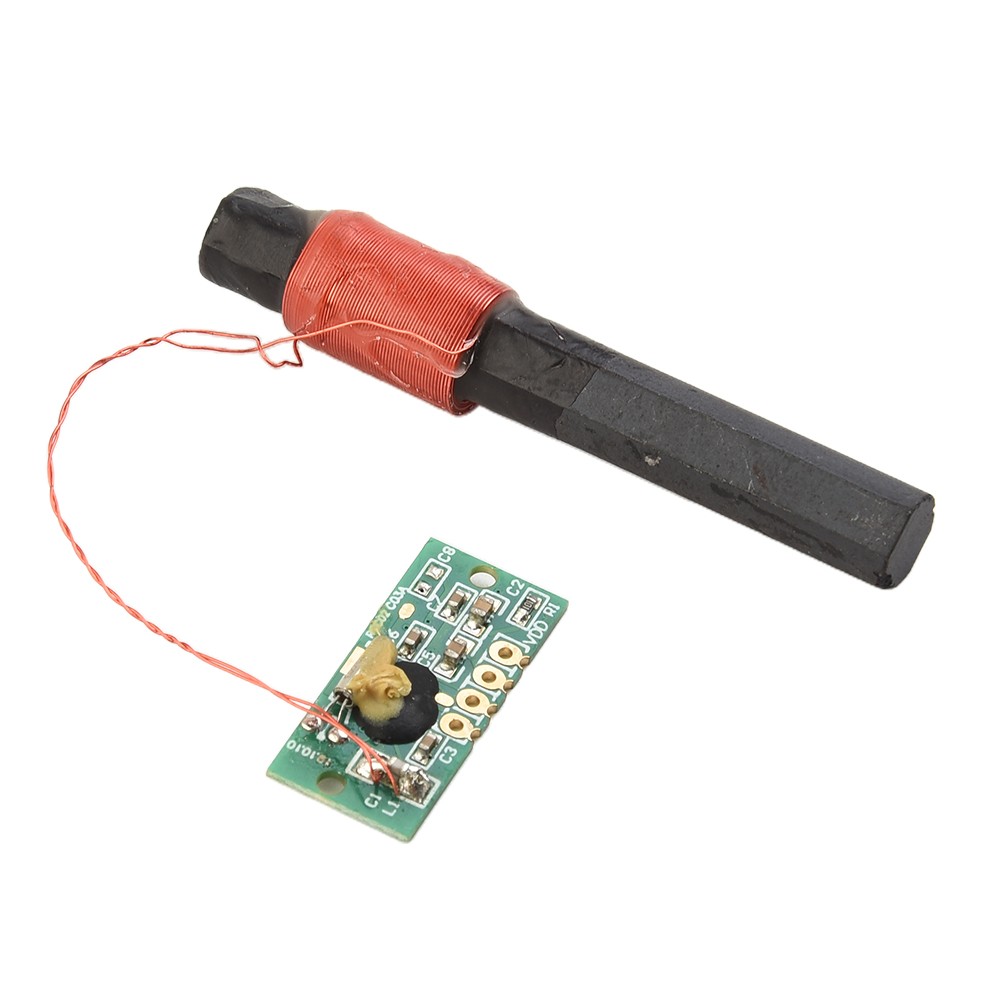

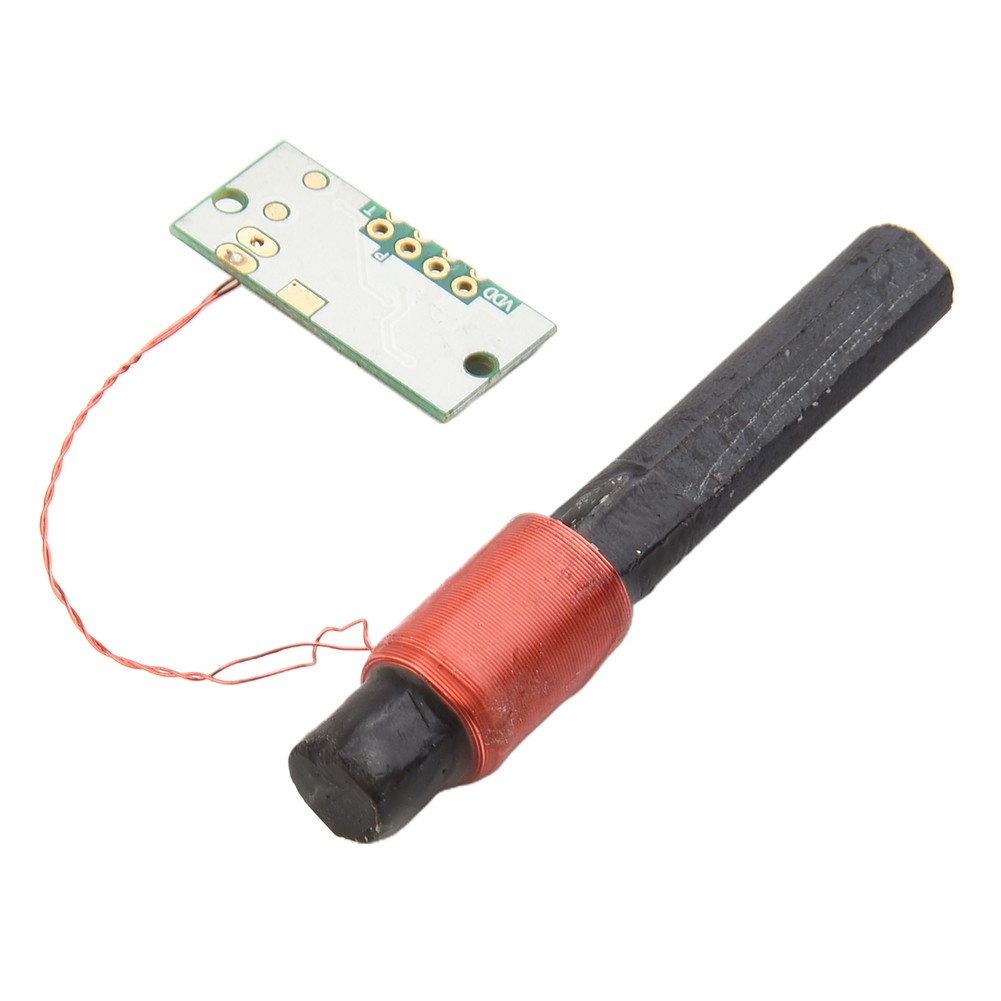

DCF receiver with DCF tuned to time signal transmitter WWVB/60KHz. The induction signal is sent to the IC for amplification, demodulation, and then identified by the for MCU, so that the date and time of the timing center are completely consistent.

Below you will find important setup and circuit diagrams.


Technical Specifications

Product number: WVB-0860N-03A

RCCM category: WWVB/60KHz single for frequency

PCB size: 25.0x11.5x1.0mm/FR4

size: AR8x60mm/High Q

Nominal for frequency: 60KHz±300Hz

Sensitivity: 28±2dB

Receiving IC: CME6005


    • Operating voltage: 1.1... for 3.3 V

    • Current consumption: 85 µA max

    • Receiving for frequency: 60KHz

    • Board size (without ) LxWxH: 22x13.5x1 mm

    • quality: LxØ: 60x10mm

    • for Scope of delivery: 1 piece

       ⇒ DCF receiver with


    • connect:

       ⇒ Ground = Pin

       ⇒ Operating Voltage = Pin

       ⇒ data = pin T

       ⇒ Power On/Off = Pin P1

    • Important note:

       ⇒ PIN P1 is an on/off switch and must be set to for logic low.


Note: The single- for frequency cannot switch between different frequencies of DCF/WVB/HBG/BPC. The for JJY dual- for frequency can switch between the two frequencies of 40K/60K. As a single- for frequency , it can only receive signals in this for frequency band.


Package Included:

1*Receiver
