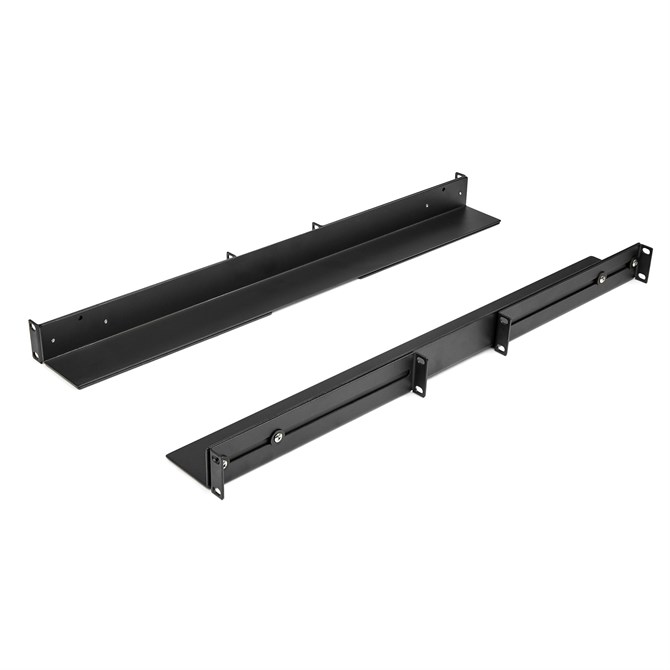

StarTech.com 1U 19 " Server Rack Rails - 24-36 " Adjustable Depth - Universal 4
Universal | EIA/ECA-310 Compliant | Supports up to 200lbs
These 1U server rack rails let you mount devices, such as servers or networking equipment, that did not come with rack rails into your 19- 4 post rack. The adjustable server rack rails are also a great solution for mounting OEM equipment such as Dell-, IBM-, HP- or Apple servers.
Universal design mounts to almost any 19" server rack
Adhering to the EIA/ECA-310 standard for 19 inch server rack equipment and accessories, these mounting rails are compatible with most 19 inch server racks. The depth is adjustable for a variety of rack sizes and configurations up to a maximum depth of 36 inches.
Maximum durability
To ensure your equipment is secure, these universal rack mount rails feature cold-rolled steel construction. The durable design can support a weight load of up to 200 lbs (90 kg).
The Choice of IT Pros Since 1985
StarTech conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech Technical Advisors have broad product expertise and work directly with our StarTech Engineers to provide support for our customers both pre and post-sales.
The UNIRAILS1UB is backed by a lifetime StarTech warranty with free technical support.
The StarTech Advantage
Specs
Features
Type
Characteristics of the device.
Rack rail
Product colour
The colour e.g. red, blue, green, black, white.
Black
Maximum weight capacity
The maximum weight that the product is designed to hold/store.
90.7 kg
Compliance industry standards
List of characteristics that describe methods of compliance to industry-defined standards for the product
EIA-310-D
Weight & dimensions
Width
The measurement or extent of something from side to side.
80 mm
Depth
The distance from the front to the back of something.
628 mm
Height
The measurement of the product from head to foot or from base to top.
45 mm
Mounting depth (min)
61 cm
Mounting depth (max)
91.4 cm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
3.5 kg
Packaging data
Quantity per pack
2 pc(s)
Package width
The distance from one side of the packaging to the other.
220 mm
Package depth
The distance from the front to the back of the packaging.
640 mm
Package height
The distance from the top to the bottom of the packaging.
90 mm
Package weight
Weight of the packaged product.
4 kg
Packaging content
Quick installation guide
Screws included
Number of screws
8
Nuts included
Number of nuts
8
Washers included
Number of washers included
8
Technical details
Compliance certificates
CE, RoHS
Logistics data
Master (outer) case width
460 mm
Master (outer) case length
660 mm
Master (outer) case height
490 mm
Products per master (outer) case
pc(s)
Harmonized System (HS) code
85389099
