Description

It is a sturdy, durable, high precision, high flow rate, and high-efficiency single-head liquid filling machine made of high-quality stainless steel. Its unique leak-proof design and powerful diaphragm pump can greatly improve filling accuracy and efficiency. So, it will be an ideal helper for small-batch production in the chemical, beverage, grease, and cosmetic industries.

Key Features

Robust and Durable: The high-quality stainless steel is extremely robust and resistant to wear, rust, and corrosion to ensure a long service life and meet production hygiene requirements.

Two Filling Modes: The automatic mode allows you to set the interval time for free filling, while the manual mode is controlled by a footswitch to start and stop, with a single press for one dispense.

Easy to Operate: Upgrading the traditional knob adjustment to a more intuitive, accurate key input method with LED displays makes the time adjustment more precise and convenient. The one-touch switch also provides great ease.

Accurate Adjustment: It uses a frequency converter, with a high precision multi-turn potentiometer and lockable discs, so that the flow rate adjustment is stable and accurate, within ±1% error.

Health Assurance: The liquid only contacts the food-grade silicone tube and peristaltic pump tube, and the filter configured also can effectively filter particles, impurities, etc., to ensure the sanitation and quality of the filling liquid.

High Efficiency: Its powerful peristaltic pump, with self-priming function without pumping and air evacuation, allows efficient filling at a flow rate of 22 oz/min. In addition, the counting function greatly increases the efficiency.

Anti-drip Design: The drip-proof filling head with a one-way valve prevents the backflow of liquid, thus reducing waste and enabling precise filling.

Considerate Design: The brackets with screw connection design can not only increase stability but also provide you with a wider adjustment range of up to 11.81in. The memory function automatically saves the setting parameters in a power failure, saving you the trouble of frequent adjustment.

Easy to Clean: Place the mesh filter in clean water or detergent and press the "INCHING" button to quickly and easily clean the entire tubing of the machine without disassembling the filling machine.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Two Nozzles: The package includes nozzles with an outer diameter of 4 mm and 6 mm for bottles with different sizes of openings.

Multiple Cooling Holes: The cooling holes on the side of the machine provide good heat dissipation performance, and can maintain stable performance even after long-term operation.

Application

It is suitable for the small batch production of low viscosity and non-particle liquid with good fluidity in pharmaceutical, petroleum, chemical, edible oil, beverage, cosmetics, and other industries. It can withstand a maximum temperature of 140°F

Specifications

Material: Stainless Steel, Food-grade Silicone

Color: Silver

Model: GZL-80

Voltage: 110V 60HZ

Power: 100W

Display Type: LED

Filling Accuracy: Within ±1%

Plug Type: American Standard

Maximum Suction Range: 2m/6.56ft

Liquid Max. Temperature: 60℃/140°F

Automation Degree: Semi-automatic

Power-off Memory Function: Yes

Anti-drip Function: Yes

Recommended Filling Range: 1-50ML/0.033-1.69oz

Filling Flow: 650ML/min (22oz/min)

Repetition Error: ±0.5%

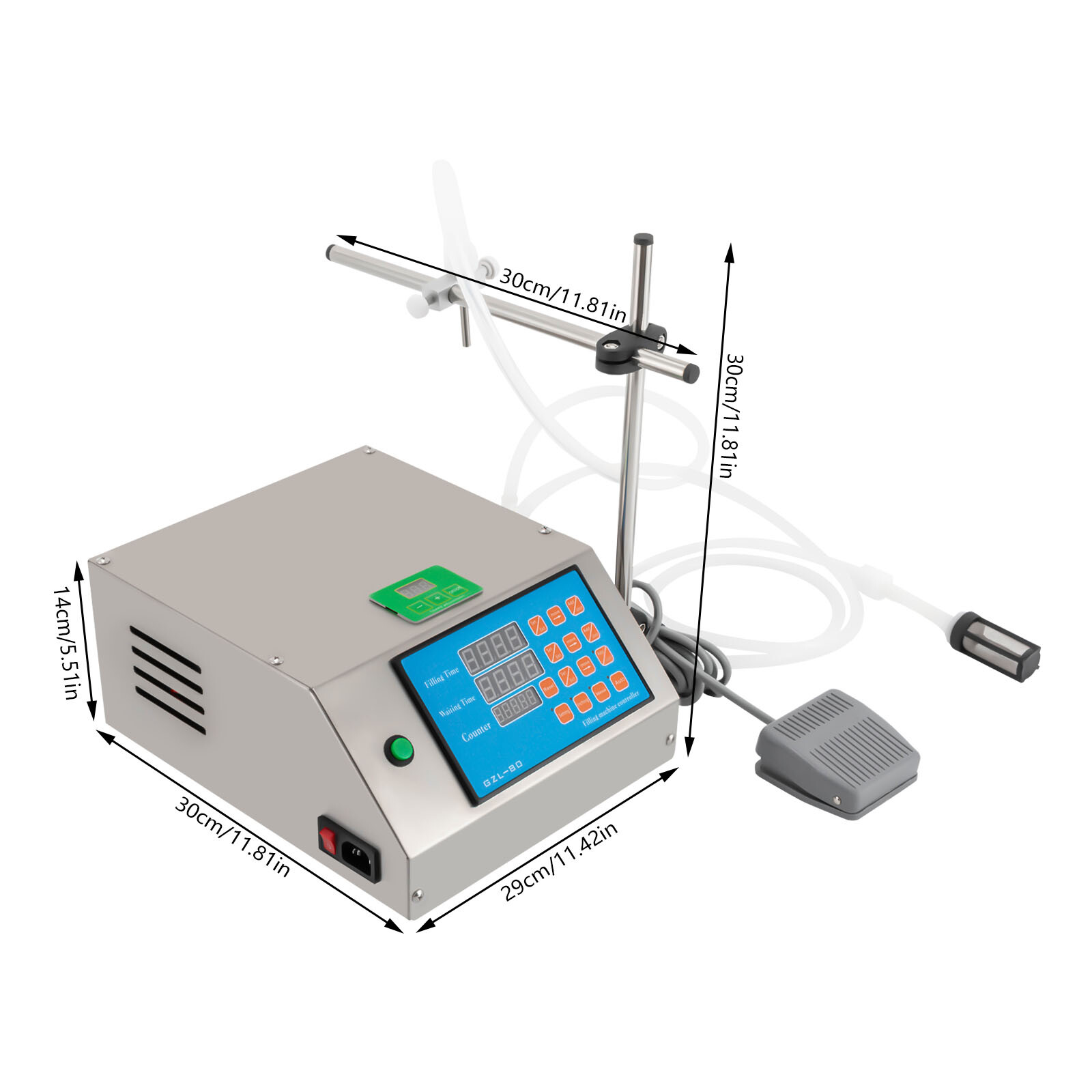

Product Size: 29*30*14cm/11.42*11.81*5.51in

Bracket Length: 30cm/11.81in

Nozzles Specification: 4mm/0.15in, 6mm/0.23in

Packing Size: 37*31*18cm/14.56*12.2*7.08in

Gross Weight: 5kg/11.02lbs

Net Weight: 4.7kg/10.36lbs

Package Included

1* Liquid Filling Machine

1* Power Cord

2* Brackets

1* Footswitch

2* Nozzles

1* English Manual

All Accessories Needed for Installation

Notes

• It is recommended to fill bottles less than 1.69Oz, otherwise, the time cost of filling will be very long. Please note that when the liquid is viscous, the speed will decrease.
• Please note that it is not suitable for highly corrosive and highly acidic substances and essential oils with alcohol concentrations higher than 75%. It is not applicable to glycerin, oil, shampoo, etc.
• Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
