DMX512 Controller 24 Channel · 384 DMX Channels · 30 Banks · 6 Chases · LED Gooseneck
DMX512 / 1990 Standard
Controls 24 intelligent lights of up to 16 channels — totally 384 channels.
30 banks, each with 8 scenes. 6 chases, each with up to 240 scenes.
Record up to 6 chases with fade time and speeds.
16 sliders for direct control of channels.
MIDI control over banks, chases and blackout.
Built-in microphone for music mode.
Auto mode program controlled by fade time sliders.
DMX in/out: 3-pin XLR
LED gooseneck lamp included.
Plastic end housing.
The Controller is a universal intelligent lighting controller. It allows control of 24 fixtures composed of 16 channels each and up to 240 programmable scenes.
Six chase banks can contain up to 240 steps composed of saved scenes in any order. Programs can be triggered by music, MIDI, automatically or manually.
All chases can be executed at the same time.
On the surface you will find various programming tools such as 16 universal channel sliders, quick access scanner and scene buttons, and an LED display indicator for easier navigation of controls and functions.
Interface: LED lamp interface
Power input: 9-12V 500mA
- 384 DMX channels (24 fixtures x 16 ch)
- 30 banks · 8 scenes per bank
- 6 chases · up to 240 scenes each
- MIDI control over banks & chases
- Built-in microphone for music trigger
- 16 universal channel sliders
- Auto / Manual / Music modes
- LED gooseneck lamp included

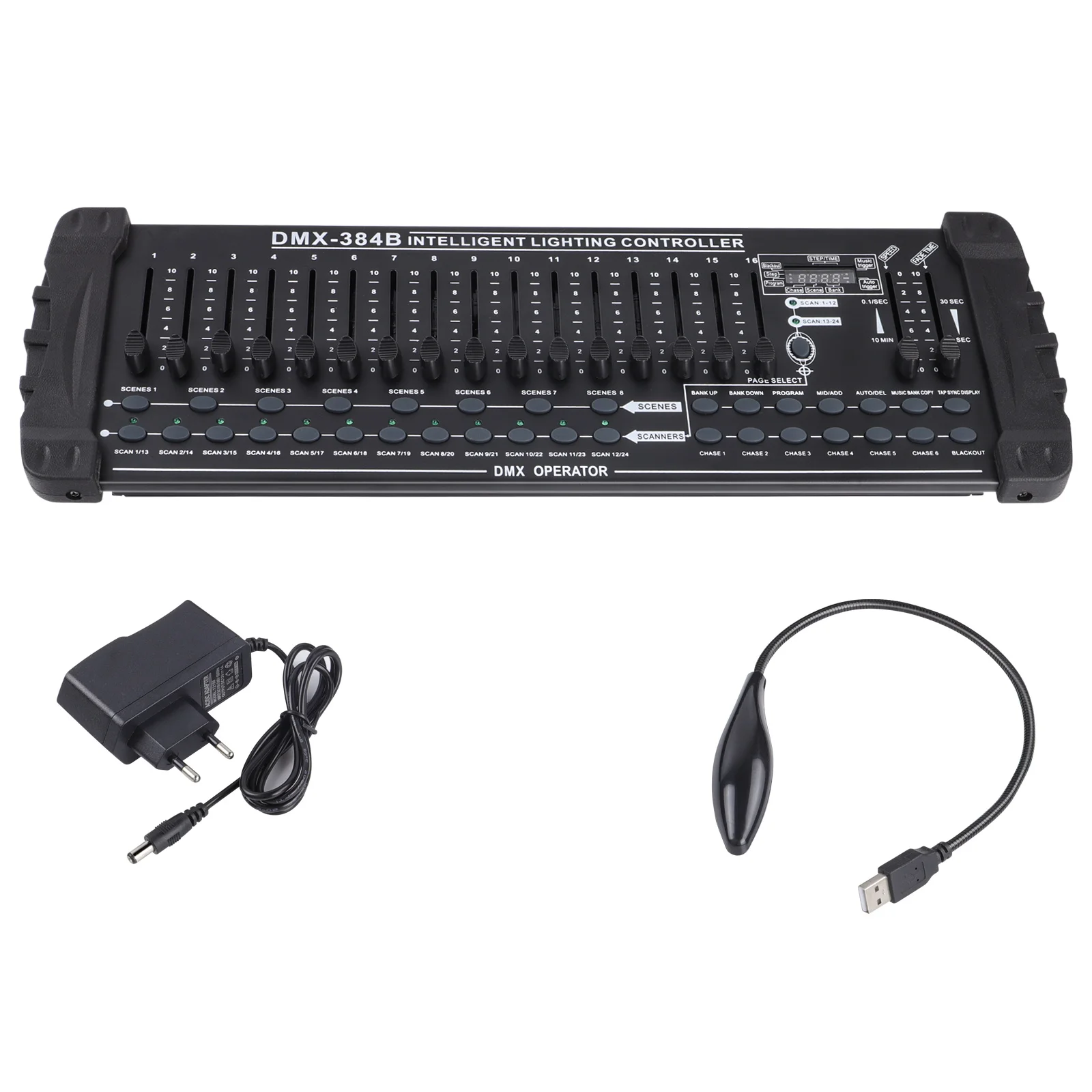

📦 Package List:
1. DMX 512 Controller ×1
2. 9-12V 500mA, 90V~240V Power Adapter ×1
3. LED gooseneck lamp ×1
4. Manual ×1
