QSPAA

H Beam 4340 Connecting Rods For Opel Vauxhall Corsa B 1.6 C16XE Tigra X16XE 18mm

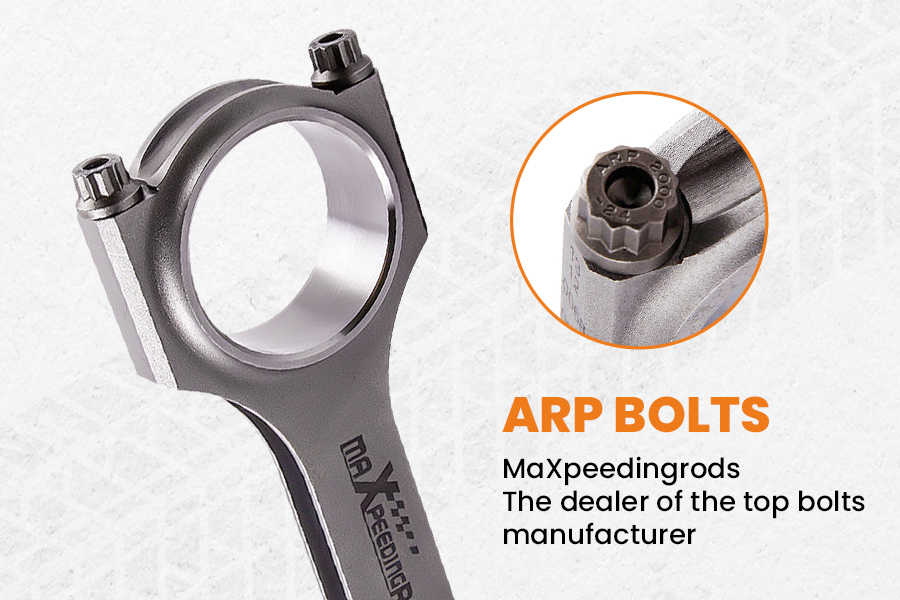

ARP Bolts



The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

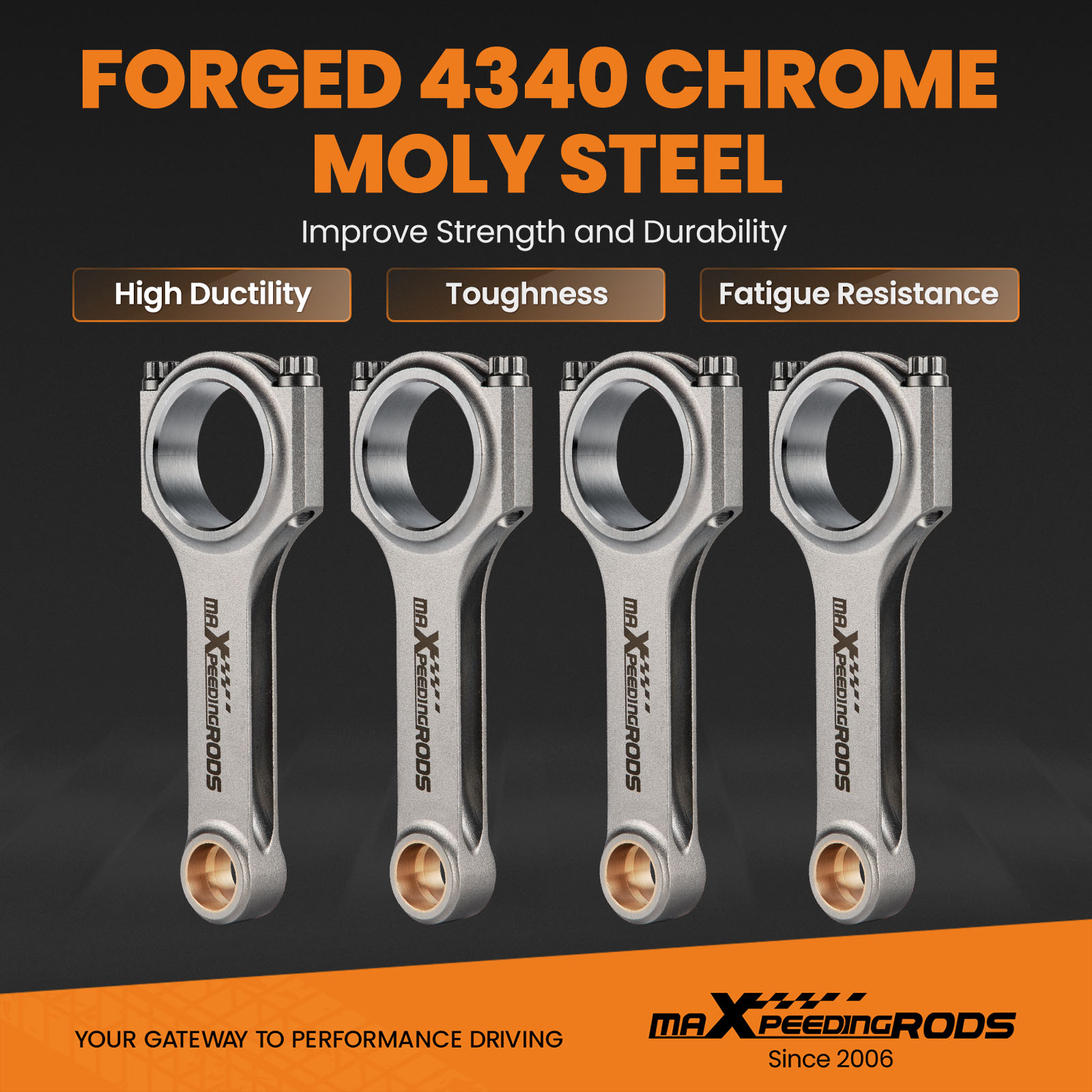

Forged 4340 Steel

Forged 4340 Steel

Forged 4340 Chrome Moly Steel improves strength and durability, dedicated for Racing.

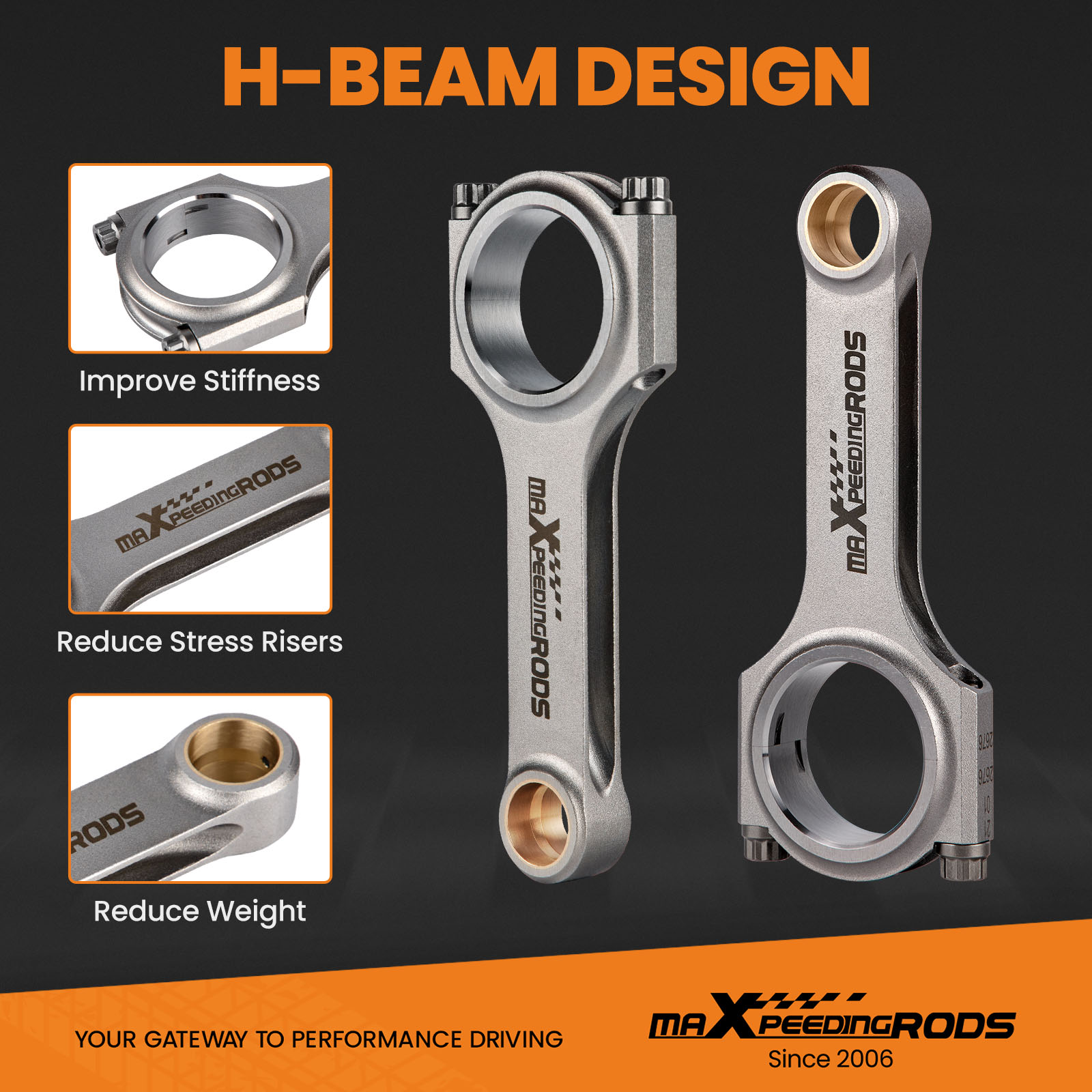

H-Beam Design

H-Beam Design

H-Beam helps improve stiffness, reduce stress risers and weight.

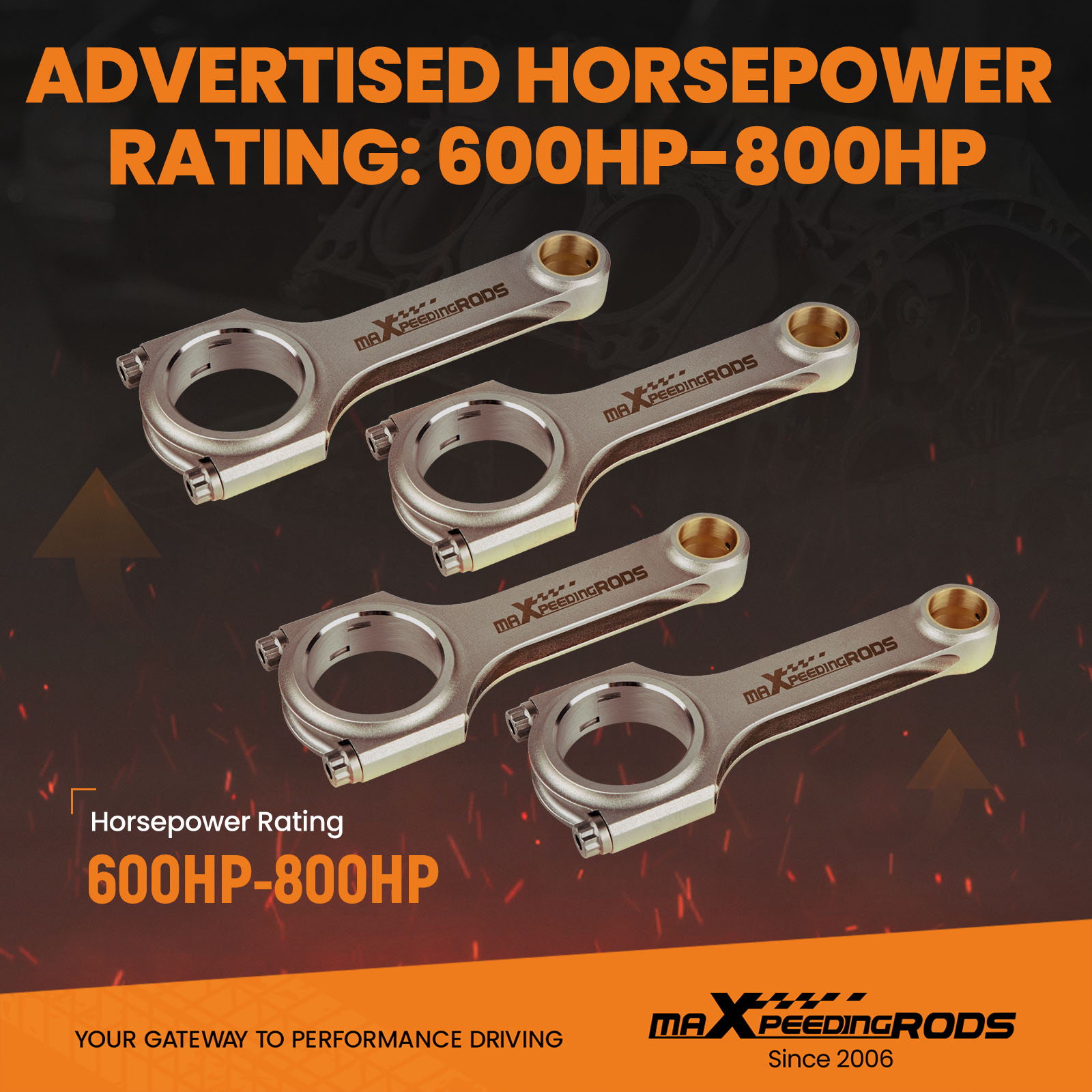

Horsepower Rating

Horsepower Rating

Advertised horsepower rating: 600HP-800HP.

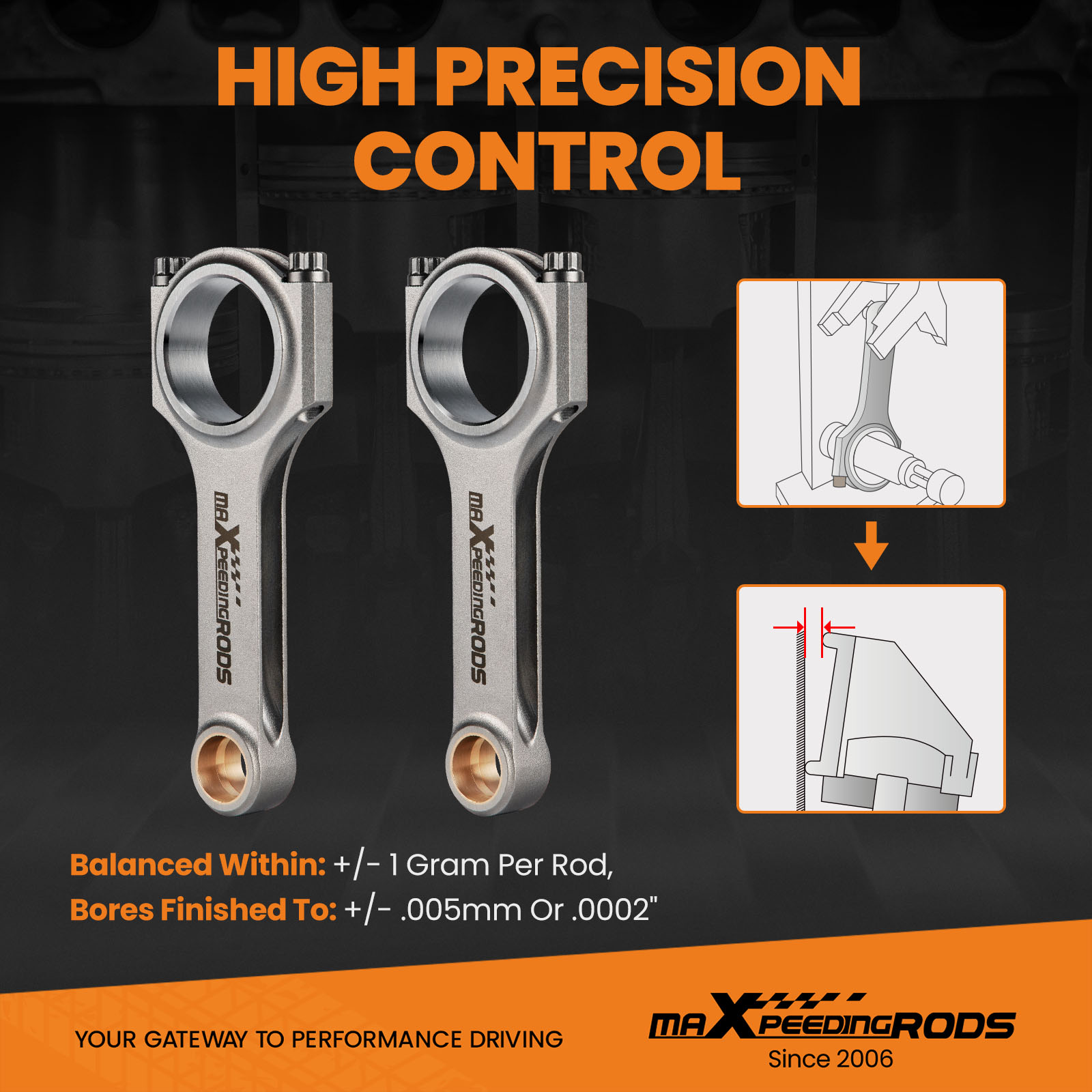

High Precision Control

High Precision Control

Balanced within:+/- 1 gram per rod,

Bores finished to:+/- .005mm or .0002".

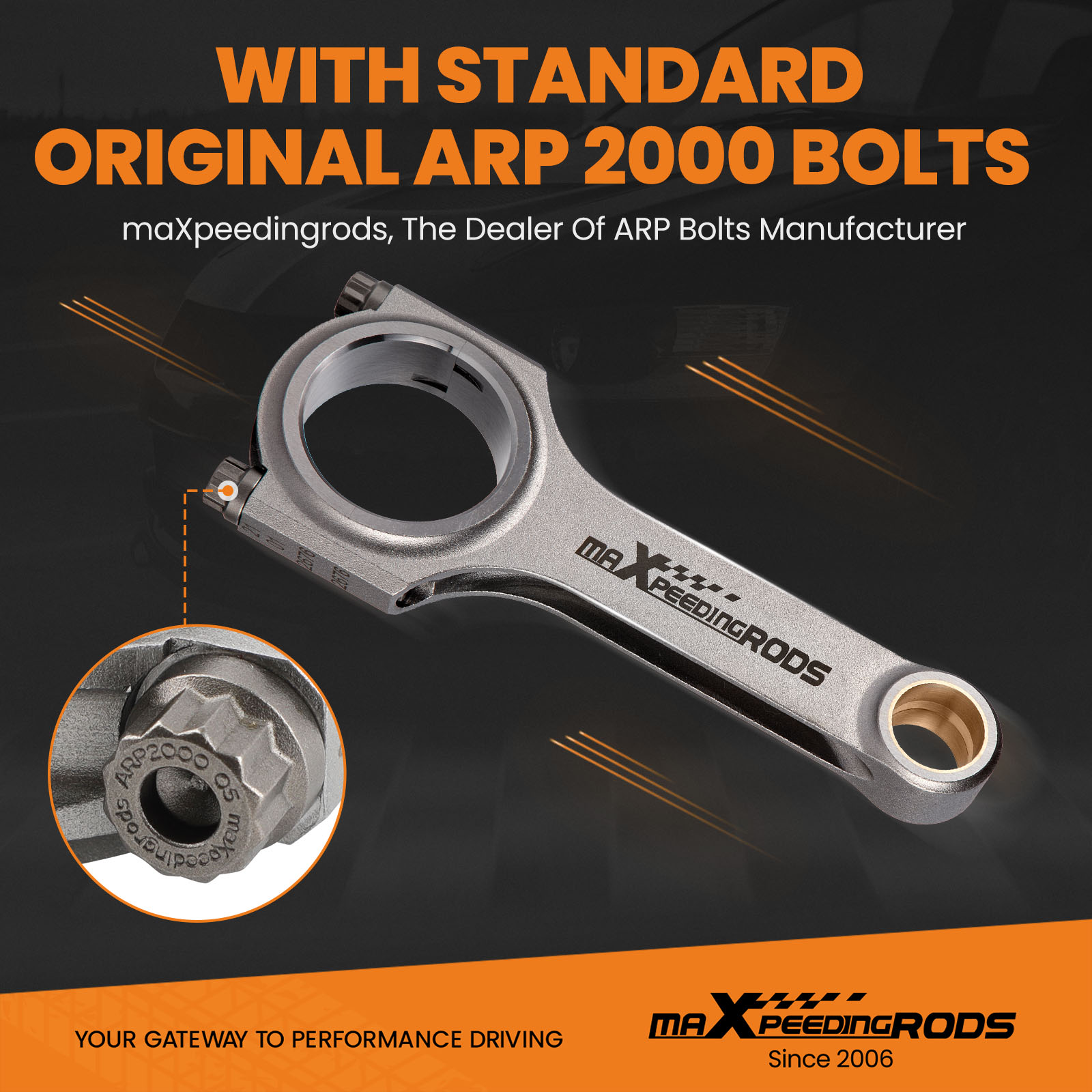

ARP 2000 Bolts

ARP 2000 Bolts

With Standard Original ARP 2000 Bolts.

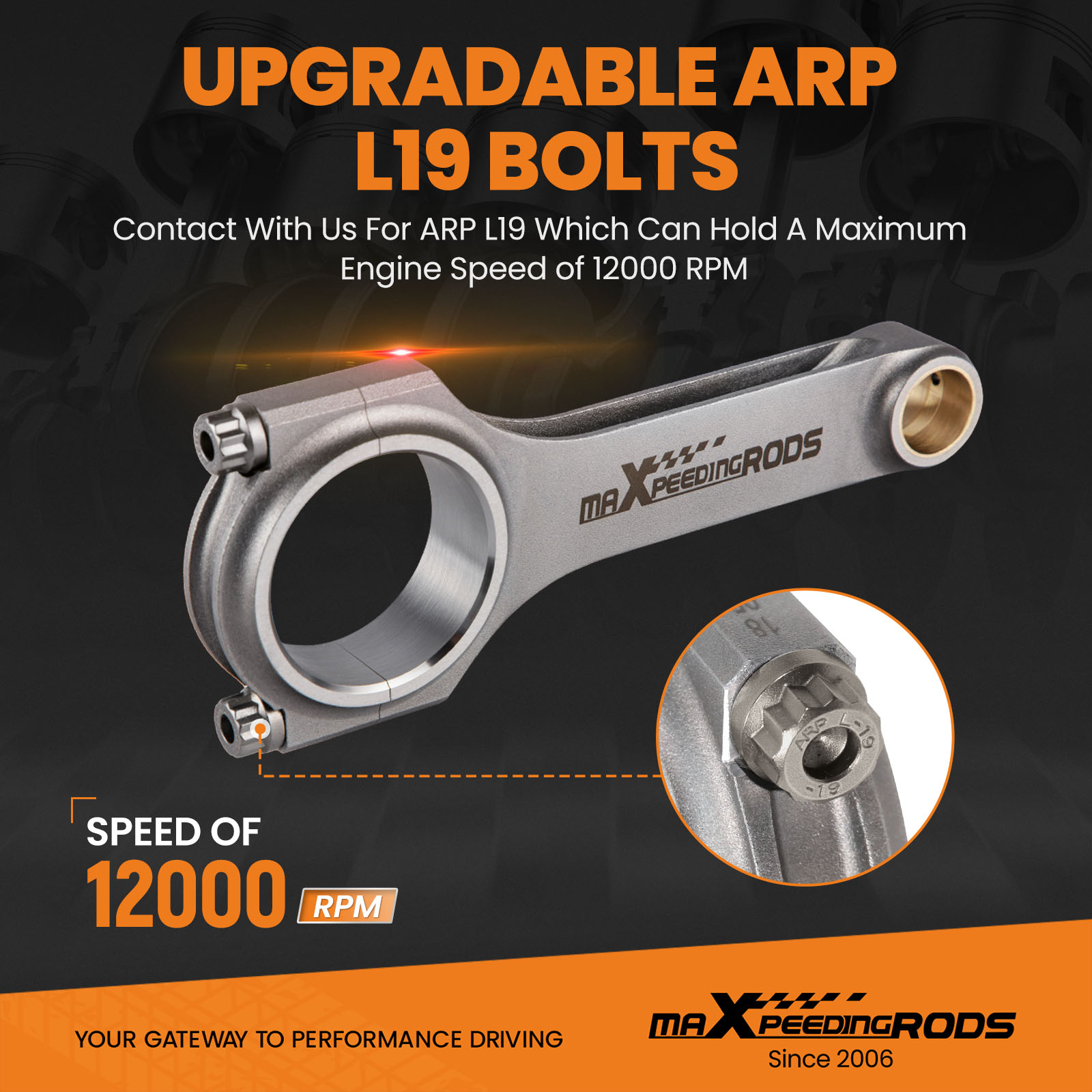

Upgradable ARP L19 Bolts

Upgradable ARP L19 Bolts

Contact with us for ARP L19 which can hold a maximum engine speed of 12000 RPM.









Application


For Opel Corsa GSi (1993-1994) – Fits C16XE 1.6L 16V engine
For Opel Astra G 1.6L 16V – Fits X16XE 1.6L 16V engine
For Opel Corsa B 1.6L 16V – Fits X16XE 1.6L 16V engine
For Opel Tigra A 1.6L 16V – Fits X16XE 1.6L 16V engine
For Opel Vectra B 1.6L 16V – Fits X16XE 1.6L 16V engine
For Opel Zafira B 1.6L 16V – Fits X16XE 1.6L 16V engine
Pin Type Floating Pin Piston

Dimension


Connecting Rod Length Center to Center 129.75mm/5.108in
Approximate Connecting Rod Weight 458g
Big End Bore Diameter 46.00mm/1.811in
Pin End Bore Diameter 18.00mm/0.709in
Big End Width 21.80mm/0.858in
Small End Width 17.90mm/0.705in

Specification

Beam Style: H-beam Street/Strip

Material: 4340 Chromoly Steel

Finish: Shot-peened

Wrist Pin Style: Floating

Clearanced for Stroker: Yes

Cap Retention Style: Through-bolt

Connecting Rod Bolt Brand: ARP

Connecting Rod Bolt Diameter: 5/16"

Connecting Rod Bolt Material: Alloy Steel

Fastener Yield Strength (psi): 220,000 psi (ARP 2000)

Connecting Rod Bolt Head Style: 12-point

CNC Machined: High Precision

Rod Cap Alignment: Precision dowels

Bore Tolerance: ±0.005 mm

Balancing: ±1 gram per rod

Weight Matched Set: Yes

Remanufactured: No

Testing: Magnafluxed, X-rayed, Ultrasonically tested

Heat Treated: Yes

Performance Ratings

Advertised Horsepower Rating: 200HP/piece

Advertised RPM Rating: 9000rpm

Packaging

Quantity: Sold as a set of 4

Package Size: 28CM*20CM*10CM
