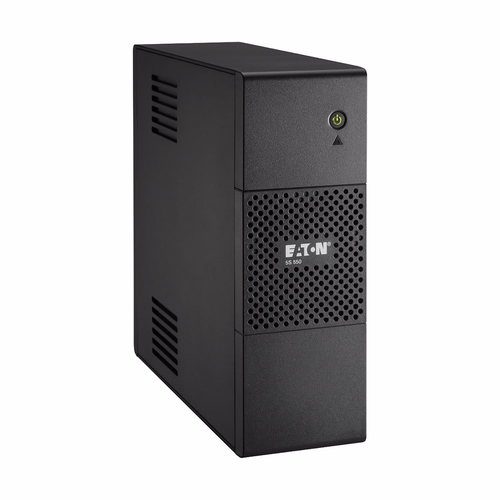

Eaton 5S700IBS Line-Interactive 1.5 Kva 900 W 175 V 275 V 46/70 Hz

Eaton 5S700IBS, Line-Interactive, 1.5 kVA, 900 W, 175 V, 275 V, 46/70 Hz The Eaton 5S UPS provides cost-effective line-interactive backup power and voltage regulation for small and medium businesses with workstations, desktop PCs, telephone equipment and POS applications. With its compact form factor, the 5S UPS can be utilized as a standalone tower or under a computer monitor.
Environmental Conditions

Maximum Operating Temperature35??C

Miscellaneous

Package Contents5S 700VA Tower Line-interactive UPS
2 x IEC-IEC Cables
USB Cable
User Manual
Safety Instructions
BS Input Cord


Interfaces/Ports

Network (RJ-45)No
USB (HID Compliant) PortYes

Technical Information

Plug/Connector TypeIEC 60320 C14
PhaseSingle Phase
Receptacle TypeIEC 60320 C13
Number of Surge-only Outlets1
Receptacle Detail3 x IEC 60320 C13

Battery Information

Battery ChemistryLead Acid
Battery Capacity7000 mAh
Number of Batteries1
Battery CharacteristicsSealed
Replaceable BatteryYes
DC System Voltage12 V DC

Power Description

Input Voltage230 V AC
Output Voltage230 V AC
Input Voltage Range175 V AC - 275 V AC
Input Frequency70 Hz
Load Capacity (VA)700 VA
Load Capacity (Watt)420 W


General Information

Product TypeLine-interactive UPS
Manufacturer Part Number5S700IBS
powerquality.eaton/UK/
ManufacturerEaton Corporation
Product Name5S 700VA Tower Line-interactive UPS
Product Series5S
Brand NameEaton

Physical Characteristics

Weight (Approximate)7.10 kg
Form FactorTower
Height250 mm
Width250 mm
Depth87 mm
Product ColorBlack
Color FamilyBlack
