All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Application

for Peugeot 205 Rallye 1.3L TU24

Specification

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

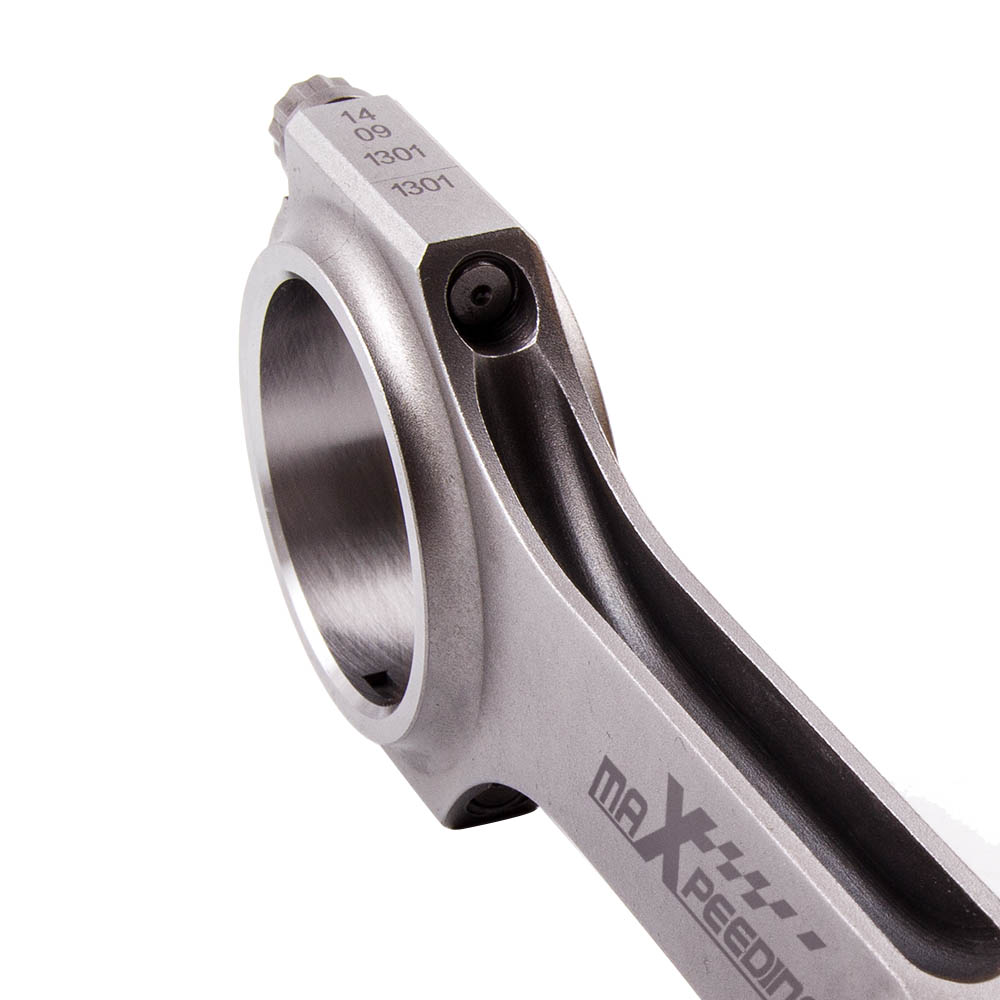

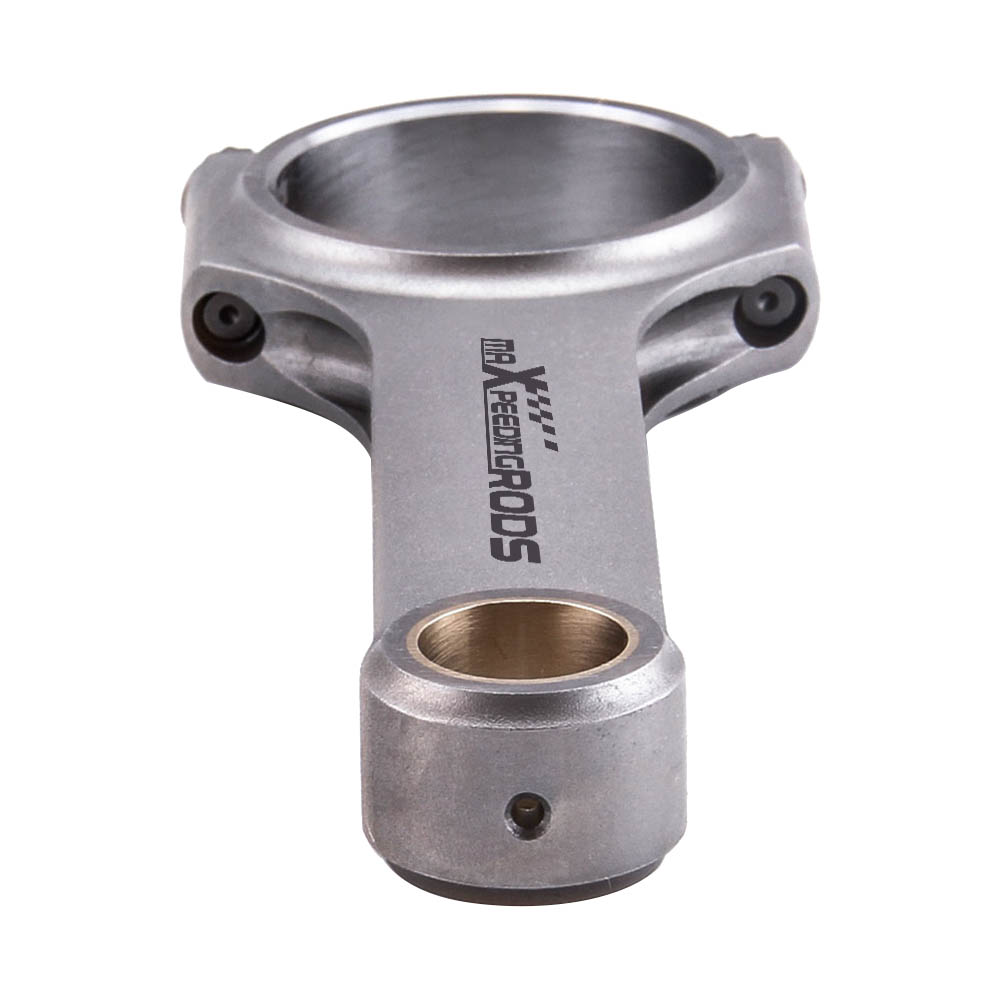

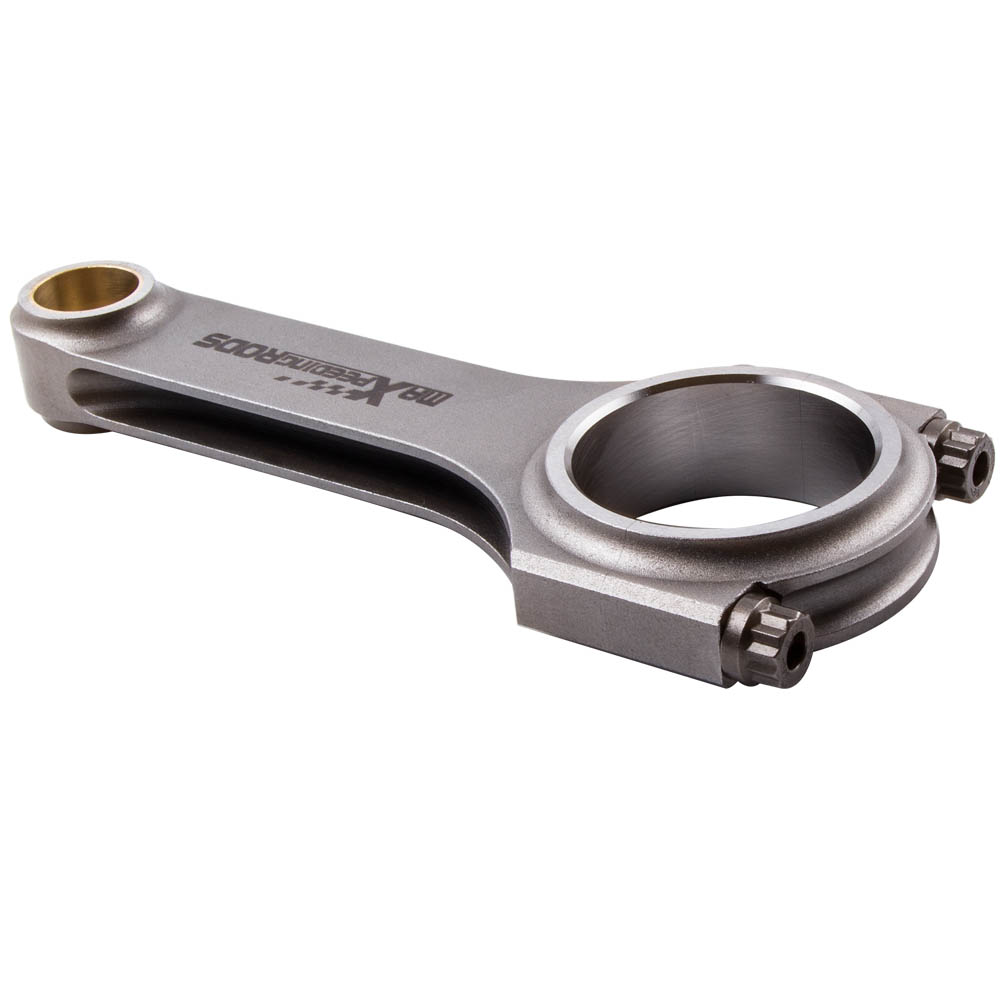

Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set

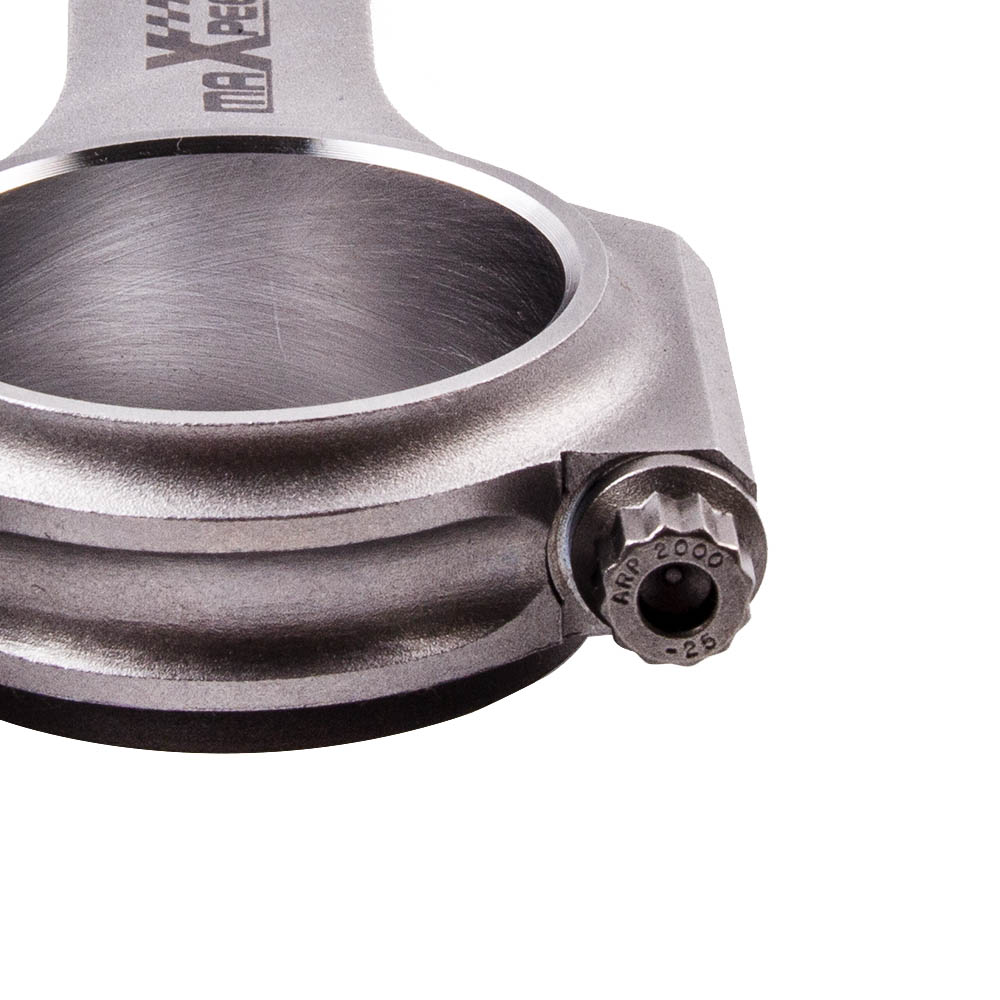

Bolts: Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 3/8"
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
warranty: 2 years warranty for any manufacture defect

Dimensions

Center to center length: 112.3 mm
Big end diameter: 48.66 mm
Small end diameter: 18 mm
Big end width: 23.9 mm
Small end width: 23.9 mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Learn more about CUSTOM SERVICE
