Wifi Tuya APP Access Control System Kit Waterproof RFID Access Control Keypad, Fail-Safeelectric Strike Lock, 12VDC Power Supply Unit, Doorswitch Button, 125Khz RFID Badge Key Fobs

Description

Power Source	Corded Electric
Compatible Devices	Personal Computer
Connectivity Technology	Wired
Alert Type	Entry Only
Voltage	260 Volts
Control Method	App
Smart Home Compatibility	Smart Home Compatible
Item Dimensions	4.49 x 2.91 x 0.63 inches
Item Weight	1.02 Kilograms
Unit Count	15.0 Count
Built-In Media	1 x RFID Access control system kit
Model Number	K9 Tuya Kit1
Manufacturer	Shenzhen Chuangka Electronic Technology Co., Ltd
Installation Method	Self-Adhesive
Assembly Instructions Description	Includes detailed instructions for easy setup.
Item dimensions L x W x H	4.49 x 2.91 x 0.63 inches

Access Controller Keypad:
Capacity: 2000 user
Material: ABS plastic
Working Frequency: 125KHz
Card reading type: support EM compatible card
Card reading distance: 0-5CM
Open Door Method: Card, 4 digits PIN, Card + PIN, Tuya APP remote unlock
Can set master card: Yes
Waterproof Level: IP68, suitable for outdoor use
Doorbell Interface: supports external wired doorbell
Wiegand Signal: Wiegand 26/34 bits input/output, supports external card reader
Backlight: with blue backlight, can work normally even at night or in dark envoriment.
Built-in Buzzer: Yes (Warm Tip: The backlight and buzzer can't be turned off.)
Working Indicator: Red / Green LED light
Working Voltage: DC 12V
Working Current: ≤3A
Autolock Time Delay: 1~99 seconds adjustable
Temperature: -40℃ ~ 60℃
Humidity: 10% ~ 90%
Dimension: 114*74*16 mm

Power Supply:
Size: 105x68x34 mm
Input Voltage: AC 110-260V / 50~60HZ
Output Voltage: DC12V / 3A
Autolock Time Delay: 0~15 seconds adjustable
Overload Protection: all outputs in a short circuit, overload are protected.

Exit Button:
Size: 86 * 86 mm
Maximum Working Voltage: 36V DC/ 3A ~ 5A
Contact Output：NC/COM/NO

RFID Badge:
Working Frequency: 125KHz, standard EM card
Quantity: 10 pieces, each keyfob has an unique ID number

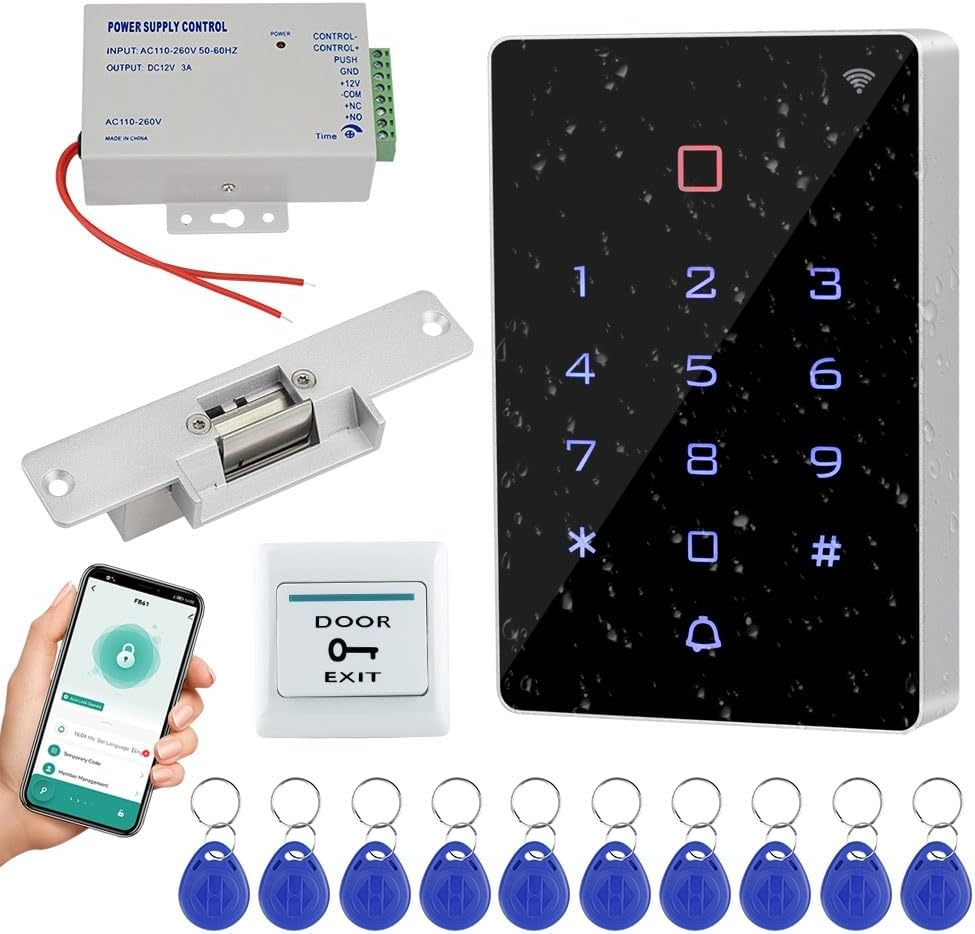

• This is a full set of access control system kit, including a access controller, 12VDC power supply, electric magnetic lock and a switch button, suitable for door entry systems of appartment, offices, factories, hotel, family house, school, etc
• This access controller supports to pair with Tuya APP by WIFI, which enables you to remotely lock and unlock your door from anywhere in the world. Also, you can share control with your families and friends, and click reminder information to view logs
• Full programming from the keypad, support add/delete cards, set password, etc. Doesn't need to connect on the computer, can work alone. Support to open door by password, RFID card, password+RFID cards, 2000 user capacity
• An exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once
