Product Description
Feature:

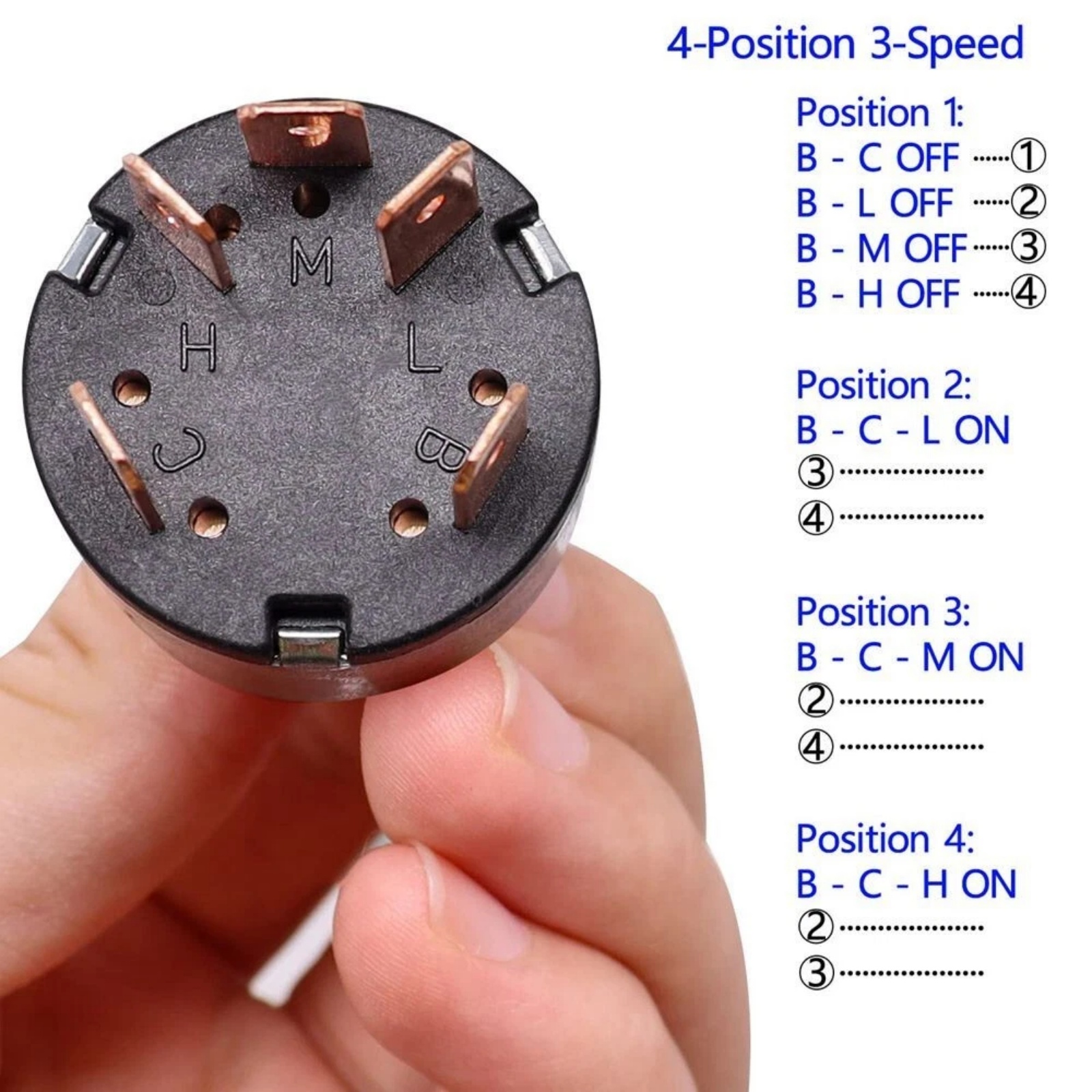

Easy to use: 4 positions(0-1-2-3): Position 1: (B - C)/(B - L)/(B - M)/(B - H)OFF; Position 2: (B - C - L)ON, (B - M)/(B - H) OFF; Position 3: (B -C - M)ON, (B - L)/(B - H)OFF; Position 4: (B - C - H)ON, (B - L )/(B - M)OFF.

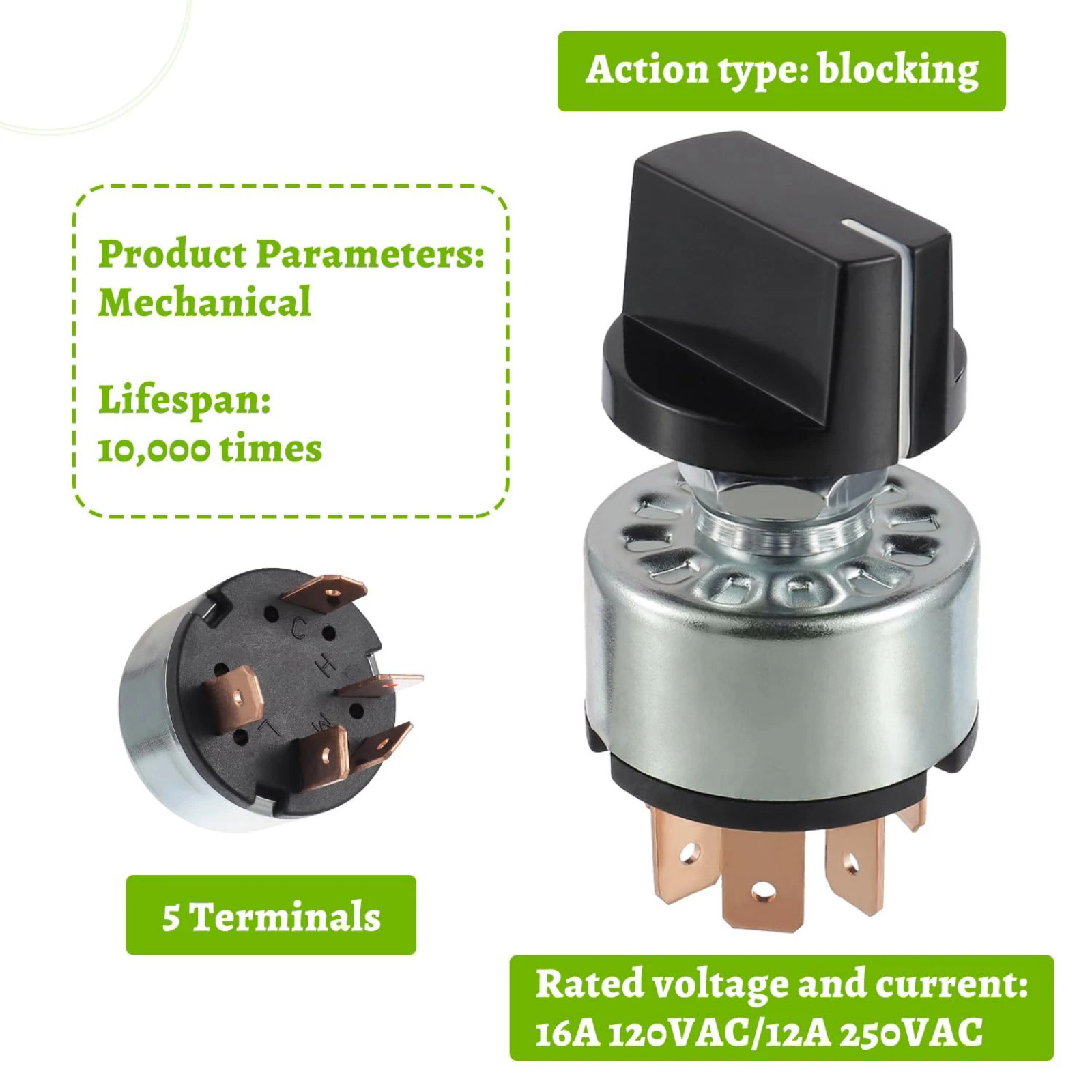

Product parameters: Mechanical; life: 10,000 cycles; Rated Voltage & Current: 16A 120VAC/12A 250VAC; 5 terminals.
Specifications:
Gear position: 4-position three gear rotary switch
Rotation angle: 30 degrees

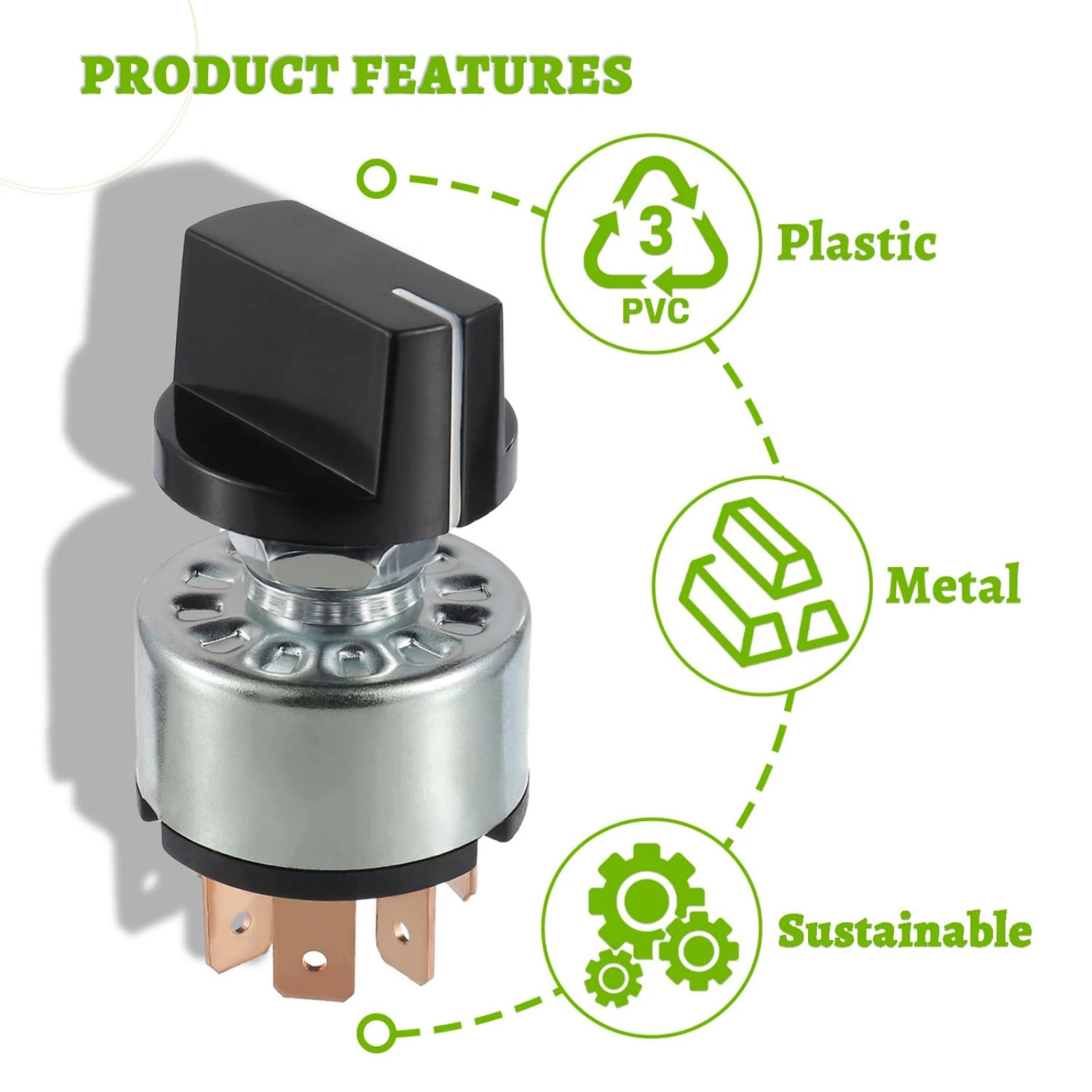

Material: Alloy/Copper
Terminal Electrical life: 10,000 times
Contact resistance: <30mΩ
Insulation resistance: 100MΩ
Voltage withstand: 1500VAC
Stop strength: 6KG
Rated Voltage & Current: 16A 120VAC/12A 250VAC

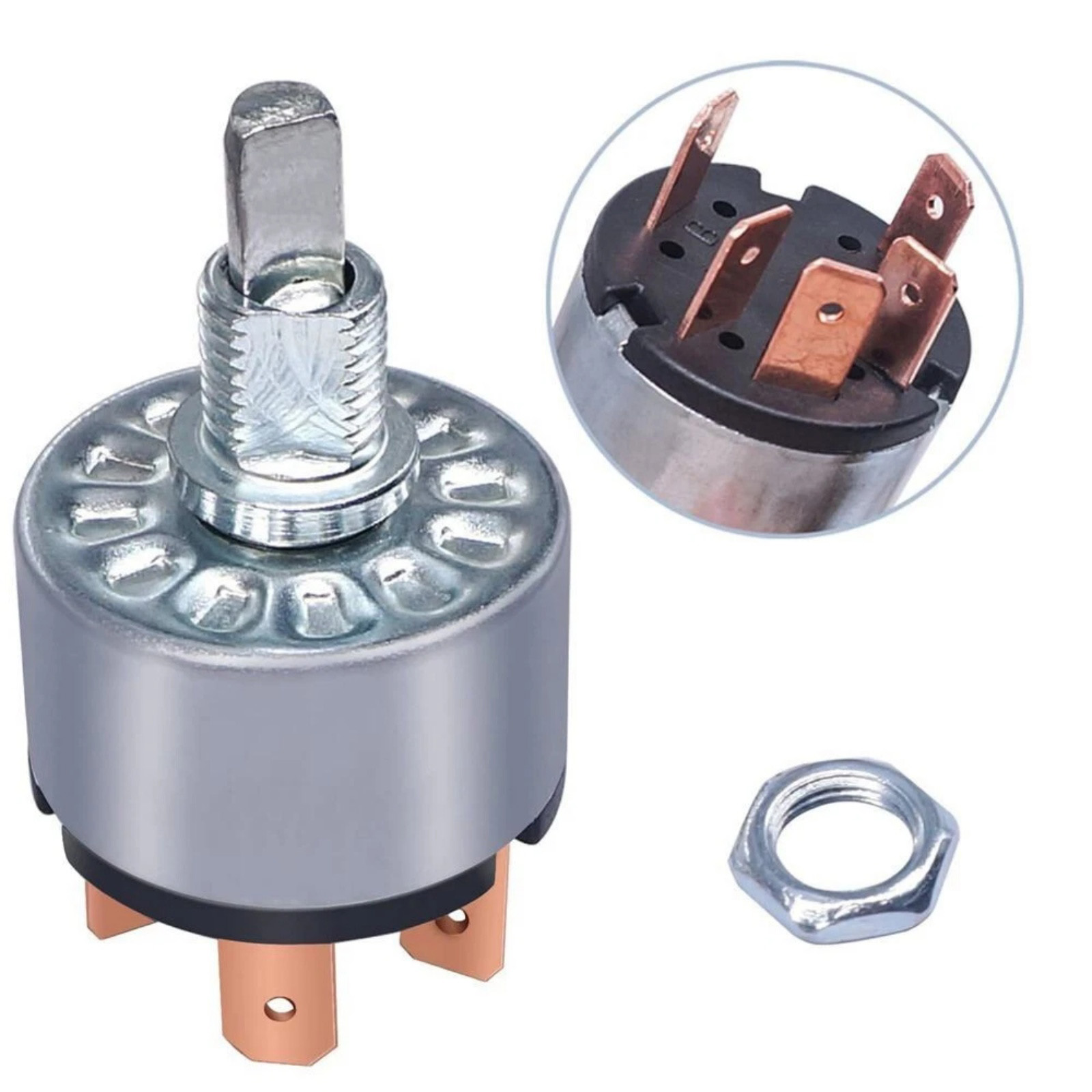

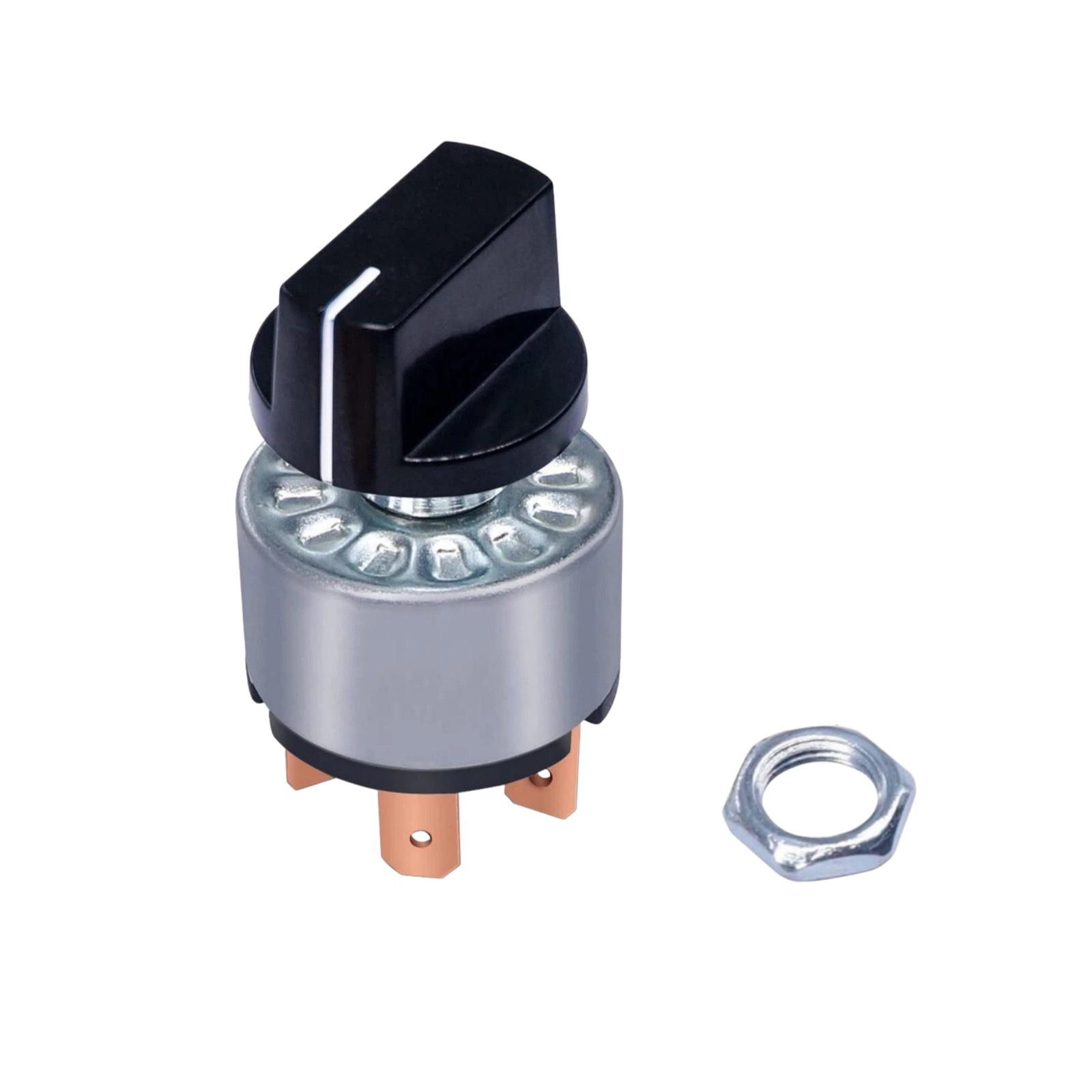

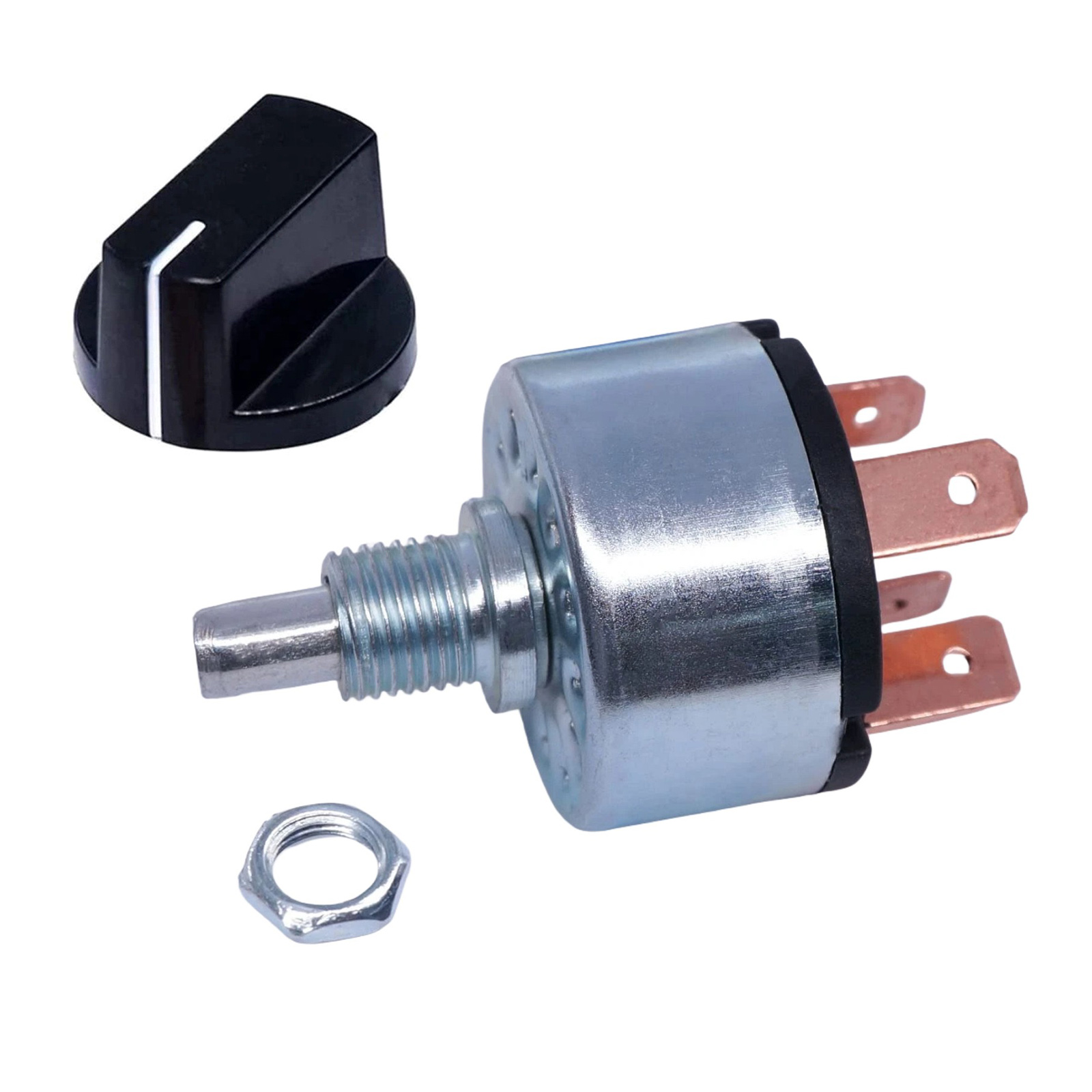

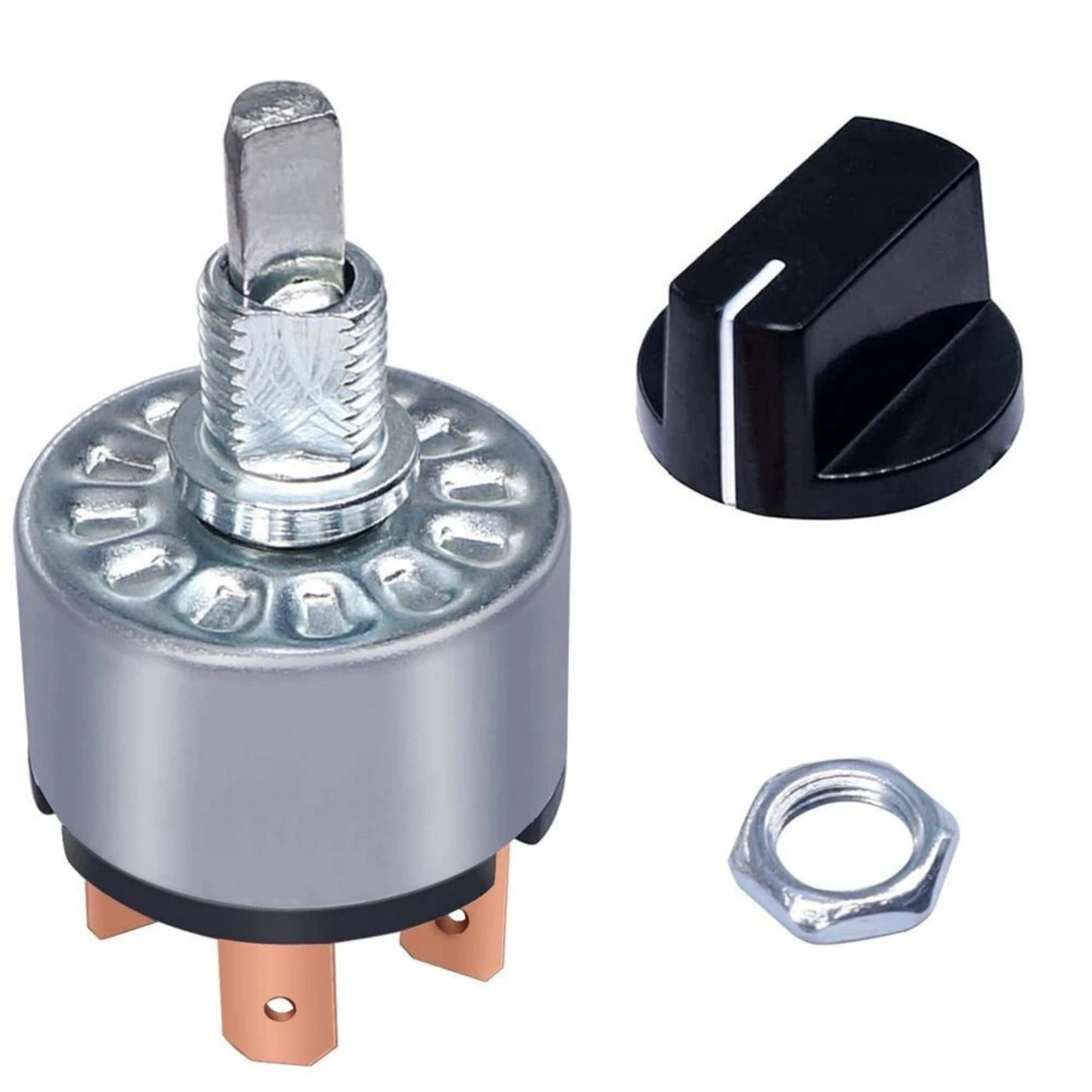

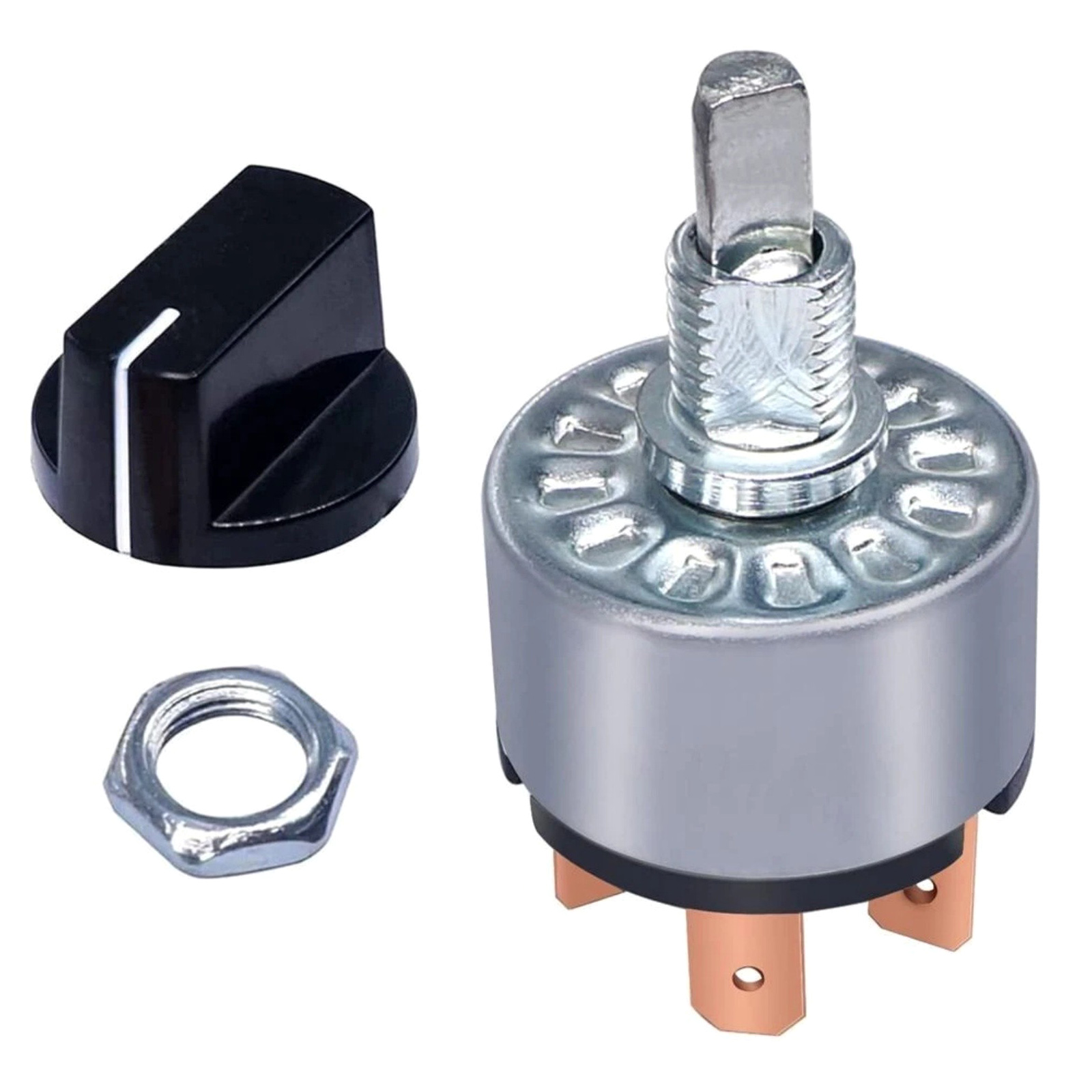

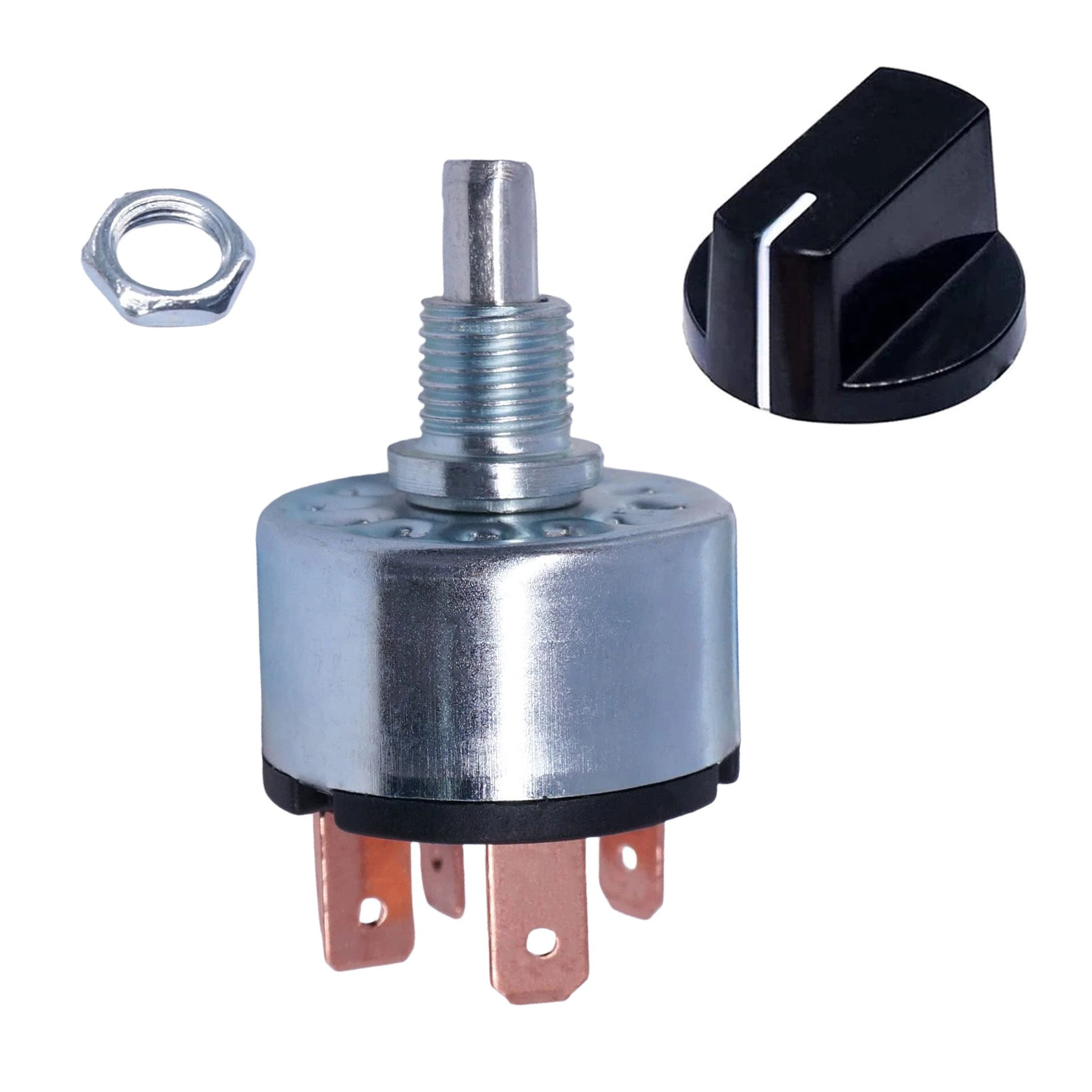

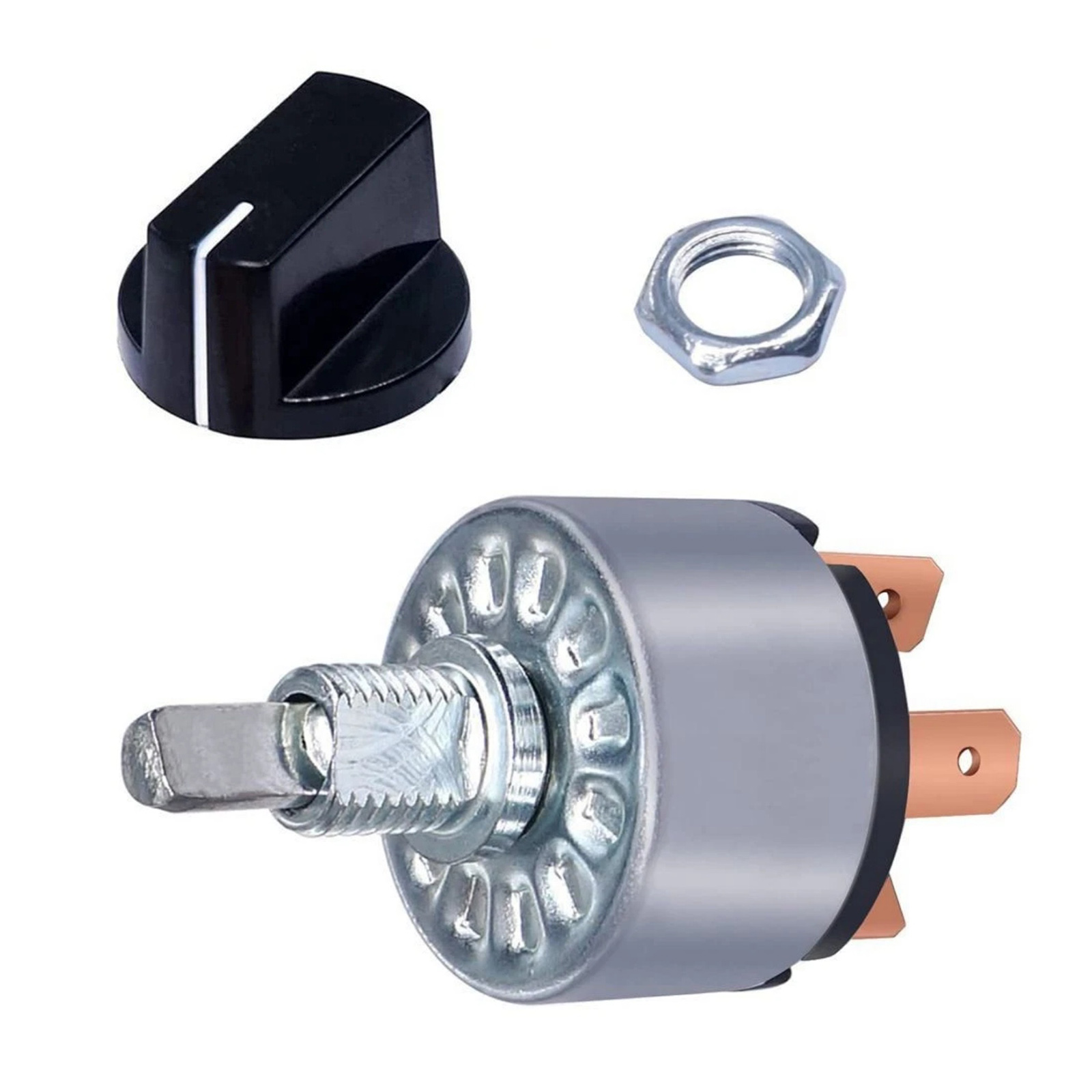

Packaging Includes:
1 x Rotary Switch
1 x Knob
1 x nut
