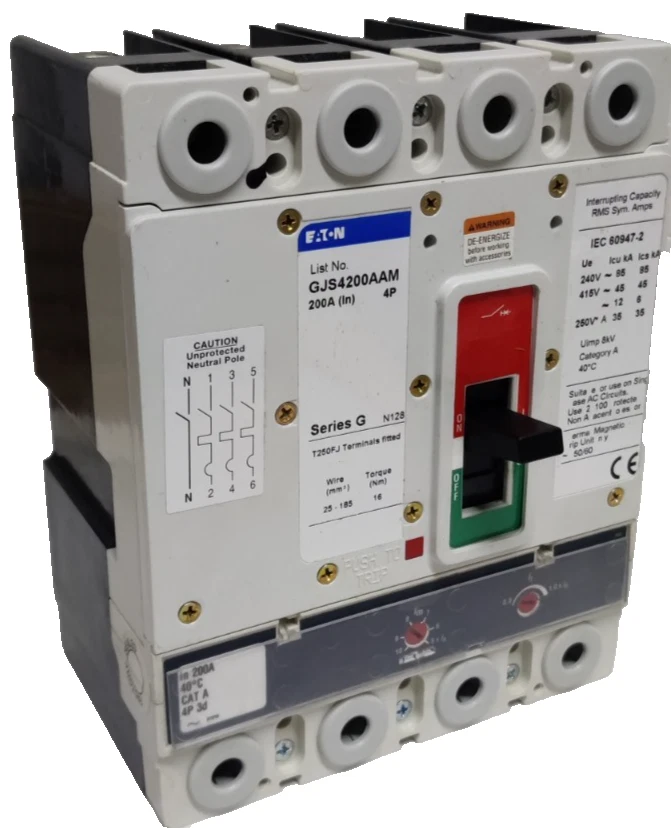

*Please Note The Picture is for illustration Purposes only.
| Product Name | Eaton Series G complete molded case circuit breaker |
| Catalog Number | GJS4200AAM |
| UPC | 782116901968 |
| Product Length/Depth | 3.57 in |
| Product Height | 7 in |
| Product Width | 5.34 in |
| Product Weight | 12 lb |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Certifications | IEC Rated |
| Product Type | Molded case circuit breaker |
Product specifications
| Amperage Rating | 200 A |
| Voltage rating | 600 Vac |
| Trip Type | Adjustable thermal, adjustable magnetic |
| Circuit breaker type | GJ |
| Circuit breaker frame type | Complete breaker |
| Protection | 0% protected neutral pole |
| Terminals | Line and load end caps |
| Frame | JG |
| Mounting hardware | Metric |
| Interrupt rating | 40 kAIC at 415 Vac 35 kAIC at 480 Vac 85 kAIC at 240 Vac 18 kAIC at 600 Vac |
| Number of poles | Four-pole |
Compatible with the Hager and Eaton Series G Panel Boards
Please Message us to confirm what part numbers are compatible with the Board
Molded case circuit breakers (MCCBs) are circuit breakers whose current-carrying parts, mechanisms and trip devices are all completely contained within a molded case of insulating material. MCCBs are available in various frame sizes with various interrupting ratings for each frame size. MCCBs are one of the two basic low voltage classes of circuit breakers.
Molded Case Circuit Breakers are designed to provide circuit protection for low voltage distribution systems. They will protect connected devices against both overloads and short circuits. They are most-commonly-used in panelboards and switchboards where they are fixed mounted..
