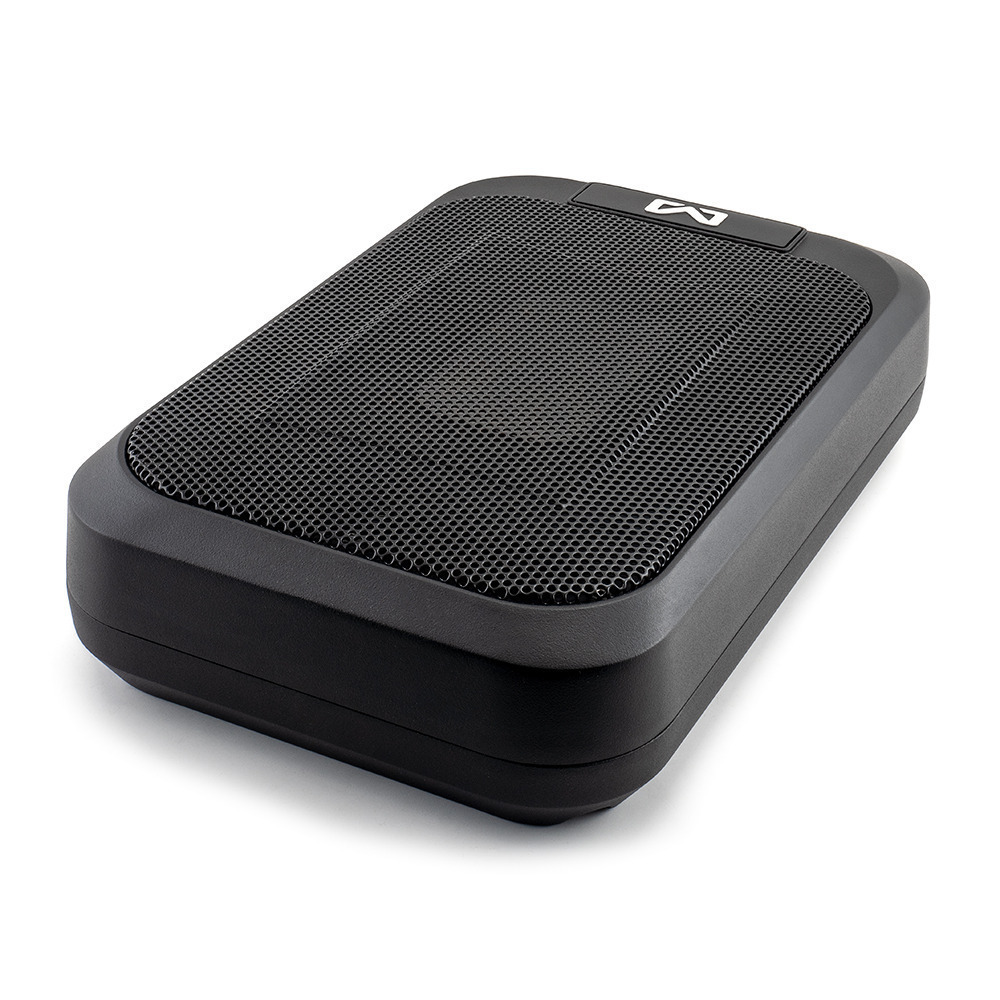

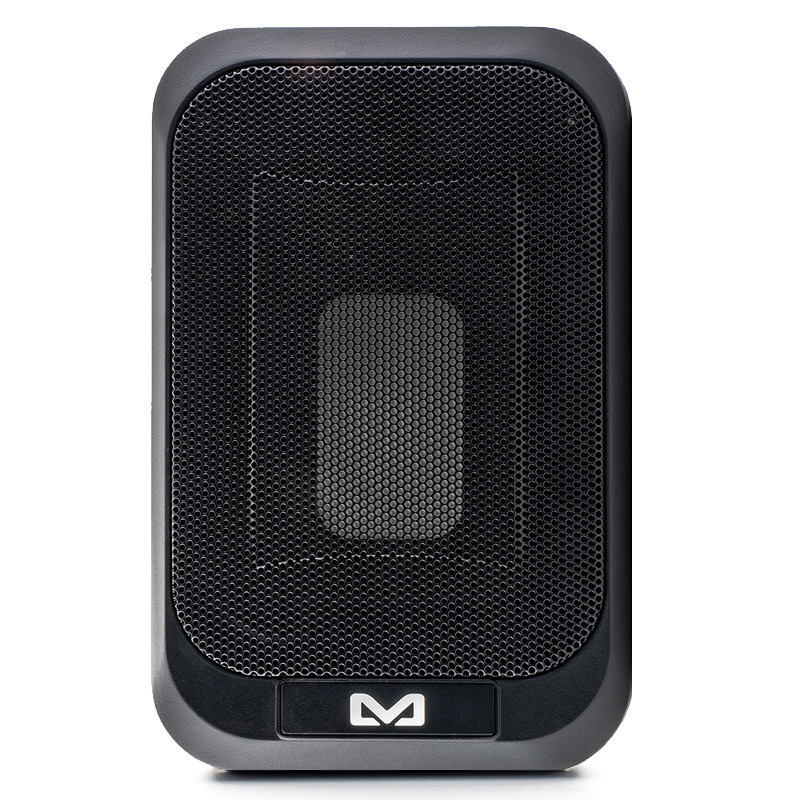

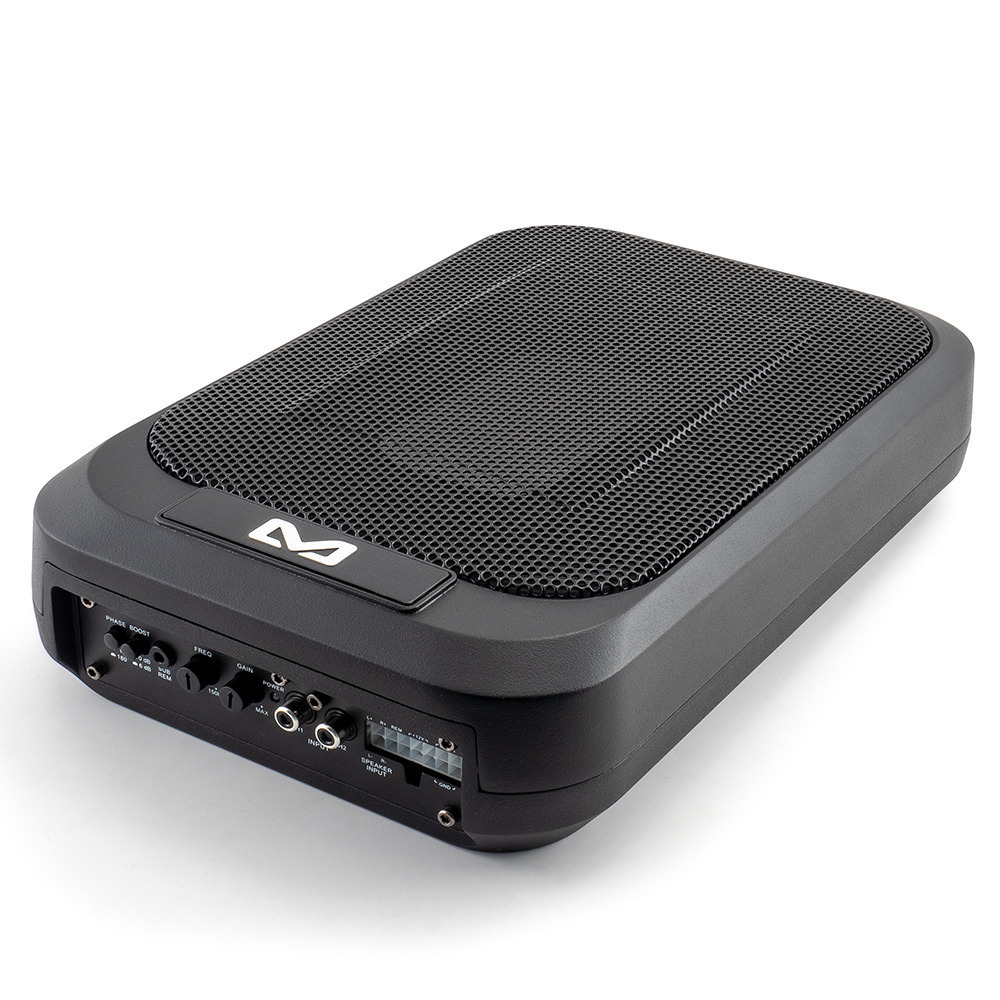

Compact active subwoofer for underseat installation or wherever it fits.
Ideal for supplementing weak speakers with the missing bass!
Super compact active subwoofer. Ideal for complementing existing factory speakers!
Important note for customers outside the EU (excluding Switzerland)!
Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Important note for customers outside the EU (except Switzerland)!
Any applicable import duties, taxes and charges are not included in the item price or shipping costs. The buyer is responsible for these fees.
Item description
ACTIVE9-SQ
Sound characteristics:
The subwoofer produces crisp, dynamic bass without booming, with a surprising amount of deep bass for its size. Ideal for adding the often missing deep bass to factory systems.

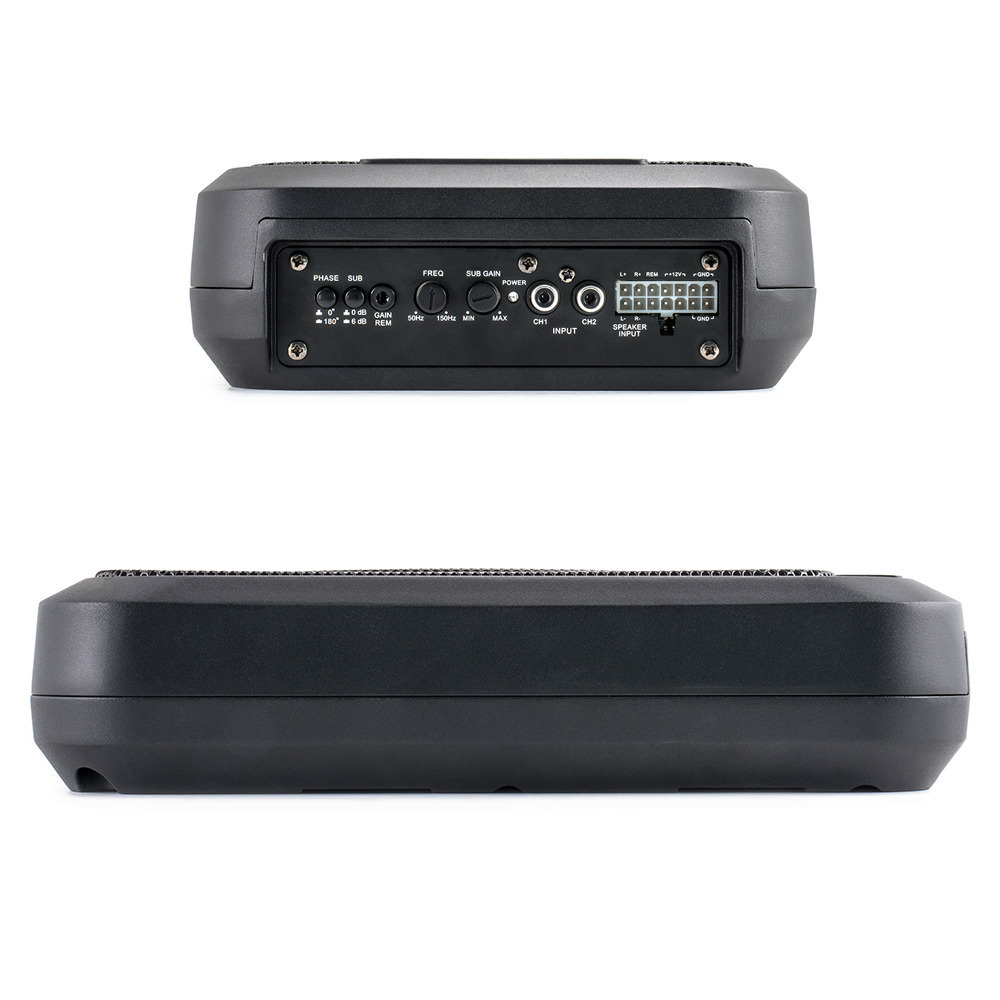

The volume can be adjusted from the driver's seat using the included remote control. With the bass boost, the continuously adjustable crossover frequency, the phase switch and the gain control, it can be acoustically optimally adapted to any vehicle.
Connection:
The subwoofer has connections for both radios without an RCA preamplifier output (high-level input) and for retrofitted radios with an RCA output (low-level input). If the connection is made via the speaker inputs (high-level input), the subwoofer switches on as soon as a music signal arrives. A separate remote line is therefore not necessary.
Key Features:
- Active subwoofer in a closed die-cast aluminum housing
- 7” x 9” / 17.5cm x 22.5cm bass driver with 4” x 7” / 10cm x 17.5cm passive diaphragm
- Connector block for power connections and high-level inputs
- External bass level remote control
- Die-cast aluminum housing, closed
- Chassis diameter: 7"x9" rectangular membrane
- Passive membrane 4"x7"
- Membrane area 376cm³
- Stainless steel/nylon compound flat membrane with rubber surround
- Sine power: 230 watts RMS Class D
- Music power: 460 watts maximum
- Low-level RCA inputs 100mV to 10 volts (RCA)
- High-level speaker inputs with “auto turn-on”
- Low pass switch: 30-180Hz adjustable
- Bass level remote control
- Phase controller 0° / 180° switchable
- Frequency range: 30-180Hz.
- Signal/noise ratio: 104dB
- Operating voltage: 8 - 17VDC
- ATC fuse 20A
- Housing dimensions: 308x70x200mm (WxHxL)

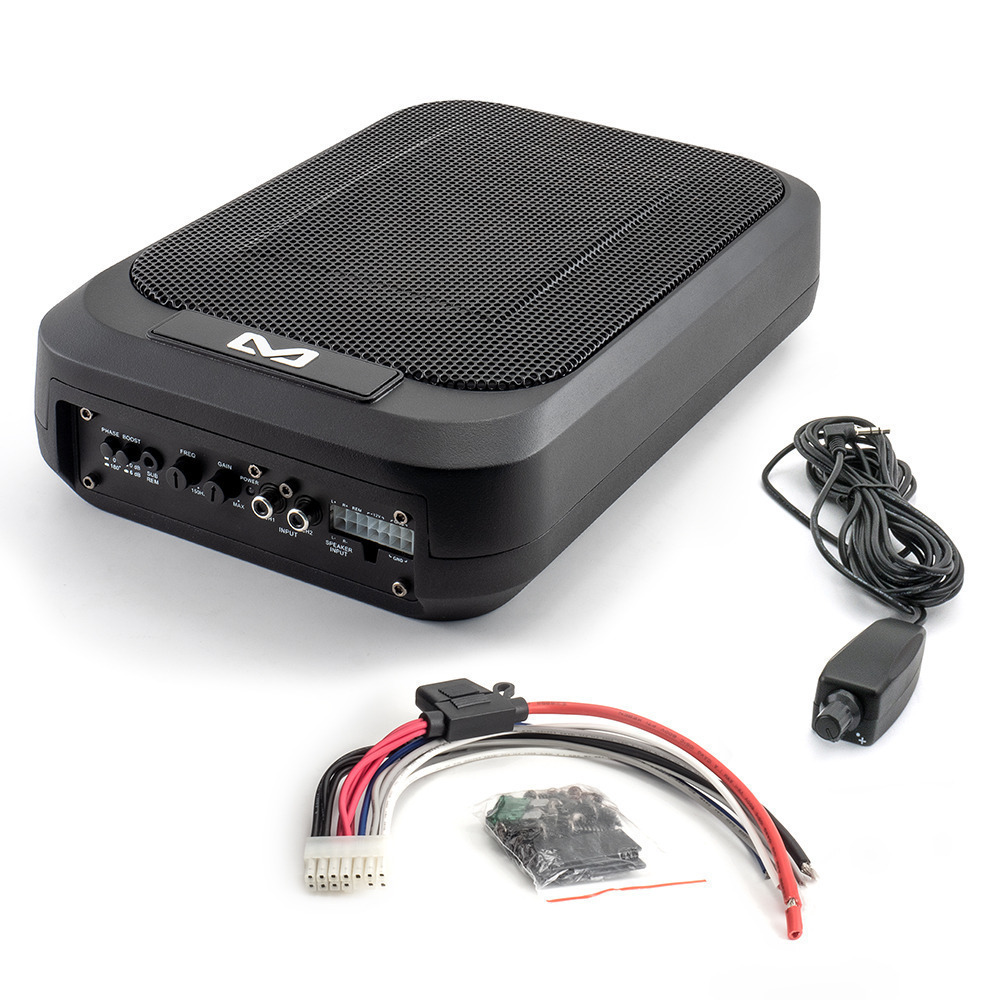

Scope of delivery:
- 1 piece housing subwoofer with integrated amplifier

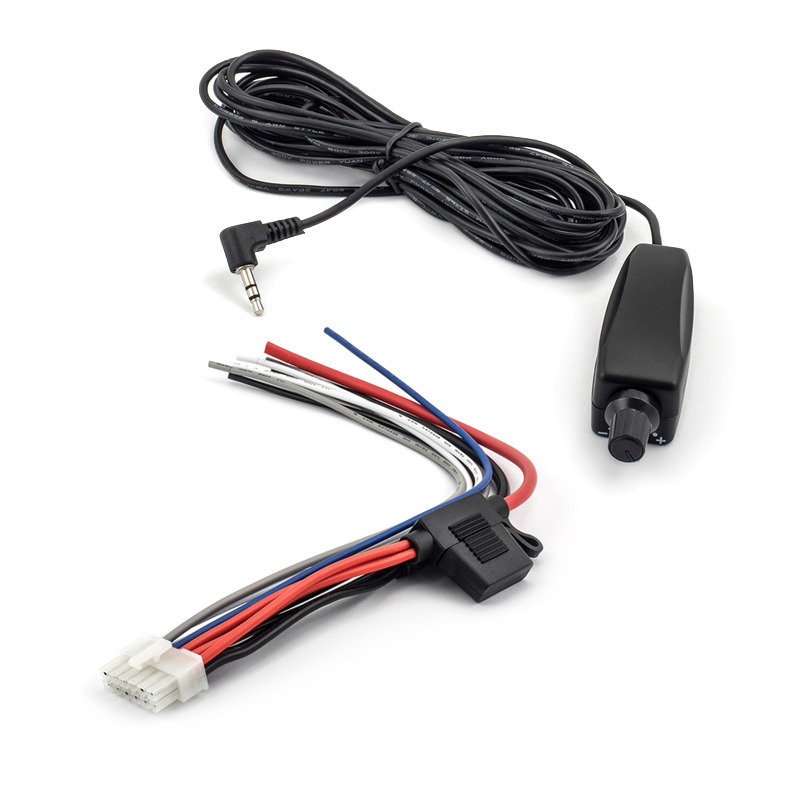

- Bass level remote control
- Mounting kit for fastening
- New goods
- Invoice in your name
- 1 year manufacturer's warranty*
* The manufacturer's guarantee is a voluntary service provided by the manufacturer. This has no influence on the statutory warranty to which you are entitled and does not limit it.
