Monitor Features:

• 100% brand new and high quality.

• 5" digital color TFT LCD monitor.

• High-resolution picture: 800W * RGB * 480H.

• With 2 video input port: white video cable connects to car rear view camera; the yellow one connects to second camera, DVD or VCD.

• Parking rear view priority: the monitor will start up automatically and synchronously display the video from rear view camera when you're backing your car.

• Supports car DVD, VCD, camera and other video equipment.

• The brightness, contrast, and color are adjustable through buttons at the back of the monitor.

• 2 ways to install it: adhesive tape standing or suction cup mounting.

• No audio input or output.

  Monitor Specifications:

• Item color: Black

• Item type: Car monitors

• Screen size: 5 inch TFT 5:3 screen

• Display component: Color TFT LCD display

• Resolution: 800W * RGB * 480H

• Video system: PAL/NTSC compatible

• Power supply: DC 12V-24V

• Rated power consumption: 3W (Max)

• Operation temperature: -20~+50 Celsius degree

• Storage temperature: -30~+70 Celsius degree

• Monitor size: about 12.5 x 8.5 x 1.8cm / 4.92 x 3.35 x 0.71in

CCD Reversing Camera:
Specification:
Sensor: CCD
Power Supply: DC 12V±10%
Resolution : 480TV lines
S/N ratio: Better Than 48db
Size: 60x30x29mm

Features:
-170 degree Viewable Angle.
-Waterproof/ Weatherproof.

-built in 3 LED light.
-Distance reference line/grid, so you can measure your parking distance.
-Automatic White Balance/ Agc and BLC

Fitment:
Ford Transit /Transit Connect

Package Included:
1 x 5.0" Car Mirror Monitor
1 x Reversing Camera
1 x Monitor Power Cable
1 x Camera with 1 M power cable
1 x 6 meters length video cable
1 x User manual
1 x Double-sided stickers

Our Direct Fit by iPoster reverse cameras are simply amazing and offer many new technologies that make manoeuvring your vehicle easier and safer.

• Replaces The Plate Light
• Night Sensors
• Distance Guide Lines
• Wide Angle View
• Waterproof
• High Definition Display

PLEASE NOTE: The rear view camera system runs on a +12v system. Some models with CANBUS have voltage drops on the reverse bulb power (for bulb out warnings on the dash). In such cases, a relay would be required with the camera. We have this available with part number CBS-CAMRELAY. The relay is not supplied with the camera.

Distance Guides

This camera includes convenient distance guides that makes parking safer and more convenient compared to a regular rear-view camera. Note: distance guides only work with after-market navigation and media monitors.

RCA output

Convenient RCA output means this camera can be used with any after-market monitor that will accept this cameras video signal. Your head unit or monitor will also require a CAM-In RCA connection. This will NOT work directly with any factory fitted monitors or head units. You will require an interface (if available) adaptor for a factory head unit to accept an after-market rear view camera.

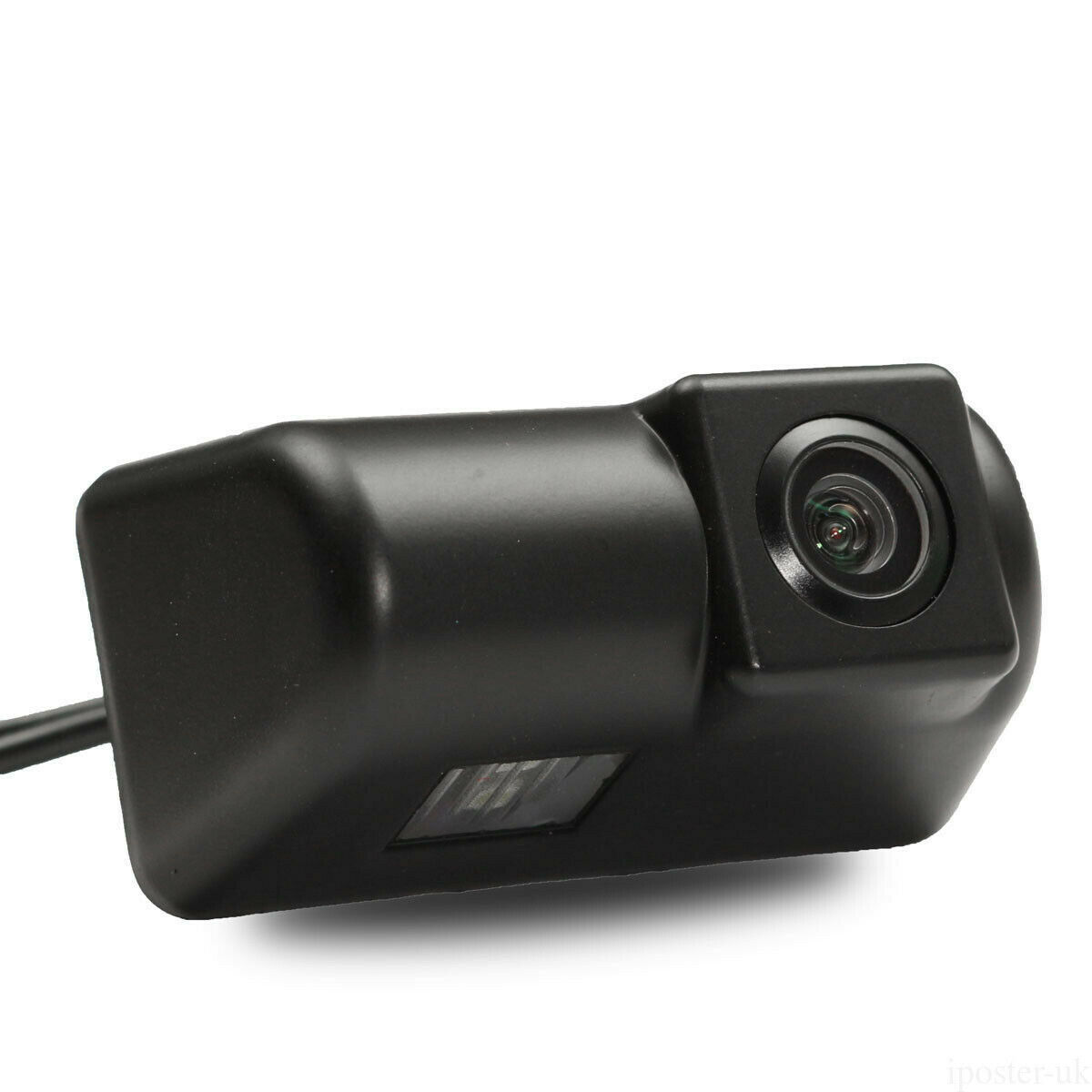

This bespoke reversing camera designed specifically for use with the vehicles below. Its unique design means that no holes whatsoever need to be drilled! It will simply replace your existing rear license plate light cover, integrating seamlessly with the existing bulb. This camera has been designed to replicate the size and shape of the existing license plate light but with a discrete inbuilt camera.

DESIGNED TO FIT TO:

• Ford Transit (2006 - 2016)
• Ford Transit Connect (2006 - 2016)

• SIZE: 60mm x 30mm x 30mm

* Double check size as there is very similar looking number plate on some of these models but the size is different.

NOTE: This vehicle list is a guide only. Whilst we try and make every effort to make the fitment list as accurate as we can, we cannot cover all variants of each application. It is up to you, the customer, to ensure you double check that the item matches the existing space on the vehicle and also that the product that the camera will connect to will be able to connect and function with the head unit or monitor.
