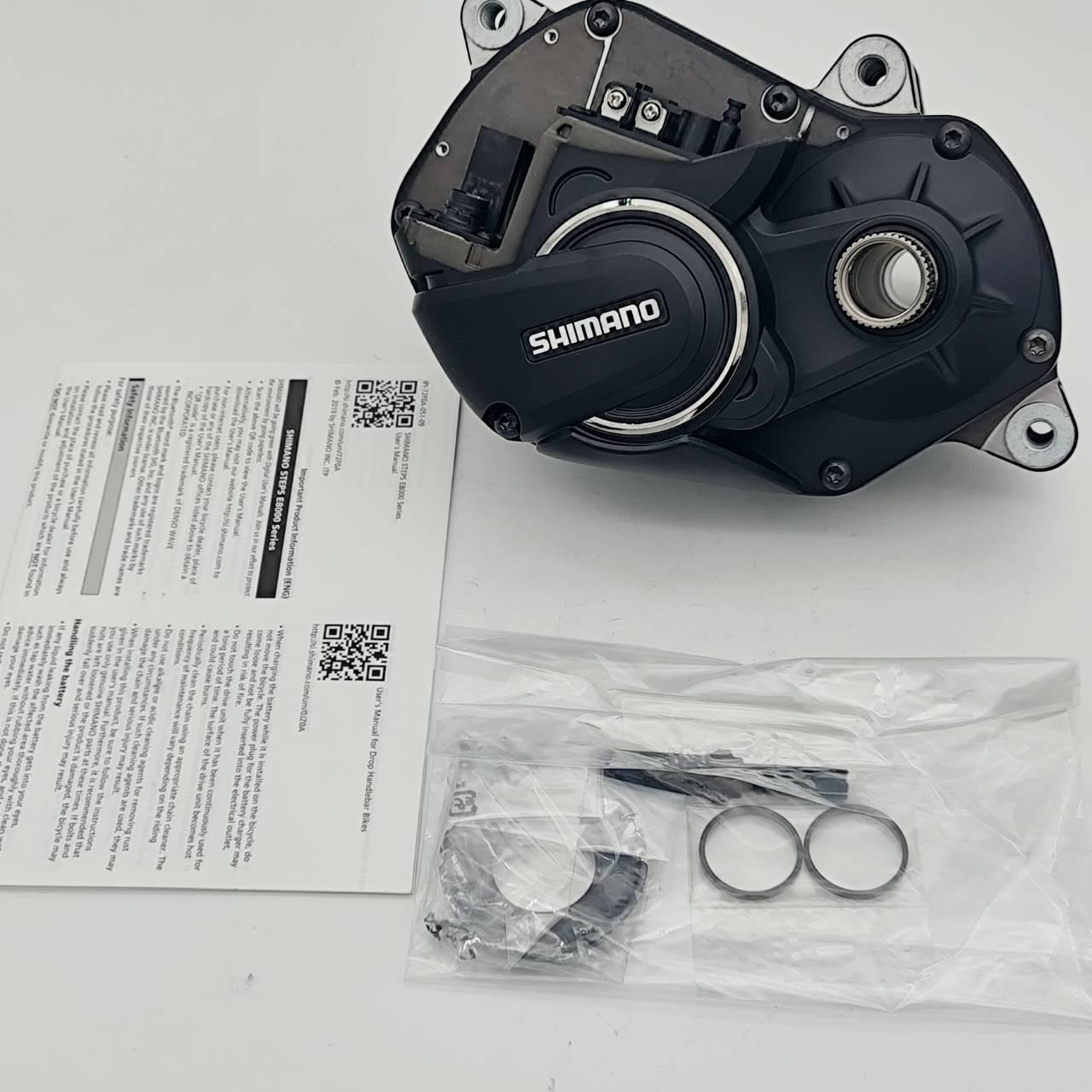

SHIMANO STEPS E8000 - Drive Unit for V-BRAKE, Disc Brake - E-MTB
Lighter than the E6002 Drive Unit, the SHIMANO STEPS E8000 Drive Unit has a short rear center in order to increase clearance for suspension and large tires. It provides a stable assist power output and a direct pedaling feel whether the assist is on or off. It offers 70 Nm of torque and 250 watts output and a 24mm spindle bb.
- Compact drive unit
- Shorter chain stay possible
- More clearance (suspension/tire)
- Power output
- 70 N·m (max.), 250W
- Lightweight
- Lighter than DU-E6002
- Improves bike handling
- Drive unit characteristics
- Direct pedaling feel in on and off assist power
- Stable Assist Power output
PRODUCT SPECIFICATIONS
| MODEL NO | DU-E8000 |
|---|---|
| SERIES | SHIMANO STEPS E8000 Series |
| Color | Black |
| Average weight | 2.88 kg |
| Remarks | * Set by E-TUBE PROJECT. ** By using SM-DUE10/SM-DUE11. *** By using RD-M9050/RD-M8050 |
|---|---|
| Compatible Brake type | Disc brake, V-BRAKE |
| Motor type | Brushless motor |
| Position | Mid ship |
| Compatible Wheel Size | * 1,300-3,000 |
| Maximum Rated Power (Watt) | 250 |
| Maximum torque (Nm) | 70 |
| Rated Voltage | DC 36 V |
| Maximum Assist ratio (%)_ECO | ✔ |
| Power supply for front light | DC 6 V |
| Power supply for rear light | DC 6 V |
| Communication | E-TUBE |
| Torque sensor | ✔ |
| Crank arm position sensor | ✔ |
| Bike speed sensor | ** X |
| Cadence sensor | ✔ |
| Compatible BB type | 24 mm Axle Serration |
| Chain Device compatible | ✔ |
| DI2 compatible_RD | *X |
| E-tube connector (pcs) | 0 |
| E-tube port (pcs) | 2 |
| Firmware update by E-tube Project | ✔ |
| Master unit | ✔ |
| Maximum Assist ratio (%)_BOOST | ✔ |
| Maximum Assist ratio (%)_TRAIL | ✔ |
| Maximum Current supply Front and Rear light total (A) | 2 |
| Maximum support bike speed20mph | *X |
| Maximum support bike speed_25km/h | *X |
| Port for Speed Sensor (pcs) | 1 |
| Port for Light (pcs) | 0 |
| Riding Characteristics_Customize | *X |
| Riding Characteristics_Dynamic | *X |
| Riding Characteristics_Explorer | *X |
| Safe way home function | ✔ |
| Terminal for Light (pcs) | 1 |
| Walk assist function_Intelligent | *** X |
| Walk assist function_On/Off | ✔ |
| Walk assist function_Quick | ✔ |
| Walk assist function_Standard | ✔ |
Brand new, no used, no original package, only motor for sale.
1. We only accept Paypal.
2. Payment must be received within 4 days after auction ended.
STANDARD SHIPPING
All items will be shipped out from Taiwan, except USA and Australia .
If buyer address was in domestic USA Or Australia , the product will be shipped out from our 3rd party warehouse.
If buyer address was outside of USA and Australia, the product will be shipped out from Taiwan.
Please noted.
2. We usually ship to world by Registered Air-mail with tracking number. It takes about 10~22 working days to delivery. But for middle and south America countries, it takes about 35-50 days to delivery.
FASTER SHIPPING
We also provide EMS/TNT/DHL for shipping, it's faster than Air-mail, if you need it, please contact us!!
It takes about 5-7 working days to delivery. But for middle and south America countries, it takes about 10-15 days to delivery.
1. Return items should include the original packaging and accessories.
2. Returns are only accepted if the item you receive is not the item listed or the item is defective.
3. If your item sent back for repair, refund or replacement, we don't bare the shipping that your part cost.
4. If you have any questions or concerns about this item, please contact us, we'll assist you as possible as we can and answer all messages within 12-24 hours.
We could offer you the good price due to we purchase the parts from factory directly.
If you have any project on cycling parts, please feel free to contact us, we could work together.
