Features:
This product can be used to measure current within a standard -type fuse box.
It is suitable for fault detection in automotive or commercial vehicle circuits.
It features fast measurement , high accuracy, and ease of use.
1.) LCD Screen: Equipped with a blue backlight, it is convenient for daytime use and allows viewing measurement data even in low-light conditions.
2.) Headlight: Convenient for inspection and maintenance in dark environments and can also be used as a nighttime work light.
3.) Design: Advanced visual design features a simple, dynamic, and colorful aesthetic.
Instructions:
1. Turn off the vehicle's ignition switch.

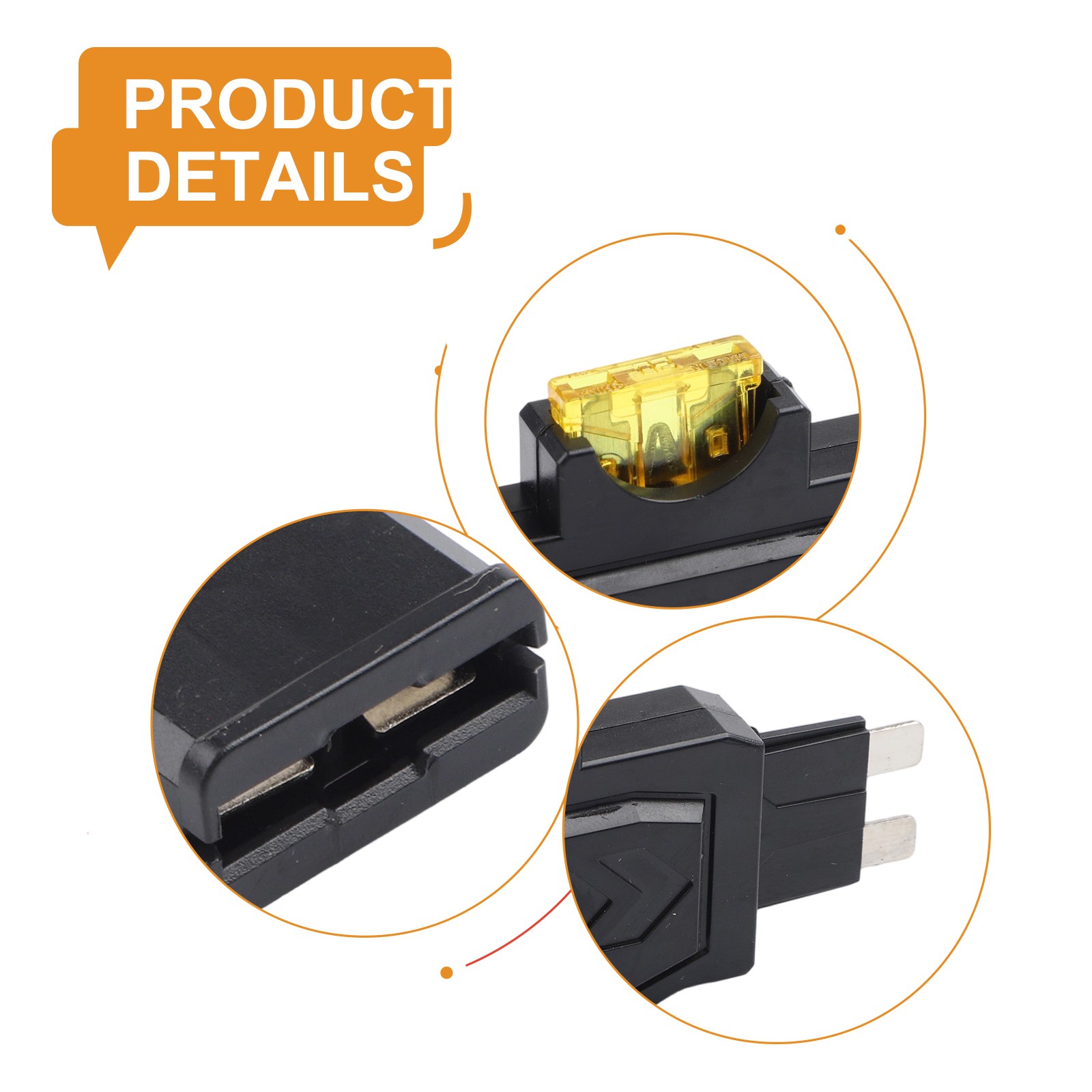

2. Remove the -type fuse that comes with the tester from the socket. Then remove the vehicle fuse from the circuit to be tested and insert the tester's fuse into the electrical outlet to for ensure the correct circuit protection level. (Tester fuse rating: 20A/48V, standard)

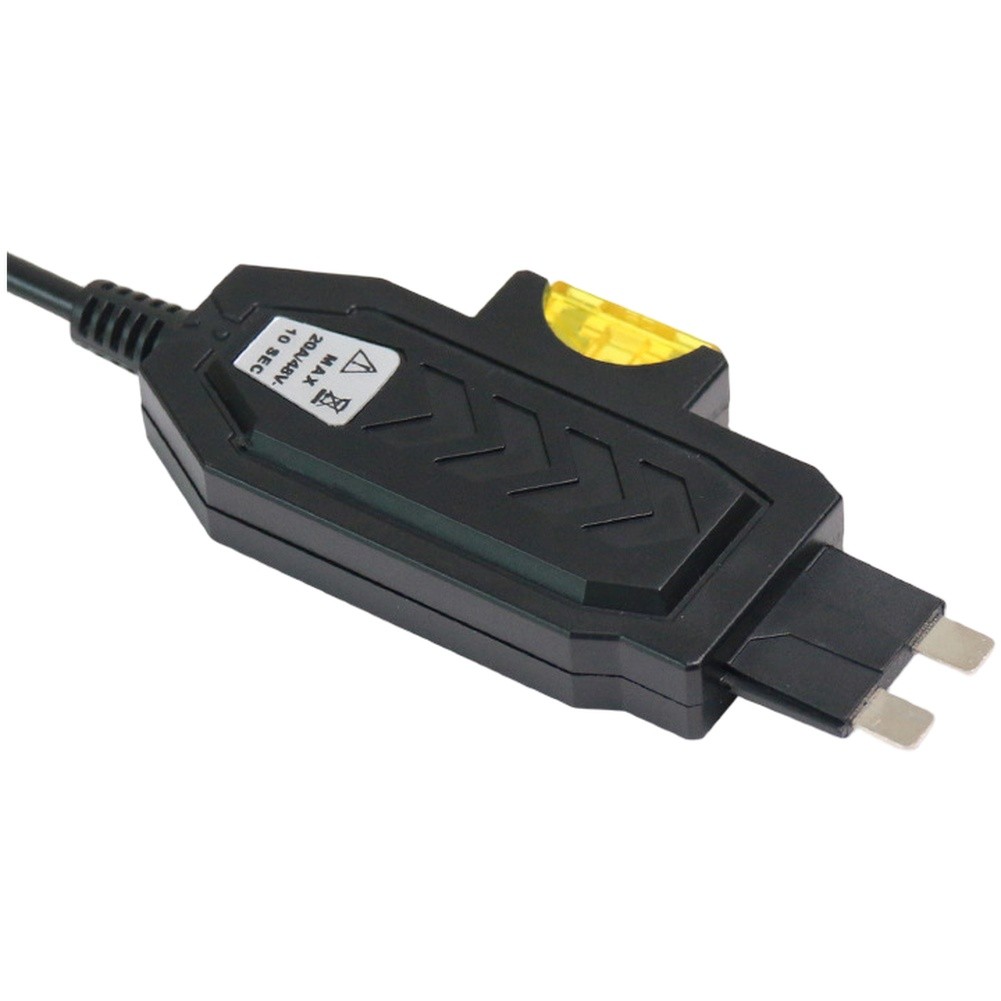

3. Insert the tester's (select medium or small depending on the size of the fuse; if it's a small size, connect the small to the medium ) into the vehicle's fuse socket.
4. If necessary, turn on the vehicle's ignition to energize the circuit. Then, turn on the tester (press the power button) and measure the current.
5. The display will show the measured current of the circuit under test.
6. When the display shows *DC*, the circuit under test is drawing positive current.
When it shows C, the circuit under test is drawing negative current.
7. After the measurement is complete, turn off the tester and press the power button again.
Battery Replacement:
If the symbol appears on the display, the battery is low and should be replaced.
Before removing the battery cover, turn off the tester and for ensure that it is disconnected from any circuit.
Specifications:

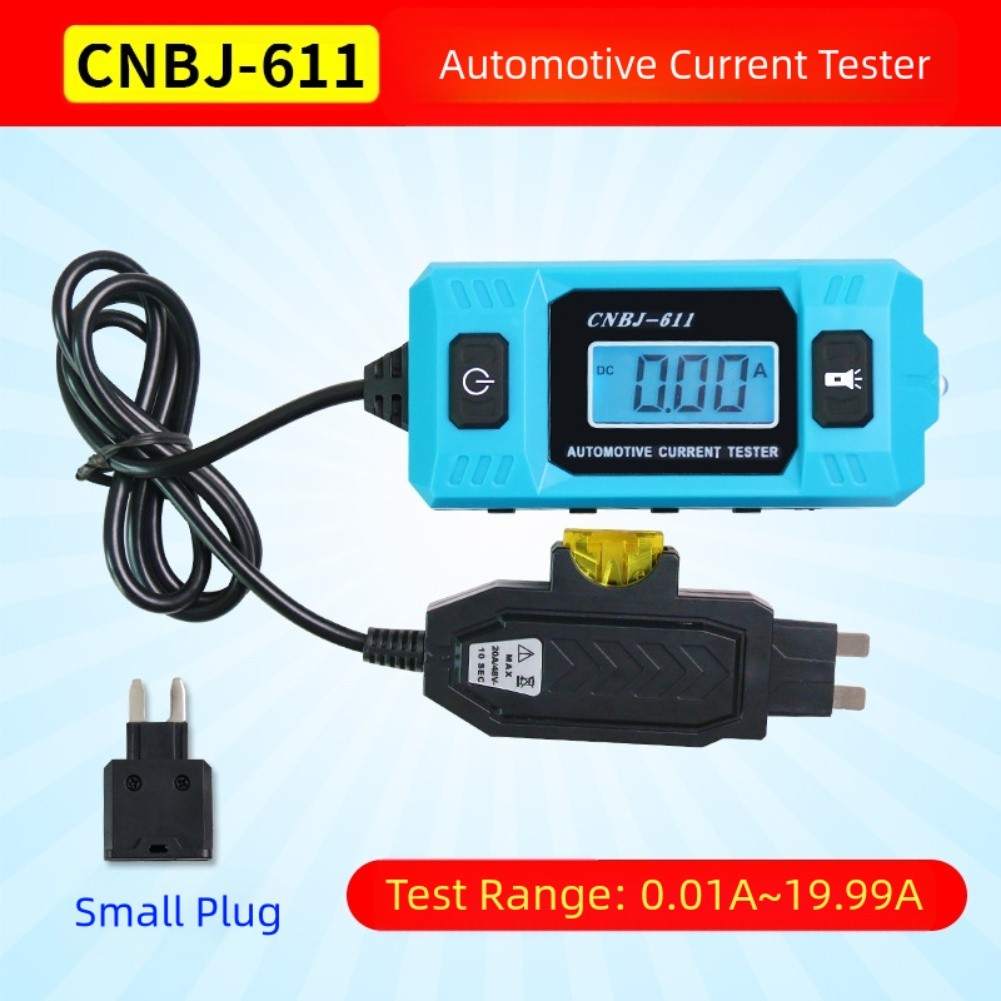

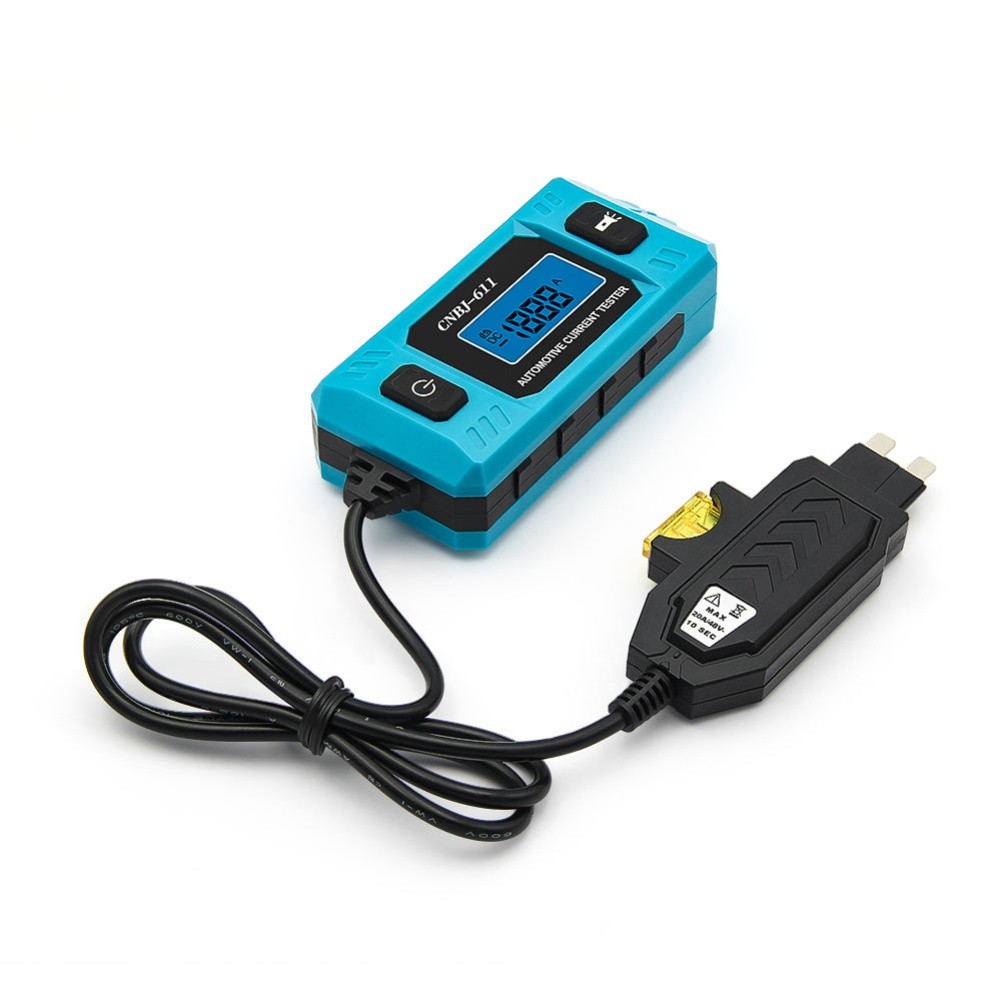

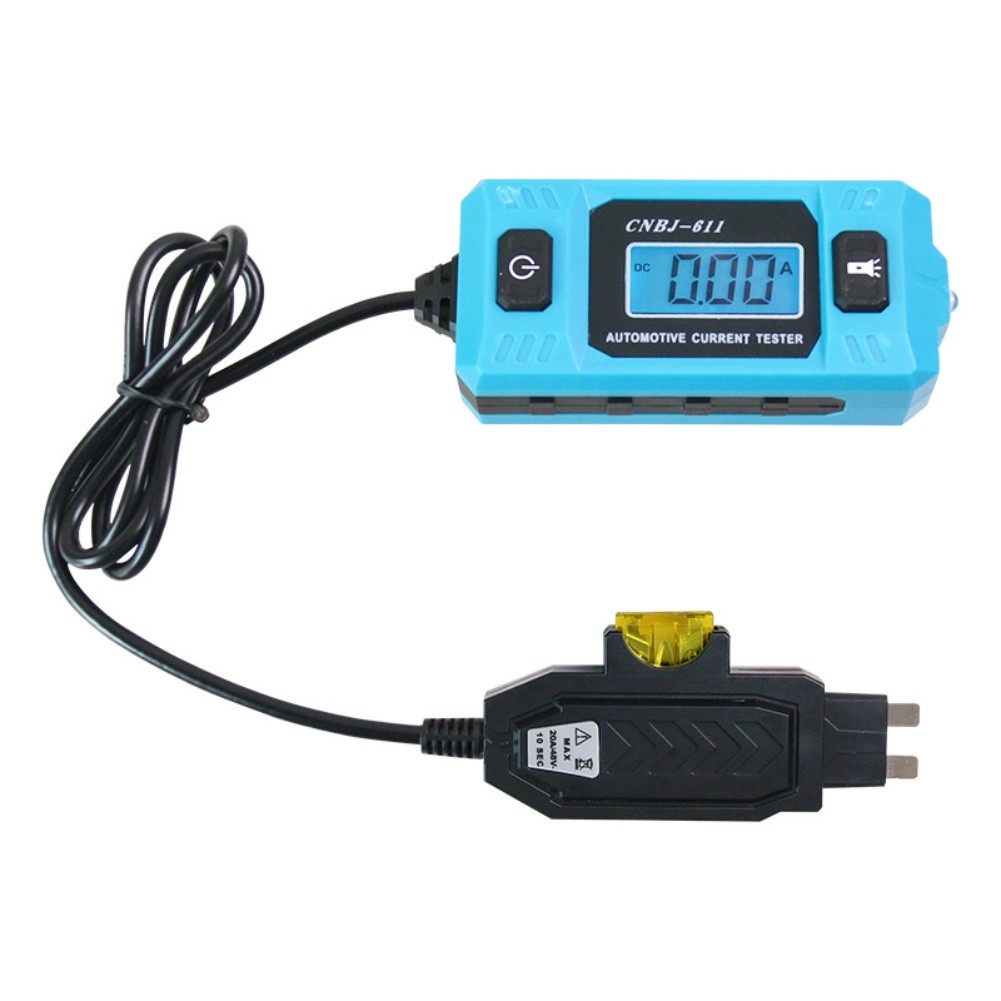

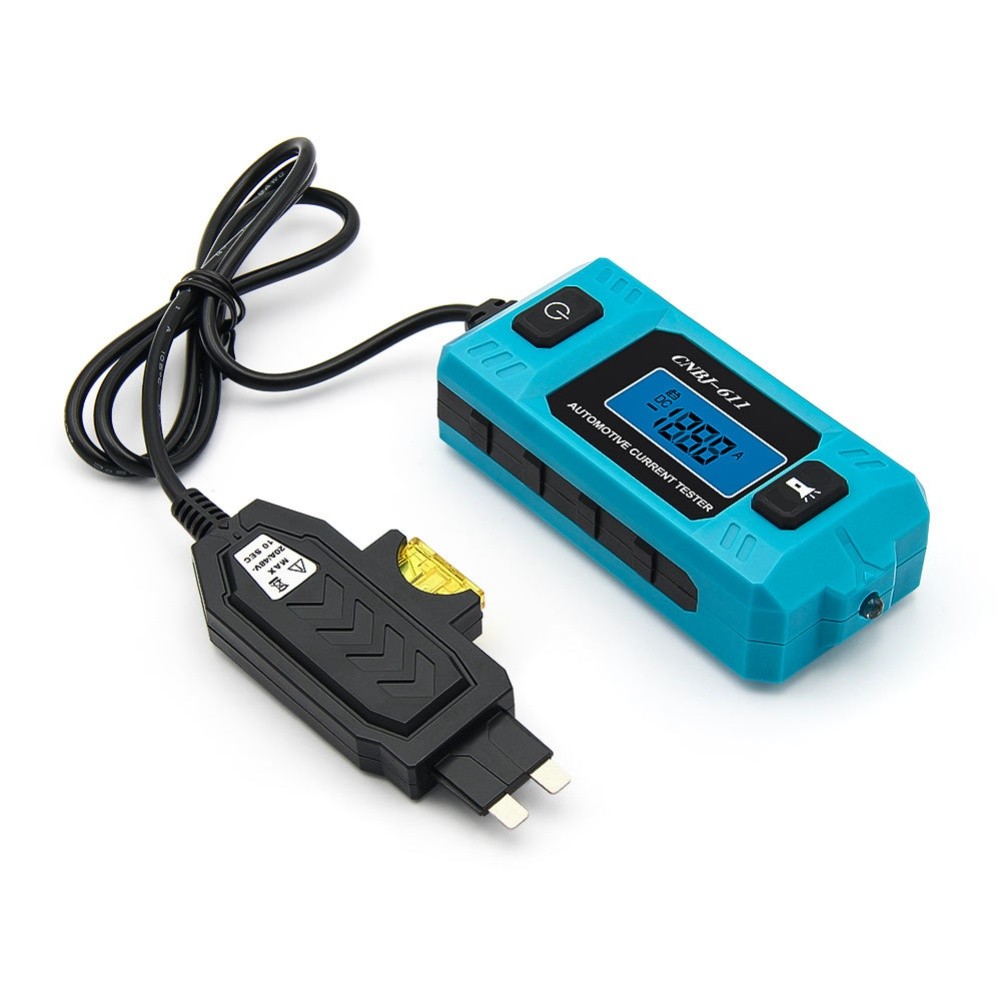

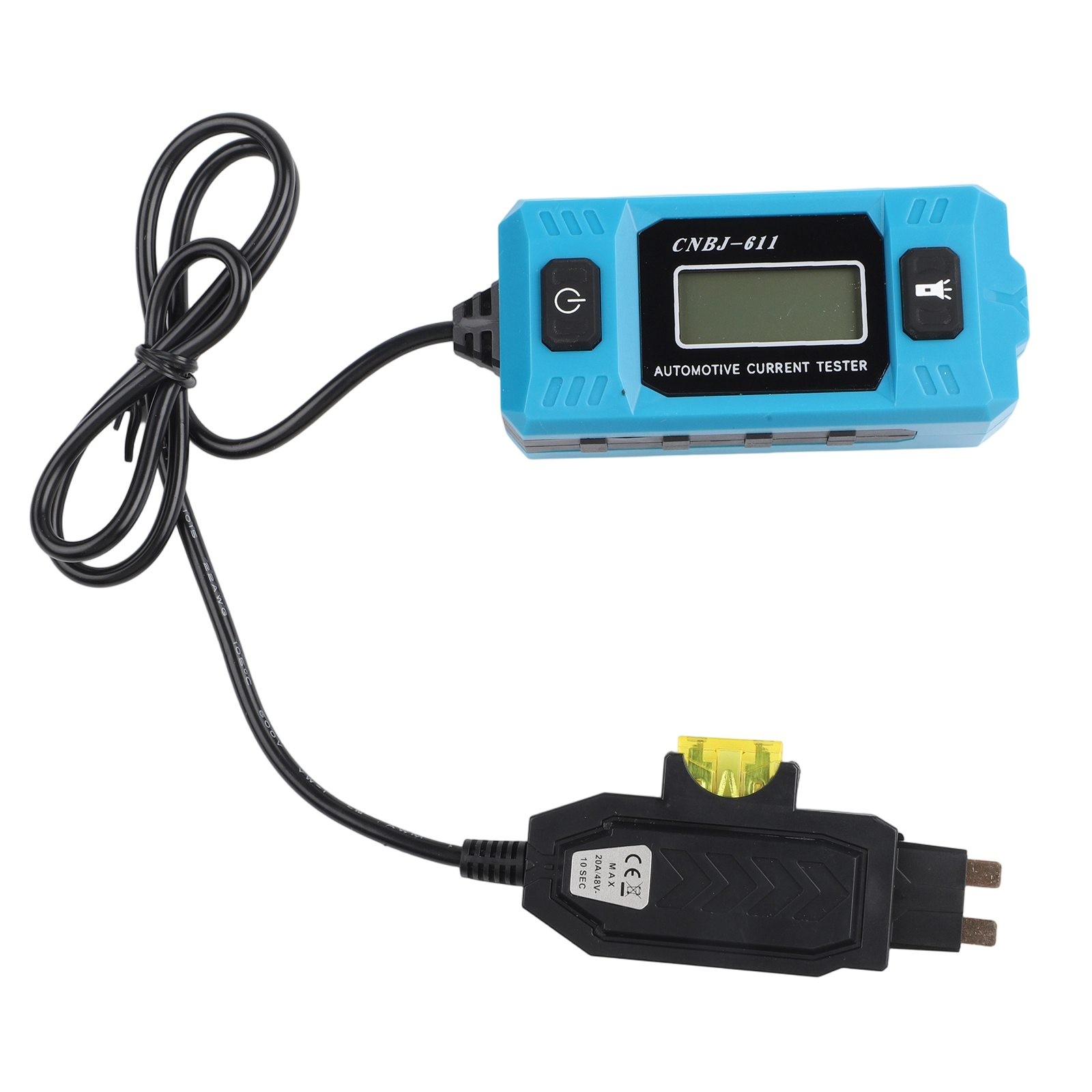

Part Name: Automotive Circuit Tester
size: 110*45*30mm (Main Body);
Model: CNBJ-611;
Fuse Type: Standard;
Color: Sapphire Blue;
Material: ABS/PC Body;
Display: LCD;
Backlight: Blue Backlight;
Lighting: Front Lighting;
Battery Type: 1*23A 12V Battery;
Measuring Range: 0.01A-19.99A;
Maximum Load: 20A/48V (DC) for 10 seconds;
Current Accuracy: ±2%;
Operating Environment: -0°C - 40°C;
Relative Humidity ≤75%;
Storage Environment: -10°C - 50°C;
Relative Humidity ≤80%;
Package Contents:

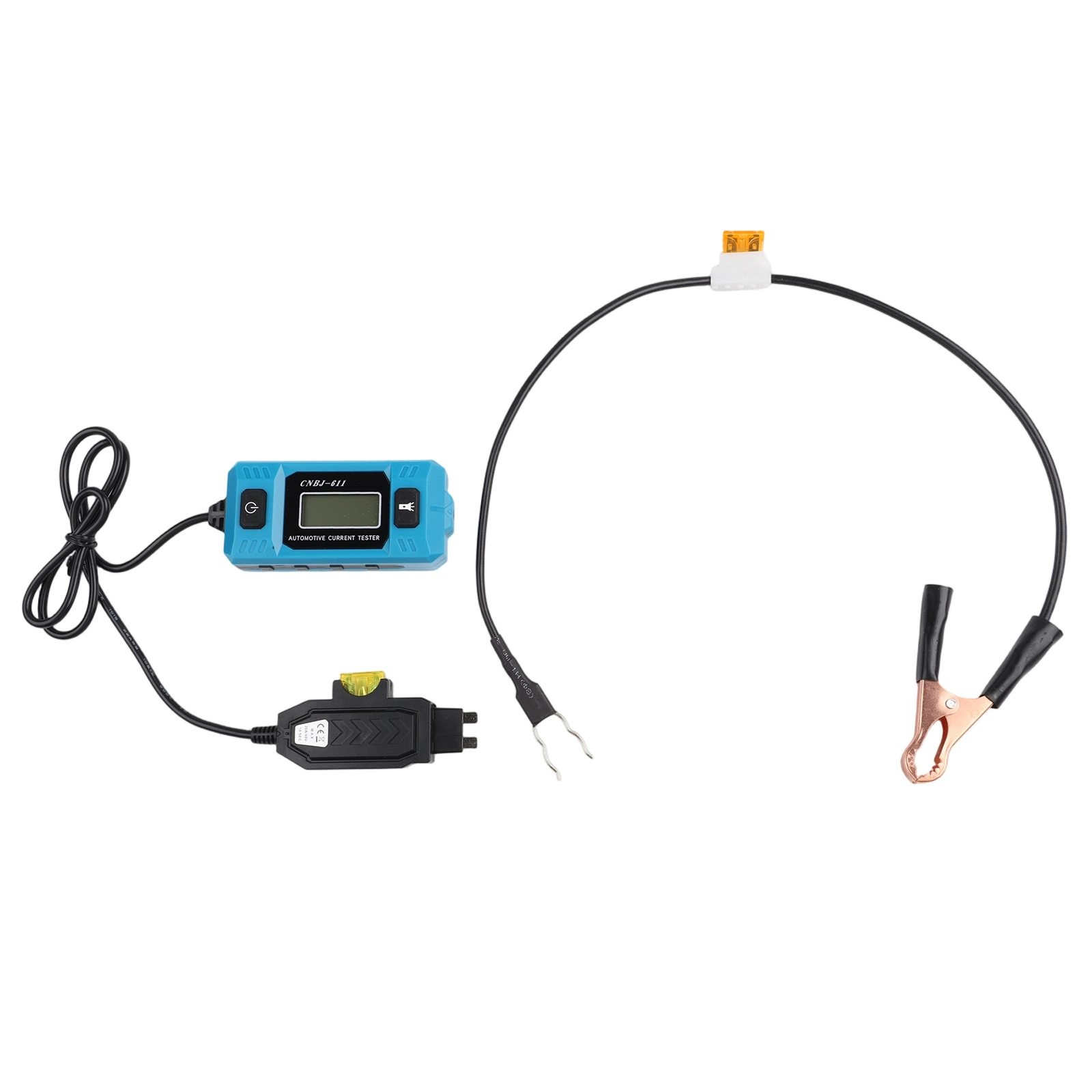

1* Automotive Circuit Tester
Note:
1. This tester is for vehicle current measurement only.
2. The fuse may become hot during testing; please allow it to cool before touching. 3. Do not exceed the tester's maximum load: 20A, 48V, maximum, 10 seconds.
4. Turn off the vehicle's ignition switch before connecting or disconnecting the tester.
5. Do not disassemble the tester or modify its circuitry.
6. Always keep the tester dry.
7. Do not forcibly pull on the tester's cable.
8. Do not use the tester if it is abnormal or damaged.
9. When not in use, keep the tester out of the reach of children or infants.
