LED Endo Motor 6 Programs

Feature

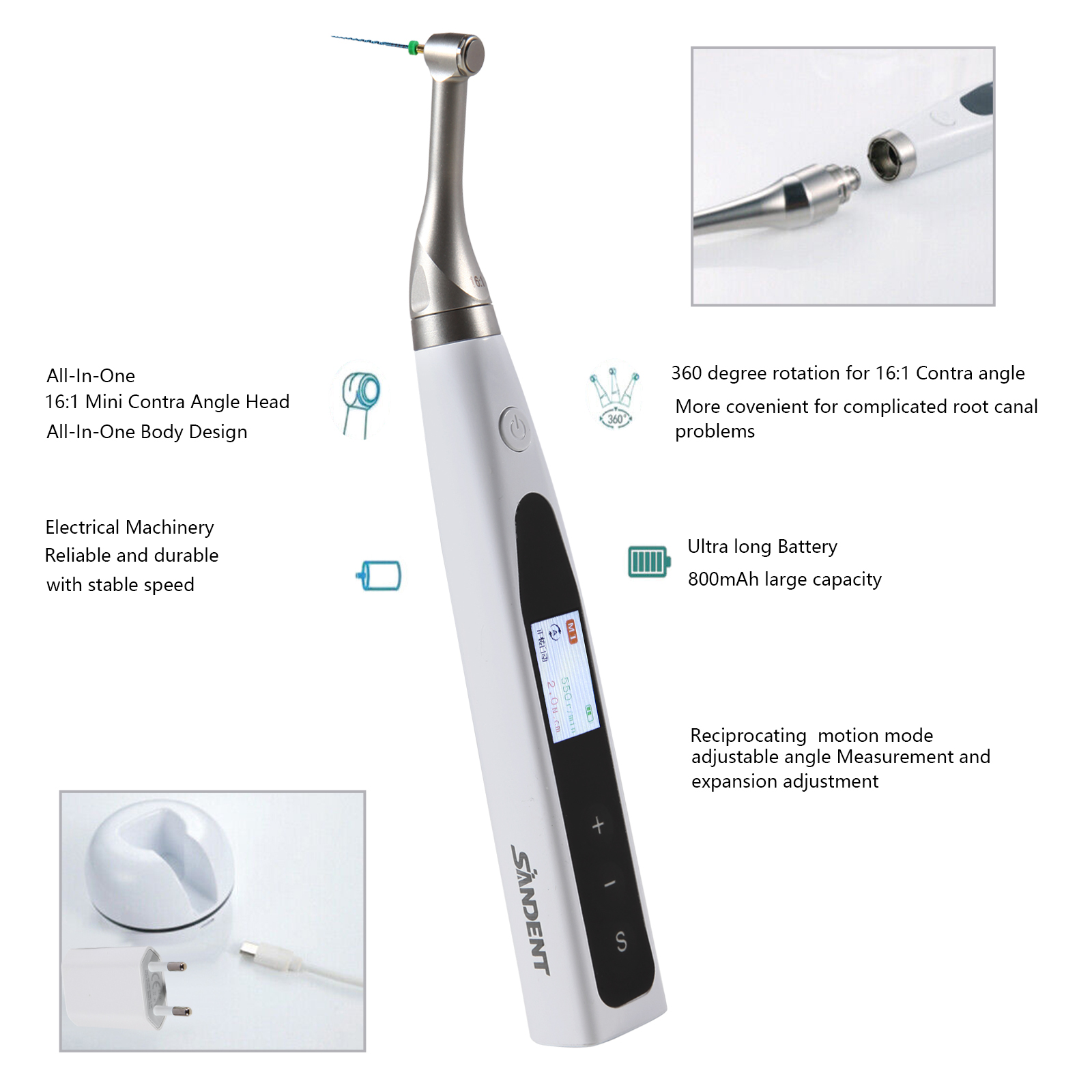

1.Ergonomic design easy to carry

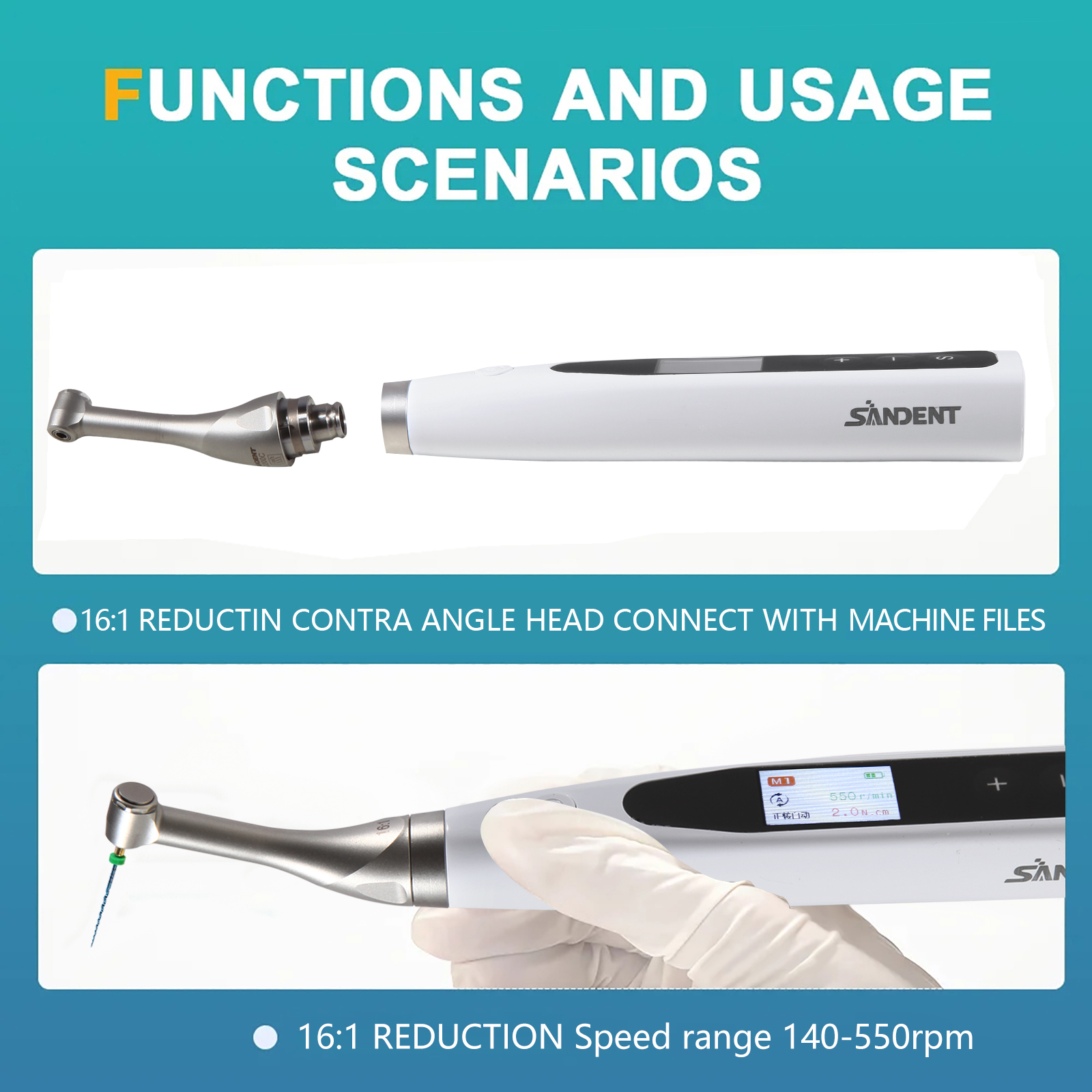

2. When operating, using push button 16:1(left and right reciprocating) dental contra-angle handpiece to coordinate the machine files(hand files)

3.There are 6 kinds of procedures(Memory set) for selection. It can input the optimum data in advance, and also can modify it according to the working conditions in use.

4.Soft start and soft stop can be achieved and the operation is more comfortable. Simultaneously, it will not break the needle when root canal files encounter instantaneous shock.

5.Dental contra-angle Handpiece and lamp holder can withstand 135°C high temperature and high pressure sterilization.

6.Built-in high-capacity lithium battery, so it can reduce battery change times and reduce costs for machine.

7. There is a voice prompt when lack of power.

8.With LED lamp and high brightness, it can help doctors get a better look at the root canal environment.

Technical Specifications:

Main engine Voltage: 3.7Vdc
Battery capacity: 800mAh
Charger input voltage: AC110-220V,60/60Hz
Charger output voltage:5Vdc
input voltage: 1A

Packing list:

The host 1
Charging Dock 1
Lamp holder 2
Power adapter 1
Motor cover 1
Product specification 1
Product certificate 1

--------------------------------------------------------------------------

LED Endo Motor 9 Programs A

Feature

1. Product Overview

Endo Motor is a dental instrument used to shape and clean the root canals of teeth during endodontic treatment.
The primary function is to remove the infected pulp tissue, bacteria, and debris from the root canals; they also shape the canals to facilitate the filling and sealing process, which is crucial for the success of the treatment.
This equipment should be operated by qualified or approved personnel. The operator should have specialized application skills and work in accordance with the manual.

2. Technical Specifications:

<Main Unit>

Battery Voltage	DC3.7V
Battery capacity	800mAh
Charging time	3 hours approx
Weight	432g
Packing size	19512766mm

<AC Adapter>

Rated input voltage	AC100-240V 50/60Hz
Output voltage	DC 5V/MICRO USB
Output current	1A

<Operation Conditions>

Environment temperature	+5°C ~ +40°C
Relative humidity	10%-80%RH
Atmospheric pressure	50~106KPa

3. Display and Operation Modes

There are 9 built-in memory modes from M1 to M9, which can be configured for various operational requirements.

Rotation Mode Description:

Mode	Description
Automatic Mode	Continuous forward rotation, automatically reversing when encountering resistance. Restores to forward rotation once resistance is removed.
Forward Rotation Mode	Automatically stops when encountering resistance.
Forward/Reverse Reciprocating Mode	Continuous alternating forward and reverse rotation.
Reverse-Stop Mode	Automatically reverses when encountering resistance and stops working after reversing when no resistance is present.
Reverse Rotation Mode	Continuous reverse rotation, operating in torque limit mode.

4. Cautions

Wear appropriate protective glasses during use to prevent debris from flying into your eyes during grinding.
Ensure the device is used in a dry and clean environment. Avoid allowing water or other liquids to enter the device.
Regularly check the charger and power plug. Replace them immediately if damaged.
Do not use a damaged charger or use the device with a loose power socket.

5. Packing List

Item	Quantity
Motor Handle	1 pc
Contra Angle	1 pc
LED Light	2 pcs
Charging Base	1 pc
Adaptor + USB Cable	1 set
Operation Manual	1 pc

-----------------------------------------------------------------

LED Endo Motor 9 Programs B

Basic information

Main structure:consists of control part,motor,Contra Angle head,power adapter and charging base.

Application:Used in root canal therapy,root canal preparation stage shaping and cleaning,the product does not contain the root tip positioning function. Electrical safety classification:Class Il,internal power supply:

Has a type B application section

Product Code:XLY-Q200

Software release:LX037-GZ-101.1.0.0-170324

Code

XLY-Q200

Power supply mode

Rechargeable

Functional

characteristics

Portable

Digital display type

Nine-memory program

Quadruple inversion mode

Speed optional

Torque optional

Technical parameters

Type B application section

Shell protection:IPX0

Classification according to the degree of safety for use with flammable anesthetic gases mixed with air and nitrous oxide:Non-APIAPG type.

*Body

Size：--------------------------Diameter,27×215mm

Classification：--------------------Common,Type B

Running mode:--------------------Continuous running Standard operating voltage:---------d.c.3.7V

*Power adapter

Input voltage: 100V-240V～50/60Hz

Output voltage:d.c.5V,1A

Specifications:GC09-050100-5A

*Battery

Type:Lithiumion battery Capacity:800mAh

Charging voltage:3.7V

Type specification:INR 14500

*Program parameter

Procedure: 9 kinds

Working Mode: 4 kinds Standard head:16:1

Net weight: 265g

Rotate speed: 140-550 r/min Torque:0.3-4.0N.cm

*Transportation and storage environment

a)Environment temperature range:-20℃~+55℃;

b)Relative humidity range:≤80%;

c)Atmospheric pressure range:70kPa~106kPa;

*Operating environment

a)Environment temperature range:5℃~40℃;

b)Relative humidity range:≤80%;

c)Atmospheric pressure range:70 kPa~106kPa;

d)power supply:d.c.3.7V(-10%~+5%)

e)Avoid using this product in an environment with electromagnetic interference(such as near a microwave oven)

f)The charger of this product shall meet the requirements of GB9706.1-2007.

-------------------------------------------------------------------------

Endo Motor (no LED)

Features

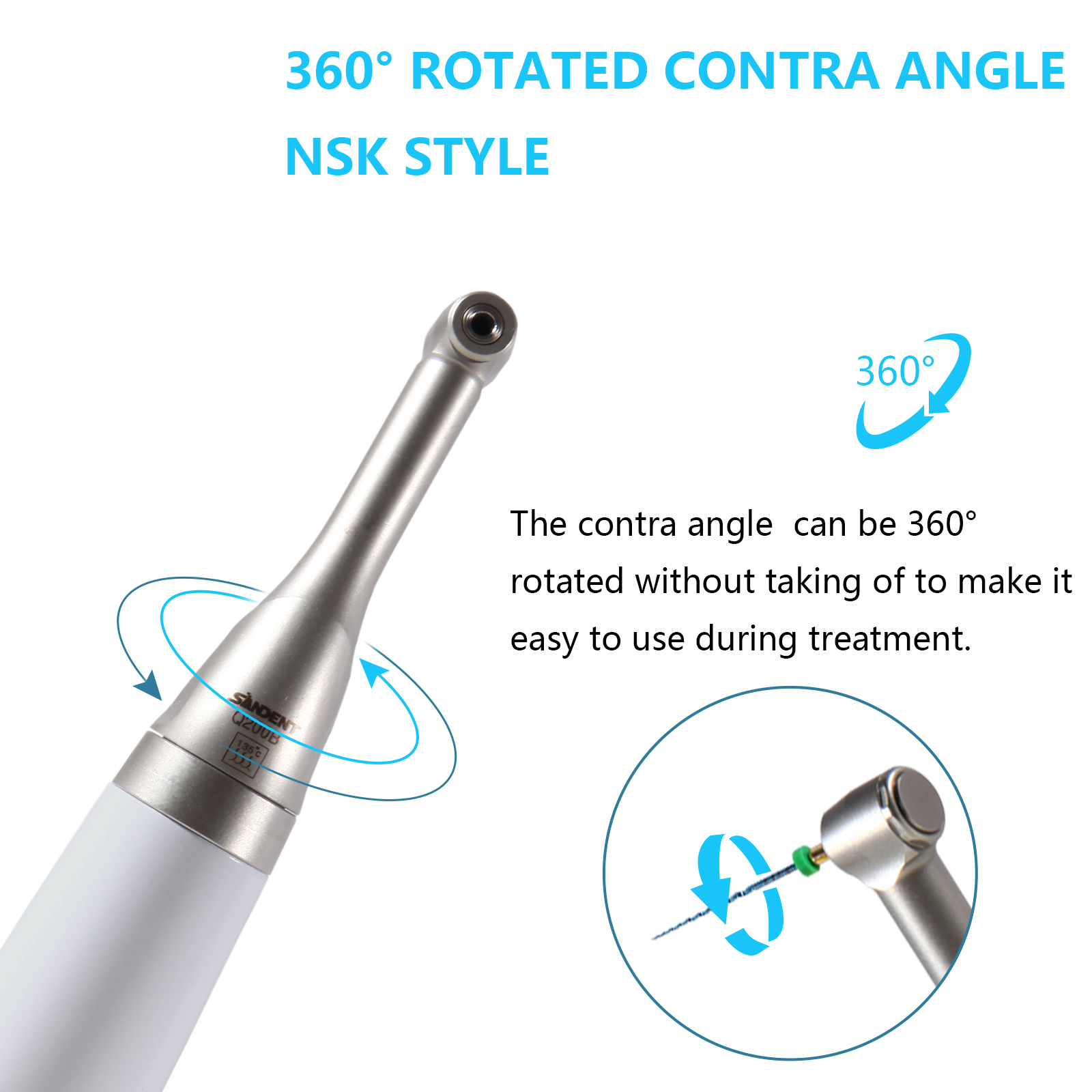

360°Adjustable handpiece

Reciprocating angle range 30°, 60°, 90°, 150°, 180°, 210°, 250°, 360°

It provides more quality performance and stable operation for clinic

LED screen,three button,easy to operate

Technical Parameter

Adaptor working voltage:100V-240V,50Hz/60Hz

Max speed: 700 rpm

Torque range: 0.6N.cm - 4.0N.cm

Volume (cm) : 20.6*18.6*7.1

Weight: 0.6kg

--------------------------------------------------------------------------------

Endo Motor&Apex Locator (no LED)

2 in 1 endo motor for multiple using

Built in apex locator, can be used alone for root measurement

1. Lightweight, ergonomic design, easy to carry.

2. The equipment will auto-reverse, auto-stop or auto reverse and stop according to different torque and resistance.

3. Use soft starting and stop, provide convenient operation and protect the file from broken when suffer instant impact.

4. It could save 10 programs, the parameter could be preset or modified according to actual operation.

5. Built-in recharging battery not only brings convenience of replace battery, but also save the cost, non-contact type charging makes the operation more convenient and safe.

6. Electric contra angle and autoclave sterilization up to 135 centigrade.

7. It has three programs: endo treatment and measurement made of one machine, endo with apex together.

8. Feel free to adjust the program which you need, more convenience than the old one.

Head	16:1 contra angle
Voltage	3.7vdc
Battery capacity	1100mAh
Application	Root canal treatment
Rotate speed	140-500rpm
Weight	0.7kgs
Color	White
Torque range	0.6-4.0 N.CM

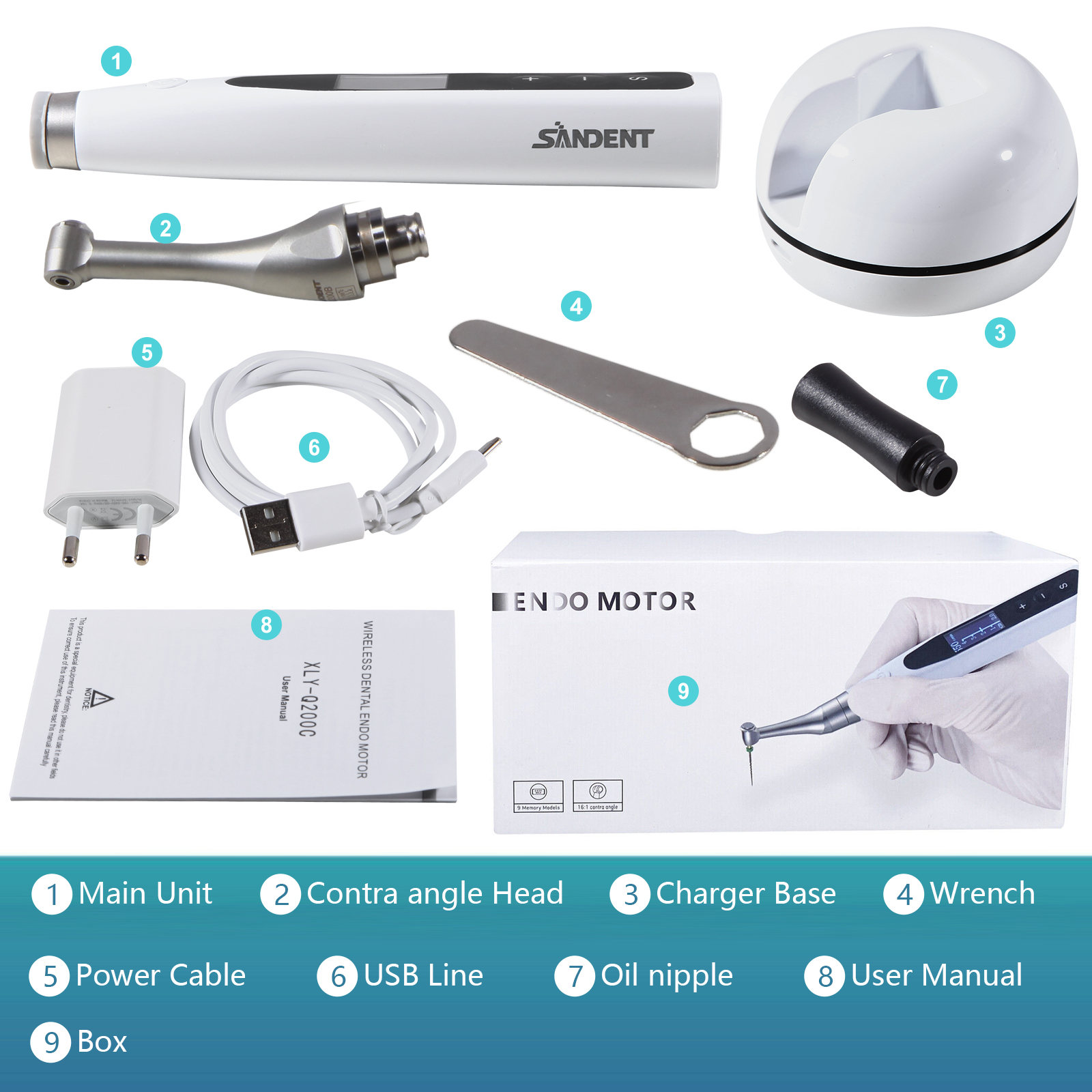

Structure and Components:

Cordless Endo Motor Main Unit: 1PC

Charging Base: 1PC

Electrical Contra Angle: 1PC

Adapter: 1PC

Cover: 1PC

Probe Cord: 1PC

File Holder: 1PC

Contrary Electrode: 1PC

Long Files Holder: 1PC

Usage Manual: 1PC

Optical Wire：2pcs
