All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Application:

for LAND ROVER Evoque 2.2 D 140 KW 2011 - 2019

for LAND ROVER Evoque 2.2 TD4 110 KW 2011 - 2019

for LAND ROVER Freelander 2.2 SD4 140 KW 2010 - 2014

for LAND ROVER Freelander 2.2 TD4 110 KW 2006 - 2014

for JAGUAR XF 2.2 D 147 KW 2012 - 2015

for JAGUAR XF 2.2 D 140 KW 2011 - 2015

for LAND ROVER Discovery 2.2 D 140 KW 2014 -

for LAND ROVER Discovery 2.2 D 110 KW 2014 -

for JAGUAR XF 2.2 D 120 KW 2011 - 2015

for LAND ROVER Freelander 2.2 TD4 112 KW 2007 - 2014

for LAND ROVER Freelander 2.2 TD4 118 KW 2006 - 2014

OE/Part number:

LR038322, LR065510, LR049592, LR038309, LR022358, 49477-01214, 49477-01213, 49477-01203, 49477-01204, 49477-01202, 49477-01200, 4947701214, 4947701213, 4947701203, 4947701204, 4947701202, 4947701200, 9676272680, BG9Q-6K682-CC, BG9Q6K682CB

Specification:

Turbo Model: TD04L4-11TK3/VG

Engine Code: TD4/224DT/44DD0R

Cooling Type: Water+Oil Cooling

Compressor Wheel: Billet Compressor Wheel

Condition: 100% Brand New

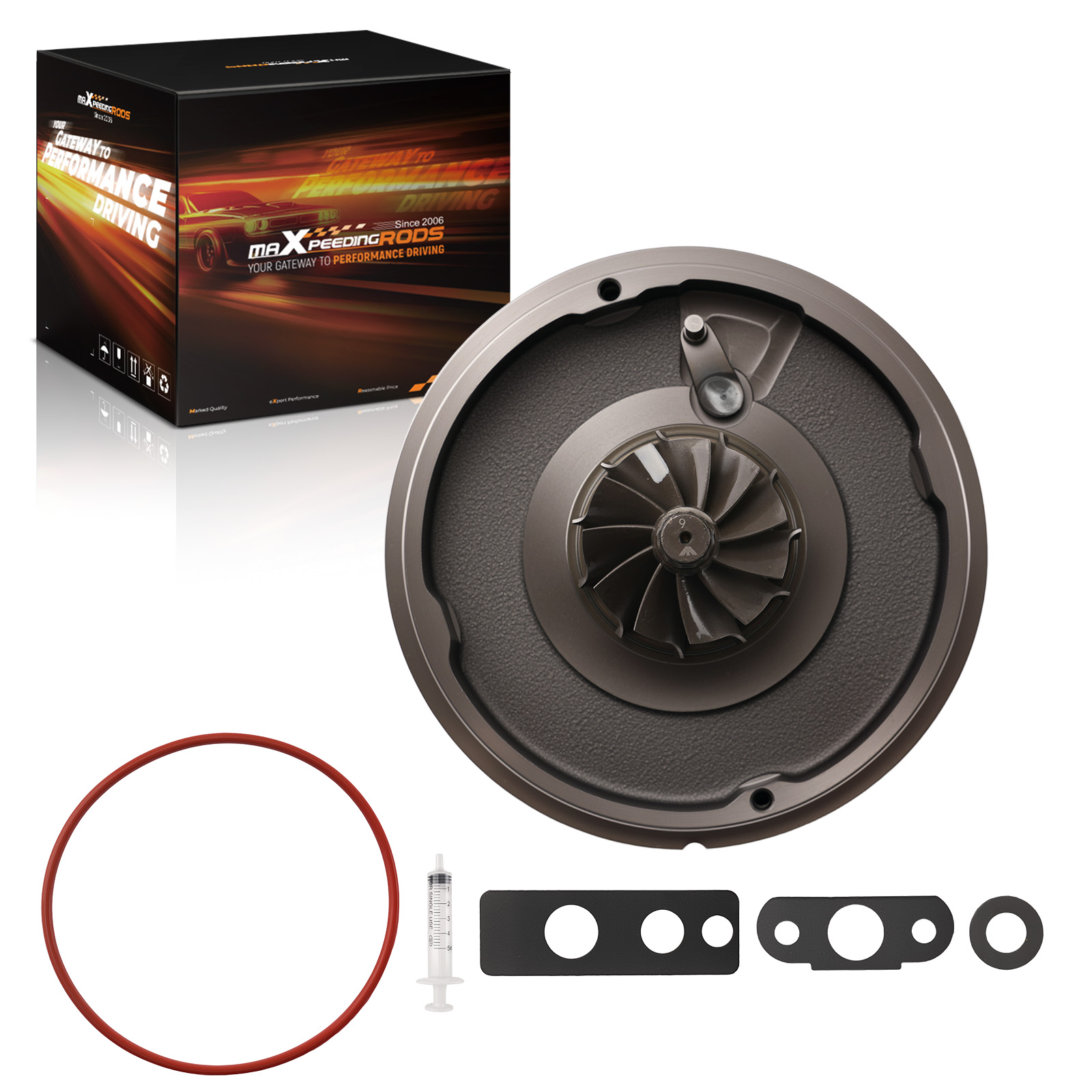

Accessories: You will get what you can see in the pictures exactly

Feature:

* Product

1. OEM-quality and size

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS VSR3

2. G3-min-Flow VNT Turbo testing

3. Advanced Actuator Tester/Programmer

Note:

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

* Please confirm your original turbo PART NUMBER before Purchasing.

* Professional installation is highly recommended,

* Before installation, please check the oil supply sufficient, clearnliness the air filter and gasoline , and the gasoline air tightness.
