Air Suspension Spring Bag Controller Kit for Ford Transit 2001-onwards

Application:

for Ford Transit 2001-onwards

Body Type: Panel Van, Tipper, Motorhome, Camper, Box Van , Horsebox , Minibus, Luton, Crew Van, Recovery, Dropside, Flatbed

For RWD, For Rear Twin wheel Body Only

Specification:

Condition: Brand New

Placement on Vehicle: Rear left and right

Max loading：4000Kg

Package Length, width and height: 710*190*195mm

Package Wight: 15kg

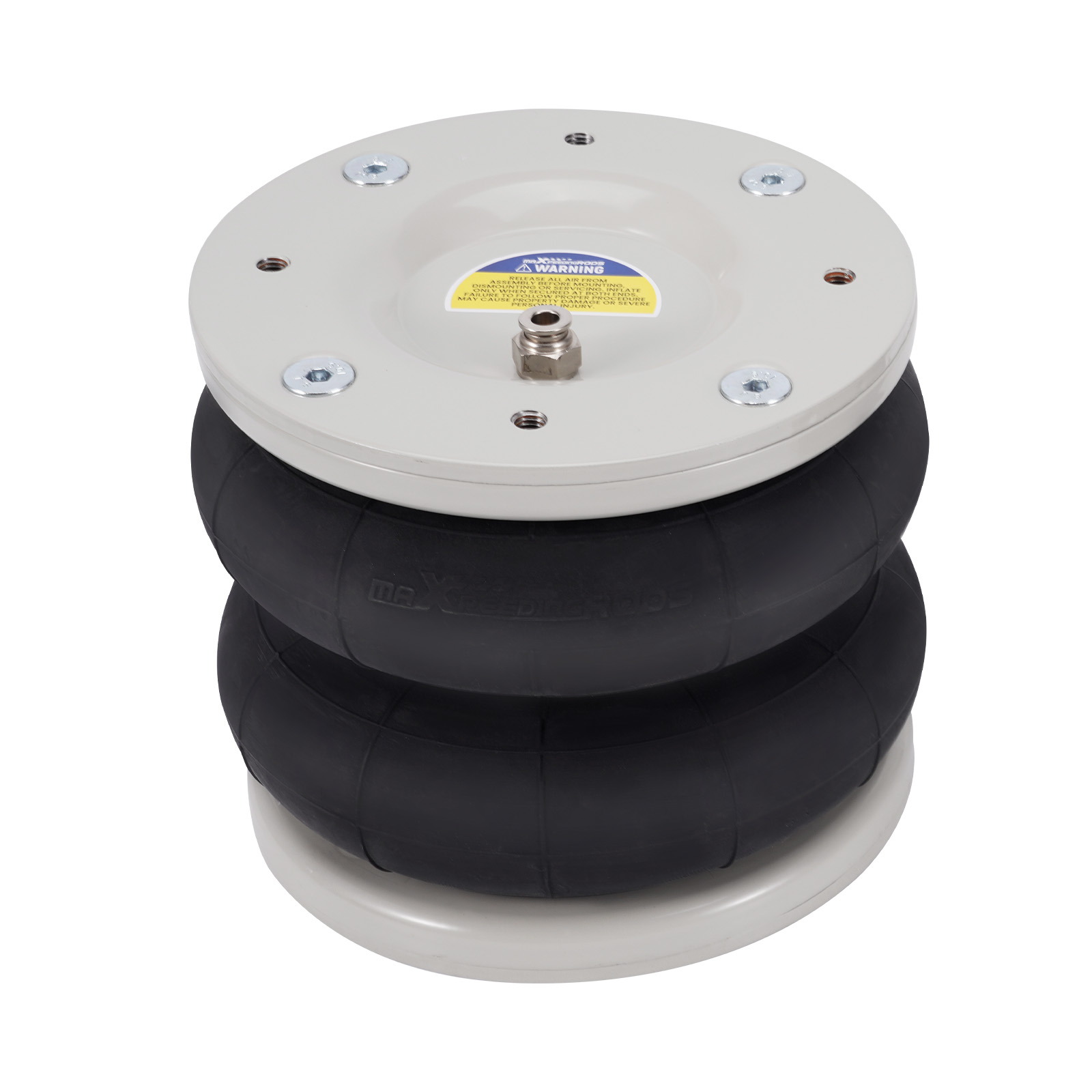

Air spring:

Stroke:  140mm

Max. Extended:   230mm

Min. Compressed:  90mm

Operating Pressure : ≤2.0Mpa

Temperature range：≤+70° , ≥-40°

Min 10 PSI (unloaded) and 75 PSI ( loaded)

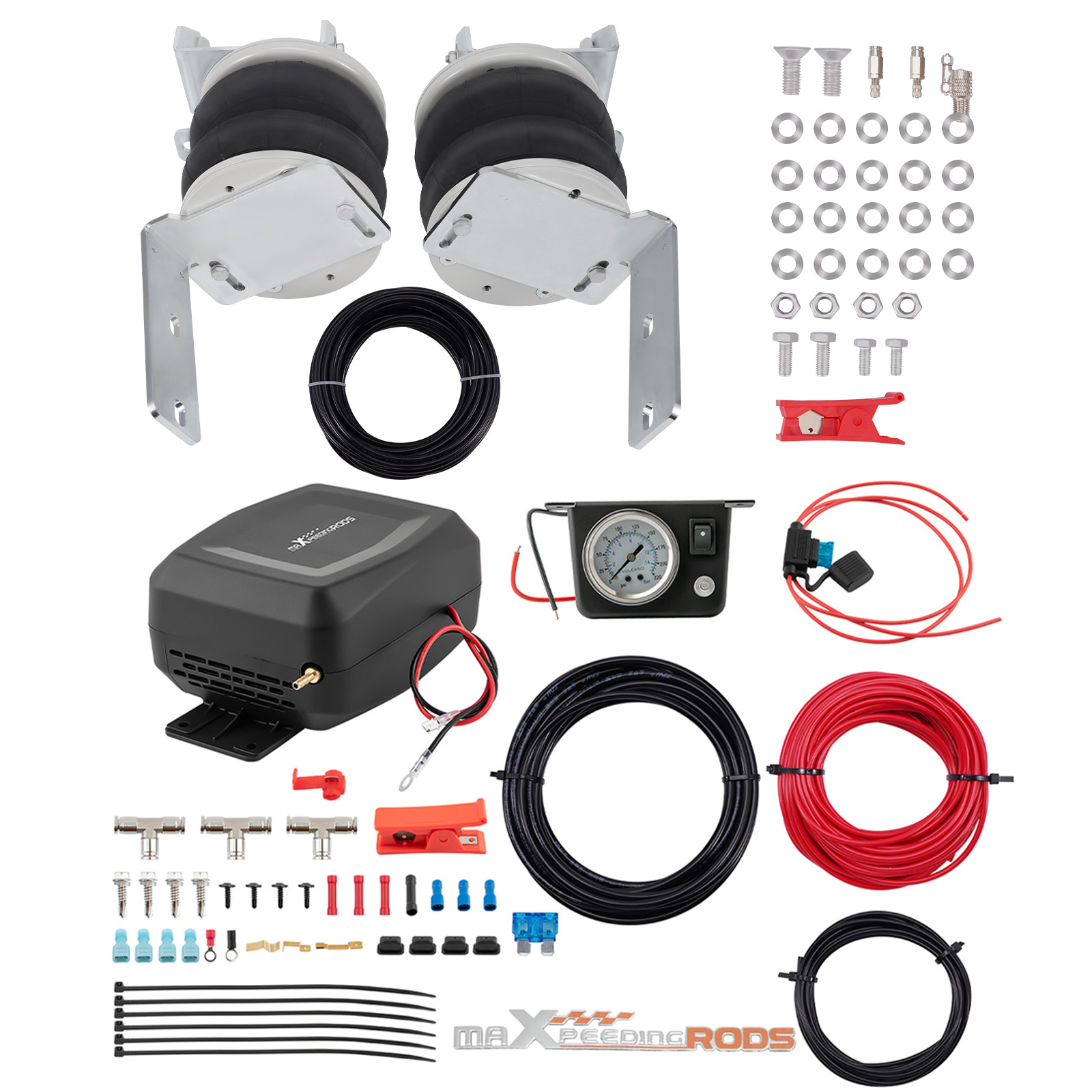

Package includes（as the picture shows）:

2x Natural Rubber & Hi-tensile steel Air spring

7x Galvanised Heavy duty Mounting bracket

1x Air line 11.5m

Mounting bolts and Air fittings

1x  12V MaXpeedingrods Air Compressor（Black）

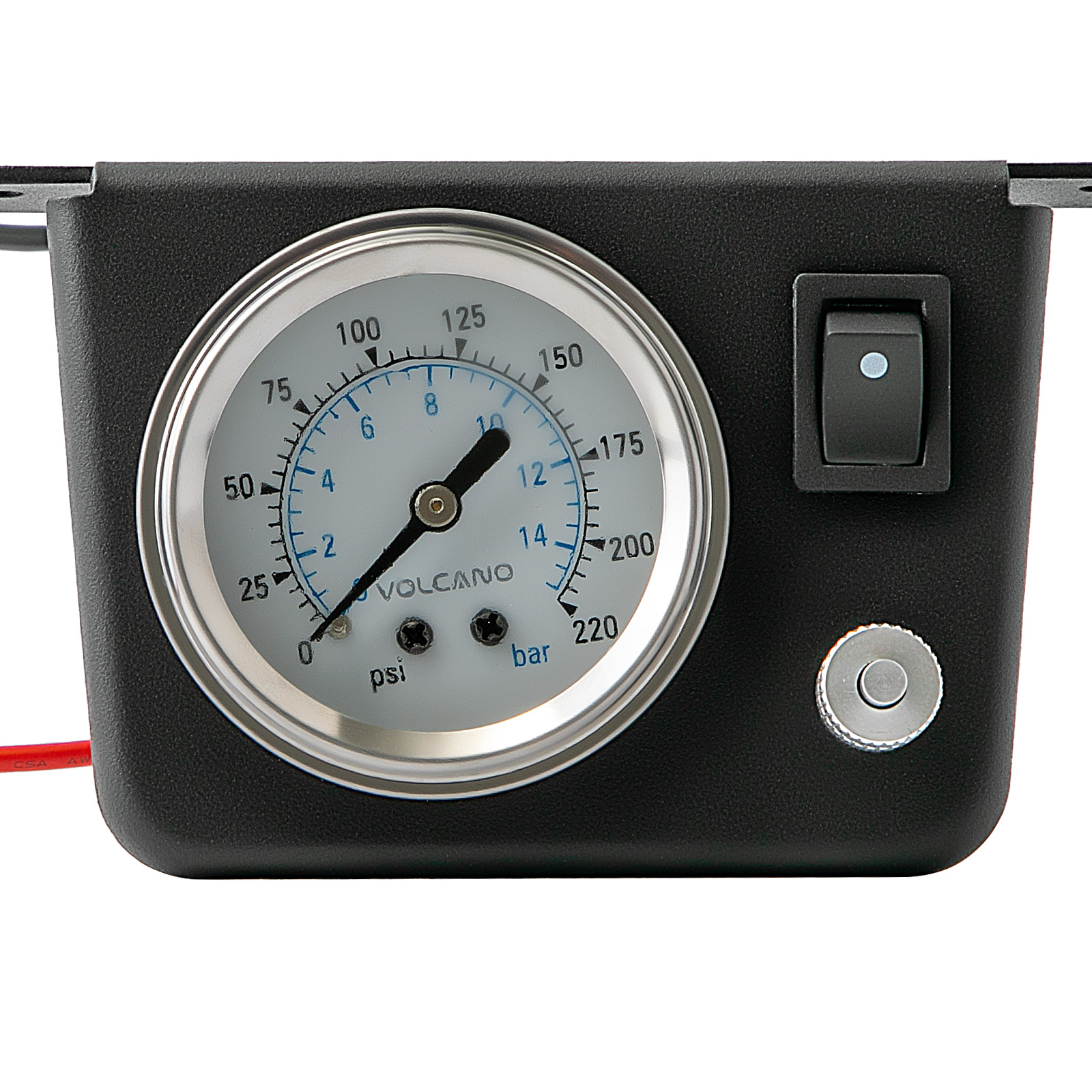

1x Gauge panel （Push buttons for up and down）

1x Air Line φ6*1（6M)

1x Wire harness (2.5 M) black

1x Wire harness (8.5 M) red

1x Relay harness(1M)

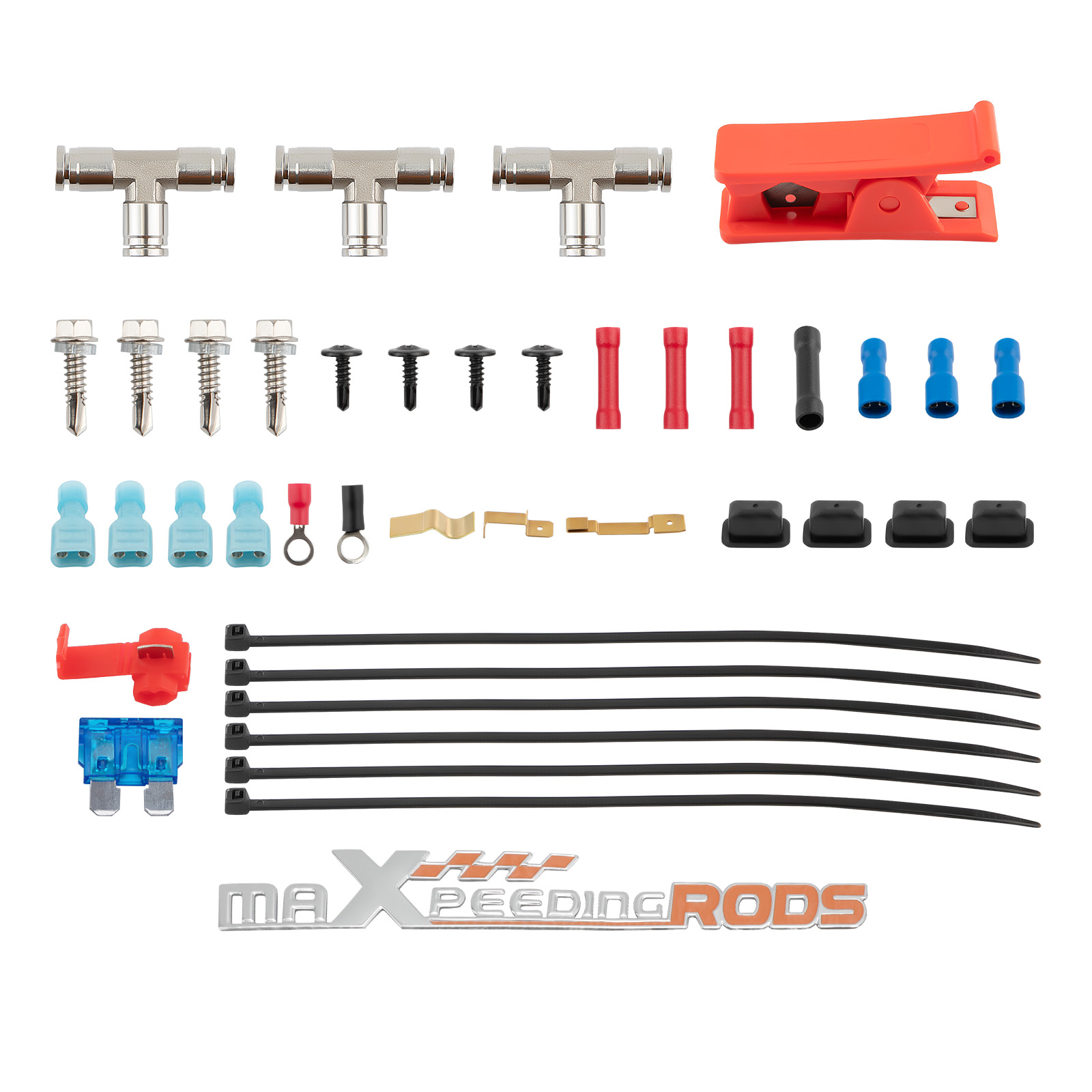

3x T Connectors

Mounting Hardware

Mounting bolts and Air fittings

Features:

Maxpeedingrods Air Suspension Kit:

1. Stress Test Over 5,000,000 Times：Durable and Safe
2. Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise
3. Air Tightness Test ≤ 0.02MPa：100% Air Tightness Guarantee
4. Temperature Range ≥ -40℃/ ≤ 70℃：Premium Natural Rubber Material
5. Use high-quality steel with high load-bearing capacity and long life.
6. Excellent and practical bolt-on installation.
7. Safe carrying capacity and stability
8. Restore the original ride height and improve ride quality
9. Ensure our driving comfort and reduce tire wear.

Maxpeedingrods Air Controller Kit:

1. Allows you to monitor and adjust the air pressure in the air spring bag from the driver's seat.

2. Performs well for light-duty or medium-duty applications and for occasional hauling or towing.

3. Includes onboard air compressor, single-gauge dash panel, air lines and hardware.

4. Compatible with any brand of air spring.

5. Single-path controls let you adjust 1 pair of air springs.

6. Strict quality inspection to ensure long-term use without damage

7. Maximum air pressure: 120 psi.

8. Recommended working pressure：5-70 PSI

9. Wire harness has flame retardant properties.

10. The air compressor has quality assurance.

11. The air compressor has a waterproof casing

Notice

These air suspension kit are aftermarket ones. They will replace the original one.

Instruction is not included. Professional installation is recommended
