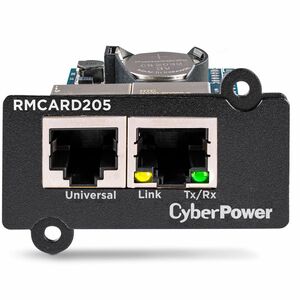

Cyberpower RMCARD205. Product Type: Network Management Card Product Colour: Blac

CyberPower RMCARD205. Product type: Network management card, Product colour: Black, Blue. Management protocols: TCP/IP, UDP, FTP, DHCP, DNS, SSH, Telnet, HTTP/HTTPS, SNMPv1/v3, IPv4/v6, NTP, SMTP, Syslog,..., Supported network protocols: IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and.... Interface type: RJ-45, Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. Compliance certificates: CE, Federal Communications Comm A full-featured network management card, the CyberPower RMCARD205 remotely manages, monitors and controls select CyberPower UPS systems and ATS PDUs via a standard web browser, command line interface (CLI), SNMP or network management system (NMS). Especially suited to enterprise installations, the RMCARD205 provides scheduling for UPS shutdown, startup, and rebooting, along with event action settings, event logging, status recording, and automatic event notifications via email, SMS, SNMP traps, or Syslog. PowerPanel?� Business Edition Client software protects servers and workstations from data loss due to power failure by initiating auto-shutdown command from a UPS when a power loss event occurs.
Network & Communication

Ethernet TechnologyFast Ethernet

Technical Information

ProtocolsTLS
UDP
SMTP
RADIUS
NTP
LDAPS
LDAP
IPv6
IPv4
HTTPS
HTTP
FTP
DNS
DHCP
Telnet
TCP/IP
Syslog
SSL
SNMP v1
SNMPv3
SSH
ManagementRemote Monitoring


Interfaces/Ports

Number of Network (RJ-45) Ports2
Network (RJ-45)Yes

Miscellaneous

Additional InformationData Link Protocol : Ethernet 100Base-TX, Ethernet 10Base-T
Unversal Port : Optional ENVIROSENSOR
Physical Dimensions - (WxHxD) (cm) : 5.41 x 3.61 x 7.62 (cm)
Physical Dimensions - (WxHxD) (in) : 2.13 x 1.42 x 3 (in)
Physical Dimensions - (WxHxD) (mm) : 54 x 36 x 76 (mm)
Weight (kg) : 0.04
Weight (lb) : 0.08
Shipping Dimensions - (WxHxD) (cm) : 5.84 x 16.51 x 16.76 (cm)
Shipping - Dimensions (WxHxD, in) : 2.3 x 6.5 x 6.6 (in)
Shipping - Dimensions (WxHxD, mm) : 58.42 x 165.1 x 167.64 (mm)
Shipping - Weight (kg) : 0.26
Shipping - Weight (lb) : 0.57
USB Charge Port : No
Network Protection RJ45 : Ethernet RJ45
Network Protection RJ45 : Ethernet RJ45
LED Indicators : Tx/Rx
Cisco EnergyWise : v1.2.0 and newer
DHCP : RFC 2131
DNS : RFC 1035
FTP : RFC 959
HTTP : v1.1: RFC 2616
HTTPS : RFC 2818
LDAP : v3: RFC 2251
LDAPS : v3: RFC 4513
MIB : RFC 1213, RFC 1628
NTP : RFC 958
RADIUS : RFC 2865
SCP : v2: RFC 4253, RFC 4254
SMTP : RFC 2821
SMTPS : RFC 3207
SNMP : v1: RFC 1155, RFC 1156, RFC 1157
SSH : v2: RFC 4253, RFC 4254
SSL : v3: RFC 6101
SysLog : RFC 5424
TCP/IP : v4: RFC 791
Telnet : RFC 854
TLS : v1.1: RFC 4346
Color : Black
Operating Elevation : 0 - 10000 ft (0 - 3048 m)
Operating Relative Humidity : 0 - 90 % (non-condensing)
Operating Temperature : 32 - 104 ??F (0 - 40 ??C)
Storage Elevation : 0 - 50000 ft (0 - 15239 m)
Storage Relative Humidity : 0 - 95% (non-condensing)
Storage Temperature : 14 - 122 ??F (-10 - 50 ??C)
Environmental : RoHS Compliant
Safety : FCC DoC Class A|CE
Extended Warranty Option : WEXT5YR-ACC1A
Product Warranty : 3 Year Limited Warranty

CompatibilityOL1000RTXL2U
OL1500RTXL2U
OL1500RTXL2UN
OL2200RTXL2U
OL3000RTXL2U
OL3000RTXL2UHV
PR500LCDRT1U
PR750LCD
PR1500LCDN
PR750LCDRM1U
PR750LCDRT1U
PR750LCDRTXL2U
PR1000LCD
PR1000LCDRM1U
PR1000LCDRT1U
PR1000LCDRT2U
PR1000LCDRTXL2U
PR1000LCDRTXL2Ua
PR1500LCD
PR1500LCDRT2U
PR1500LCDRT2UN
PR1500LCDRTXL2U
PR1500LCDRTXL2UN
PR1500LCDRTXL2Ua
PR2200LCD
PR2200LCDSL
PR2200LCDRT2U
PR2200LCDRT2UN
PR2200LCDRTXL2U
PR3000LCD
PR3000LCDSL
PR3000LCDRT2U
PR3000LCDRTXL2U
PR3000LCDRTXL2UN
PR5000LCDRTXL5U
PR6000LCDRTXL5U
OR500LCDRM1U
OR700LCDRM1U
OR1000LCDRM1U
OR1500LCDRM1U
OR1500LCDRM2U
OR1500LCDRT2U
OR1500LCDRTXL2U
OR2200LCDRM2U
OR2200LCDRT2U
OR2200LCDRTXL2U
CPS1500AVR
PDU15M10AT
PDU20M10AT
PDU20MT10AT
PDU30MT17AT
PDU15MHVIEC12AT
PDU20MHVT10AT
PDU20MHVIEC10AT
PDU30MHVT19AT
PDU15SW10ATNET
PDU20SW10ATNET
PDU20SWT10ATNET
PDU30SWT17ATNET
PDU15SWHVIEC12ATNET
PDU20SWHVT10ATNET
PDU20SWHVIEC10ATNET
PDU30SWHVT19ATNET


Physical Characteristics

Weight (Approximate)36.3 g
Height36.1 mm
Width54.1 mm
Depth76.2 mm
Product ColorBlack
Color FamilyBlack

General Information

Product TypeRemote Power Management Adapter
Manufacturer Part NumberRMCARD205
cyberpowersystems/
ManufacturerCyberPower Systems, Inc
Product ModelRMCARD205
Product NameRMCARD205 Remote Management Card
Product LineNetwork Power Management
Brand NameCyberPower
