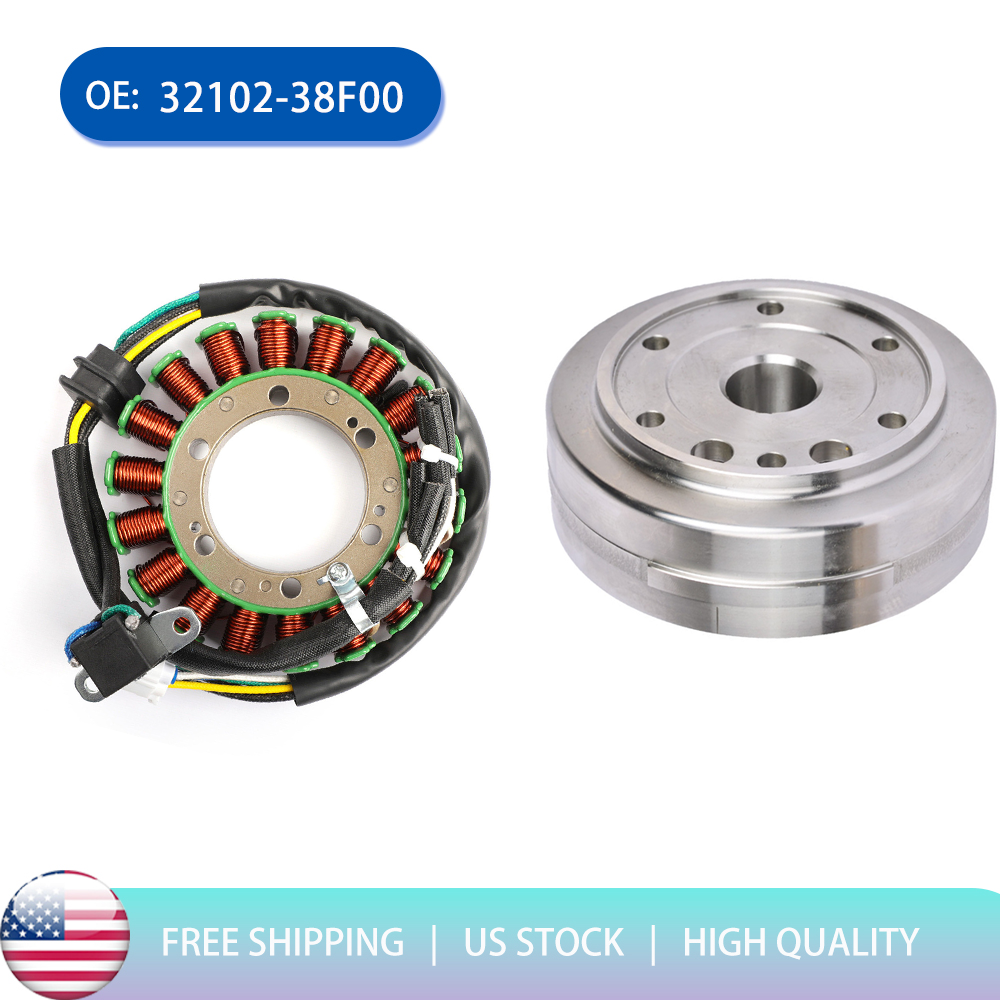

Flywheel Rotor Stator Kit For Suzuki Eiger LTA400 LTF400 32102-38F01 32102-38F00

Improved Stator Flywheel Kit For Arctic Cat 400 ATV Eiger LTA LTF 400 2002-07
Condition：100% Brand New
Other Part Number:

3430-053 3430-054 3430-071 3430053 3430054 3430071

SUZUKI: 32102S-38F01 32102S-38F00 32102S38F01 32102S38F00 32102-38F00 3210238F00

Fit for:

Arctic Cat 375 Automatic -- 2002

Arctic Cat 400 Automatic -- 2003-2008

Arctic Cat TBX 400 -- 2004-2006

Arctic Cat TRV 400 -- 2006-2007

Flywheel

Dimensions :

Exterior Diameter: 143 mm

Interior Diameter: 120 mm

Interior Diameter Center Housing: 18 mm

Exterior Diameter Center Housing: 42 mm

Thickness (exterior): 12 mm

Thickness (interior): 13 m

Dimensions Stator:

Interior diameter: 53 mm

Exterior diameter: 119 mm

Thickness: 15 mm

Other specifications Stator:

Number of wires: 7

Number of plugs: 4

Number of pins: 7

Wire to wire resistance:

Alternator : White Between each White = 0.4 ohms+/-20%

Alternator : White to Ground = O.L. ON DISPLAY

Pick up Coil : Blue to green = 200 ohms+/- 20%

Position Sensor :White to yellow = 0.2 ohms+/- 20%

100% brand new and high quality.

Extremely durable and long lasting.

Note:

Please make sure the part number in our listing is the same as your original one

If you have any questions or concerns, please contact us using the EBAY messaging system

Package:

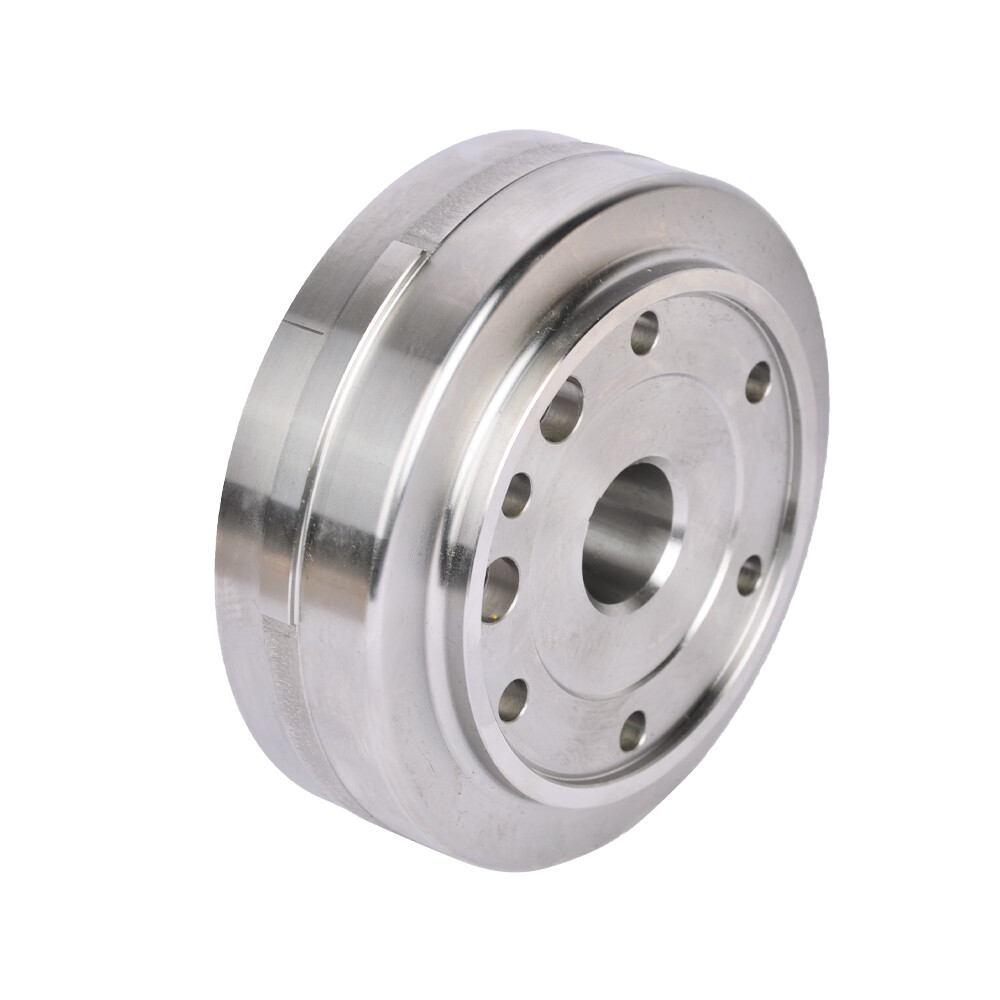

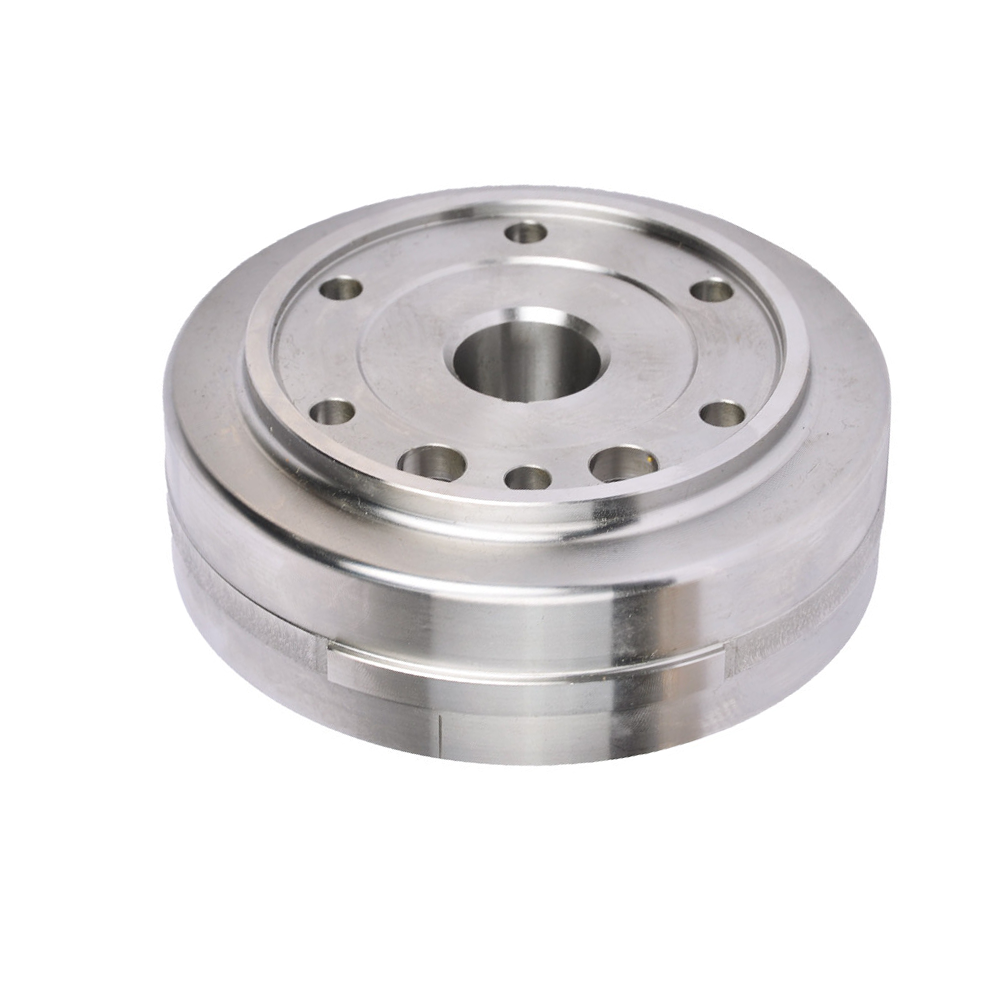

1x Magnetic Flywheel Rotor as Picture Show

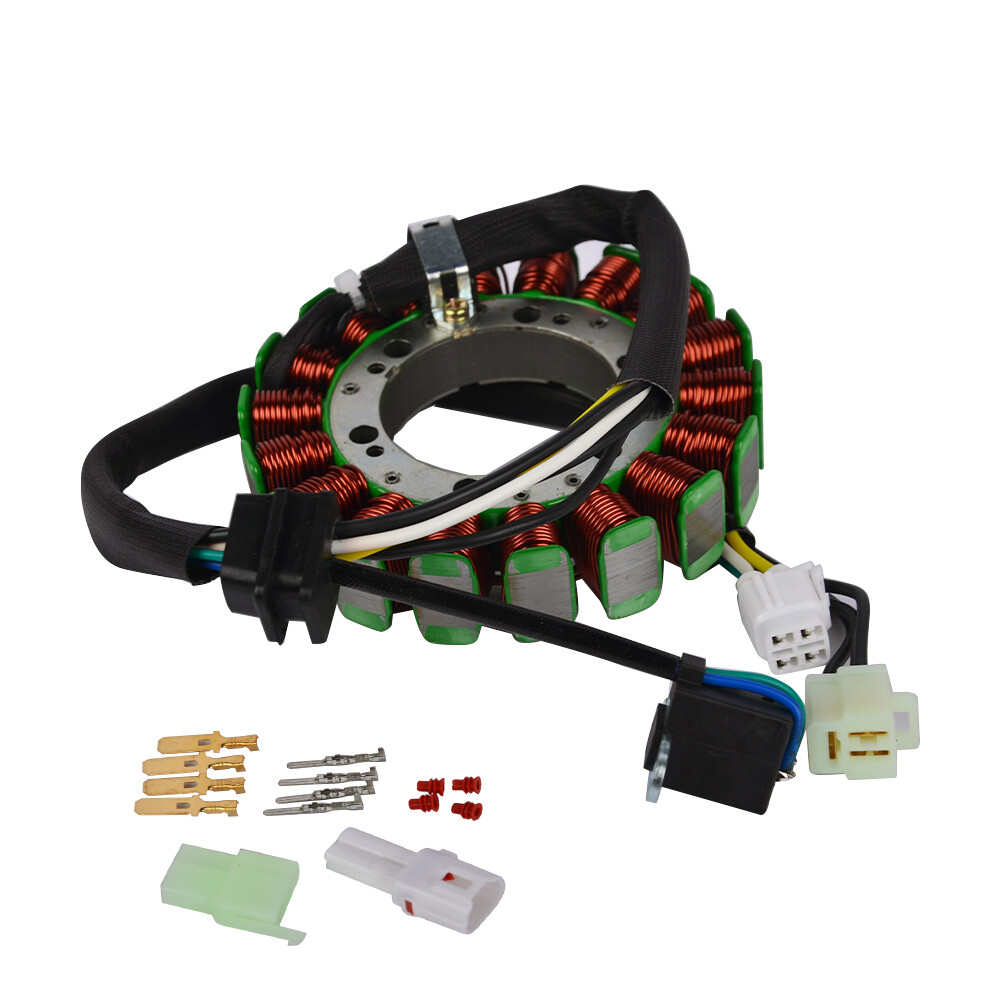

1x Stator Kit
