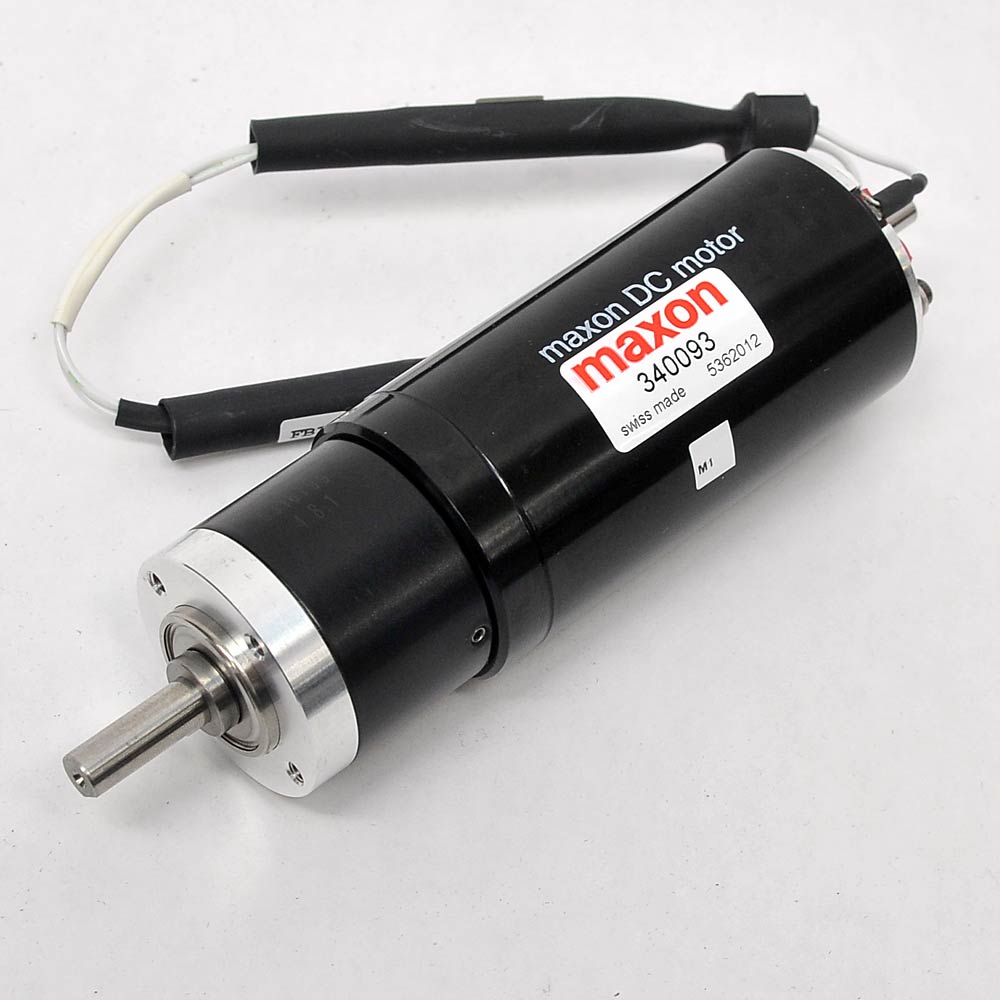

NEW Maxon 340093 DC Motor Gearmotor RE 35/GP 32 90W 48V 623RPM 4.8:1 Raio
Manufacturer: Maxon
Model: 340093
Condition: New Other
Manufacturer: Maxon
Condition: New Other. Comes in non-original packaging. This gearmotor is in good cosmetic condition with minor marks (mostly fingerprints) from handling. We have several of these and opened a couple for inspection and photography.
Notes: No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Maxon 340093 Gearmotor
Specifications:
- Manufacturer: Maxon
- P/N: 340093
- P/N for the previous owner: 90118-01
- Gearmotor
- Power: 90 W
- Nominal speed: 623 RPM
- RE35-series motor with GP32A-series gearhead
- Straight (inline) output shaft
- Output shaft: 6 mm diameter with flat
-
Motor: RE 35 series, P/N 273759
- 35mm diameter
- Graphite brushless
- Power rating: 90 Watts
- Nominal speed: 2990 RPM
- No-load speed: 3830 RPM
- Nominal torque: 108 mNm
- Stall torque: 499 mNm
- Nominal voltage: 48 V
- No-load current: 27 mA
- Maximum continual current: 0.934 A
- Stall current: 4.21 A
- Maximum efficiency: 84%
- Ambient temperature: -30 ... +100 ºC
-
Gearhead: GP 32 A series, P/N 166156
- 32 mm diameter
- Reduction ratio: 4.8:1
- Single satage planetary gearset, straight teeth
- Output shaft: 6 mm diameter with flat
- Brake/encoder output shaft: 4 mm diameter
- Max. continuous torque: 0.75 Nm
- Max. intermittent torque at gear output: 1.1 Nm
- Max. efficiency: 80%
- Average backlash no load: 0.7º
- Stainless steel output shaft
- Ball bearing output bearing
- Radial play, 5mm from flange: 0.14 mm maximum
- Axial play: 0.4 mm maximum
- Maximum dynamic axial load: 120 N
- Recommended temperature range: -40 ... +100 ºC
