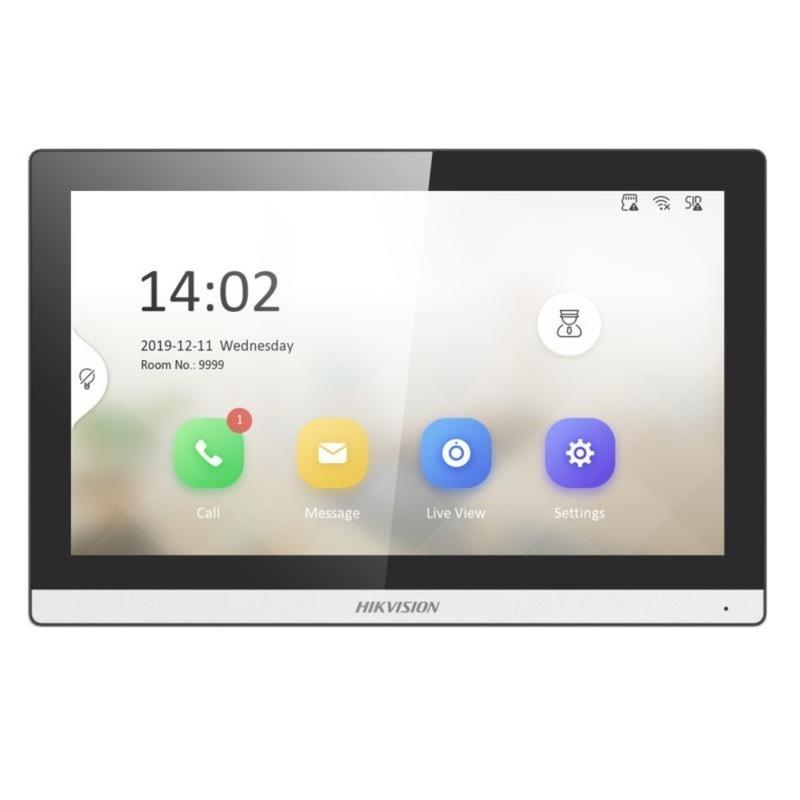

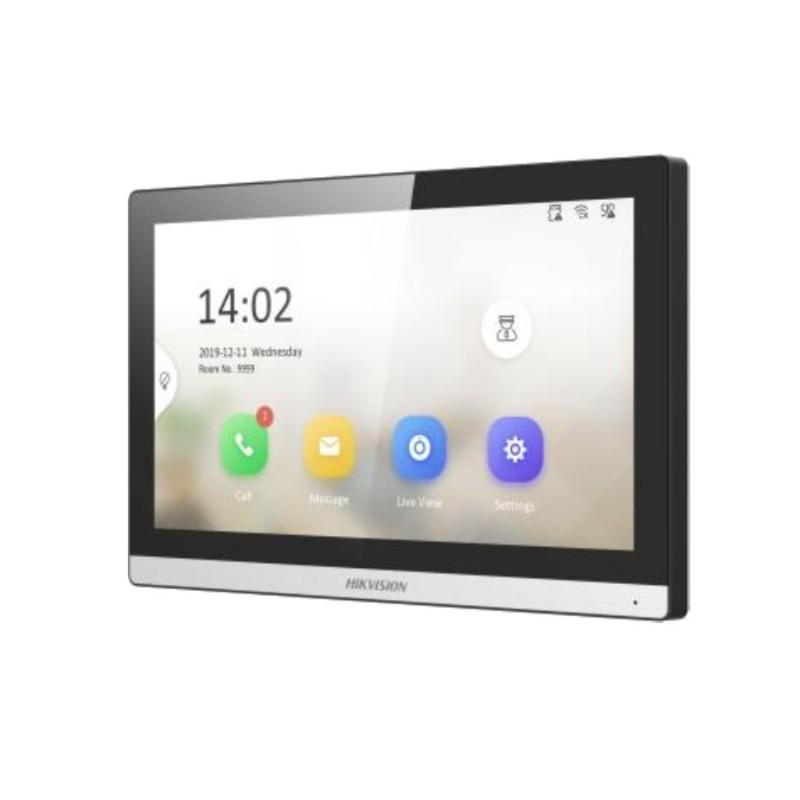

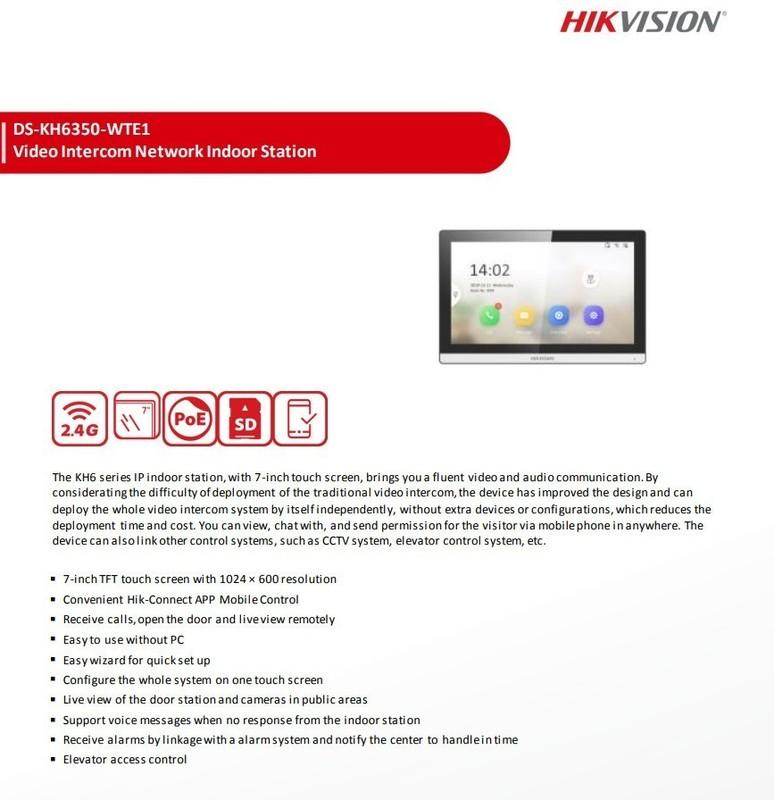

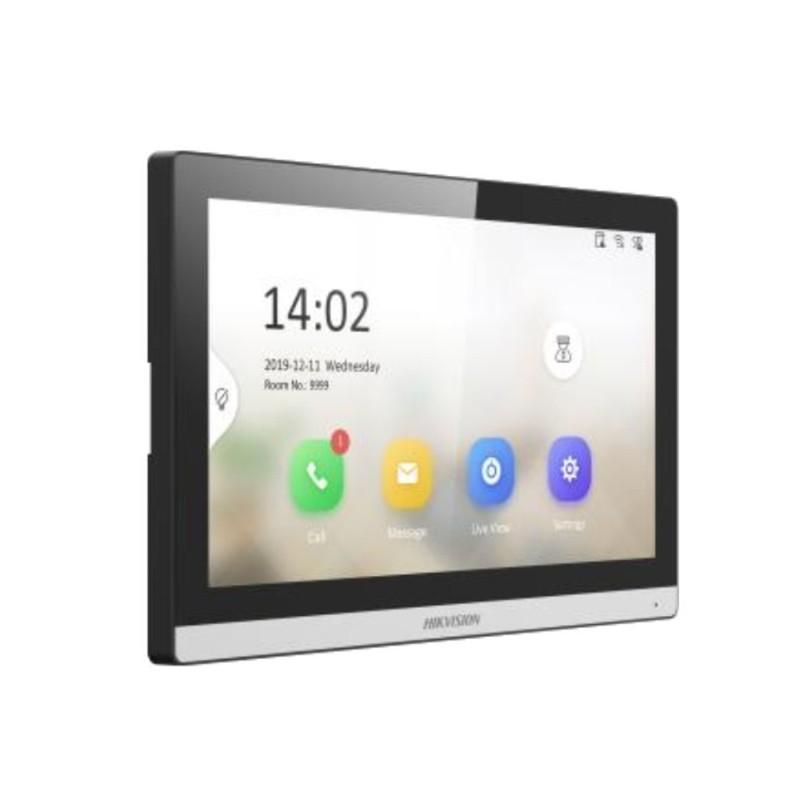

IP Indoor Station

• 7-inch TFT touch screen with 1024 × 600 resolution

• Convenient Hik-Connect APP Mobile Control

• Receive calls, open the door and live view remotely

• Easy to use without PC

• Easy wizard for quick set up

• Configure the whole system on one touch screen

• Live view of the door station and cameras in public areas

• Support voice messages when no response from the indoor station

• Receive alarms by linkage with a alarm system and notify the center to handle in time

• Elevator access control

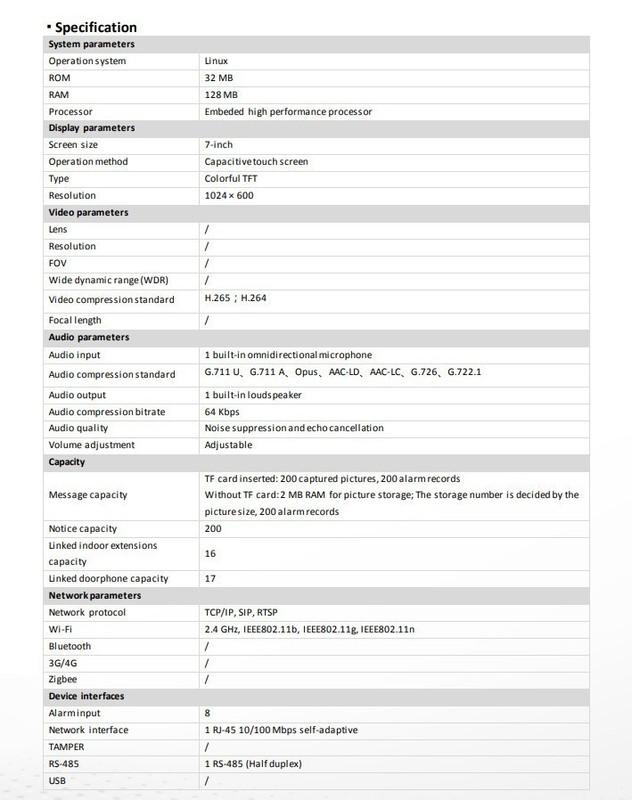

• System Parameters
• Operation SystemLinux
• ROM32 MB
• RAM128 MB
• ProcessorEmbeded high performance processor

• Display Parameters
• Screen Size7-inch
• Operation MethodCapacitive touch screen
• TypeColorful TFT
• Resolution1024 × 600

• Video Parameters
• Lens/
• Resolution/
• FOV/
• Wide Dynamic Range (WDR)/
• Video Compression StandardH.265；H.264
• Focal Length/

• Audio Parameters
• Audio Input1 built-in omnidirectional microphone
• Audio Compression StandardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
• Audio Output1 built-in loudspeaker
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation
• Volume AdjustmentAdjustable

• Capacity
• Message Capacity

  TF card inserted: 200 captured pictures, 200 alarm records

  Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records

• Notice Capacity200
• Linked Indoor Extensions Capacity16
• Linked Doorphone Capacity17

• Network Parameters
• Network ProtocolTCP/IP, SIP, RTSP
• Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth/
• 3G/4G/
• Zigbee/

• Device Interfaces
• Alarm Input8
• Network Interface1 RJ-45 10/100 Mbps self-adaptive
• TAMPER/
• RS-4851 RS-485 (Half duplex)
• USB/

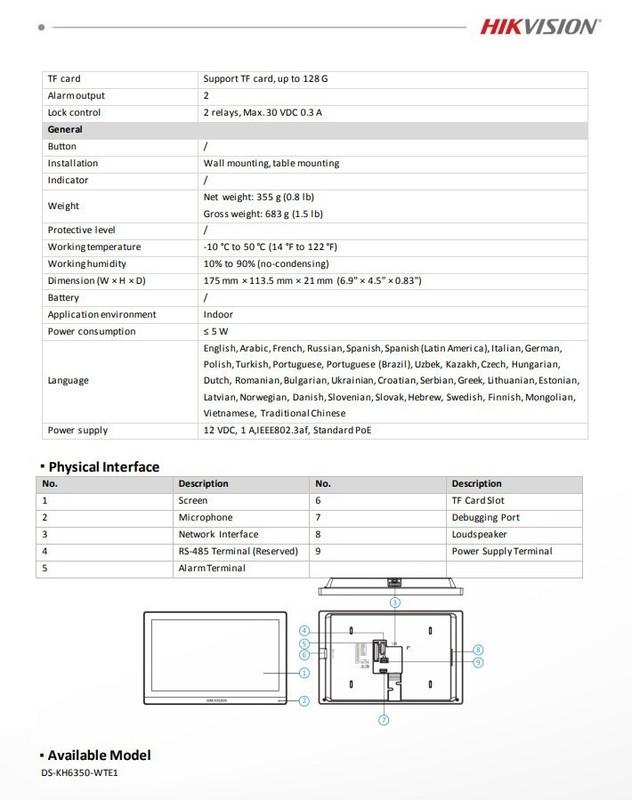

• TF CardSupport TF card, up to 128 G
• Alarm Output2
• Lock Control2 relays, Max. 30 VDC 0.3 A

• General
• Button/
• InstallationWall mounting, table mounting
• Indicator/

• Net weight: 355 g (0.8 lb)

  Gross weight: 683 g (1.5 lb)

• Protective Level/
• Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity10% to 90% (no-condensing)

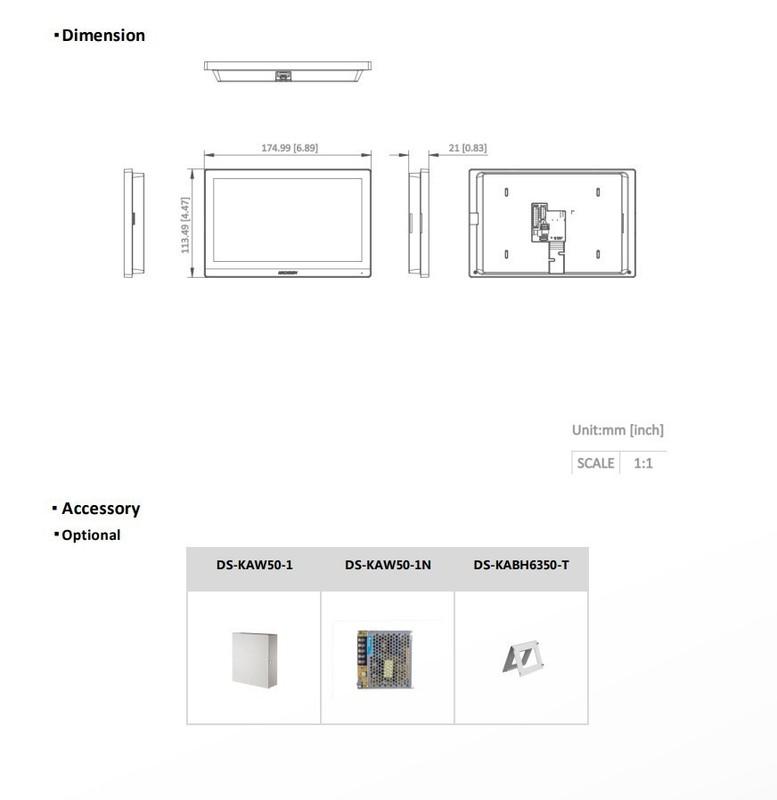

• Dimension (W × H × D)175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83")
• Battery/
• Application EnvironmentIndoor
• Power Consumption≤ 5 W
• LanguageEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
• Power Supply12 VDC, 1 A,IEEE802.3af, Standard PoE
