Product Description

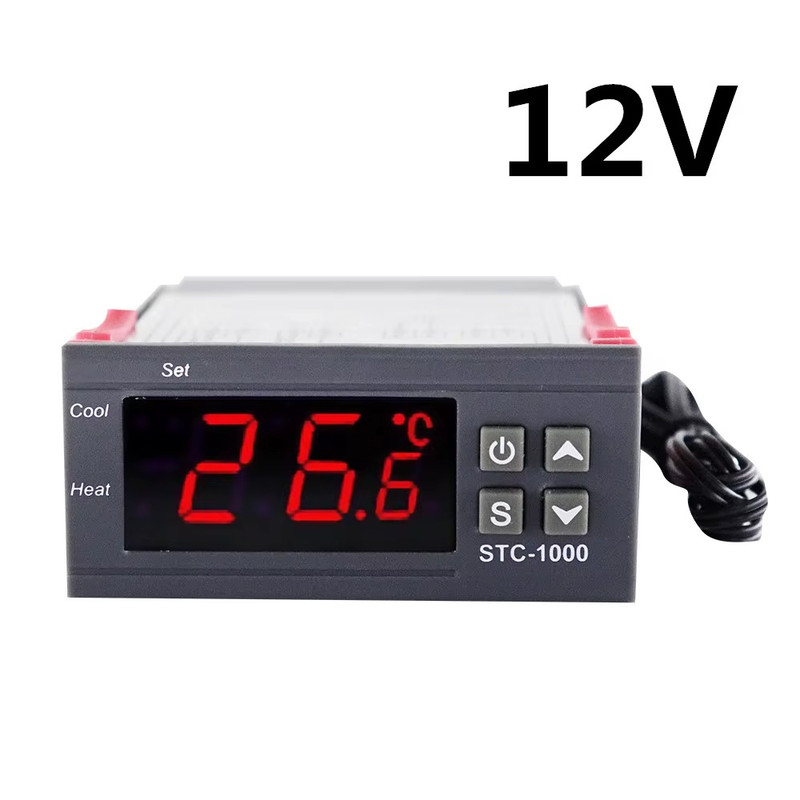

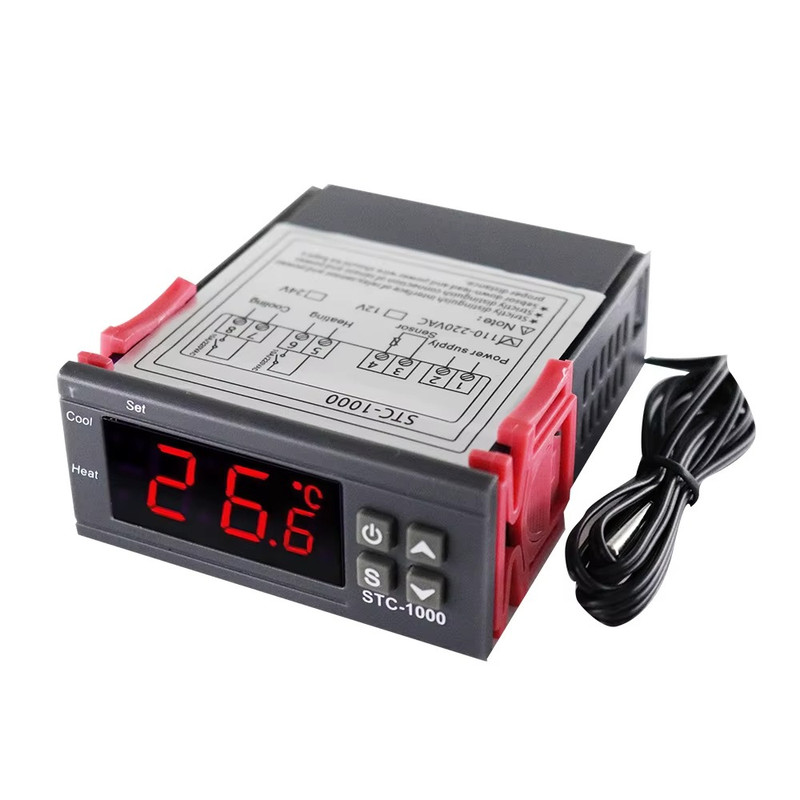

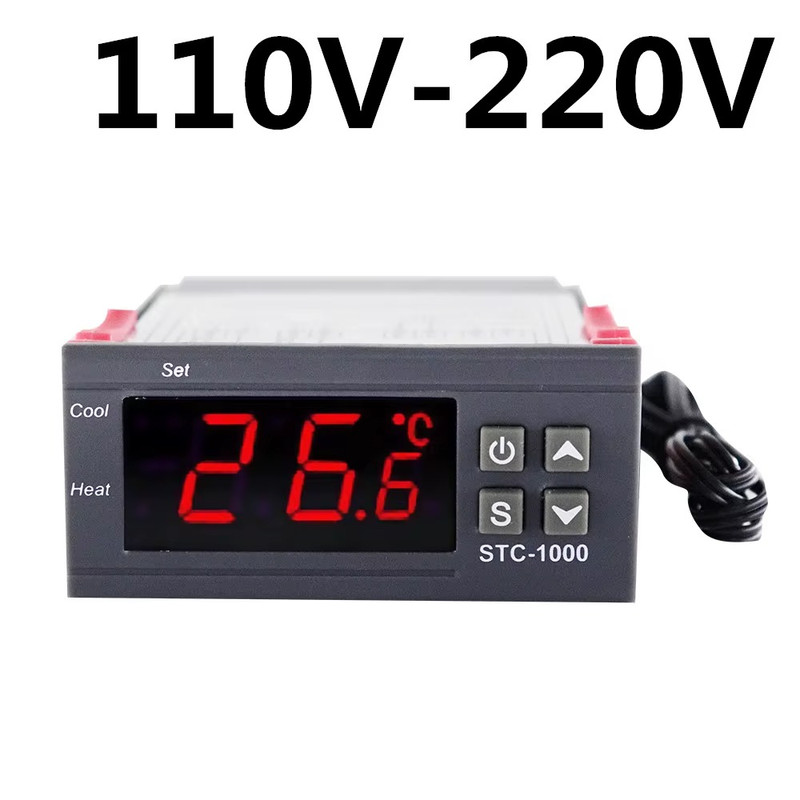

The Digital Temperature Thermostat STC-1000 Controller is a versatile and reliable temperature control device designed for both heating and cooling applications. Equipped with a clear LCD display, it allows precise temperature monitoring and adjustment, making it ideal for use in aquariums, incubators, refrigerators, greenhouses, and other temperature-sensitive environments. With dual relay outputs, the controller can automatically switch between heating and cooling modes to maintain your desired temperature range efficiently.

Top Features

Dual relay output supports both heating and cooling control

Wide temperature measuring range from -50°C to 99°C

High accuracy with precise temperature control and 0.1°C resolution

Clear LCD display for easy reading and operation

NTC sensor provides stable and reliable temperature detection

Automatic temperature regulation based on set limits

Compact design suitable for panel mounting

Low power consumption for energy efficiency

Supports multiple power supply options (110-220VAC, 12VDC, 24VDC)

Easy setup with user-friendly menu controls

Product Specifications

Temperature measuring range: -50°C to 99°C

Resolution: 0.1°C

Accuracy: ±1°C (-50°C to 70°C)

Sensor delay: 1 minute

Power supply: 110-220VAC / 12VDC / 24VDC (selectable)

Power consumption: <3W

Sensor type: NTC sensor

Relay capacity: Cooling 10A/220VAC, Heating 10A/220VAC

Ambient temperature: 0°C to 60°C

Storage temperature: -30°C to 75°C

Relative humidity: 20% to 85% (non-condensing)

Sensor cable length: 1 meter

Front panel size: 75 × 34.5 mm

Product size: 75 × 34.5 × 85 mm

Mounting size: 71 × 29 mm

Package Includes

1 × STC-1000 Temperature Controller
