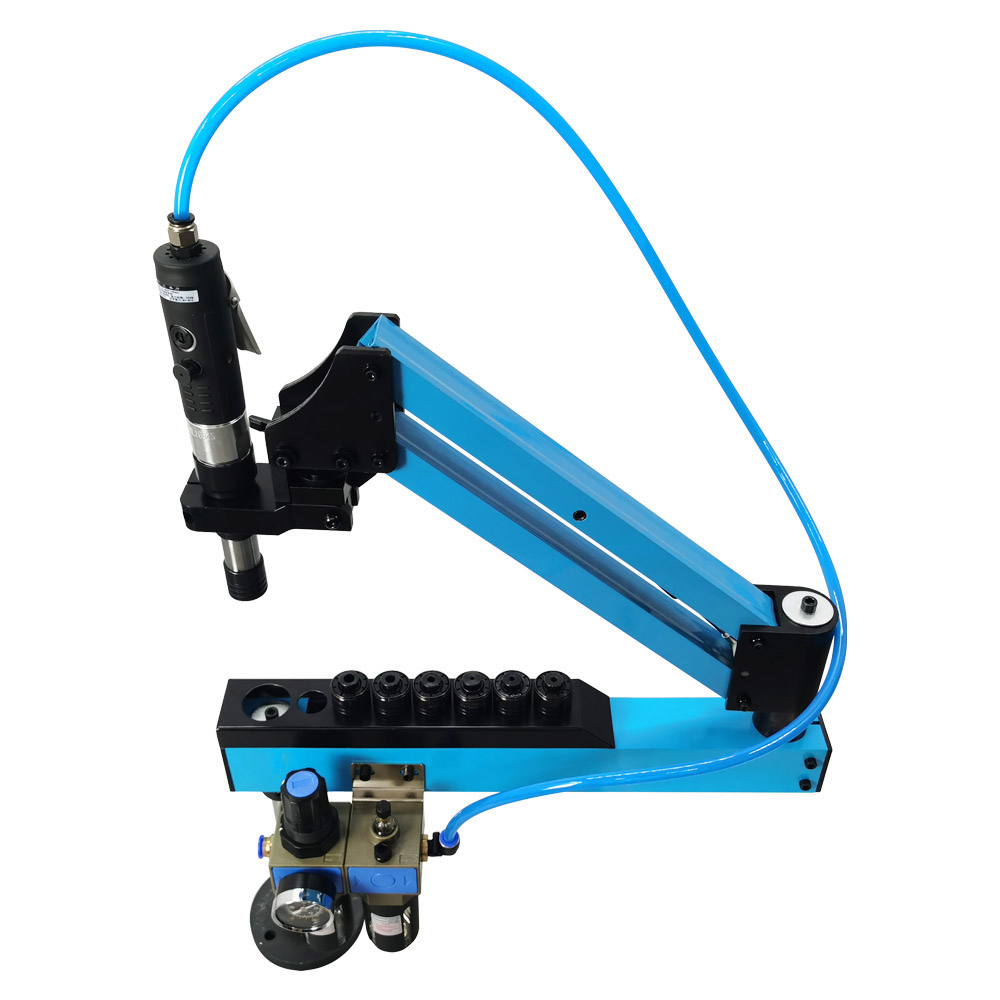

M3-M12 Universal 360° Pneumatic Tapping Machine

TECHTONGDA^®

▸ ITEM DESCRIPTION

Assembly and operation is very simple and convenient; Smooth operation, low noise.
Compressed air drive, no power supply, high efficiency, more safe.
Adopt high quality pneumatic motor, support forward and reverse, durable; The frame is made of aluminum, light weight, beautiful and generous.

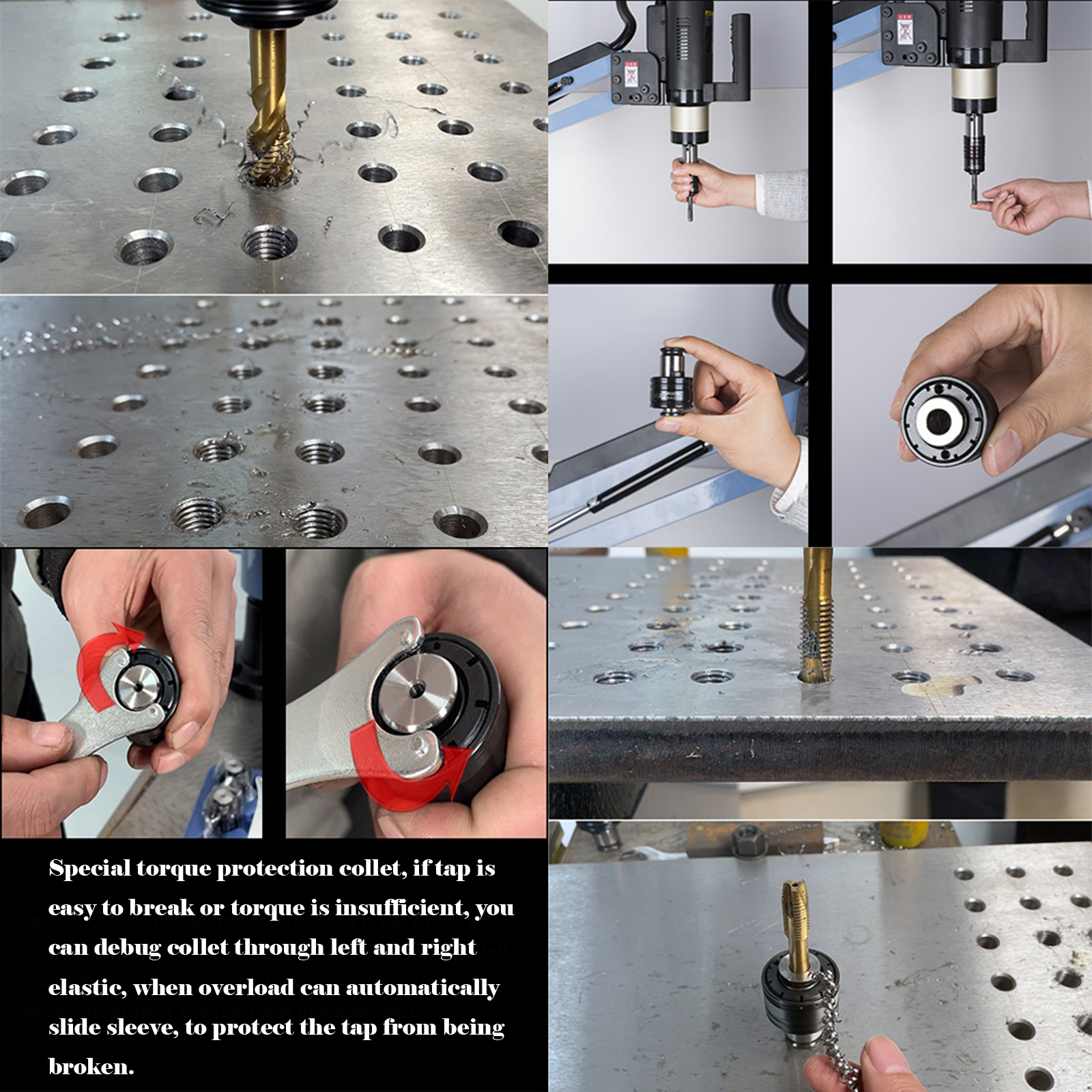

Equipped with the tap torque collet, when the tapping resistance is too large, the collet can slip to prevent the tap from breaking.
Wide range of processing materials, can process aluminum, copper, A3 steel, 45 steel, cast iron, pig iron, Q235, S136, mold steel, 718H,40Cr, stainless steel and other materials.

Pneumatic tapping machine is used in factory workshops, woodworking, DIY work, mold manufacturing, etc. widely used in all walks of life all kinds of large and small machine and all kinds of materials, parts of molds and wood tap wire processing, the product is well-made, quality first-class, was deeply loved by the masses of customers and praise.

▸ ITEM PARAMETER

Tapping capacity:	M3-M12
Collet type:	GT12
Working area:	Horizontal:39.37"(1m) Vertical:19.68"(0.5m)
No load rotation speed:	400rpm
Working angle:	360° universal
Working pressure:	0.6-0.8MPa
Maximum torque:	25N.m
Color:	Blue
Package size:	26.8"14.2"8.7"(68cm36cm22cm)
Net weight/Gross weight:	30.9LB(14kg)/40.8LB(18.5kg)

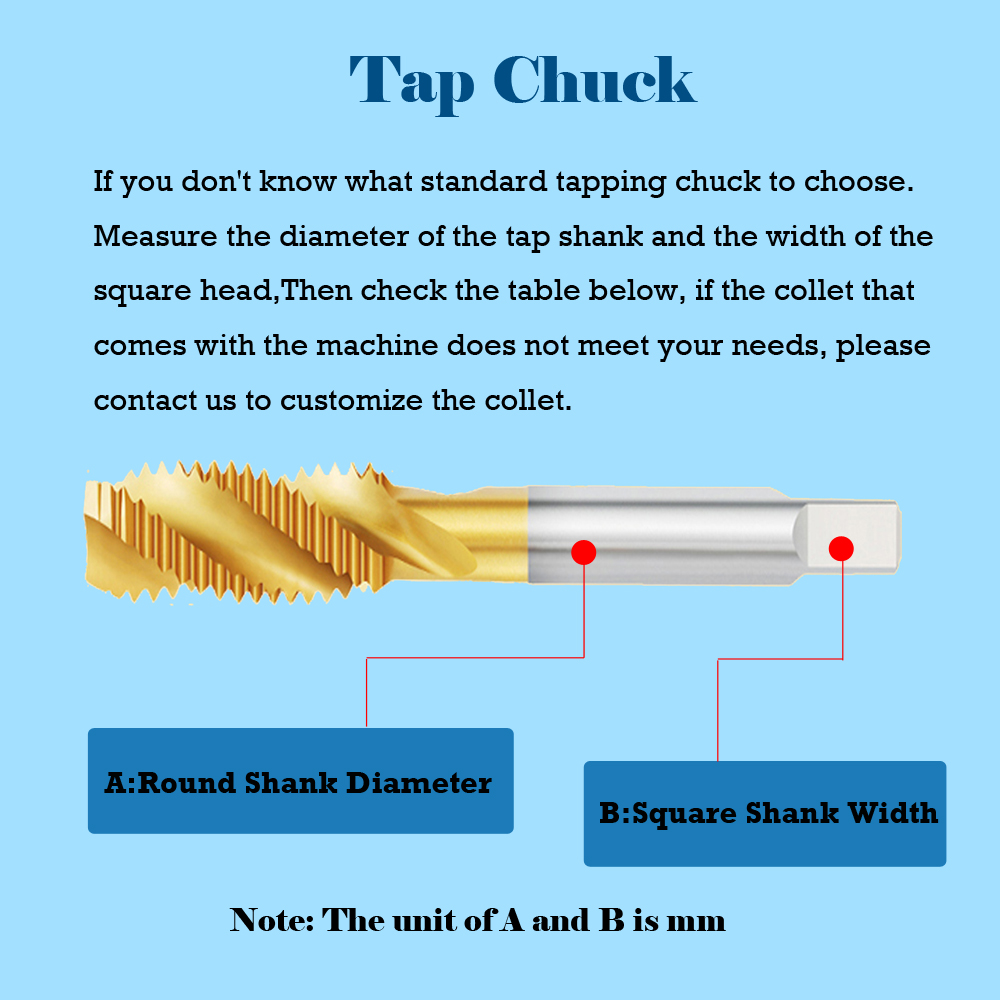

▸ CHUCK SPECIFICATIONS

ISO(Metric)	AxB	JIS	AxB	DIN	AxB	INCH	AxB
M2	2.80x2.25	M2	3.0x2.5	M2	2.5x2.1	1/8	4.0x3.15
M3	3.15x2.5	M3	4.0x3.2	M3	3.5x2.7	5/32	5.0x4.0
M4	4.0x3.15	M4	5.0x4.0	M4	4.5x3.4	3/16	5.5x4.5
M5	5.1x4.0	M5	5.5x4.5	M5	6x4.9	1/4	6.0x4.5
M6	6.3x5.0	M6	6.0x4.5	M6	6x4.9	5/16	6.2x5.0
M8	6.3x5.0	M8	6.2x5.0	M8	8x6.2	3/8	7.0x5.5
M10	8.0x6.3	M10	7.0x5.5	M10	10x8	1/2	9.0x7.1
M12	9.0x7.1	M12	8.5x6.5	M12	9x7	9/16	11.2x9.0
M14	11.2x9.0	M14	10.5x8.5	M14	11x9	5/8	12.5x10.0
M16	12.5x10.0	M16	12.5x10.0	M16	12x9	3/4	14.0x11.2

The maximum tapping capacity of pneumatic tapping machine is M16. If you need more tapping capacity, please contact us to buy electric tapping machine.

▸ ITEM DETAILS

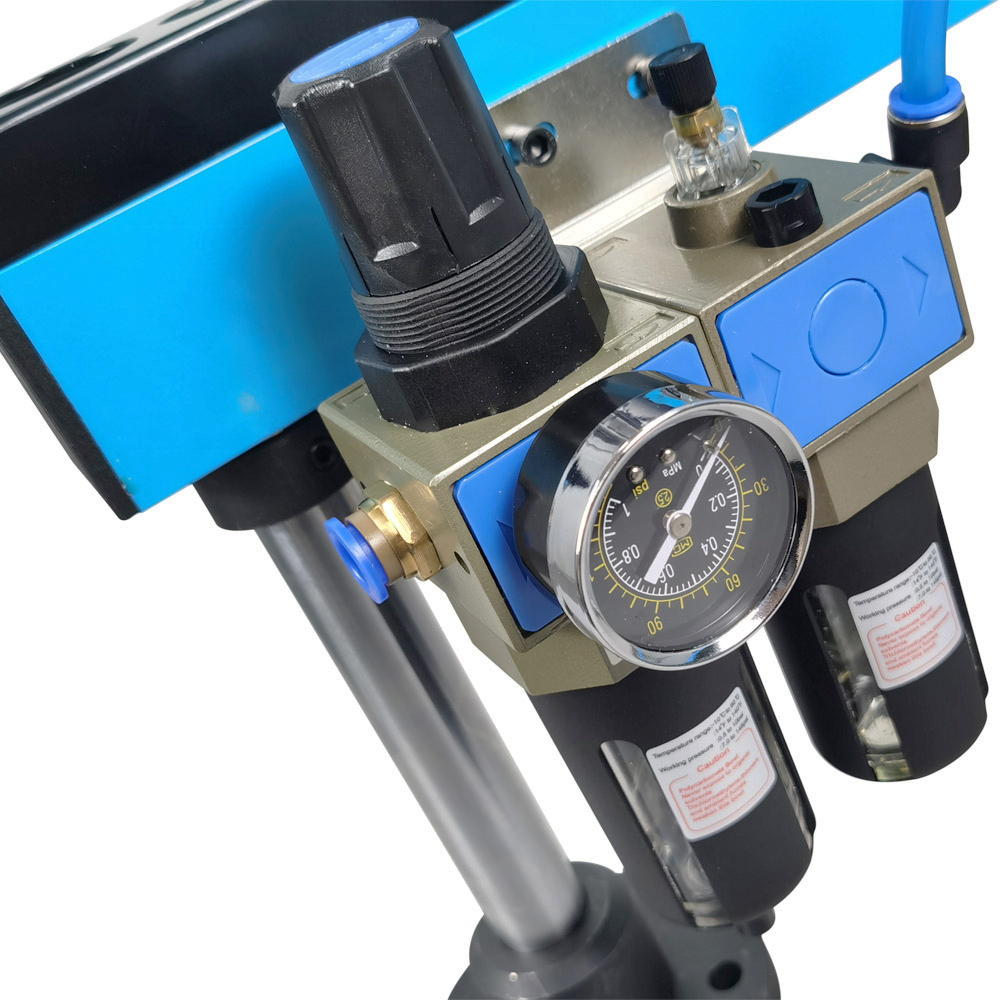

Air Treatment
Air treatment pressure adjustable pressure gauge accurate display pressure. It can separate the moisture and oil mist in the air to ensure the stable operation of the machine.

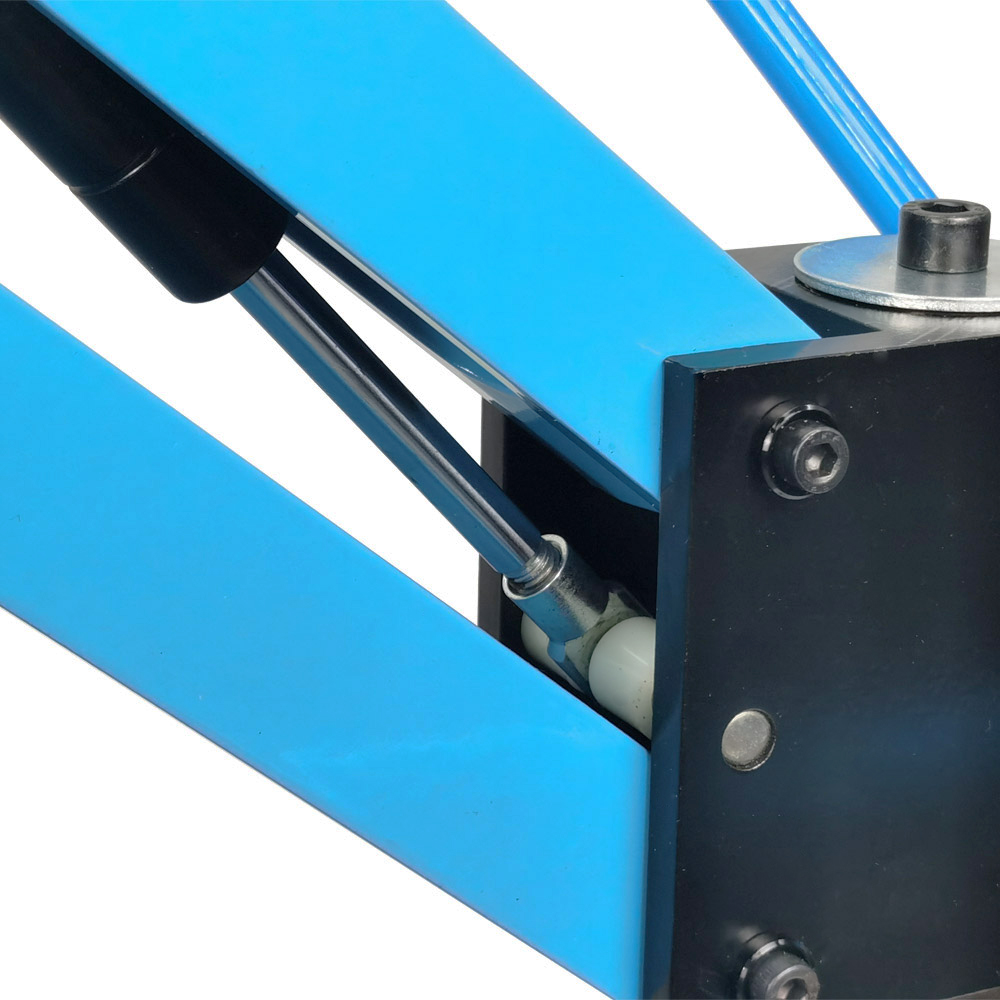

Stable Support
The double cantilever stabilizes the machine head, and the gas springs on both sides can support it stably and return quickly. The bracket is made of aluminum, which is not easy to deform and is lighter in weight.

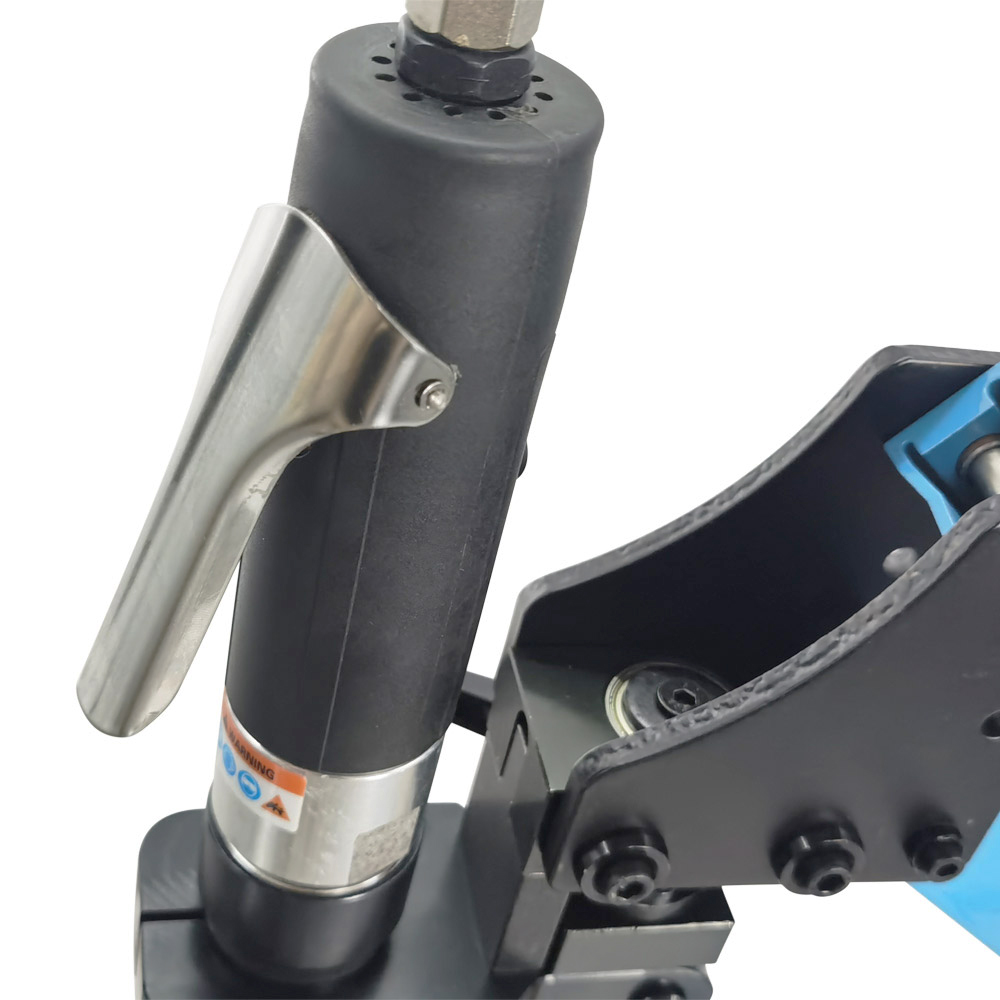

Tapping Head
Tapping head made of wear-resistant plastic material, comfortable to hold, and with a reverse switch, one hand can control the forward and reverse save worry and effort.

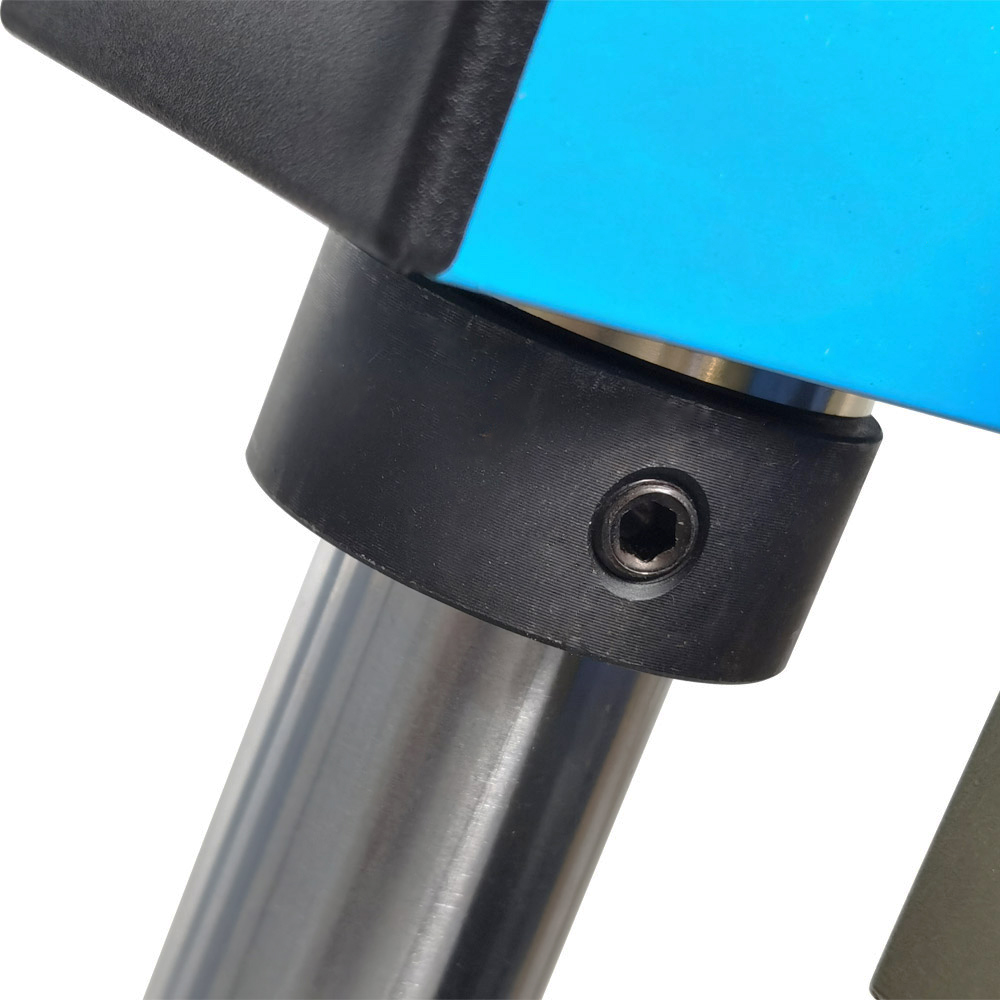

Limit Slider
A limit slider is designed on the support rod, which can flexibly adjust the vertical height of the tapping machine from the horizontal table, and has strong adaptability.

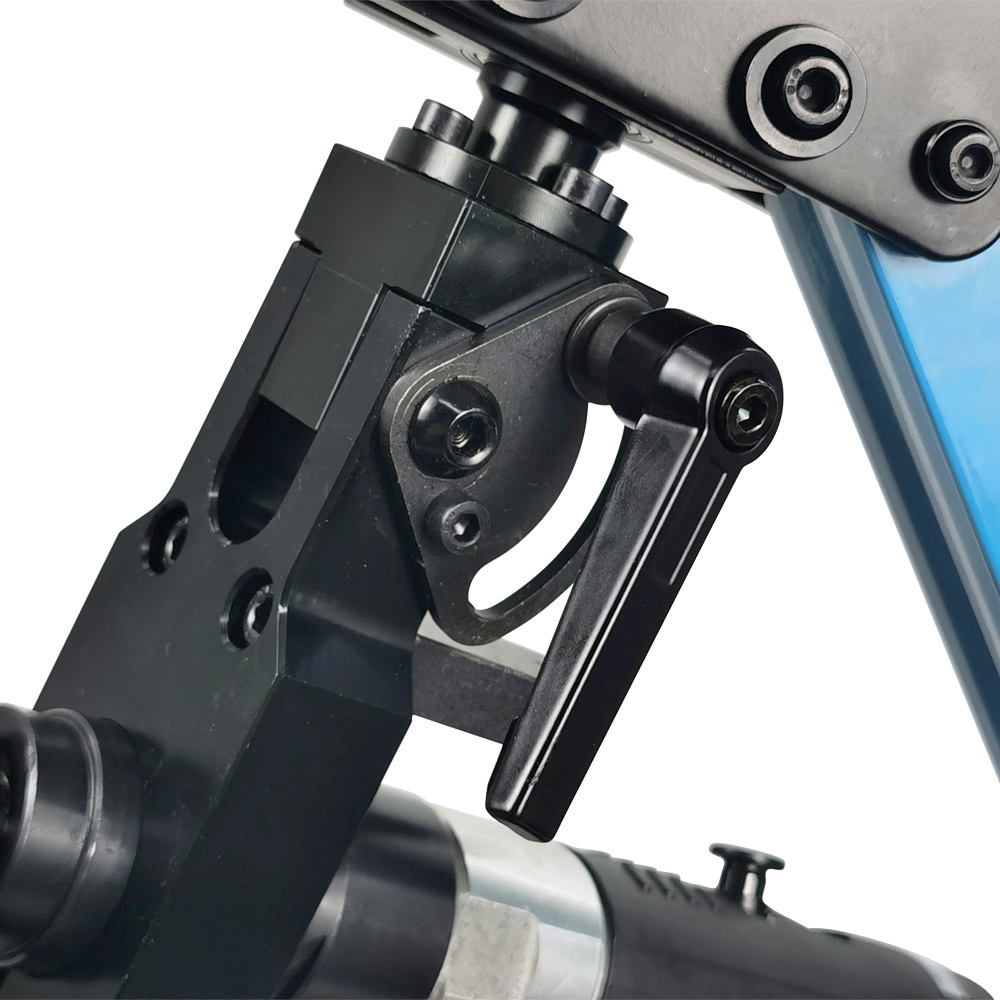

Direction Switch
The direction switch is designed in the nose position, which can be switched at any time in the horizontal and vertical directions. The horizontal direction supports 360° rotation.

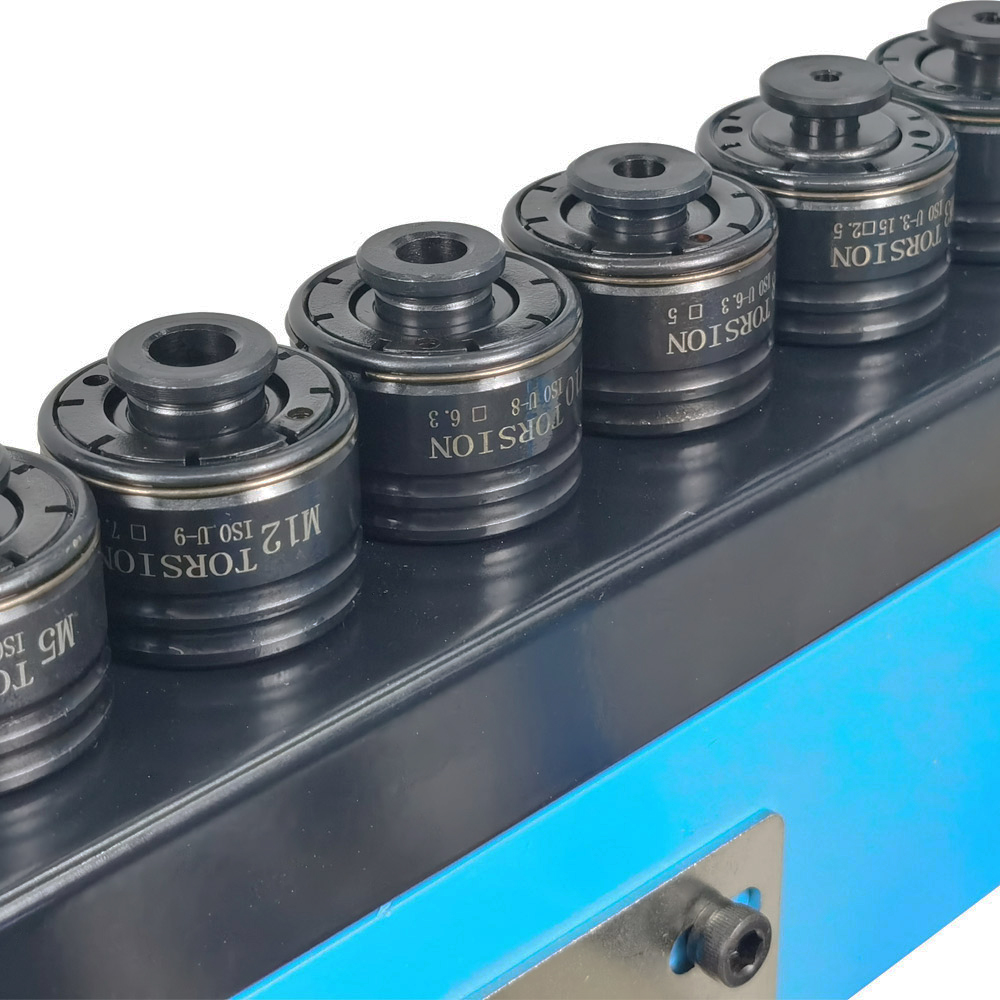

Collet Storage
The rack is designed with 7 collet storage holes, easy to store the collet and at any time to use, change; Save worry and effort, and support customized collet according to tap size.

▸ ITEM INCLUDED (056352)

Tapping machine *1

Collet *6

English Manual *1

Wrench *1

Screw *4
