Hydraulics Pneumatics Valve Valve -20~70℃ 1.5~8kgf/cm² 1/4\\\" PT 200g/7.06oz
DESCRIPTION


Features:
* and
* Made of materials,
* The sensitive handle changes direction lightly and pushes and pulls smoothly.
* The valve body is made of high- for aluminum alloy with high hardness and long service life.
* Each thread is finely processed, burr-free, smooth and easy to install.

Specification:
Model: 4H230C-08
Material: aluminum alloy
Type: 5-way 3-bit. Port sizes: Inlet (P) = PT 1/4, Exhaust (A B) = PT 1/4, Exhaust (R S) = PT 1/8
Swing angle: ±8.5°
Working pressure range: 1.5~8kgf/cm²
Working temperature range: -20~70℃
Working medium: air

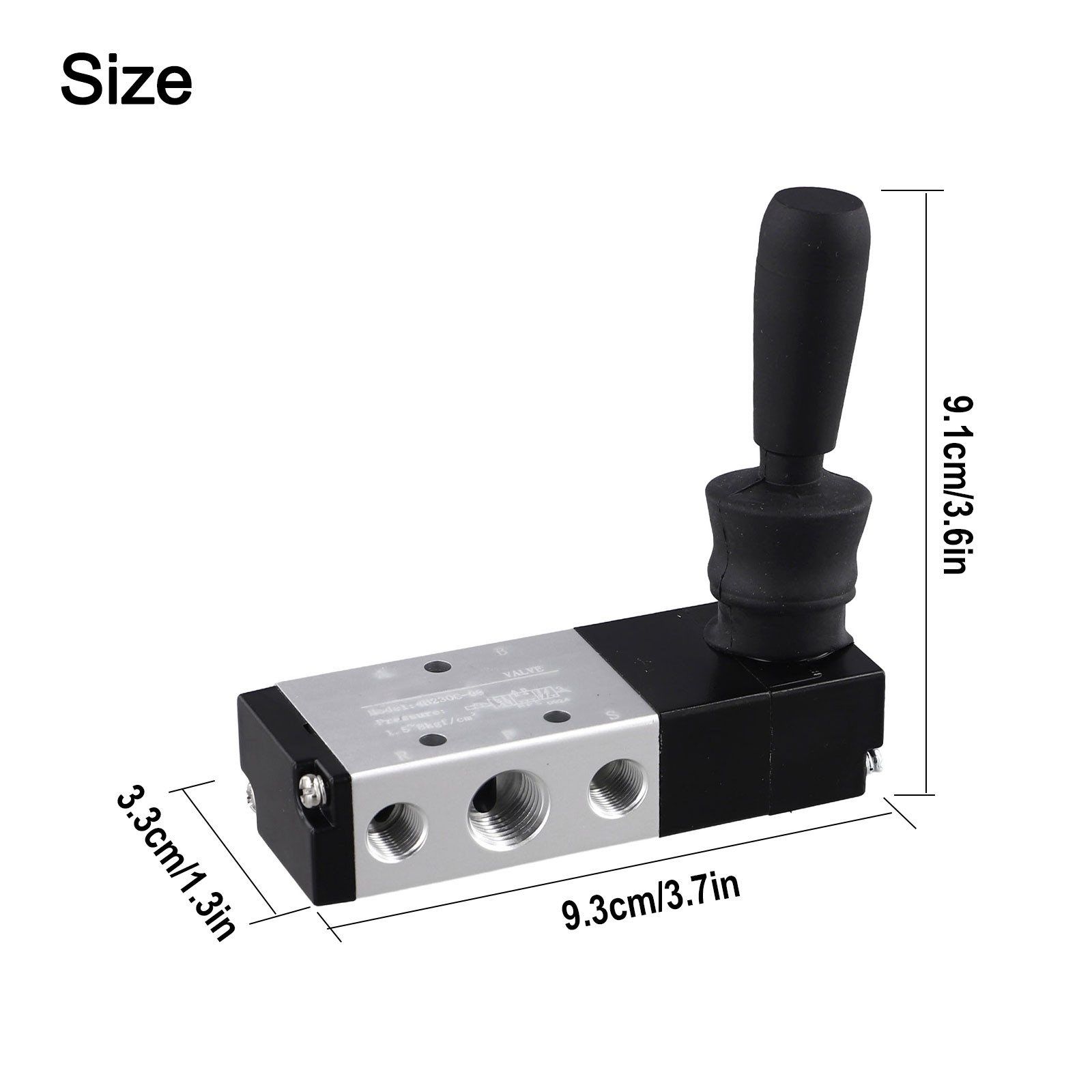

Product size: 9.3 * 3.3 * 9.1 cm/3.7 * 1.3 * 3.6 inches
Product weight: 182g / 6.41oz
Package size: 10.0*8.0*4.0cm/3.9*3.1*1.6in
Packaging weight: 200g/7.06oz

Package Included:
1 x pneumatic valve

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
