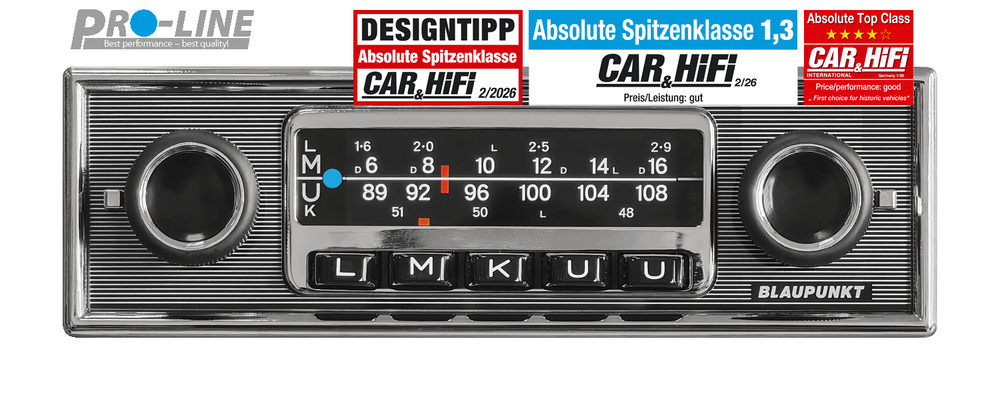

Frankfurt Stereo MB

Perfect integration in the classic 1-DIN format!

Modern entertainment:

Experience next-generation connectivity:

- Bluetooth: Connect your compatible smartphone wirelessly and use music streaming and telephony.

- USB: Connect your music USB sticks or your smartphone and play your favorite songs whenever you want.

- Best radio reception:Enjoy crystal clear sound thanks to the high qualityDAB+ receiversand classicFM reception.

- Antenna tip:With an optional DAB+ antenna splitter, in most cases you can use your existing FM antenna for DAB+. Alternatively, you can install a DAB+ window adhesive antenna. The SMB input for DAB+ has phantom power for active antennas. (can all be found in our Ebay shop).

Sound upgrade and easy controls:

Get more out of your speakers.

-Powerful Sound:
The integrated 4x50 watts (4x75 watts on 2 ohm speakers) amplifier delivers powerful sound for your existing speakers.

-Expandable sound system:
For ambitious audio projects, three stereo preamplifier outputs (front/rear/subwoofer) are available for connecting optional power amplifiers.

- Sound tuning:
Adjust the sound optimally or according to your taste with the 2x 14 band equalizer (front/rear can be adjusted separately). High/low pass filter to separate low frequencies from the speakers or Mids and highs from a connected subwoofer. Subwoofer control: Adjust the volume and crossover frequency of a subwoofer connected to the RCA output.

- Individualization:
Display type adjustable (retro or modern design)
Display background color adjustable: yellow, white or black
Display color adjustable: red, white, yellow, cream, blue

Loading and playback function:

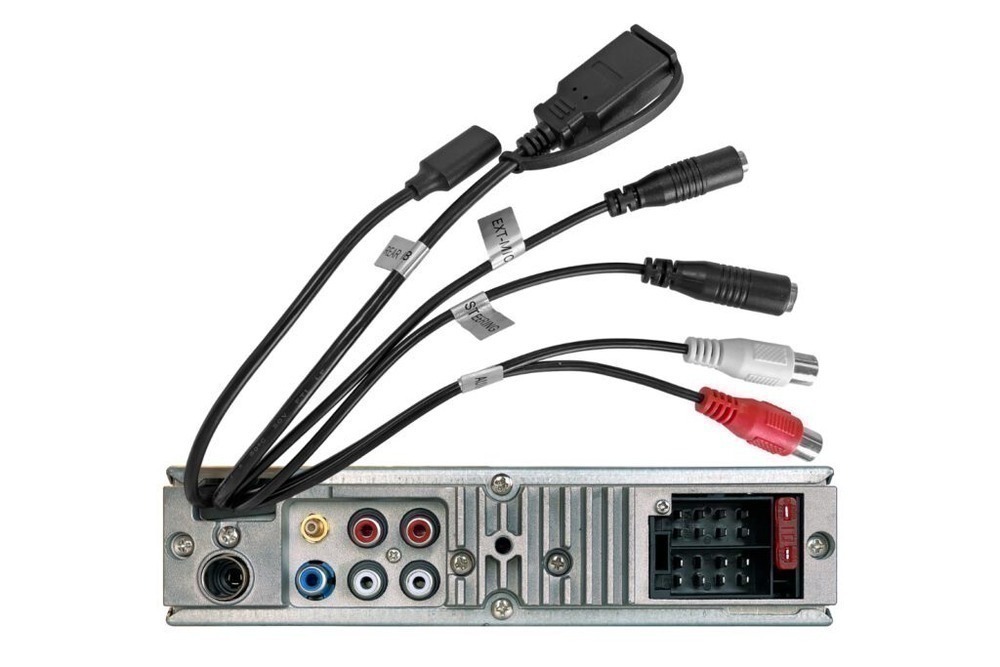

- USB-A socket and  USB-C socketfor quickly charging your smartphone and playing USB sticks on the back of the device.

Ease of use:

- Steering wheel controls:The car radio supports control of factory steering wheel buttons (separate steering wheel adapter required).

Equipment:

- max. 4x50 watts @ 4 ohms / 4x75 watts @ 2 ohms amplifier output power
- BT receiver for A2DP audio streaming and BT hands-free calling via external microphone
- DAB+ radio receiver with FM and RDS functions
- 2x graphic 14 band equalizer
- 4.1 preamp outputs (front/rear/subwoofer)
- High/low pass filter
- Subwoofer control
- AUX input
- A real volume control and control buttons support the retro look.
- Connection option for factory steering wheel buttons (separate steering wheel adapter required)
- Choice of font colors: red, white, yellow, cream, blue
- Choice of background colors: yellow, white, black

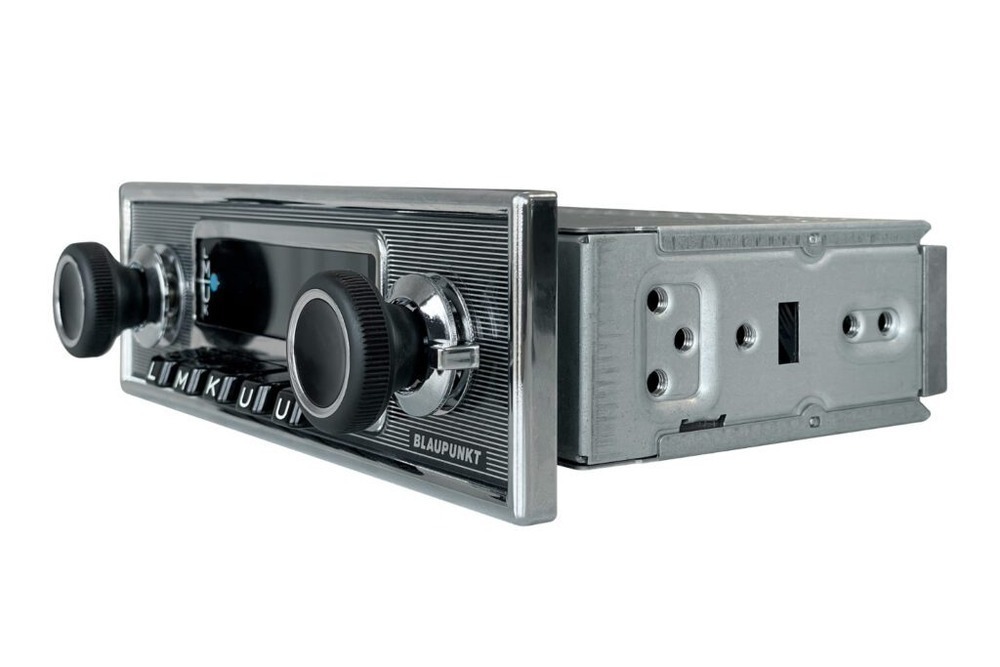

Dimensions:

- Dimensions of the device front: 187 x 58 x 7 mm (width x height x depth)

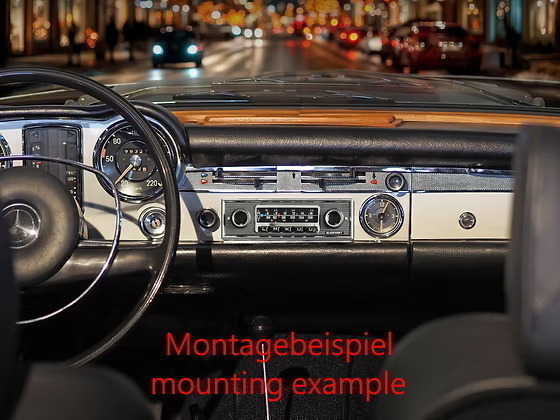

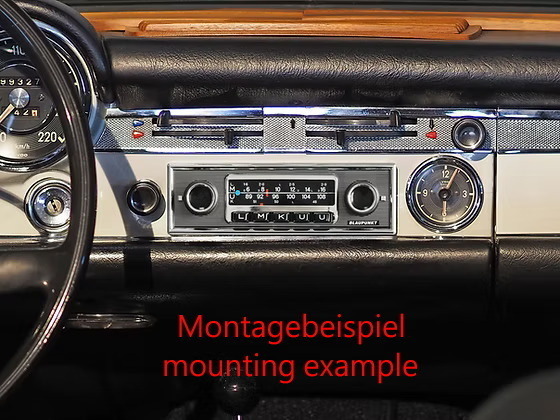

- Installation dimensions: various installation options possible (with or without DIN slot)

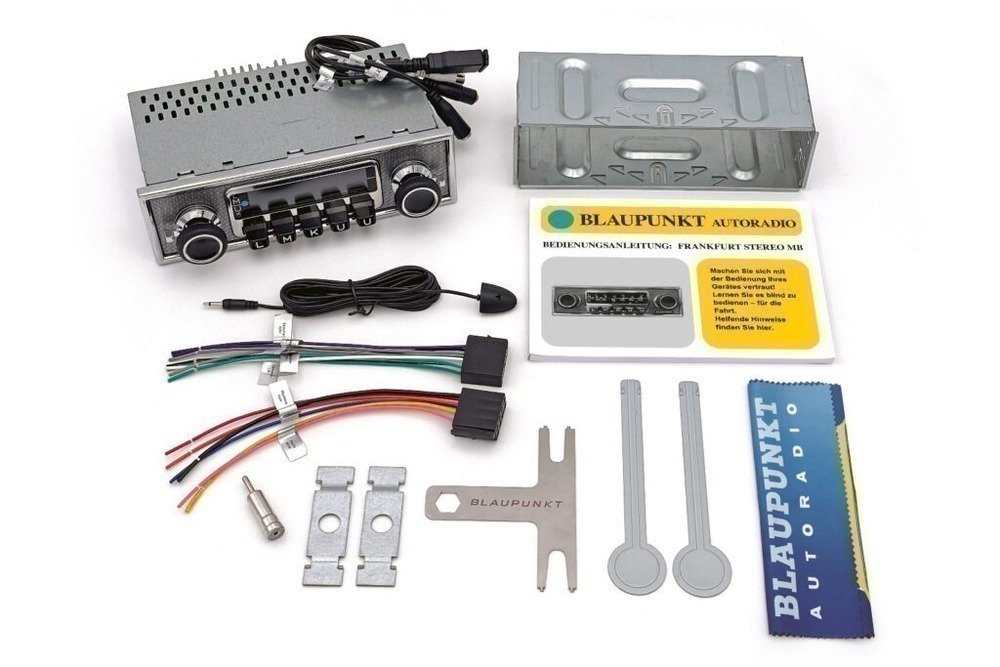

Scope of delivery:

1x car radio Frankfurt Stereo MB
1x ISO power socket (8-pin)
1x ISO speaker socket (8-pin)
1x microphone
2x disassembly key
3 year manufacturer’s warranty*

  * The manufacturer's guarantee is a voluntary service provided by the manufacturer. This has no influence on the warranty to which you are legally entitled and does not limit it.

General information on installation and product safety:

Examination:

2. Disassemble the original device without any tension.

3. Check all connections of our product for correctness and continuity without voltage.

Connection and connection order:
1. Make the settings and hardware configuration of our product without voltage.
2. Check the configuration of the radio connection cable.
3. Connect the radio connection cable according to the operating instructions for the retrofit device.
4. Make all other connections according to the operating instructions for the retrofit device.
5. Connect the entire installation to the vehicle with the live connection last.
6. Software configuration of the adapter according to the instructions in the article text and in the BDA.
7. Configuration of the retrofit device according to the operating instructions of the retrofit device steering wheel remote control/camera/FSE/antenna phantom power and others.
8. Functional test of the steering wheel remote control and vehicle.

Changes to the hardware configuration of our product and the radio connection cable:
1. Make changes without tension
2. Connection after modification see 5 to 8 above

If our product or vehicle malfunctions:
1. Retrofitting to the original factory device.
2. Operate factory device.
3. If available, establish Can-Bus silence.
4. Checking the hardware configuration of our product.
5. Connection after Can-Bus rest, see 5 to 8 above

Connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the operating instructions are intended exclusively for orientation and information for trained specialist personnel.

Additional connections, changes to the wiring harness cable configuration or use of alternative connections or connection extensions:
1. Connections and changes must only be carried out by trained specialist personnel
2. Connections and changes must be discussed with us in advance and approved.
3. Connections and changes must be checked for function and correctness before connection by measuring and comparing using the vehicle's cable assignment plan.
4. Connections and changes are made at your own risk with no guarantee of functionality, damage to the vehicle, the retrofit device or our product.
6. Changes to the pre-assembled wiring harness will void the product's warranty and exclude an exchange or return.
