Description:

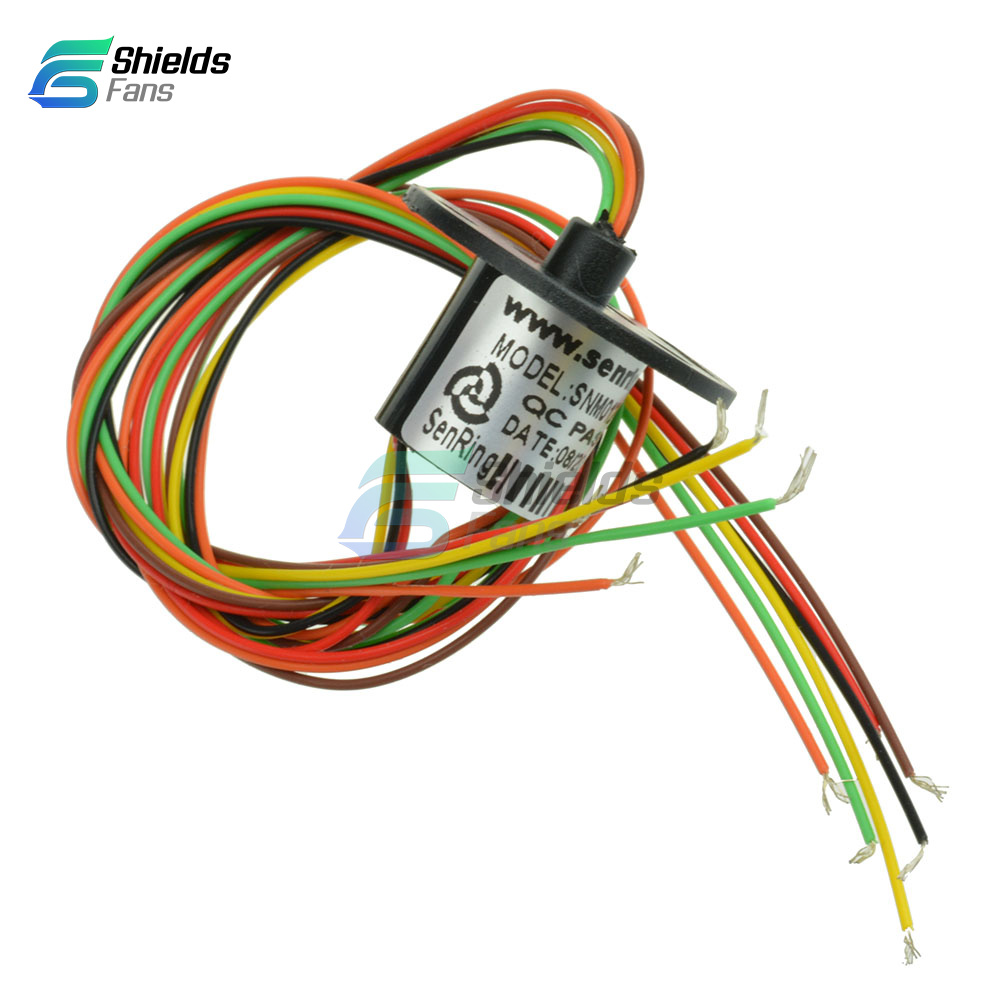

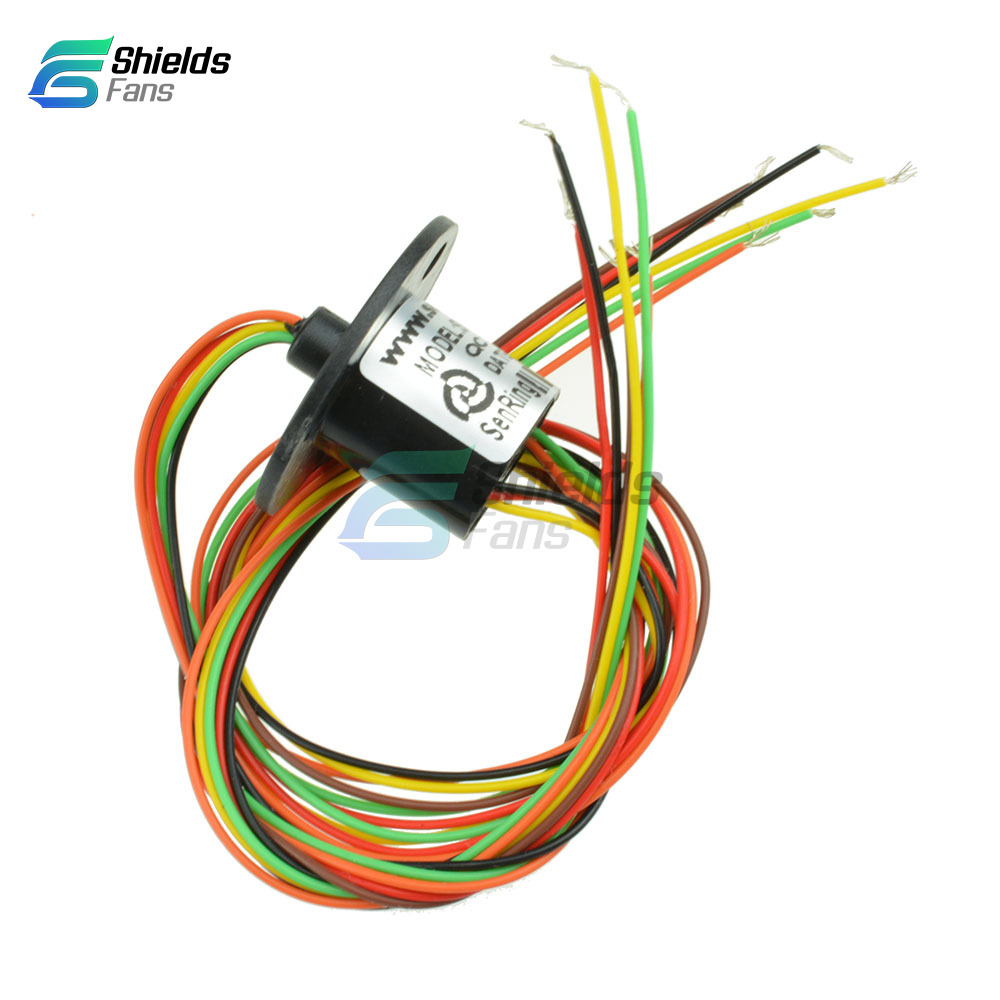

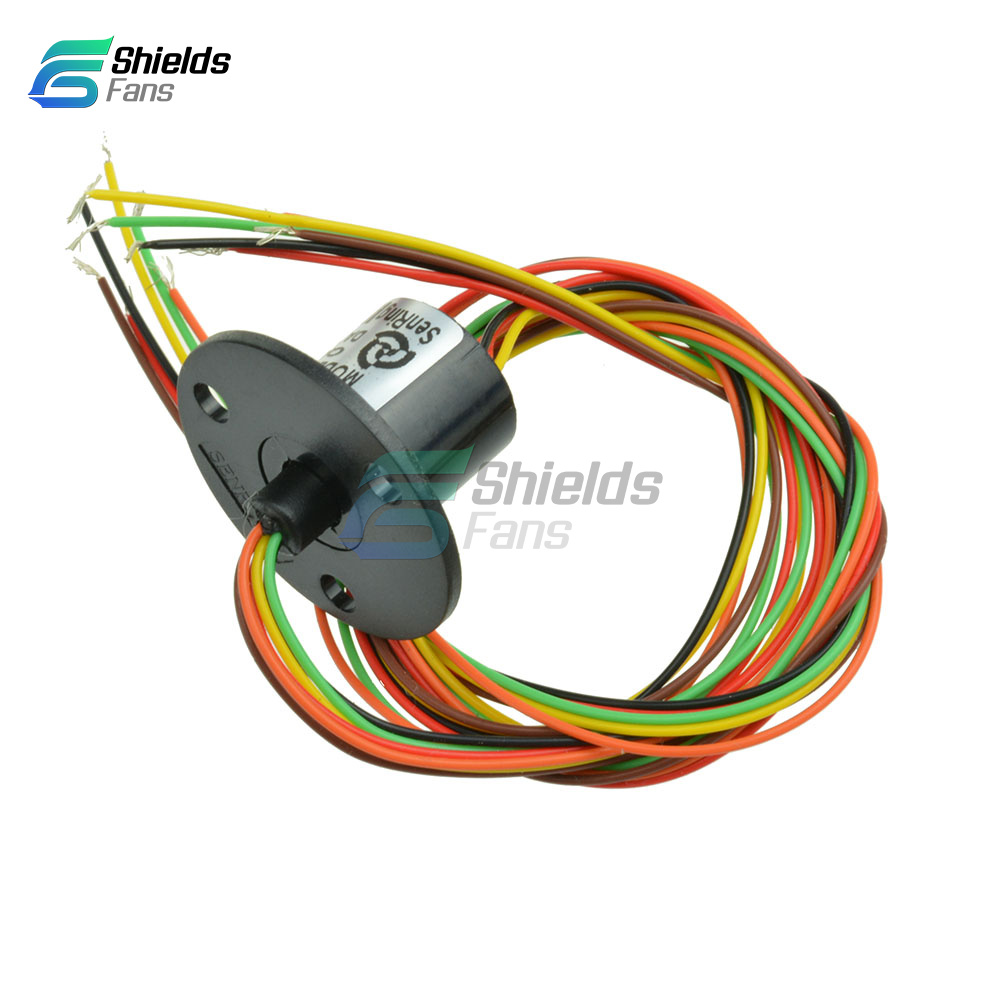

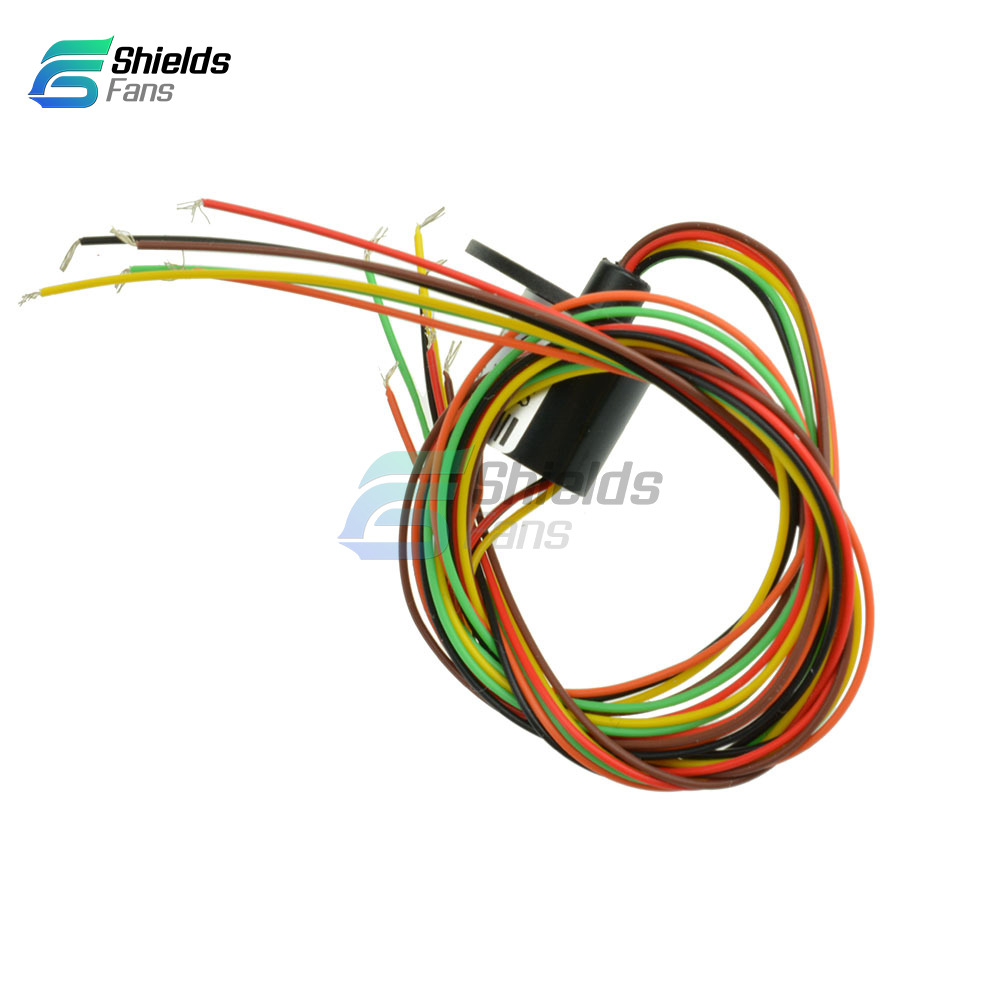

12.5mm 300Rpm

The Capsule slip ring is a standard, off-the-shelf series product, that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.Using a 90 degree V-groove ring design for each ring, provides smoother running, lower torque low contact wear rates than competitive slip ring. provides 6, circuit configurations.
Used advanced technology to design, lower consumption.
Compact design allows tremendous flexibility in dealing with system size restrictions: 12.5mm outside diameter, and 15 mm length.
Can combine signal and power in same slip ring,completely satisfy 360 degrees of rotation
Precision module provides long time maintenance –free operation(no cleaning or lubrication required);
Specification:
Voltage: 240 VAC/DC
Current: 2A per circuits
Speed: 0-300 Rpm
Circuits: 6
Housing Material: Engineering Plastics
Work Humidity: 60%RH or higher
Work Temp.: -40℃~+80℃
Contact material: Gold plated ring-Gold plated brush
nsulation resistance: 1000 Mω @ 500 VDC
Lead size: 225mm 30# AWG Teflon wire
Dielectric strength: Between each circuit and all other circuits , ≥ 500 VAC @ 50Hz
Electrical noise: ≤10mω
Work life: Depending on speed and working environment, ≥50,000,000 runs ref
Outside dia: 12.5mm
Flange dia.: 24mm
Length: 15mm
CE, ROHS passed
Applications:
CCTV Monitoring System
Electrical test equipment
Medical equipment
Robotics
Package included:1PC* Capsule slip ring

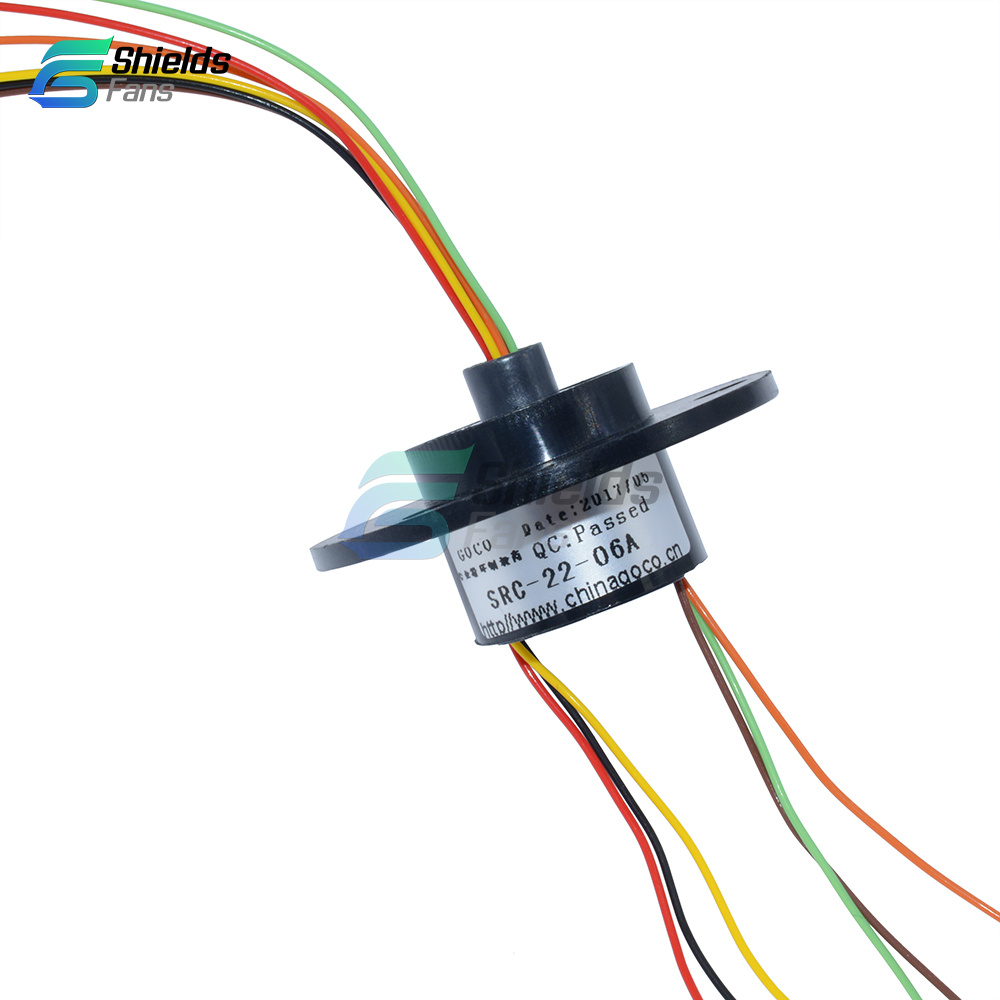

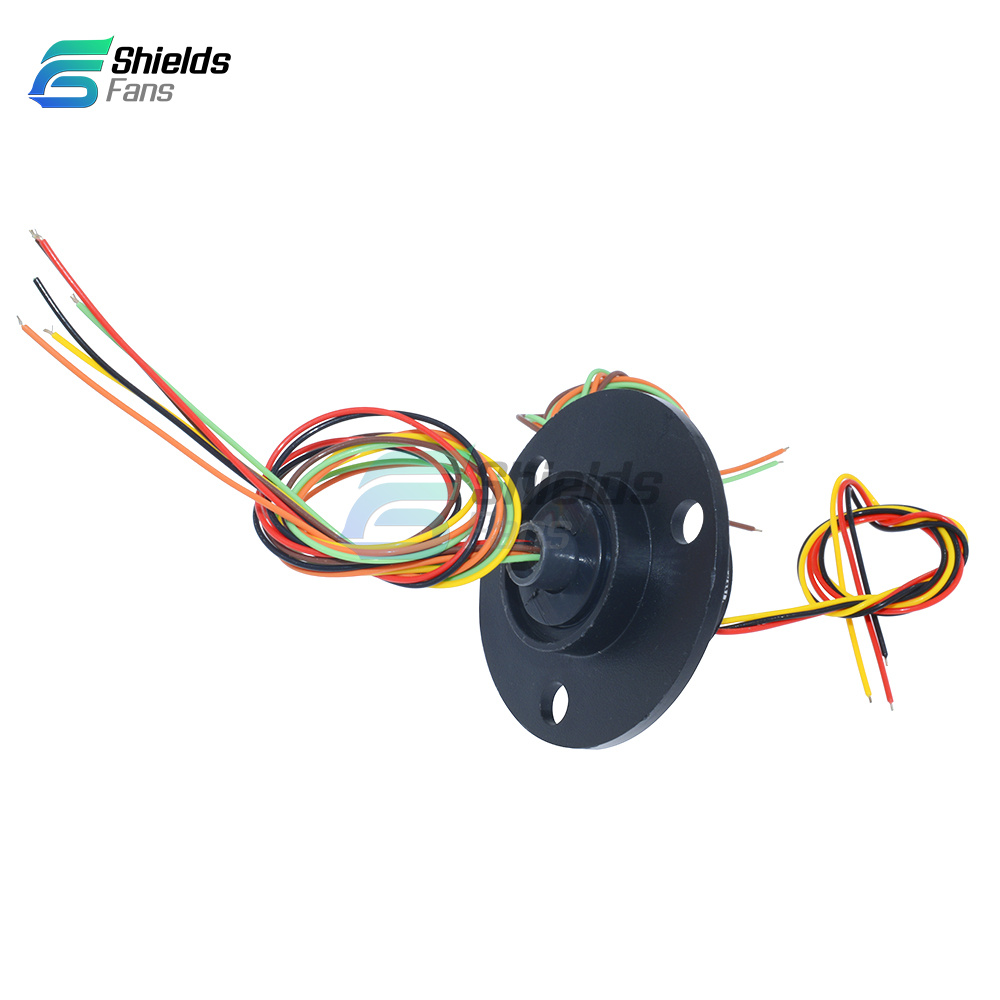

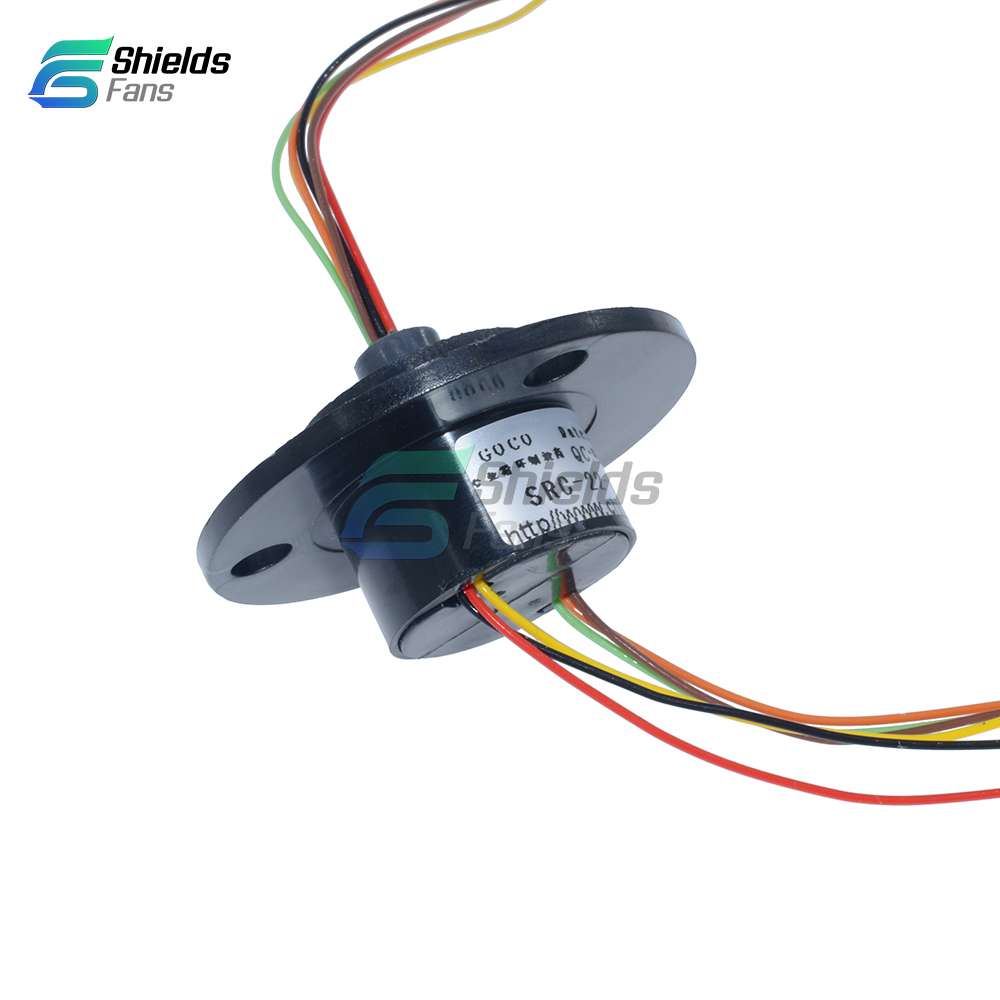

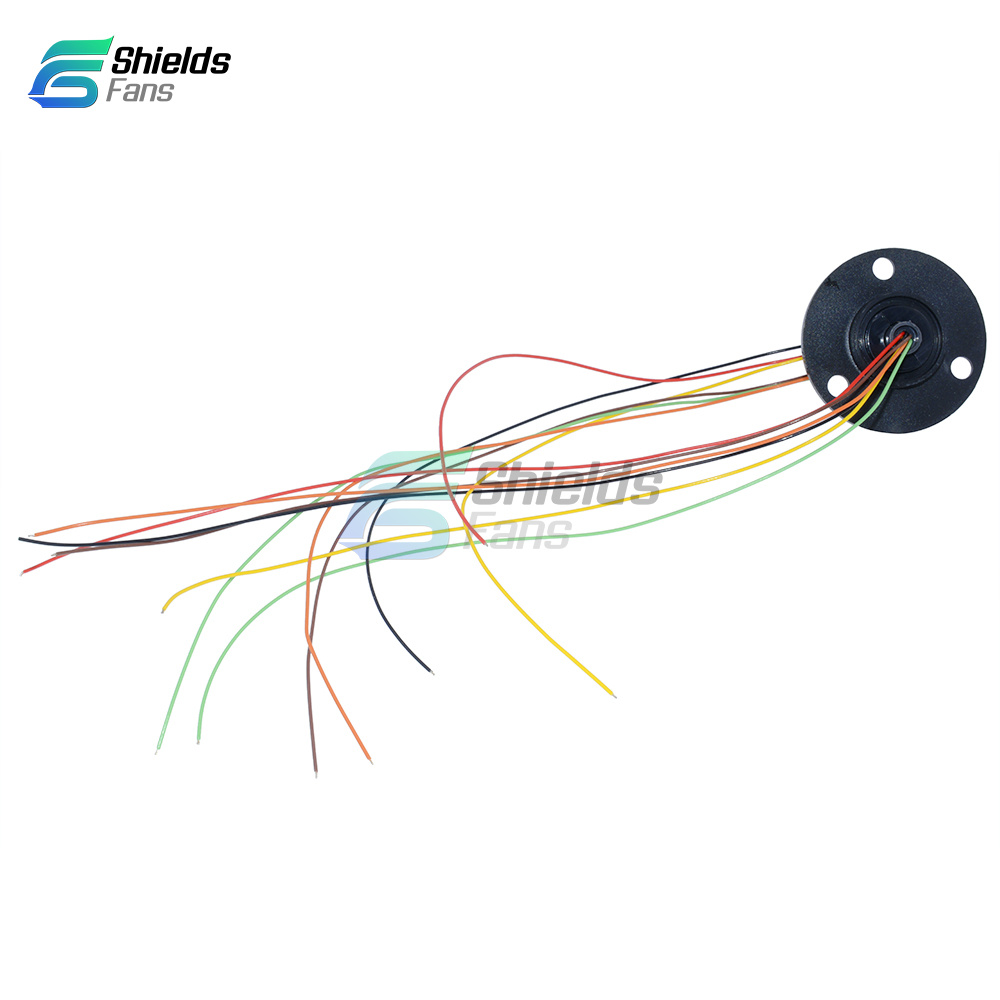

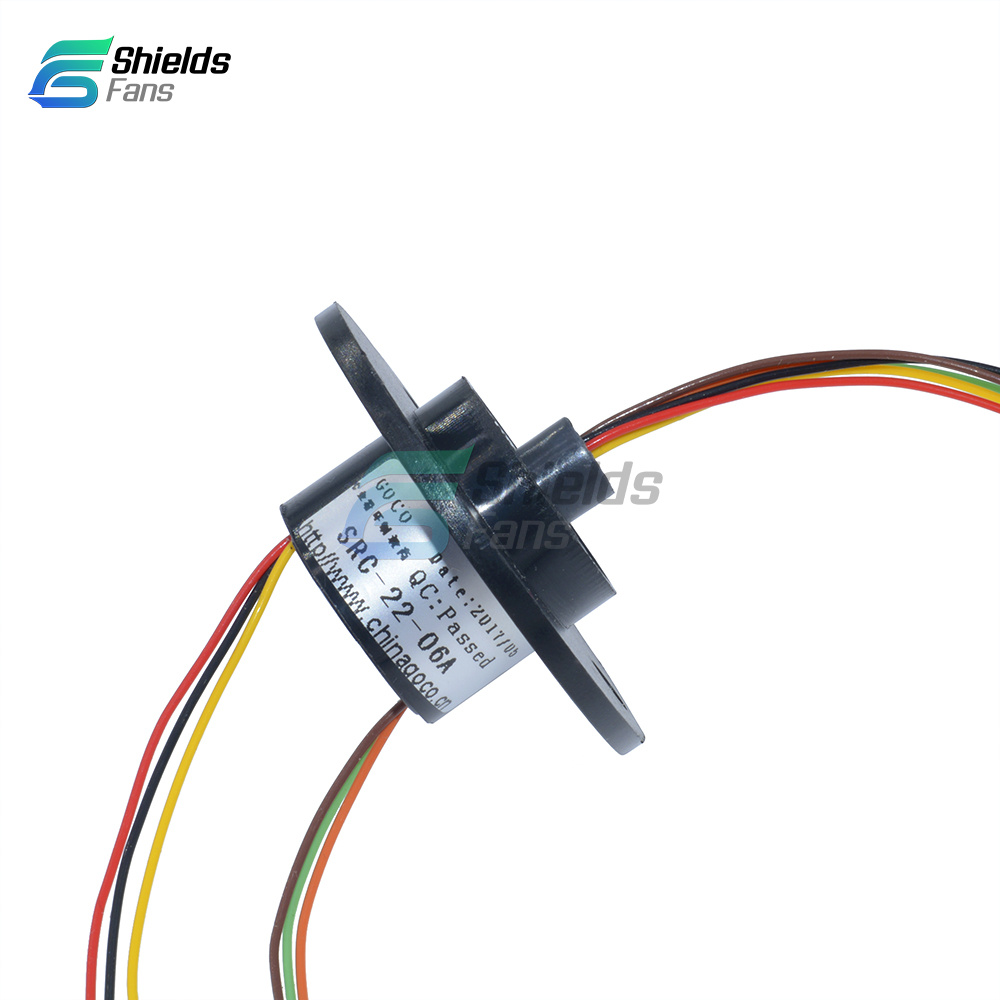

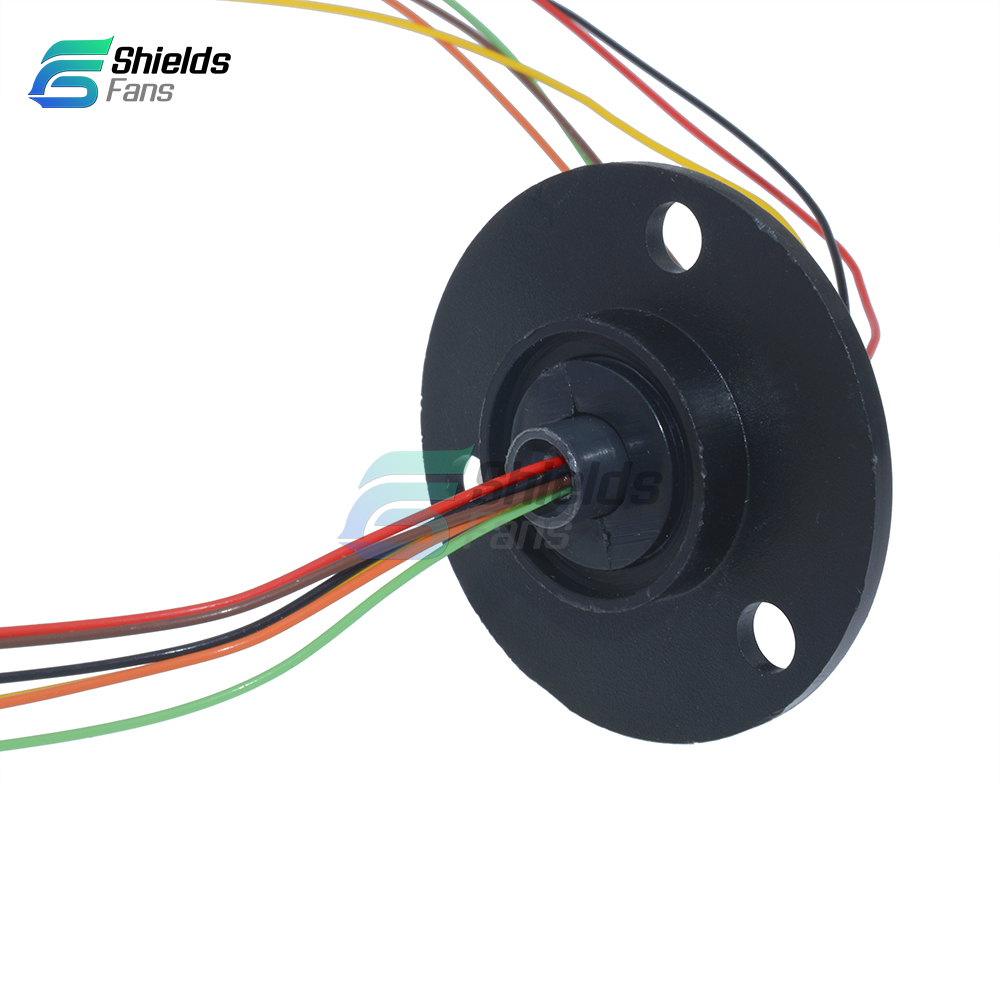

22mm 250Rpm

The capsule slip ring is a standard, off-the-shelf series product, that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.Using a 90 degree V-groove ring design for each ring, the ZSR-A provides smoother running, lower torque low contact wear rates than competitive slip ring.
Feature：
Used advanced technology to design,lower consumtion.
Compact design allows tremendous flexibility in dealing with system size restrictions:22.0mm outside diameter, and 19.53 mm to 42.53 mm length (depend on circuits).
Can combine signal and power in same slip ring,completely satisfy 360 degrees of rotation
Precision module provides long time maintenance - free operation(no cleaning or lubrication required).
Specification:
Operation voltage:220 V/AC
Operation speed:250 Rpm
Circuits:6
Housing Material:Engineering Plastics
Operating Humidity: 60%RH or higher
Operation temp.:-40°C~+80°C
Operation current:2A per circuits
Contact material:Gold plated ring-Gold plated brush
Insulation resistance:1000 MΩ @ 500 VDC
Lead size:150mm 30# AWG Teflon wire
Dielectric strength:Between each circuit and all other circuits , ≥ 500 VAC @ 50Hz
Electrical noise:70 milliohms max. tested@6 VDC, 50 milliamps when running@5 rpm
Work life:Depending on speed and working environment
Outside dia:22.0mm
Flange dia.:44.5mm
Length:19.2mm
Application:

CCTV Monitoring System.
Electrical test equipment.
Medical equipment.
Robotics.
Package Included:

1x 22mm 6 Wires 6 Conductors Capsule Compact Slip Ring 220V AC 250Rpm CCTV Monitor
