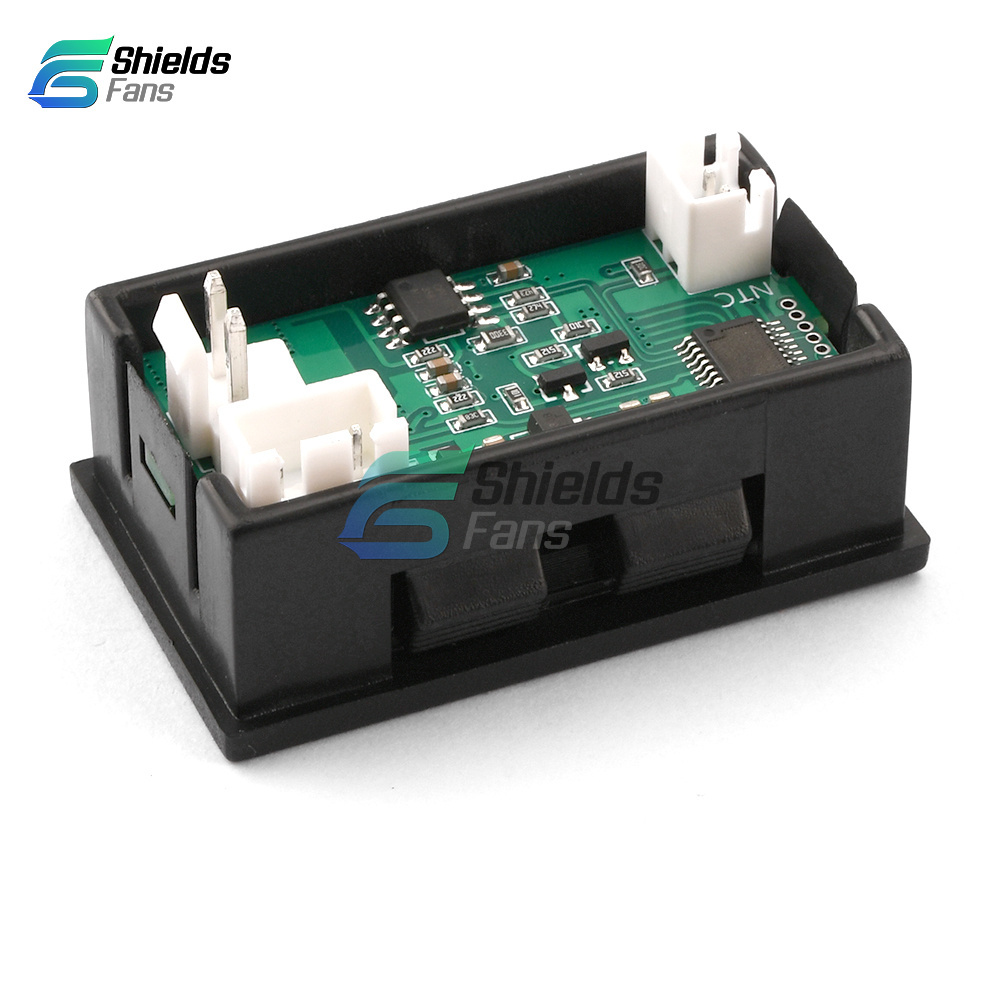

Product Features:
Support cumulative data zeroing, no-load forced zeroing
Support voltage display fine-tuning, current display fine-tuning

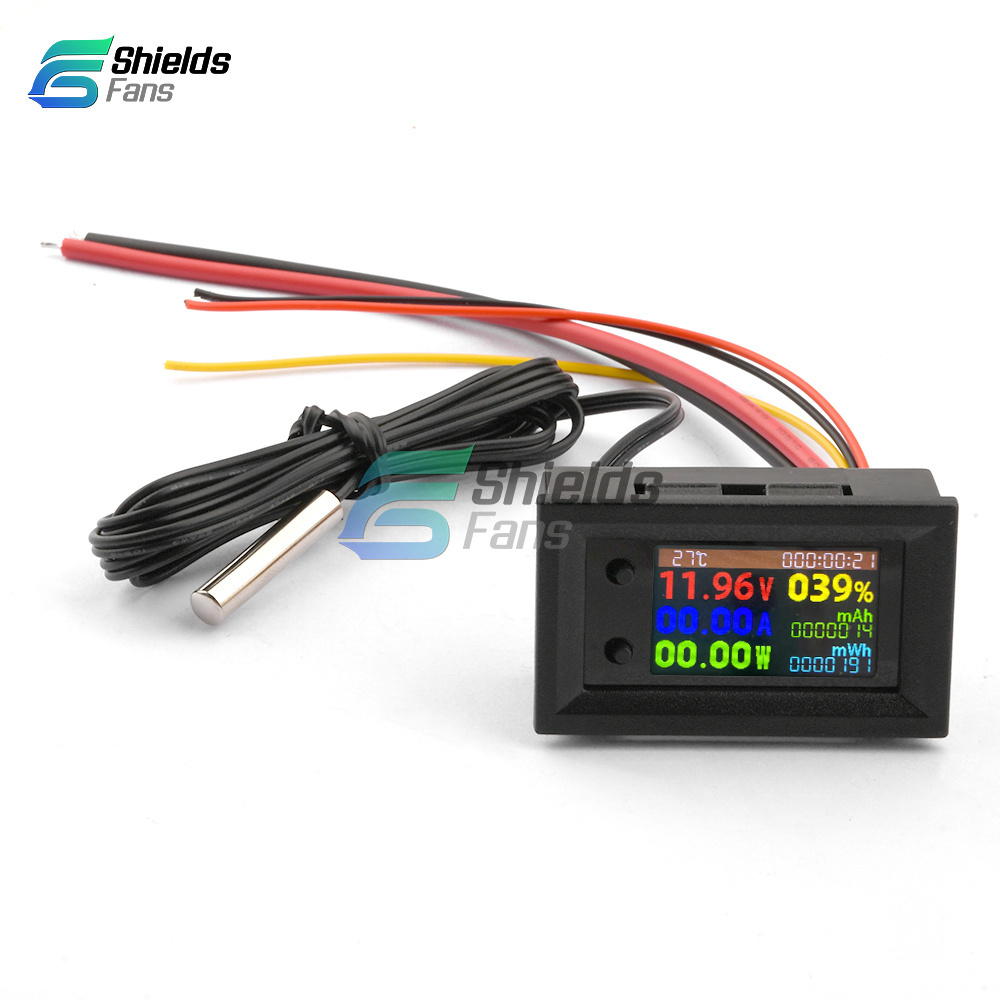

Column temperature waterproof probe, temperature measurement range -40 ~ 120 ℃

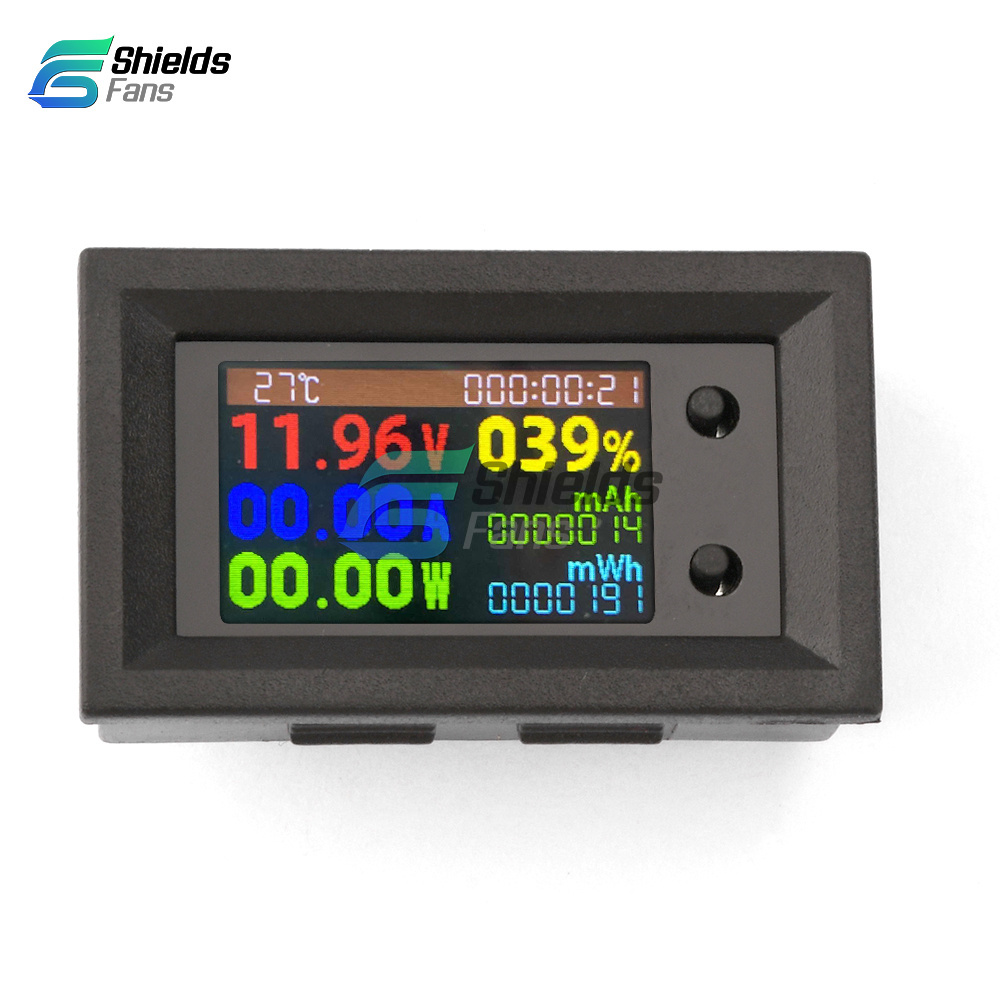

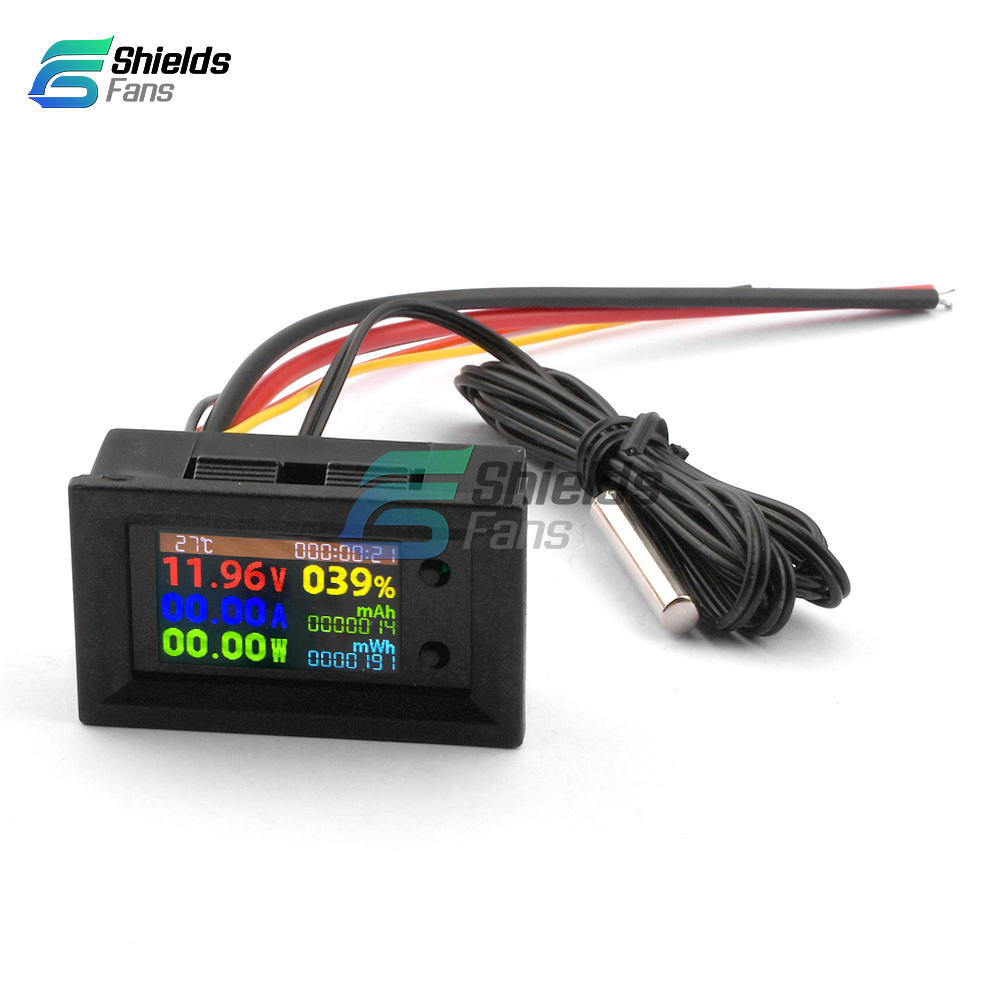

High-definition IPS LCD color screen, 135*240 resolution
Simultaneous measurement of voltage Current Power Percentage power Temperature Cumulative capacity Energy Running time

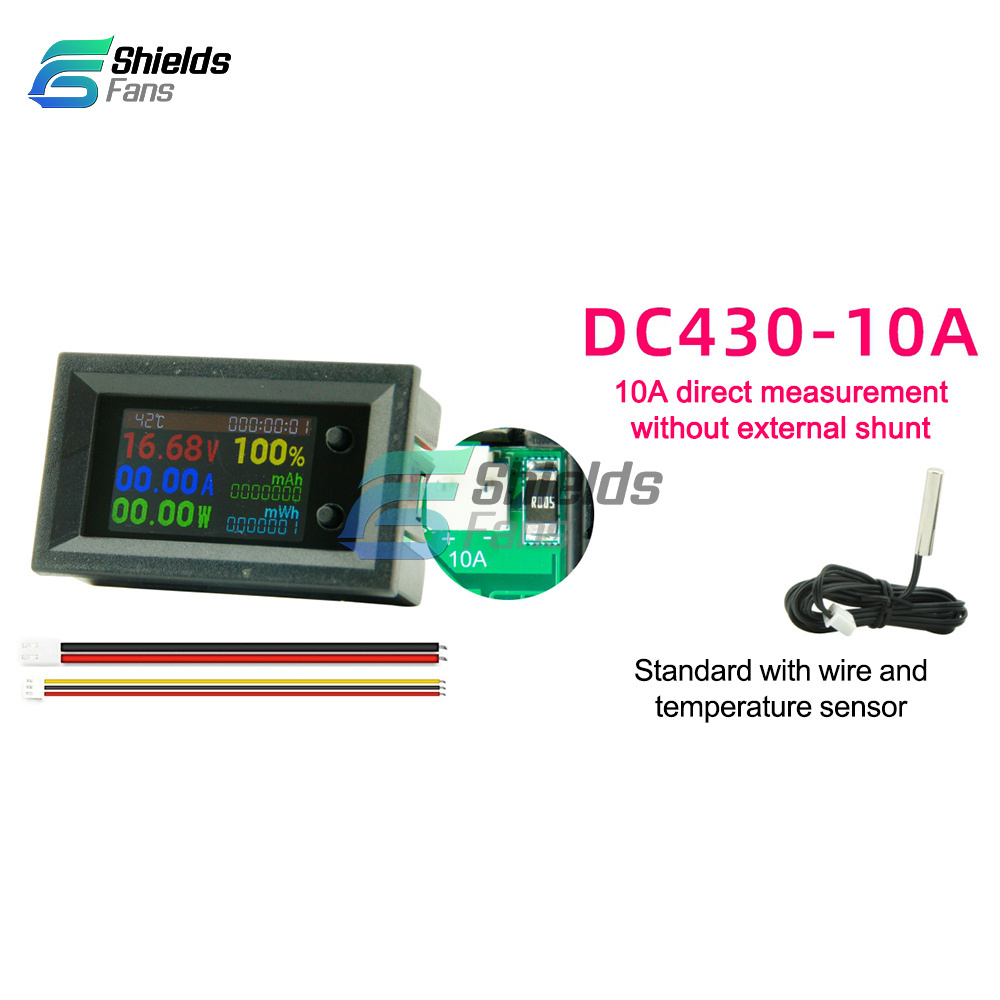

10A technical parameters:
Instrument operating voltage: XH-3P red and black wire DC4~30V (Do not over-voltage power supply)

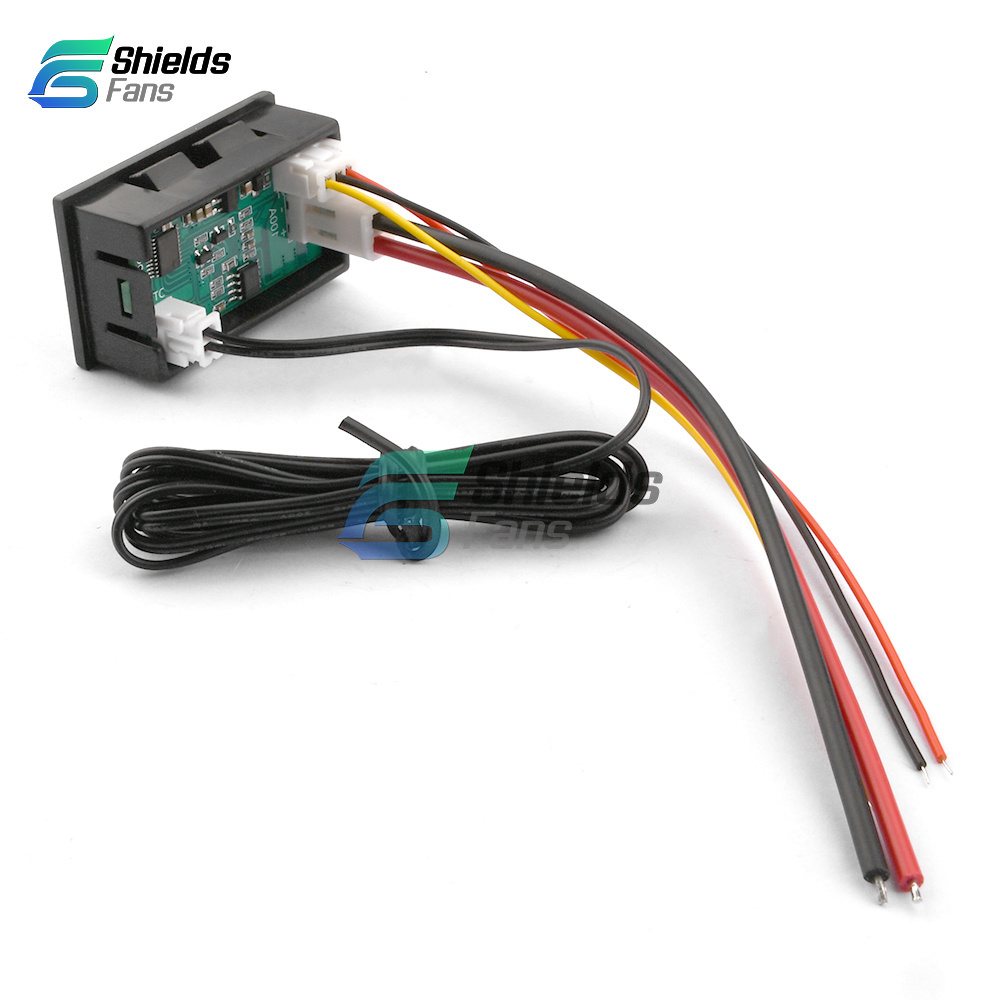

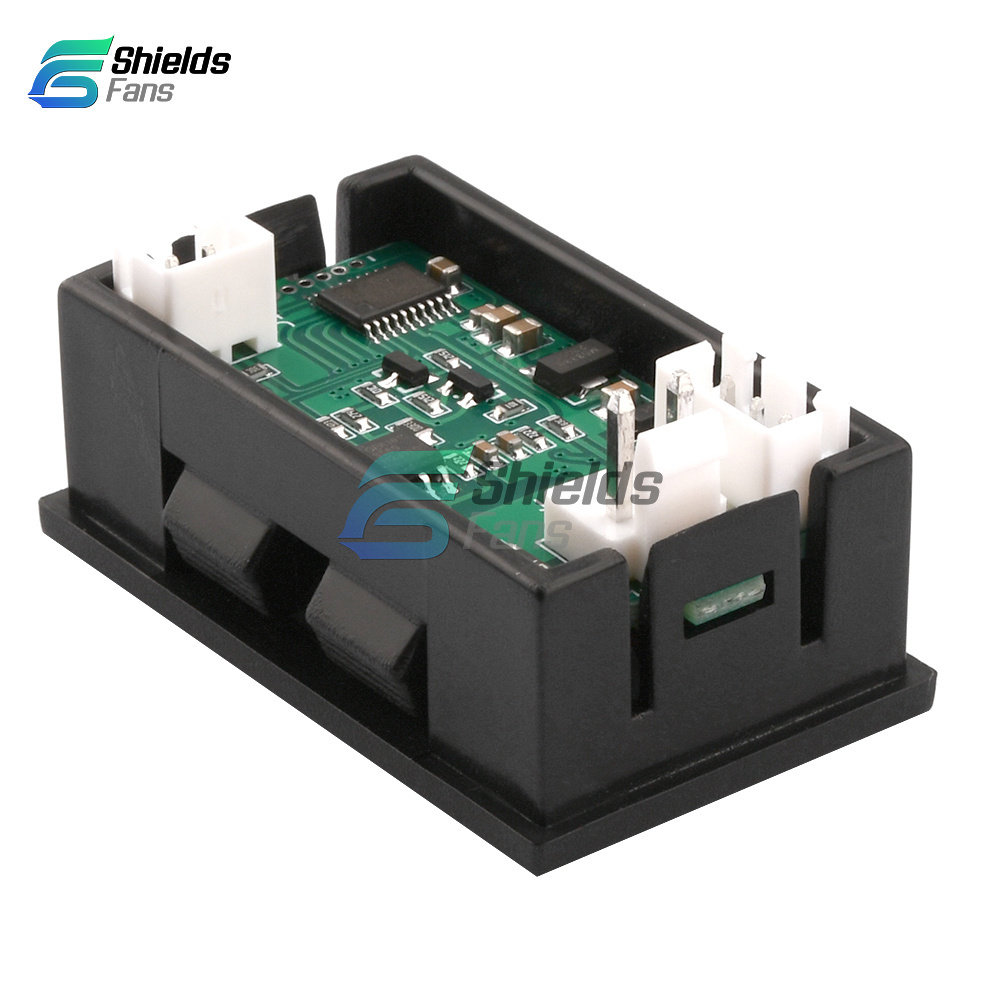

Wire Definition Introduction:
XH-2.54-3P red, black and yellow wire (thin wire Total length: 155mm)
Thin red wire: positive pole of the working power supply, can not be connected to the power supply above 30V.
Thin black wire: negative pole of working power supply, common ground with thick black wire, no need to connect when sharing power supply.
Thin yellow line: voltage test line, connected to the positive pole of the test circuit power supply.
VH-3.96-2P thick red and black wires (thick wire total length: 165mm) current test line, thick wire parallel shunt resistor, can not be directly connected to the power supply poles, will be shorted.
Thick red wire: current test positive pole, string in the negative end of the load, connected to the broken line after the first broken
Thick black wire: current test negative, connected to the negative pole of the power supply, connected to the broken line after the first connection broken

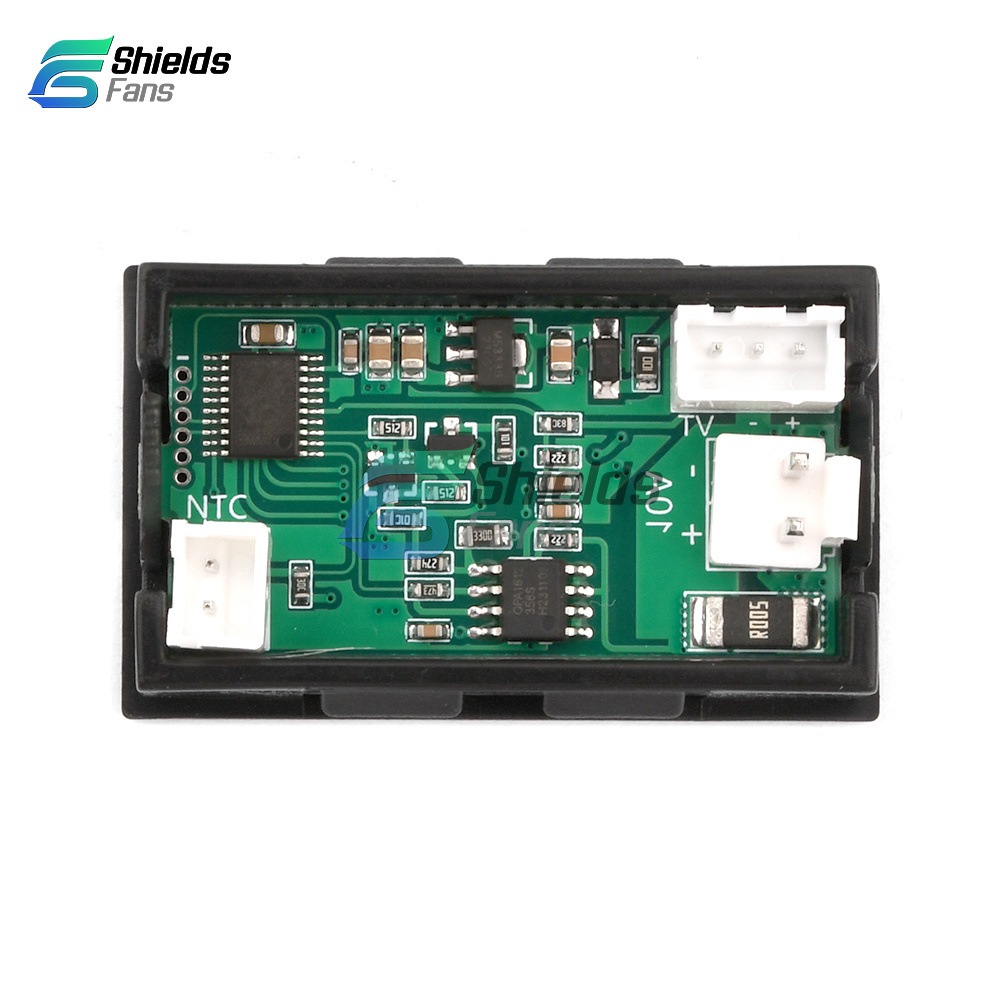

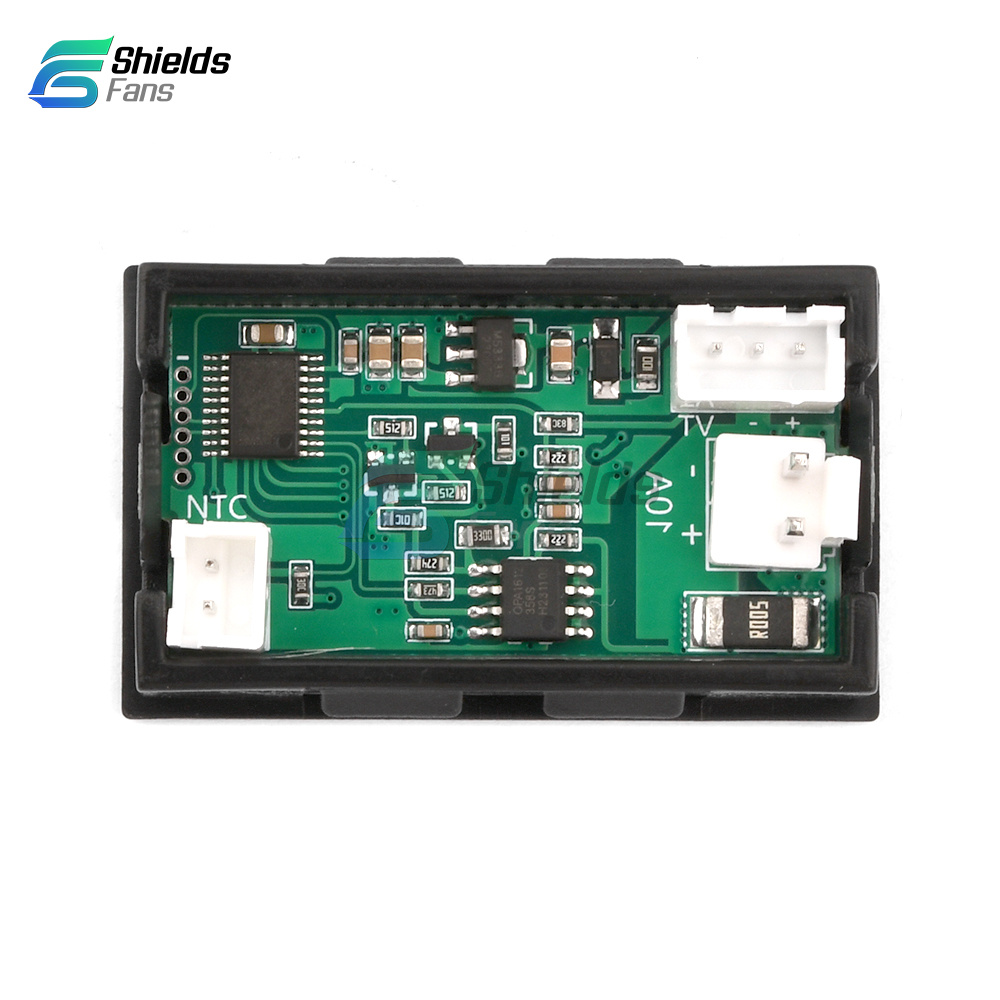

10A meter on-board low temperature resistor shunt, according to the wiring diagram, Derectly use, no need connect a external shunt
Voltage Measurement Range: DC0~100V Error ±1.00V 0.1V start jumping
Current Measurement Range: 0.00A~10.00A Error ±0.1A 0.03A jumping
Power measurement range: 00.00~1000W
Capacity measurement range: 0~9999999mAh
Energy measurement range: 0~9999999mWh
Temperature sensor: column waterproof probe NTC 10K 3950 1% sensor Total length about 1 meter
Temperature metering range: -40~120℃ (external temperature measured by NTC sensor)
Time measurement range: 0~999:59:59 (hours:minutes:seconds)
Operating energy consumption: 20mA (measured by DC12V)
Support: Accumulated data zeroing No-load forced zeroing Voltage display fine-tuning Current display fine-tuning
Percentage power display: percentage power based on voltage reference (need to manually set full and low power voltage)
Product size: 47.59×28.67×25.33mm
Installation aperture: 45×26mm
50A technical parameters:
Meter operating voltage: XH-3P red and black wire DC4~30V (Do not over-voltage power supply)
Conductor definition introduction:
XH-2.54-3P red, black and yellow wire (thin wire Total length: 155mm)
Thin red wire: positive pole of the working power supply, can not be connected to the power supply above 30V.
Thin black wire: negative pole of working power supply, common ground with thick black wire, no need to connect when sharing power supply.
Thin yellow line: voltage test line, connected to the positive pole of the test circuit power supply.
VH-3.96-2P thick red and black wires (thick wire total length: 165mm) current test line, thick wire can not be directly connected to the power supply poles, it will be shorted.
Thick red wire: positive pole of current test, shunt shunt series in the negative end of the load back end
Thick black wire: current test negative pole, parallel shunt connected to the negative pole of the power supply
Connect the shunt: need to be connected in parallel with a 50A 75mV shunt can be used (buyer should buy a shunt themself)
Voltage Measurement Range: DC0~100V Error ±1.00V 0.1V start jumping
Current Measurement Range: 0.00A~50.00A Error ±0.5A 0.03A jumping
Power measurement range: 00.00~5000W
Capacity measurement range: 0~9999999mAh
Energy measurement range: 0~9999999mWh
Temperature sensor: column waterproof probe NTC 10K 3950 1% sensor Total length about 1 meter
Temperature metering range: -40~120℃ (external temperature measured by NTC sensor)
Time measurement range: 0~999:59:59 (hours:minutes:seconds)
Operating energy consumption: 20mA (measured by DC12V)
Support: Accumulated data zeroing No-load forced zeroing Voltage display fine-tuning Current display fine-tuning
Percentage power display: percentage power based on voltage reference (need to manually set full and low power voltage)
Product size: 47.59×28.67×25.33mm
Installation aperture: 45×26mm

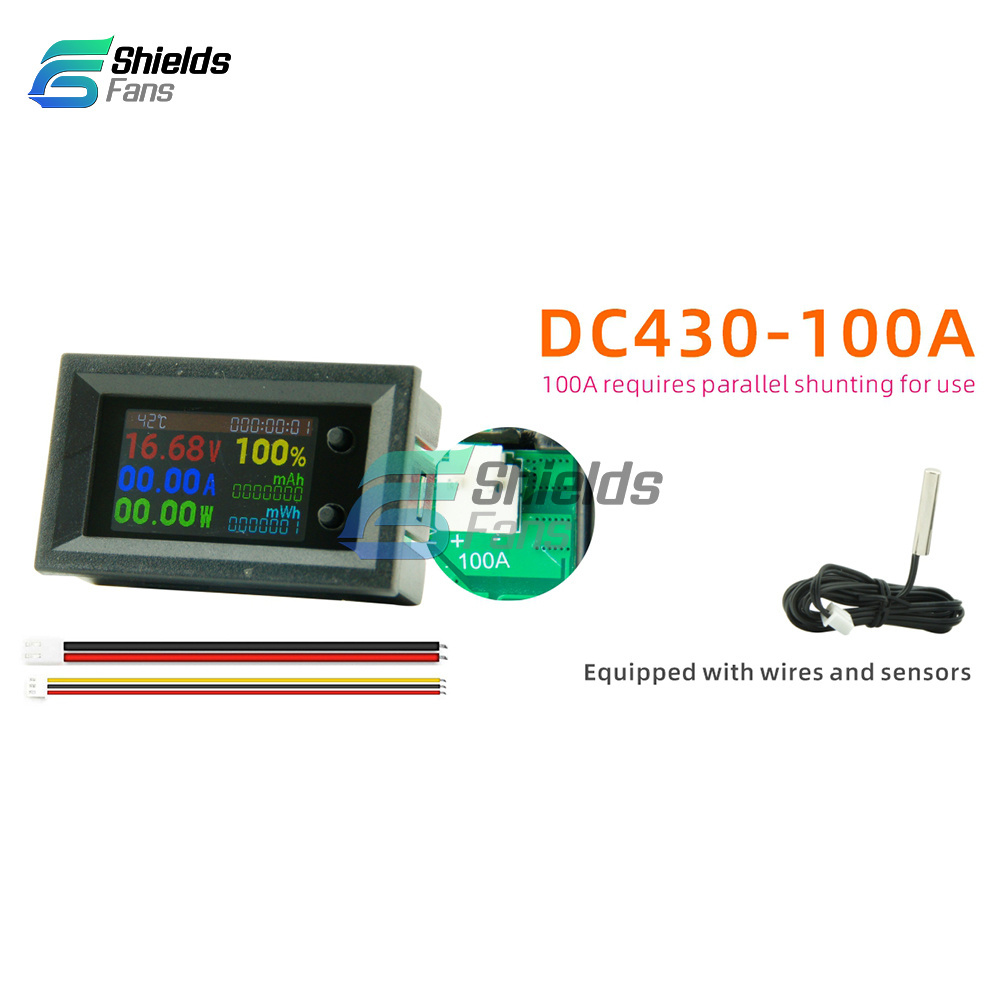

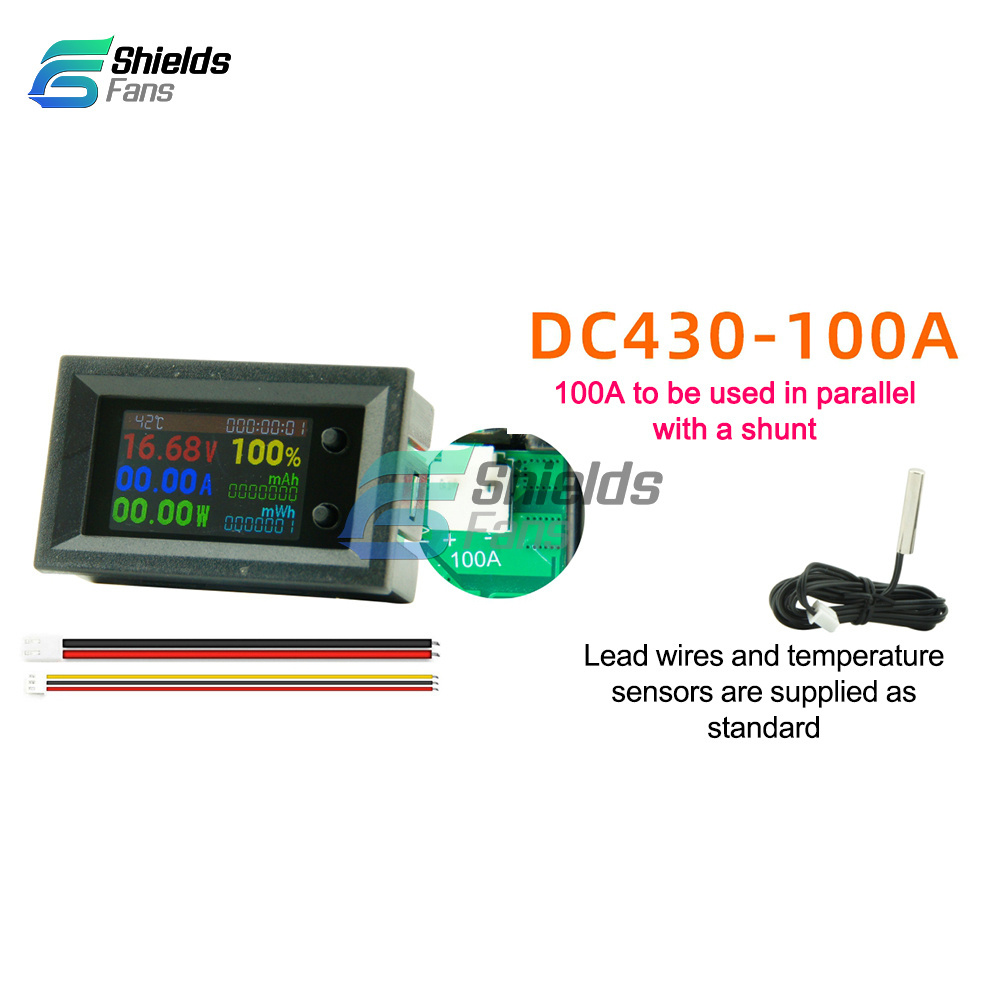

100A technical parameters:
Instrument working voltage: XH-3P red and black wire DC4~30V (Do not over-voltage power supply)
Wire definition introduction:
XH-2.54-3P red, black and yellow wire (thin wire Total length: 155mm)
Thin red wire: positive pole of the working power supply, can not be connected to the power supply above 30V.
Thin black wire: negative pole of working power supply, common ground with thick black wire, no need to connect when sharing power supply.
Thin yellow line: voltage test line, connected to the positive pole of the test circuit power supply.
VH-3.96-2P Thick red and black wires (thick wire total length: 165mm) Current test line
Thick wire parallel shunt resistor, can not be directly connected to the power supply poles, will be short-circuited.
Coarse red wire: current test positive pole, parallel shunt series in the negative end of the load rear.
Thick black wire: current test negative, shunt shunt connected to the negative terminal of the power supply.
Connecting shunt: need to connect 100A 75mV shunt in parallel to use (buyer should buy a shunt themself)
Voltage measurement range: DC0~100V Error ±1.00V 0.1V start jumping
Current Measurement Range: 0.00A~100.00A Error ±1A 0.03A jumping
Power measurement range: 00.00~9999W
Capacity measurement range: 0~9999999mAh
Energy measurement range: 0~9999999mWh
Temperature sensor: column waterproof probe NTC 10K 3950 1% sensor Total length about 1 meter
Temperature metering range: -40~120℃ (external temperature measured by NTC sensor)
Time measurement range: 0~999:59:59 (hours:minutes:seconds)
Operating energy consumption: 20mA (measured by DC12V)
Support: Accumulated data zeroing No-load forced zeroing Voltage display fine-tuning Current display fine-tuning
Percentage power display: percentage power based on voltage reference (need to manually set full and low power voltage)
Product size: 47.59×28.67×25.33mm
Installation aperture: 45×26mm

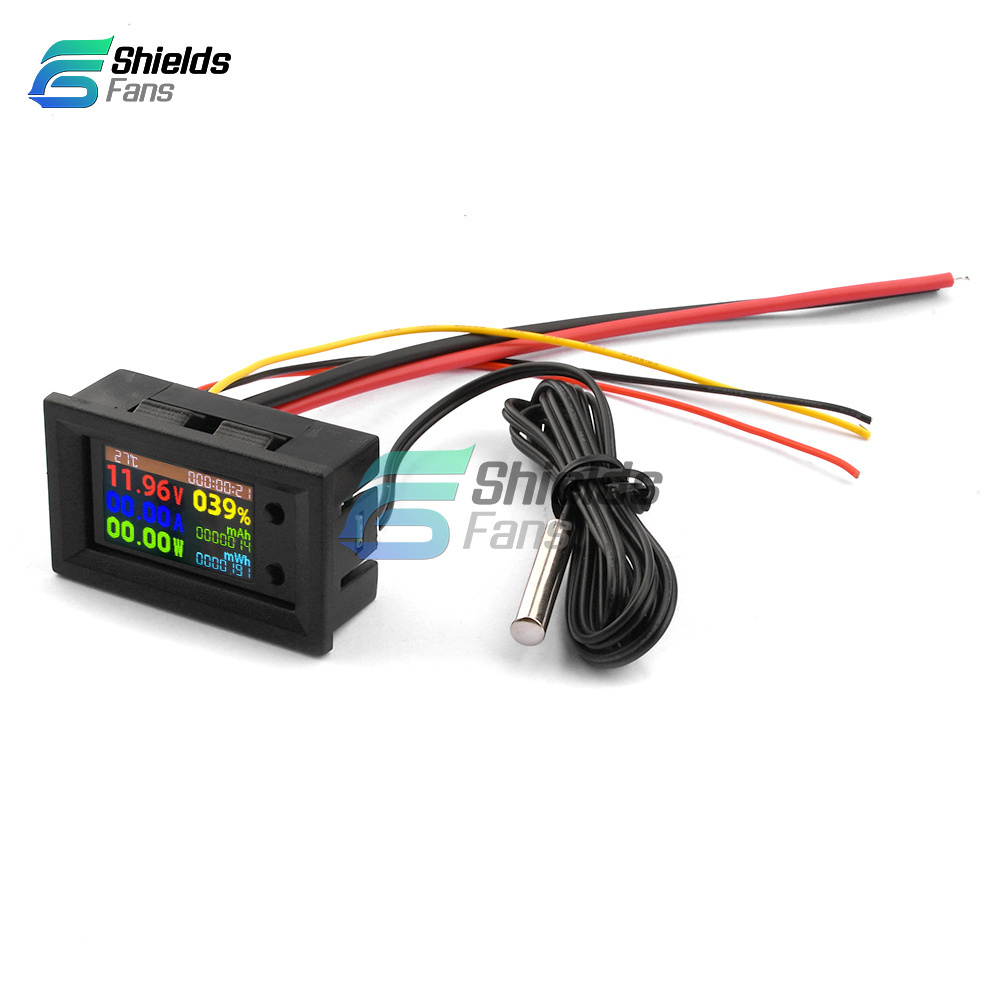

Shipping list:
Measuring Instrument X1
Column waterproof probe sensing wire X1
XH-2.54-3P Red, black and yellow wire X1
VH-3.96-2P Coarse red and black wire X1
