Description
IRX-TX 300KG Multifunctional Electrical Lifter Fire Protection Lift Retarder Electrical Ascender Manual Descender
Description:
- It is both an electric lifter driven by an electric drill and a manual lifter, achieving efficient lifting and controllable descent.
- This electric lifter has passed the new national standard quality inspection and certification, and complies with XF494-2023 "Fall Protection Equipment for Firefighting".

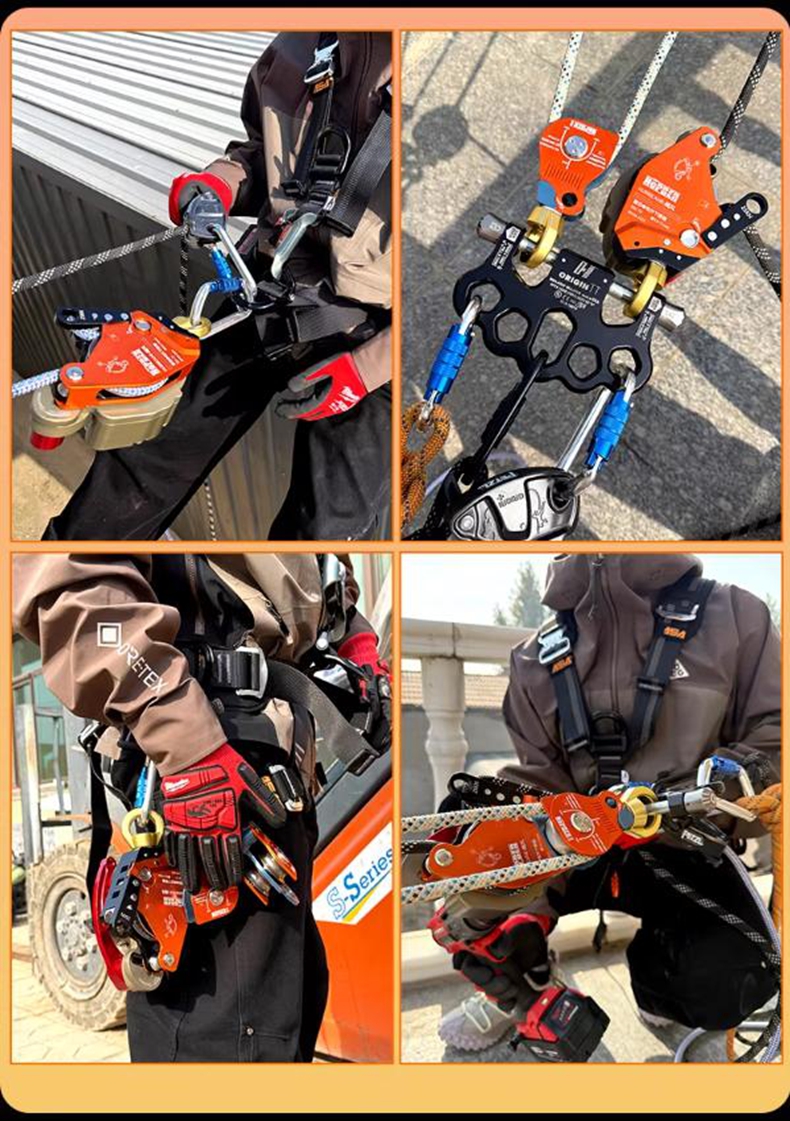

- Widely applicable and suitable for various scenarios: working at height; air conditioning lifting; construction; outdoor rock climbing, etc.
- Integrated lifting and dual operation mode: supports electric lifting, manual lifting, and manual descending, suitable for various work scenarios and needs. The electric hand drill drive up mode is suitable for lifting heavy objects and lifting people up; The manual control descent mode can be used as a manual descent device to release heavy objects and slowly descend.
- Equipped with an 8mm hexagonal adapter shaft as standard, it can be connected to your electric hand drill (counterclockwise rotation) to provide strong lifting power and easily handle heavy objects, resulting in a multiple increase in work efficiency. The torque of the electric drill is only 90~160N.m; Applicable rope diameter: 9.6<0≤11mm.
- Equipped with emergency safety devices.
- The patented brake pulley and high friction structure ensure that the rope is firmly locked within the rated load range, preventing sliding. A sandwich rope made of polyamide (nylon) or polyester material must be used.
- When the electric drill is driven, it can lift smoothly. Once it stops or encounters an accident, the mechanism will automatically lock under the action of gravity, effectively preventing heavy objects or personnel from falling and providing passive safety protection. When subjected to force during unidirectional ascent, it will automatically lock.
- The release handle is a control mechanism used for active descent. When lifting and hovering, make sure it is in the locked gear. At this point, the one-way self-locking function of the product will function as the main safety system. It is strictly prohibited to toggle the release handle during lifting.
Specification:
- Model: IRX-TX
- Working load: 30 - 280kg
- Descending speed: 0.5m/s (280kg); 1.5m/s (50kg)
- Material: high strength aluminum, stainless steel
- Applicable electric hand-drill torque: 90 - 160N.m without impact (it is recommended to use brushless electric hand-drill)
- Applicable rope diameter: 9.6 - 11mm
- Net weight: 2.35kg
- Product standard: XF494-2023
- Temperature resistance performance: -25 to 45â
- Application: working at height; air conditioning lifting; construction; outdoor rock climbing, emergency rescue, etc.
Safety Reminder:
- It is strictly prohibited to use ultra-high molecular weight polyethylene and polypropylene ropes.
- This product needs to be used with the installation of a backup security system.
Package Included:
- 1 x Electrical Lifter
