Please NOTE: This listing is for B-Stock item. It means that this unit was refurbished by manufacturer and holds full manufacturer warranty, however it may have scratches, signs of wear and tear or come not in original box. The 4K at 60 4x1 Multiviewer Seamless UHD Video Switcher is designed to allow you to display multiple video sources at 4K resolution on a single screen. It combines four video signals and allows you to manage each input, create combinations of the four inputs, and adjust their positions on the display. Besides instant switching between 4 sources the BG-UHD-MVS41A has the ability to display the four video inputs in a Picture-in-Picture (PIP) or Picture-by-Picture (PBP) mode. In PIP mode, one of the video inputs is displayed as a small inset window on top of the other input, which takes up the majority of the screen. In PBP mode, the four video inputs are displayed side-by-side, taking up equal or partial amounts of screen space. Connectivity and Quality This device supports a wide range of input resolutions up to 4096x2160p 60Hz. It also could de-embed audio from any of the sources in different formats for your external audio system. Supported audio formats are LPCM, AC3, DD+, DTS, DTS- HD. User can control the volume of audio in LPCM format. Control Multiple control options are available for the BG-UHD-MVS41A. It can be controlled through the front panel buttons, an IR remote, or RS-232 commands. EDID control is available through the RS-232 interface. Features: - Secure Content - HDMI 2.0b, HDCP 2.2, and HDCP 1.x compliant
- 4K Resolution - Input and output resolutions support up to 4K2K at 60 4:4:4
- Audio Management - Volume control and independent audio selection
- EDID Management - Seamless scaling for the best results
- Control Options - Control via front panel buttons, IR remote, RS-232 commands
- Compact Design - For easy and flexible installation
- 18Gbps video bandwidth
- LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
- Seamless switching between input channels and combining multiple images on a single UHD monitor
- Up to 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
- Seamless switching on single-screen display mode
- Fast switching on multiview display mode
- Audio de-embedding via analog and optical fiber audio ports

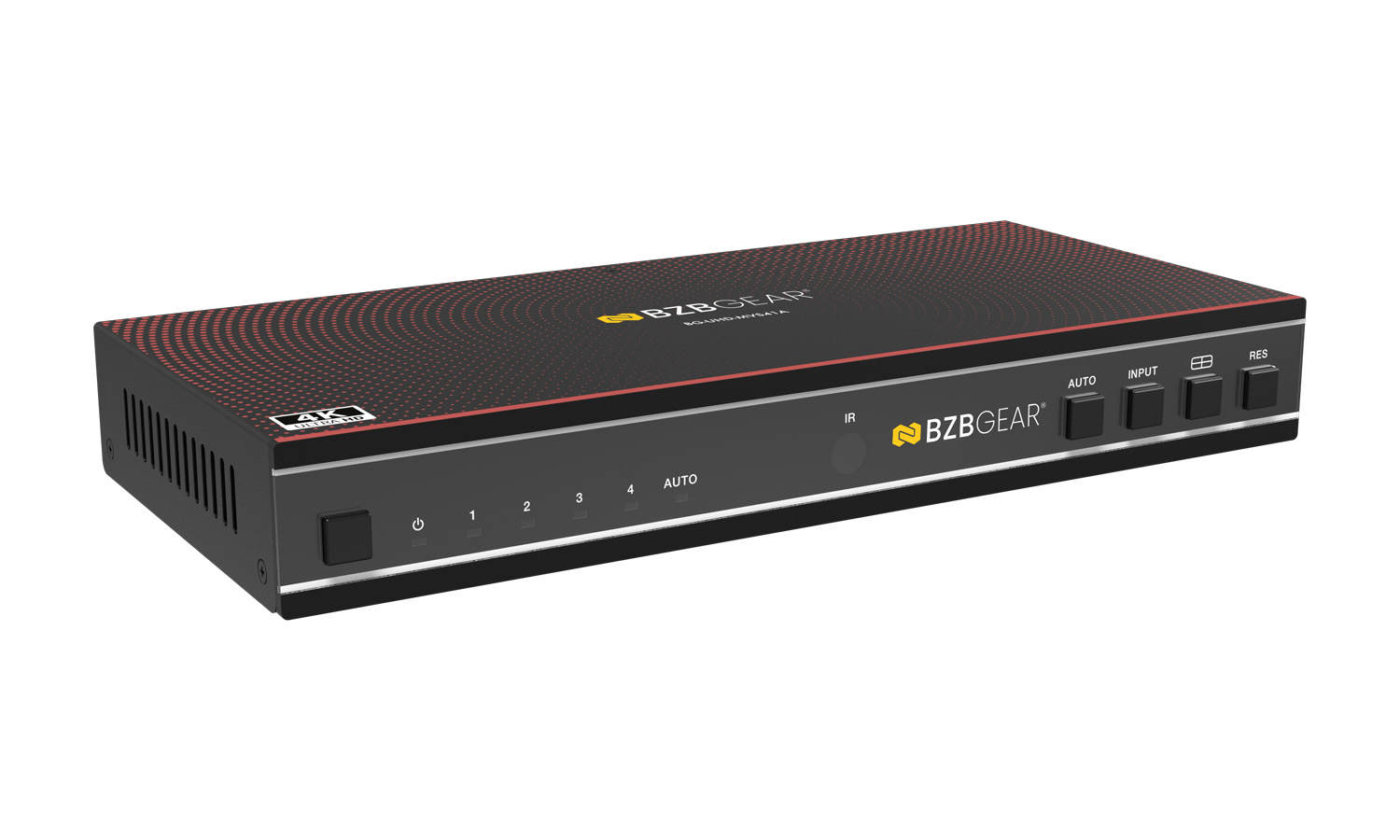

- OSD navigation for advanced settings
Specifications: | Technical | | HDMI Compliance | HDMI 2.0b | | HDCP Compliance | HDCP 2.2 / 1.x | | Video Bandwidth | 18Gbps | | Video Resolutions | Up to 4K at 60Hz | | IR Level | 5Vp-p | | IR Frequency | 38KHz | | Color Depth | 8-bit | | Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 | | Audio Formats | HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res
Analog audio (3.5mm L/R): PCM2.0
SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0
Note: It does not support HBR audio. | | ESD Protection | Human-body model:

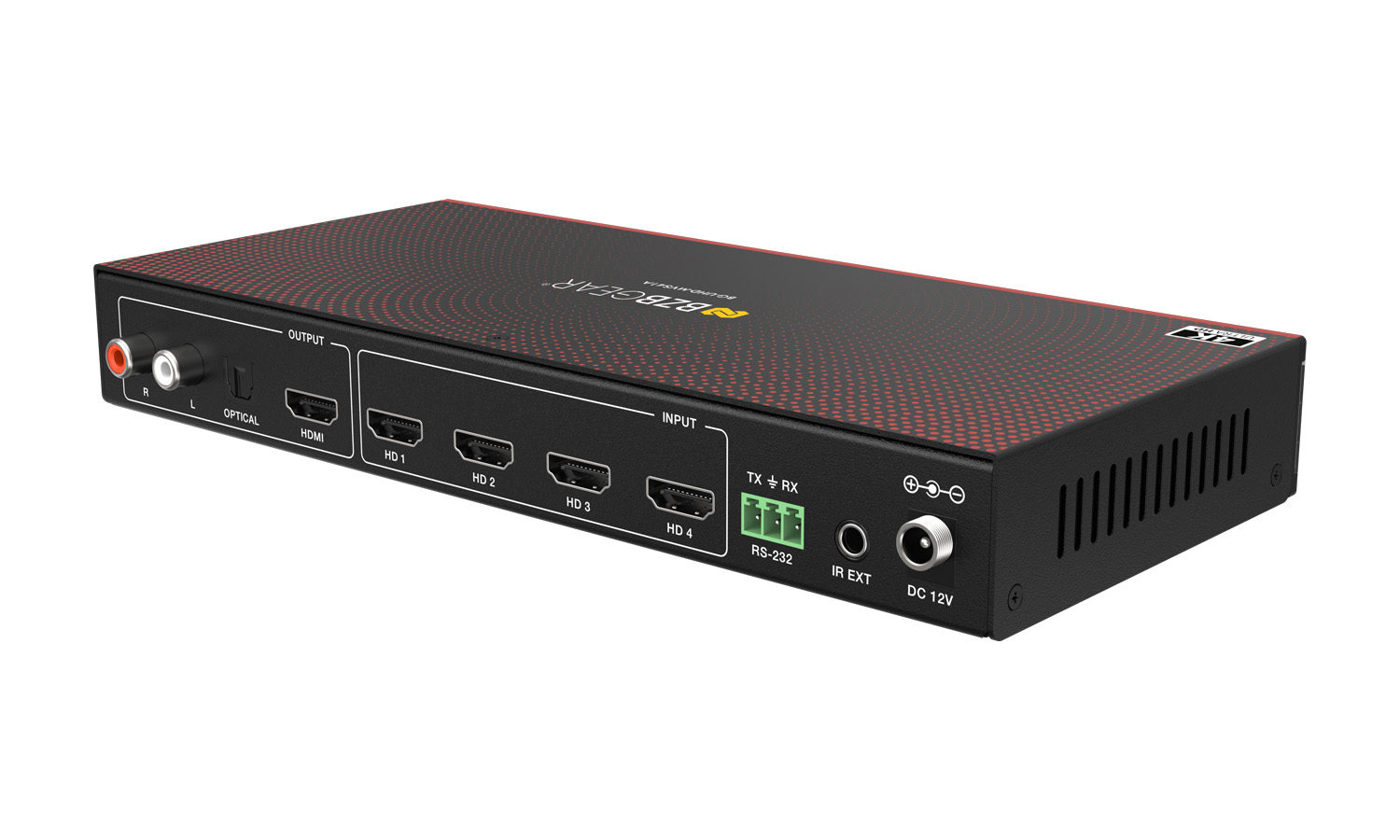

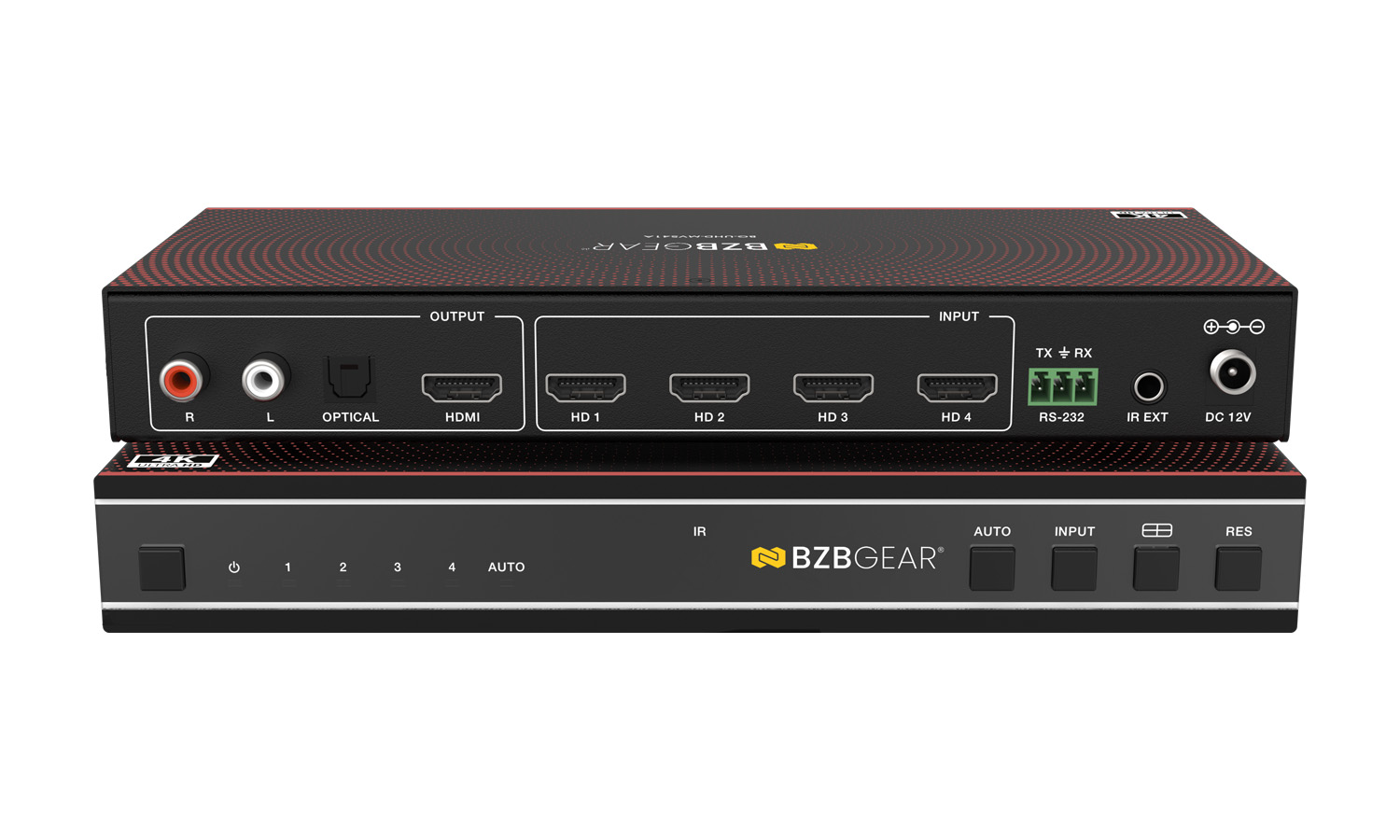

±8kV (Air-gap discharge) & ±4kV (Contact discharge) | | Connection | | Input ports | 4 x HDMI IN [Type A, 19-pin female] | | Output ports | 1 x HDMI OUT [Type A, 19-pin female]
1 x L/R OUTPUT [RCA]
1 x OPTICAL OUTPUT [S/PDIF] | | Control ports | 1 x RS-232 [3pin-3.81mm phoenix connector]
1 x IR EXT [3.5mm Stereo Mini-jack] | | Mechanical | | Housing | Metal Enclosure | | Color | Black | | Dimensions | 8.7"(W) x 3.9"(D) x 1.2"(H) [220mm(W) x 100mm(D) x 30mm(H)] | | Weight | 1.4 lbs [620g] | | Power Supply | Input: AC 100~240V 50/60Hz
Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified) | | Power Consumption | 10W (Max) | Operating
Temperature | 32°F ~ 104°F / 0°C ~ 40°C | | Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C | | Relative Humidity | 20~90% RH (no-condensing) | Package Includes: - 1 x 4K60 4x1 Multiviewer Seamless UHD Video Switcher
- 1 x IR Remote
- 1 x 3pin-3.81mm Phoenix Connector (male)
- 1 x 38KHz IR Wideband Receiver Cable (1.5 meters)
- 2 x Mounting Ears
- 4 x Machine Screws (KM3*4)
- 4 x Rubber Feet
- 1 x 12V/2.5A Locking Power Adapter
- 1 x User Manual
|
