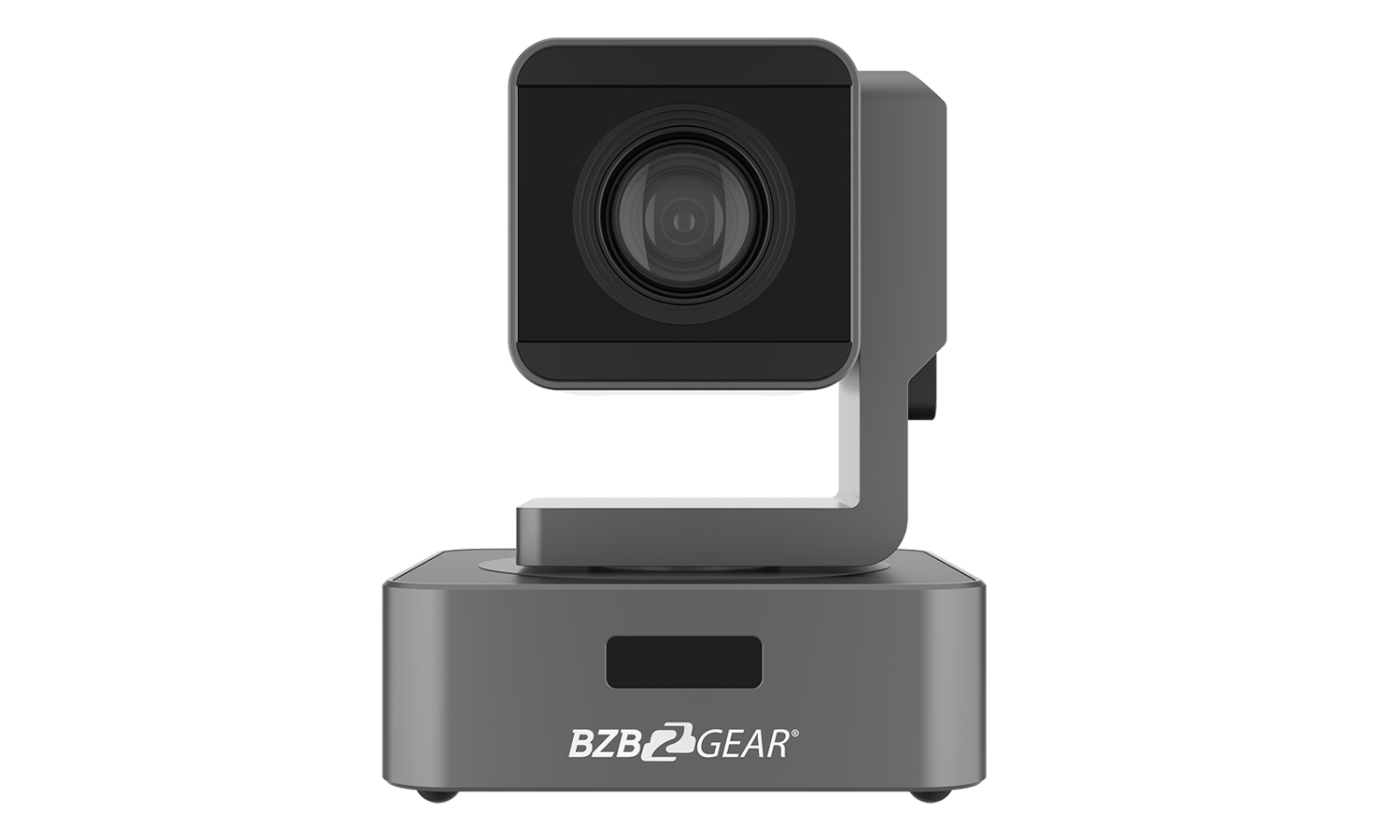

BG-VPTZ-HSU20X is a Economic broadcast-quality video PTZ camera with advanced video image processing technology and full HD CMOS Sensor with multiple video output formats, max resolution up to 1080P60FPS; Approx 2.38 Megapixel picture presentation, color true, image quality Clear; and 3G-SDI\HDMI\IP Streaming video simultaneous output. H.264/H.265 super decoding with low bandwidth transmission demand; built-in audio interface, suitable for high frequency sound & AV live Streaming and Recording. Designed for flexibility, reliability, and performance, this PTZ camera is capable of 20X optical zoom equipped with a 2.38 Megapixel lens while bolstering beneficial video output connections including Type-A USB 2.0, LAN, HDMI, and 3G-SDI for live and recorded streaming via popular social and conference media platforms like Skype, Zoom, Google Classroom, YouTube and Facebook. Utilized the 3.5MM Audio input port for portable or fixed microphones solutions. Control the unit via the included IR remote with programable presets, WebGUI using IE browser or connect with a Joystick Controller via an RS232 cable. Effortlessly Stream H.264/H.265 compression codecs while utilizing the most advanced ISP processing algorithms ensuring fast, accurate and stable auto-focusing making it the best overall choice for any indoor environment like Houses of Worship, Schools, Factories and Presentation rooms. Specifications: | Camera Specs | | Image Sensor | 1/2.7″ high quality HD CMOS sensor | | Frame Rate | 1080P60/59.94/50/30/29.97/25
1080I60/59.94/50/30/29.97/25

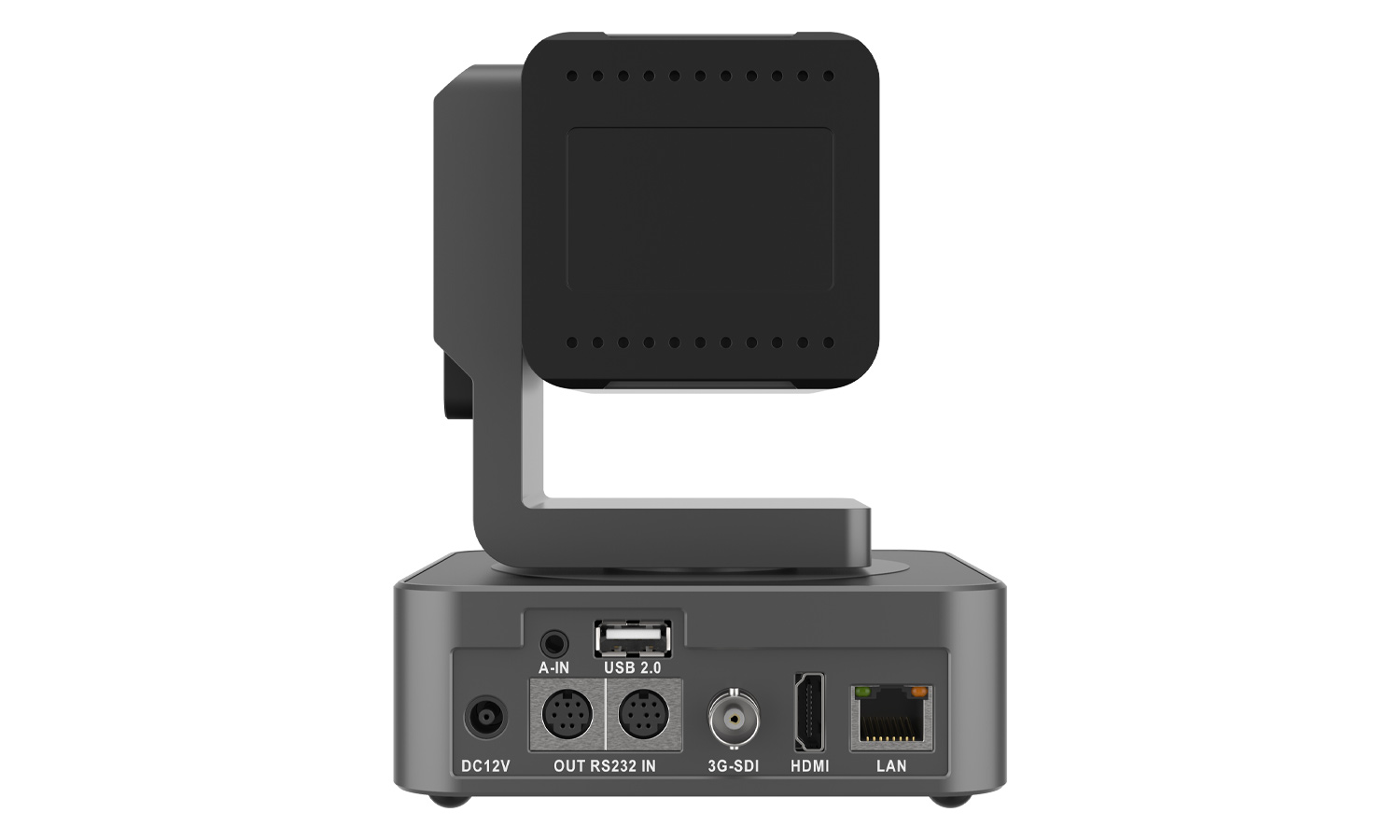

720P60/50/30/25, 480I60, 576I50 | | Zoom | 10X Optical | | Lens | f=5.1mm ~ 51.0mm, F=1.8(W)-3.5(T) | | Effective Pixels | 2.38 Megapixel | | View Angle | 72° (FOV) | | Min Illumination | 0.5lux (F 1.8, AGG ON) | | Shutter Speed | 1 to 1/10000s | | | Vertical Flip & Mirror Supported | | Input/Output Interface | | Video Output | HDMI, 3G-SDI, USB 2.0, RJ45 Network (10/100M Adaptive Ethernet ports) | | Audio Input | 1-ch 3.5mm audio interface, Line In | | Communication interface | 1X RS232 IN, 1X RS232 Out, 1X RJ45, RS485 | | Power On | JEITA type (DC IN 12V) | | Mechanical | | Pan Rotation Angle | ±178°, Tilt Rotation Angle -30°~ +90°
Pan 0.1~180°/s; Tilt: 0.1~120°/s | | Presets | Max 255 Presets ( Remote 9 Presets) | | Network Protocol | VISCA, PELCO P/D, ONVIF Protocol | | IPC Video Features | | Video standard | H.265/H.264/MJPEG, H.264 HP, H.264 SVC, H.263 +, H.263, H.261 Dual video streams H.239BFCP content exchange | | Video Stream | Main stream, Sub stream | | Main stream resolution | 1920x1080, 1280x720 | | Sub stream resolution | 720x480, 320x240 | | Bit Rate | 128K, 256K, 384K, 512K, 768K, 1024K, 1536K, 2048K, 3072K, 4096K, 5120K, 6144K, 8192K | | Bit Rate Type | Variable rate, Fixed rate | | Maximum Frame | 60fps | | Audio encode standard | G.711, G.722, G.722.1, G.728, G.722.1C AAC | | Audio stream rate | 96K, 128K, 256K | | Support protocols | TCP/IP, HTTP, DDNS, RTSP, RTMP, PPPoE, SMTP, UPnP, SNMP, FTP (Optional) | | | High Efficiency Lost Packet Recover | | | Wake-on-LAN (WOL) support | | Generic | | Dimensions | (L*W*H) 120mmx120mmx145mm | | Gross Weight | 1.6kg | | Operating Temperature | -10°C ~ 50°C | | Max Consumption | 12W DC12V at 1A | Package Includes: - 1x BG-VPTZ-HSU Camera
- 1x IR Remote Controller
- 1x RS-232 to DB 9pin cable
- 1x 12V/ 2.0 A DC Power Adapter
- 1x User Manual
|
