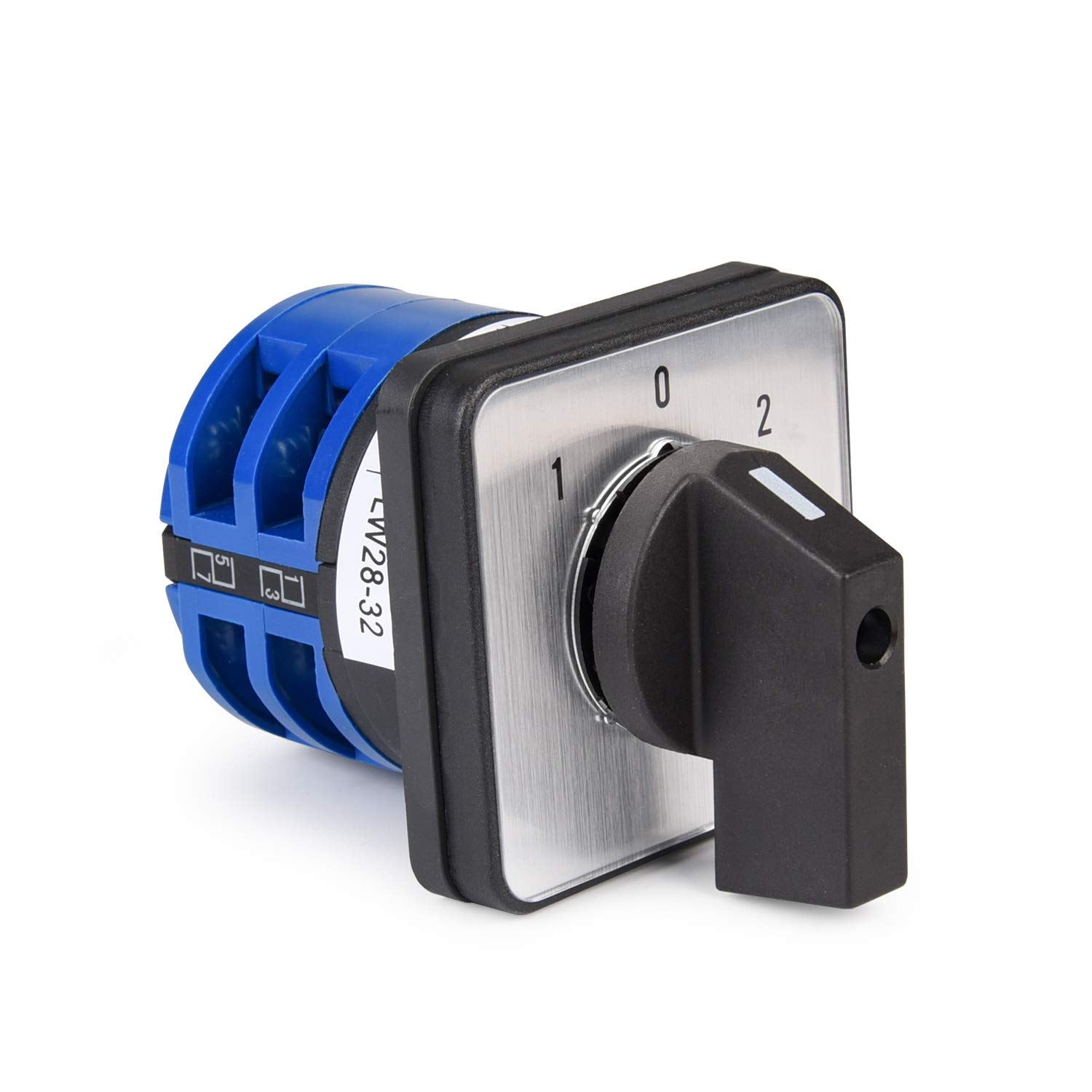

Changeover Selector Switch 3 Position 440V Universal Rotary Cam Selector (32A 8 Terminal)
Description
| Current Rating | 32 Amps |
| Number of Items | 1 |
| Item Dimensions | 1.57 x 1.18 x 0.39 inches |
| Upper Temperature Rating | 80 Degrees Celsius |
| Material Type | Copper |
| Terminal | Screw |
| Operating Voltage | 120 Volts |
| Contact Material | Silver |
| Specification Met | CE |
| Number of Positions | 1 |
| Unit Count | 1 Count |
| Connectivity Protocol | X-10 |
| Material | Copper |
| Circuit Type | 2-way |
| EU Spare Part Availability Duration | 3 Years |
| Item dimensions L x W x H | 1.57 x 1.18 x 0.39 inches |
| Control Method | Touch |
| Connector Type | Screw |
| Model | 32A 8 Terminal |
| Mounting Type | Panel Mount |
| Wattage | 14080 watts |
| Operation Mode | ON-NONE-ON |
| Actuator Type | Rotary |
| Contact Type | Normally Open |
| Included Components | Screw |
| Switch Type | Rotary |
- GET NEW ONE IF NOT MAN MADE BROKEN IN 3 YEARS SINCE YOU PURCHASE THE SWITCH.
- Product Name: 3 Position Lacthing Selector, Ui: 690V, Ith: 32A ; 12 Terminals.
- Model: LW28, 3 positions(1-0-2), 3 phases
- Panel size: 48 x 48 mm, Install Size:36 x 36mm
- Material: Flame retardant PC material, high temperature resistance; Premium copper parts with silver alloy point.
Product description
Image4 has shown which terminal will be connected in different position , please read the wiring diagram as a reference.
Position 1 : 1-2 , 5-6
Position 0 : All terminal disconnected
Position 2 : 3-4 , 7-8
- Model No.: LW28-32/2
- Rated Volatge: 690V; ITH: 32A
- Position: 3, ON-OFF-ON
- Terminal Quantity: 8
- Frequency: 50HZ
- Action Type: Latching
- Positioning angle: 60-0-60 Degree
- Panel size: 65mm x 65mm
3 Position Universal Rotary Switch ( 32A 8 Terminals)
- Suitable for the thickness between 1mm to 5mm of the mounting board.
- Ideal choice for electrical wiring in the power switches, speed switches and asynchronous motor for their start-up and reversing, also can make the conversion of the control circuit.
- Widely used as circuit control switches, test equipment switches, motor control switches and master control switches, signal transfer switches, or change-over switch for electric welding machinery and other equipment.
- What you get:
- 1 x Changeover Switch
- 4 x Mounting Screws
Silver Contacts
Sliver contacts, good electrical conductivity, not easy to wear and tear.
Thick Brass Conductors
Thicken material strengthen the conductive.
Anti-flaming Material
High temperature resistance and anti-flaming socket
Panel
Boutique panel, clear printing.
