Features

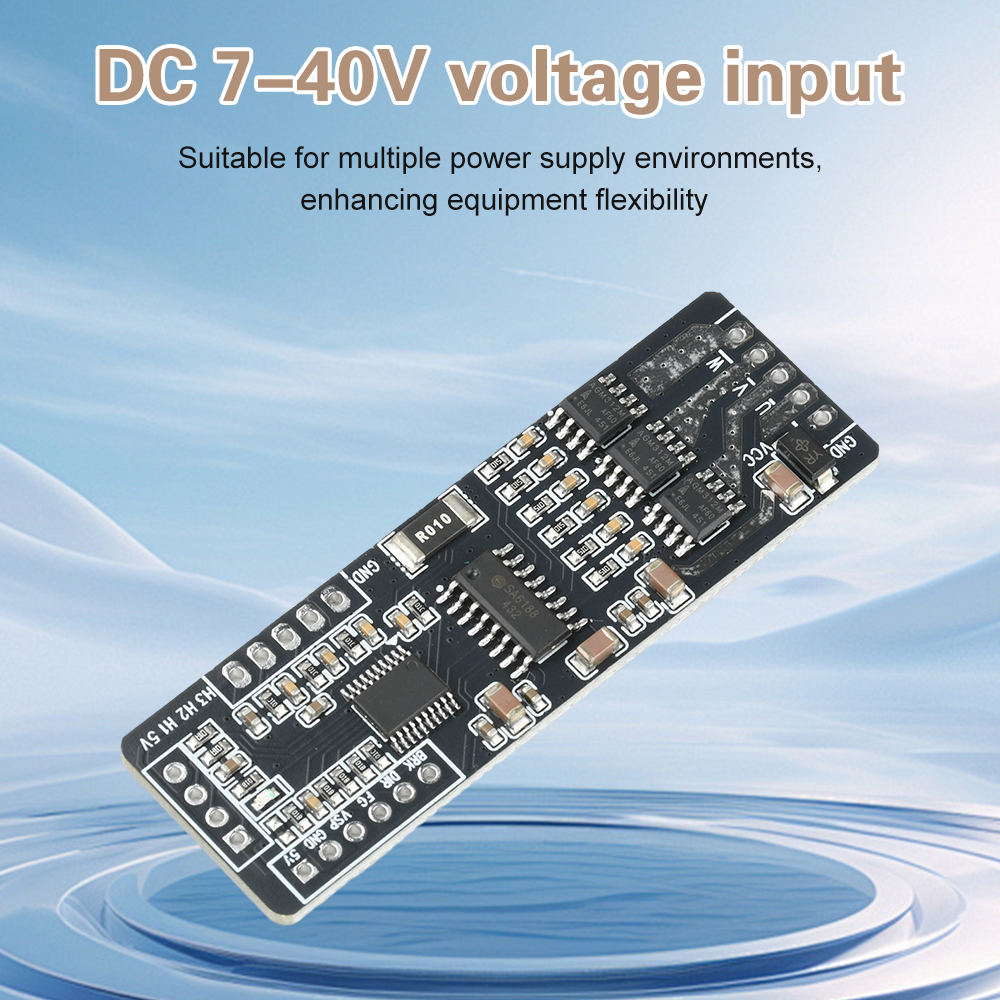

1. Supports DC 7-40V input voltage, suitable for diverse power supply environments, enhancing equipment flexibility

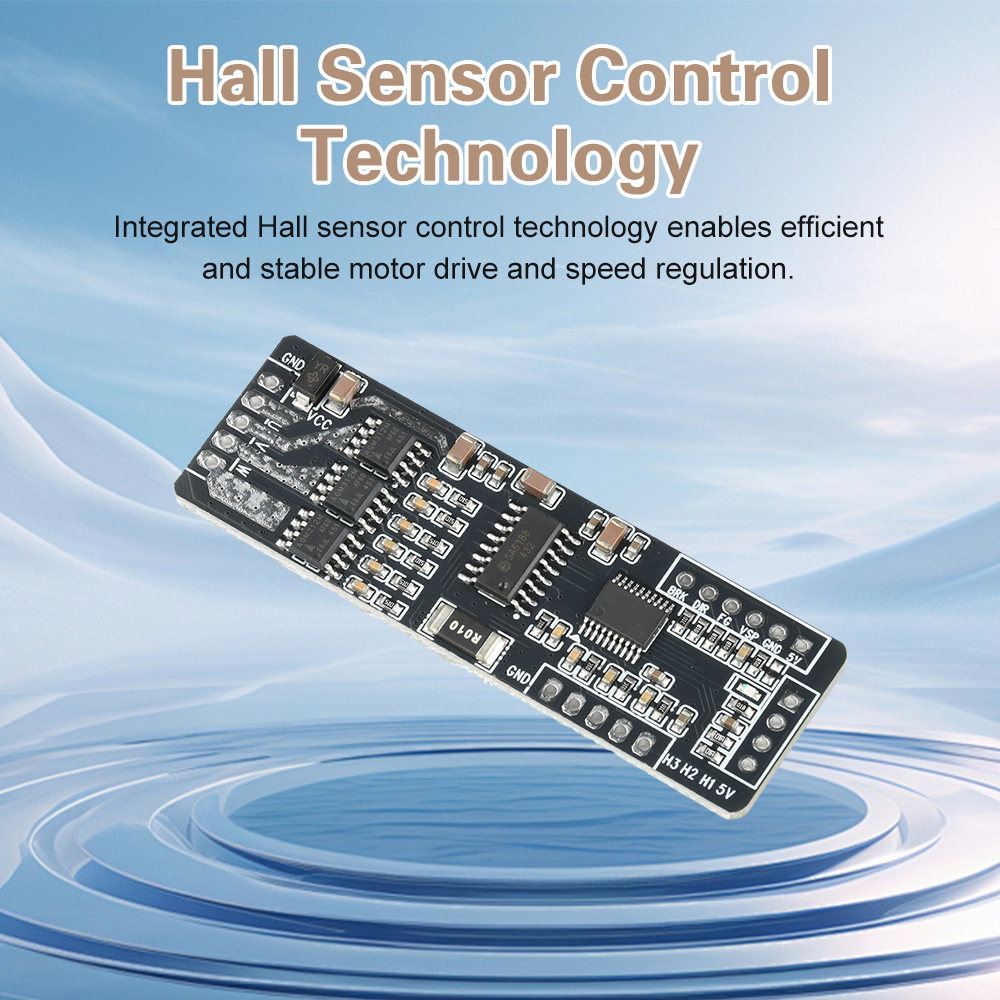

2. Integrated Hall sensor control technology enables efficient and stable motor drive and speed regulation

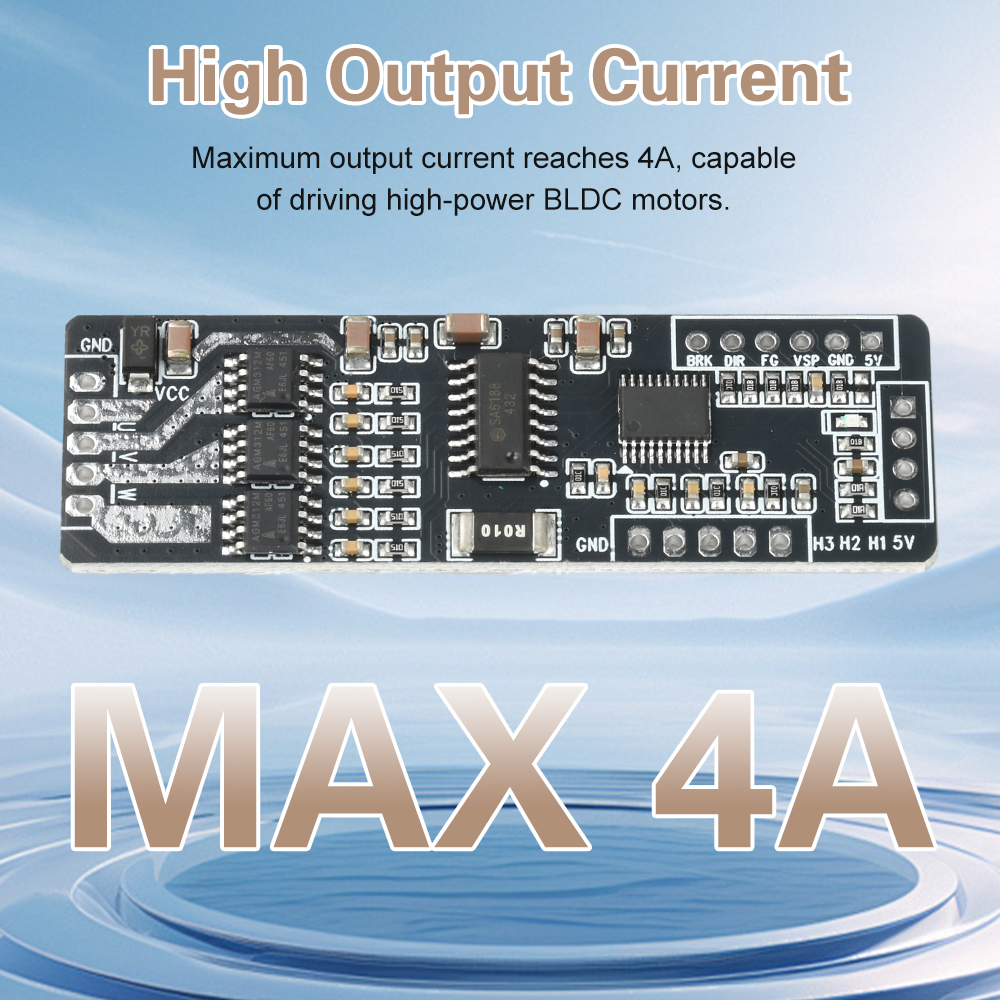

3. Maximum output current of 4A enables driving higher-power BLDC motors

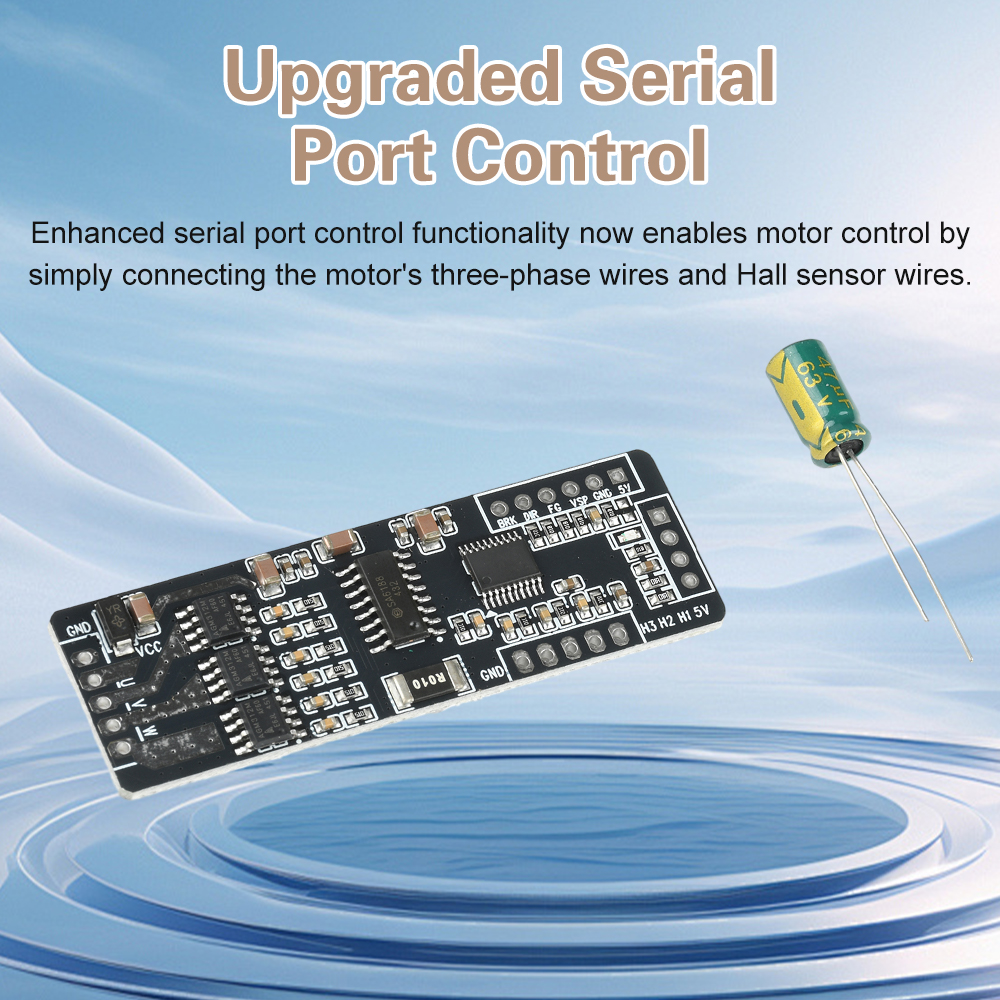

4. Enhanced serial port control functionality—simply connect motor phase wires and Hall sensor lines for motor control
5. Compact design suitable for embedding in industrial equipment and small machinery

Parameter
Operating Voltage: 7V-40V
Control Method: 0-5V/PWM/Serial Port Control
Peak Current: 4A
Rated Current: 2A
Maximum Power: 24W
Hall Sensor: Yes
Maximum RPM: 100,000 RPM
Additional Features: Braking/Reversing/FG Speed Frequency Output/Serial Control

Wiring Method:
1. Before use, confirm the brushless DC motor has Hall sensors. Motors with Hall sensors typically have 8 wires (applicable), while those without have only 3 wires.
2. The module supports 120-degree or 60-degree Hall sensor electrical angles. Default configuration is for 120-degree Hall sensors. For motors with Hall sensors, connect 5 wires: 2 for Hall sensor power supply and 3 for Hall sensor signals. Refer to the motor manufacturer's specifications or color coding to distinguish and connect wires correctly. Note: Distinguish between motor wires, Hall sensor signal wires, and Hall sensor power wires.

Important Notes:
1. Before use, verify the motor's voltage and power parameters match the module's specified range.
2. The module lacks reverse polarity protection; incorrect power connection will cause permanent damage.

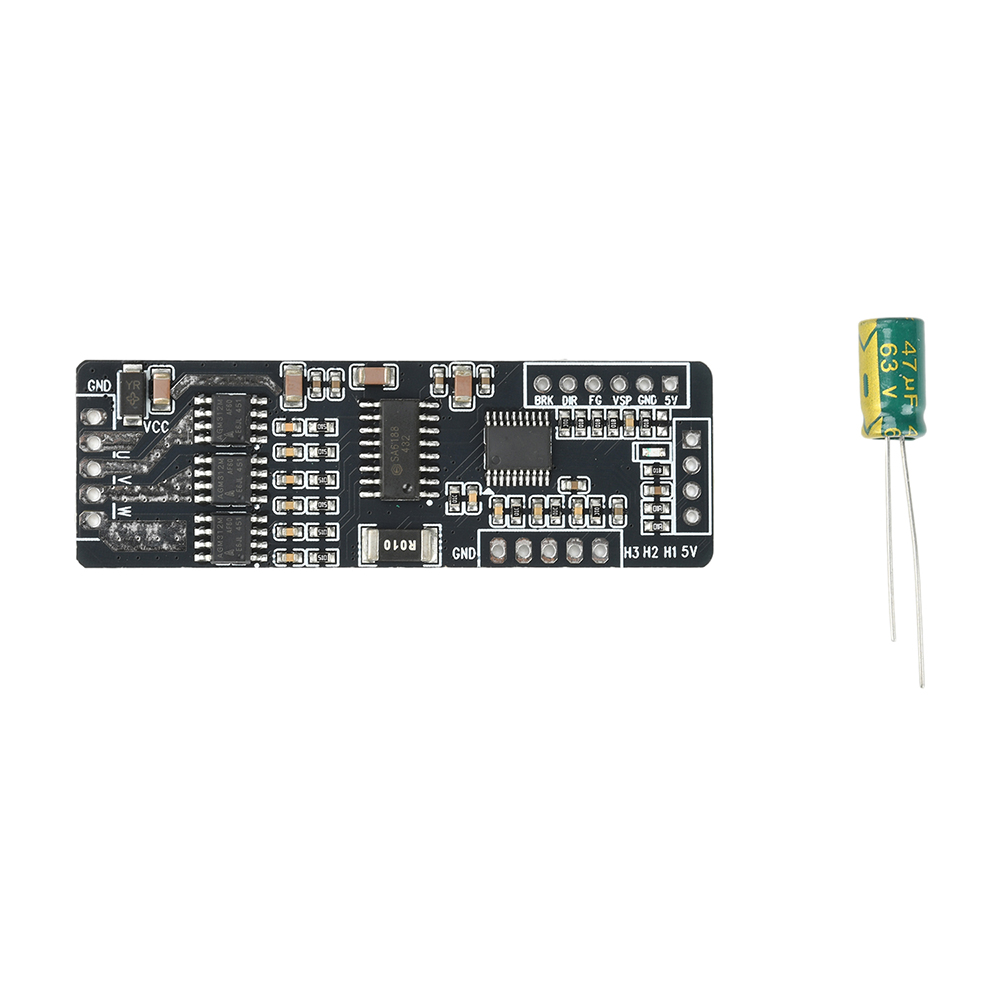

Package include

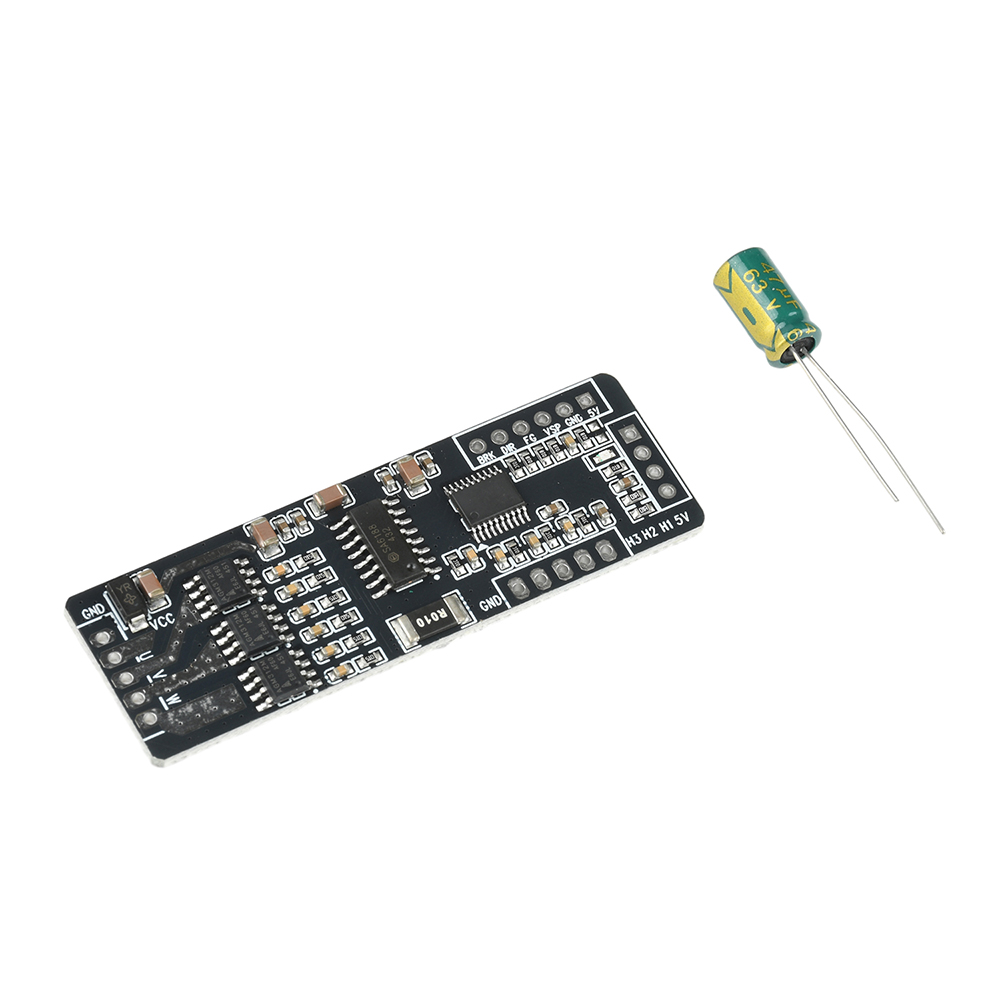

Module*1
