Overview

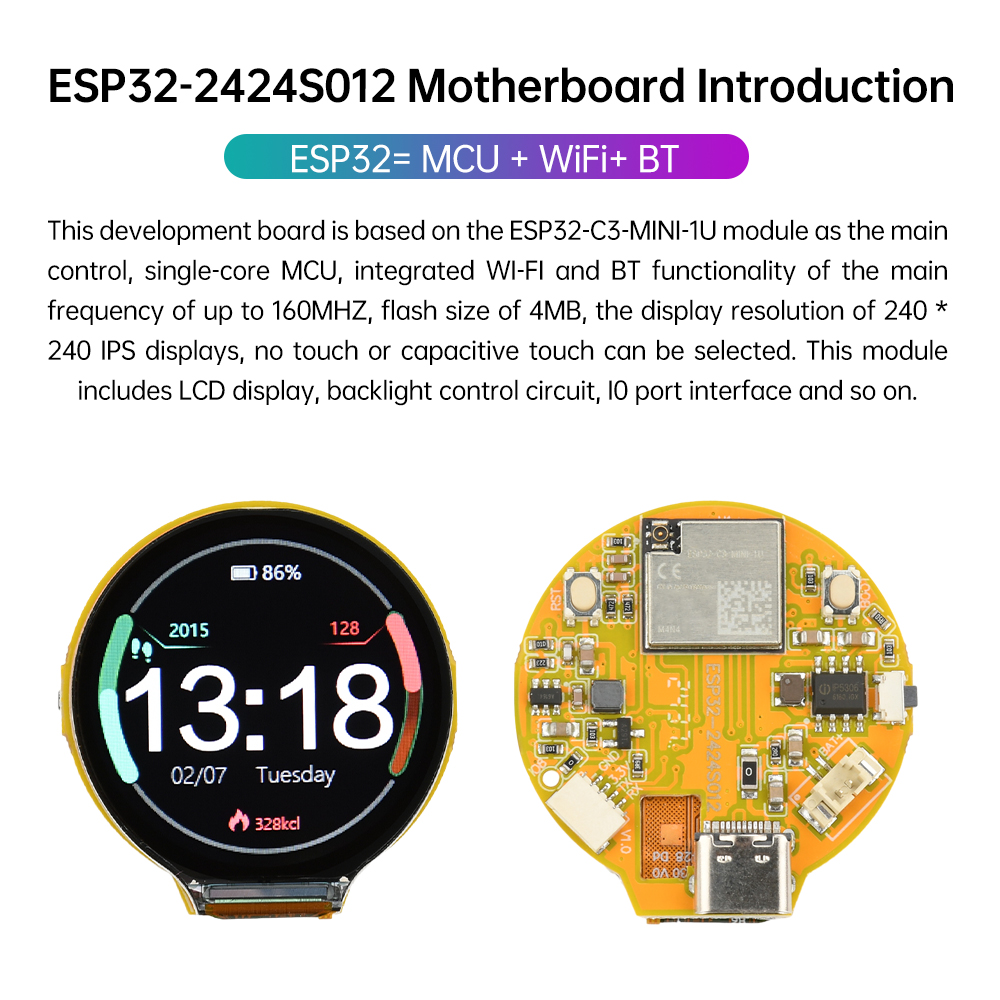

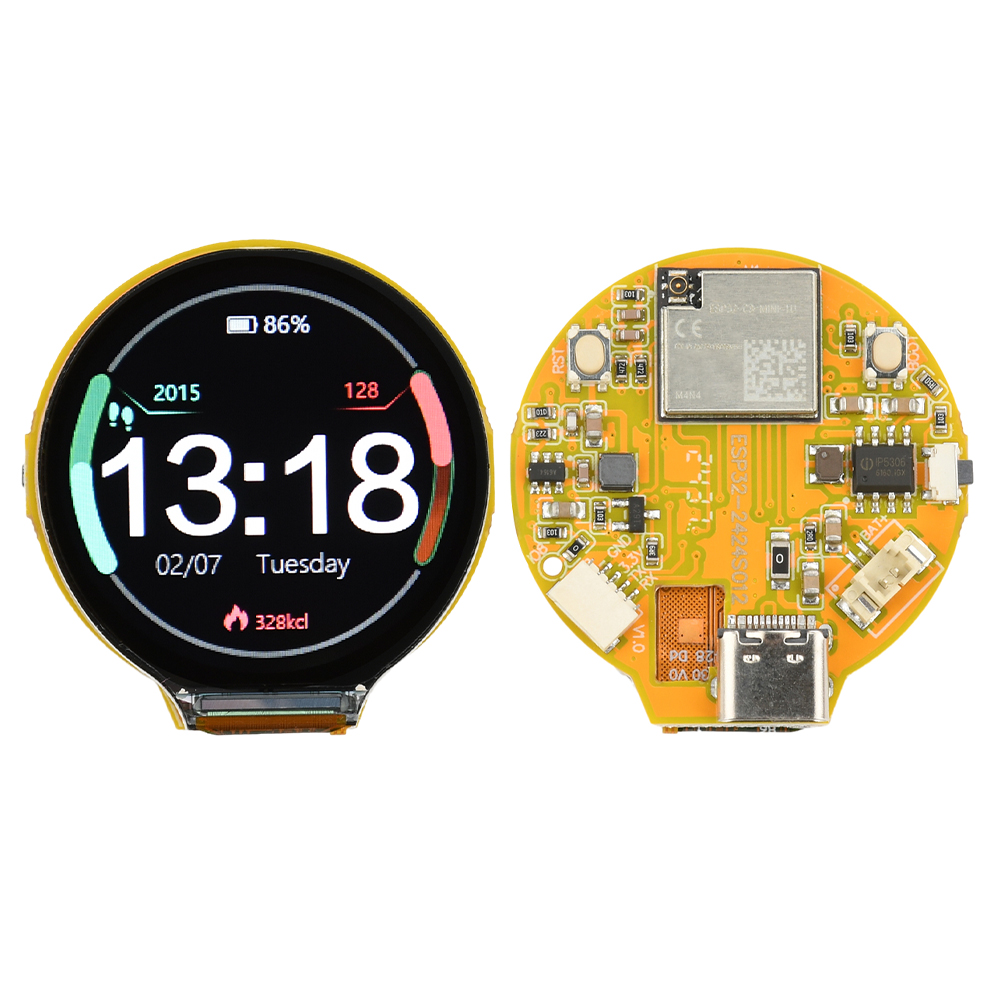

This development board is based on the ESP32-C3-MINI-1U module as the main control, single-core MCU, integrated WI-FI and Bluetooth functionality of the main frequency of up to 160MHZ, flash size of 4MB, the display resolution of 240 * 240 IPS displays, no touch or capacitive touch can be selected. This module includes LCD display, backlight control circuit, I0 port interface and so on.

Features

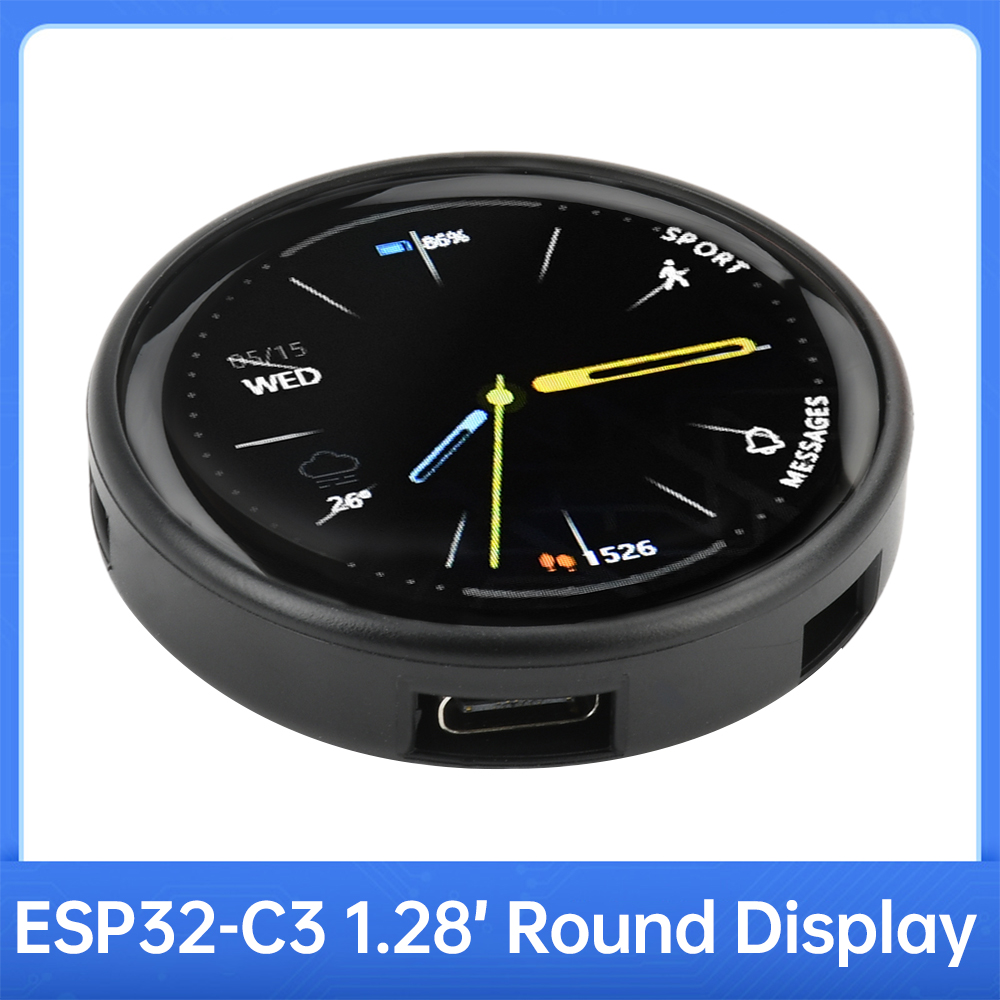

1. integrated display and control: with 1.28” round display, providing clear visual effect.
2. Wi-Fi and Bluetooth Function: Support 2.4GHz Wi-Fi and low-power Bluetooth, suitable for a variety of IoT applications.
3. High-efficiency processor: It adopts ESP32-C3-MINI-1U single-core MCU with main frequency up to 160 MHz.
4. Various options: this model has no touch display and capacitive touch display, with and without case to choose.
5. Various interfaces: This module includes LCD display, backlight control circuit, I0 port interface, etc. to adapt to different needs.

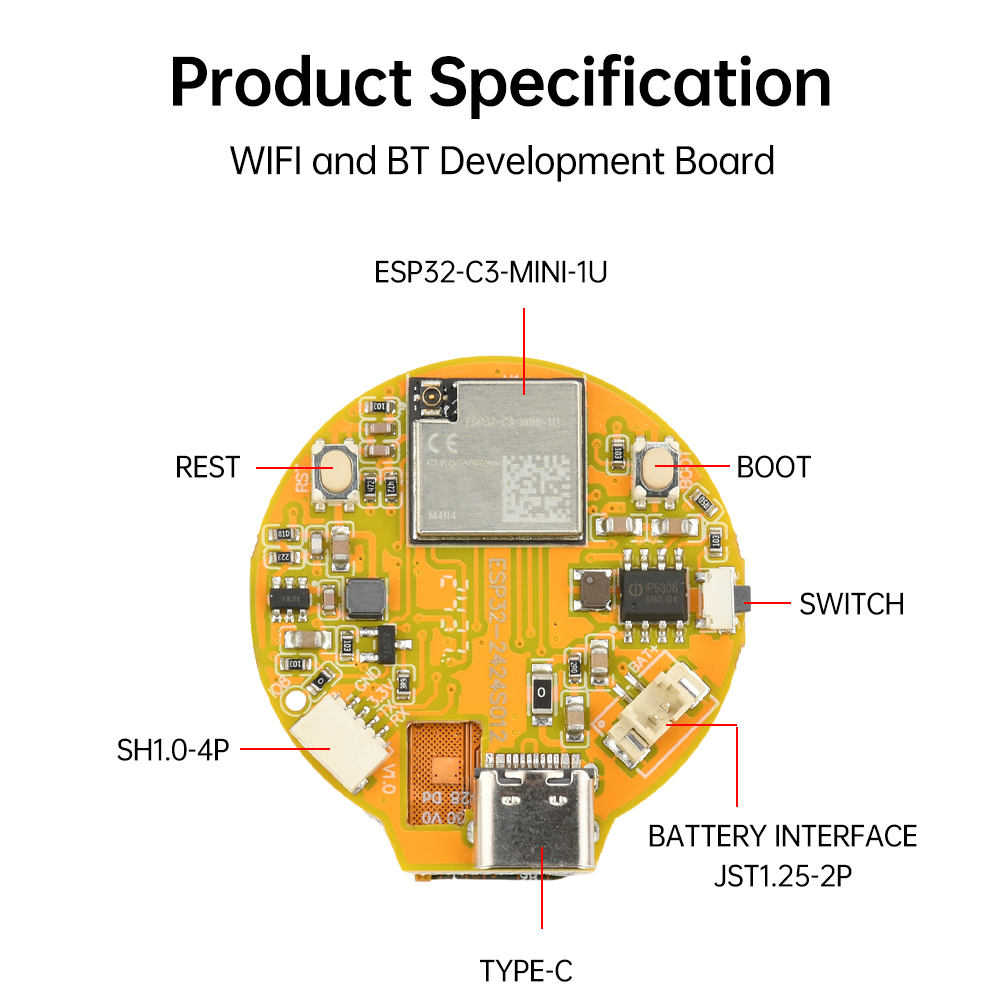

Specification
Color display: 16bitcolor

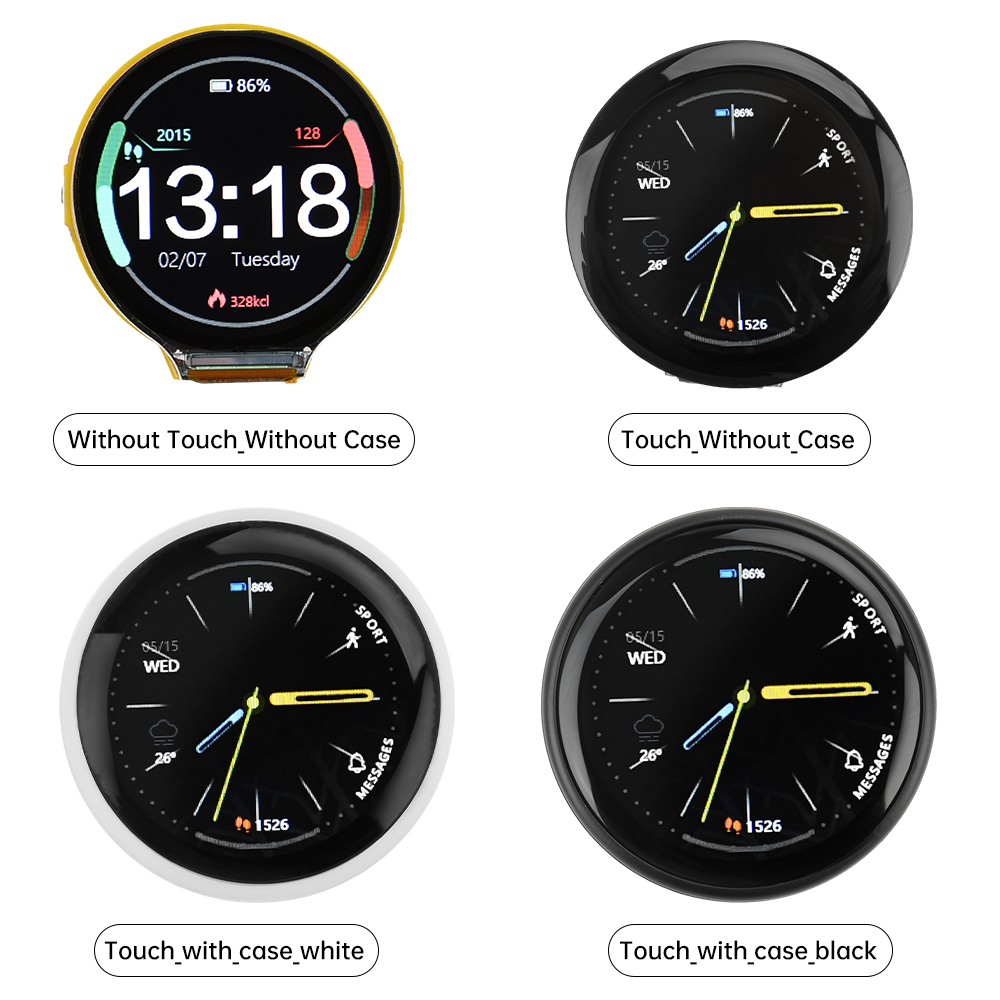

Model Style:

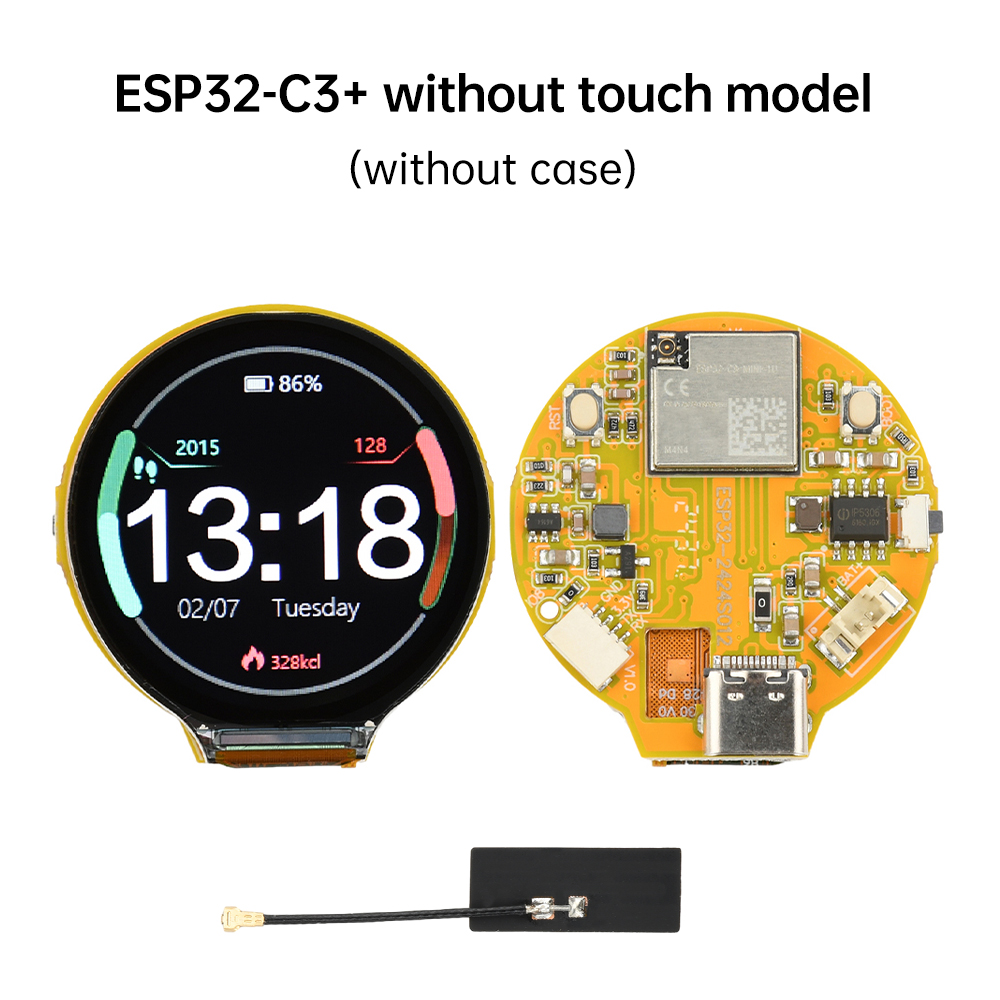

1、No touch ESP32-2424S012N-I

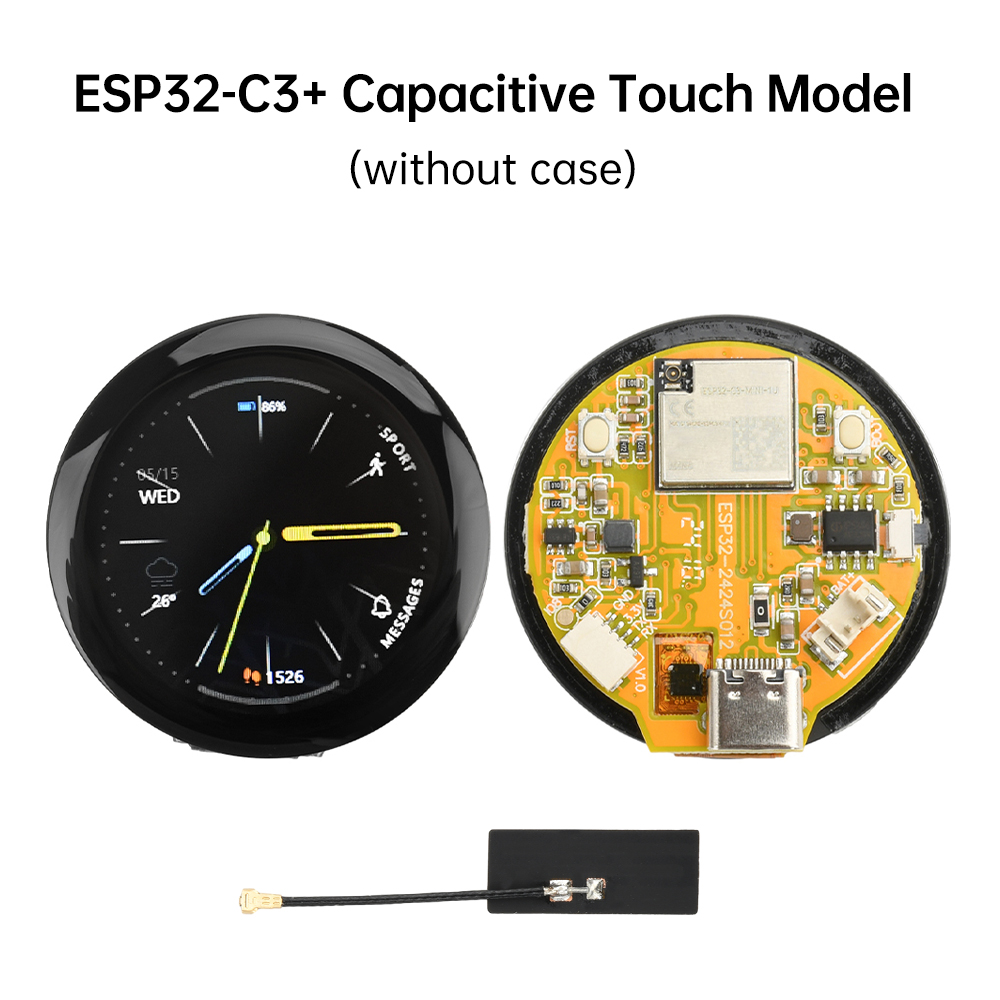

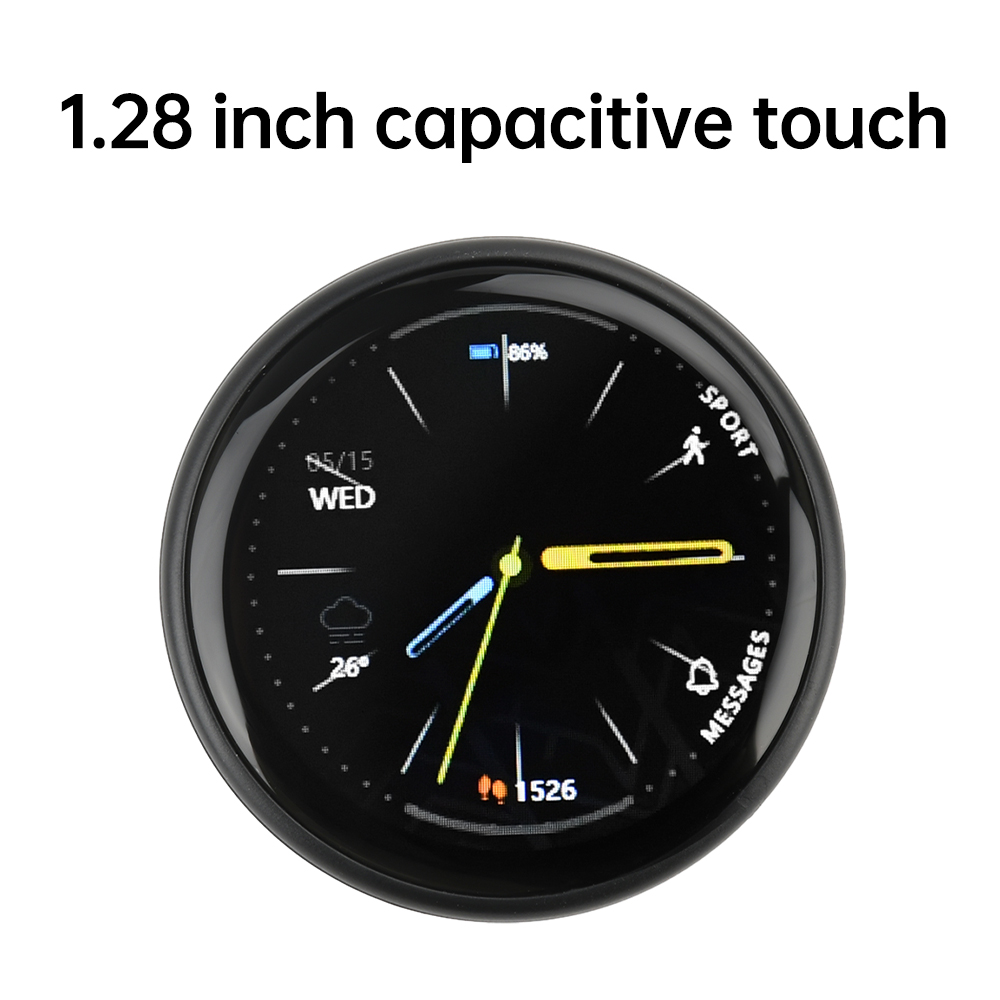

2、Capacitive touch ESP32-2424S012C-I

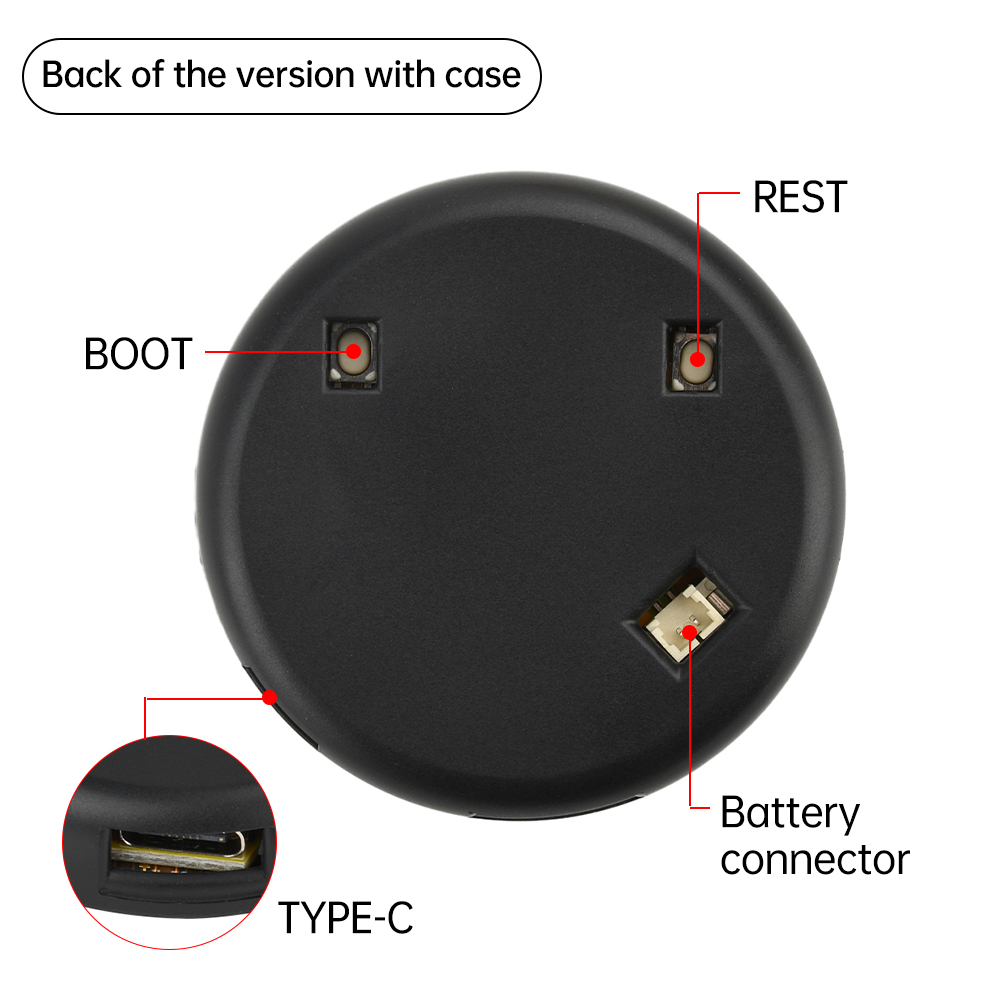

3、White Case ESP32-2424S012C-I-Y(W)
4、Black case ESP32-2424S012C-1-Y (B)
Processor: RISC-V 32-bit single-core processor, main frequency up to 160 MHz
Operating voltage: 5V
Power Consumption: 100mA
Size Type: 1.28inch TFT
Driver chip: GC9A01
Resolution: 240*240 (Pixel)
Viewing Area：Φ32.4(mm)
Module Size：38.5*37.0(mm)
Viewing Angle: IPS
Operating Temperature: -20°C~70°C
Storage Temperature: -30°C~80°C
Size: 38.5mm*37mm

Package Includes
1 x Development Board
