Overview

ESP32-H2-DEV-KIT-N4 is an entry-level RISC-V MCU development board with integrated Bluetooth 5 and IEEE 802.15.4 (Zigbee3.0 and Thread). It is a compact and powerful board with rich peripheral interfaces, which can be used in the fields of smart home, industrial automation, healthcare and consumer electronics.

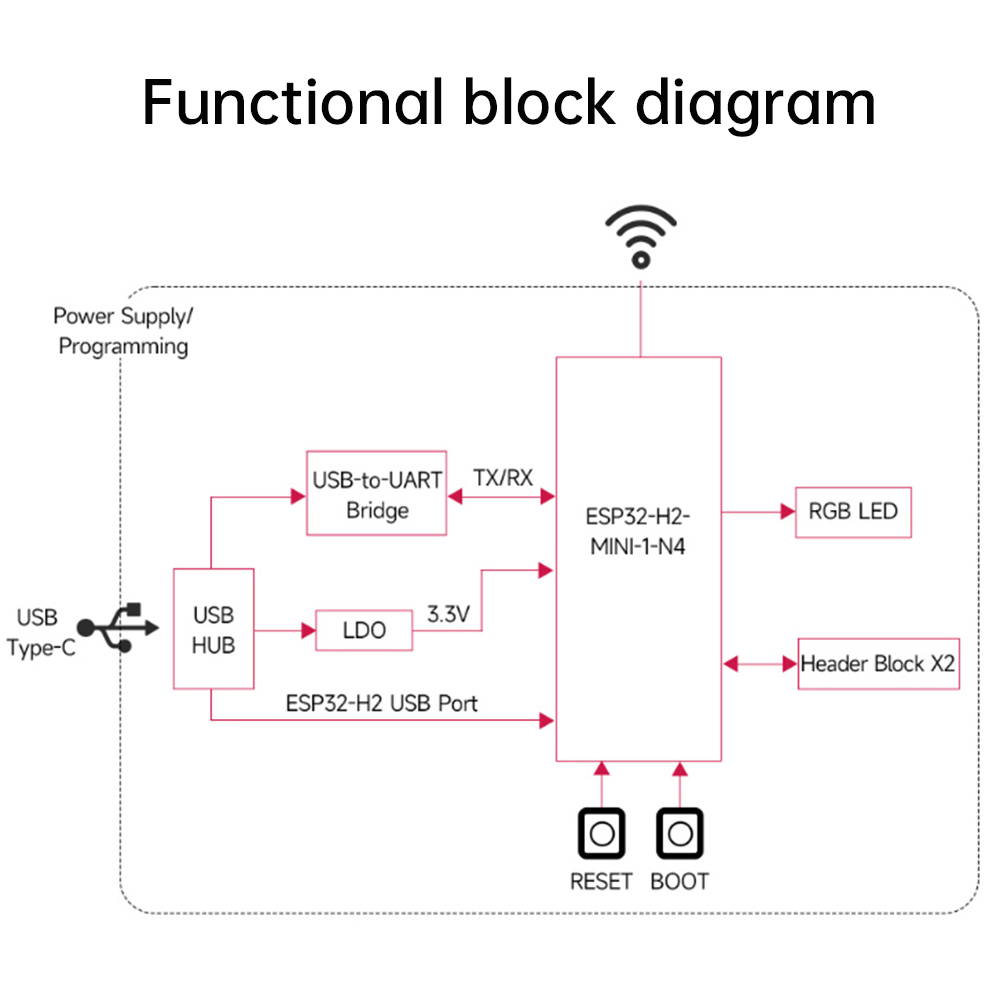

In terms of hardware, it adopts ESP32-H2-MINI-1-N4 module, which is equipped with RISC-V 32-bit single-core processor, supporting up to 96MHz main frequency, built-in 4MB Flash, and integrates rich peripherals including SPI, UART, I2C, I2S, LED PWM, ADC and other interfaces; and it also carries CH343 Serial and CH334 USB HUB dual chips, which can be used in the field of smart home, industrial automation, healthcare and consumer electronic products, etc. The board can be used in the field of smart home, industrial automation and consumer electronic products. The CH343 serial port and CH334 USB HUB dual chip can be used and developed through a USB-TYPE-C interface for USB and UART, and the pin interface is compatible with the ESP32-H2-DevKitM-1 development board, which is compatible with the expansion of a variety of peripheral devices, making the use of the device more convenient.
In terms of software, the official ESP-IDF development environment can be selected for development, and relevant sample programs and tutorials are provided to facilitate users to quickly get started with development and apply it to their products.

Features
1. Adopting ESP32-H2-MINI-1-N4 modules, equipped with RISC-V 32-bit single-core processor, with main frequency up to 96MHz and built-in 4MB Flash memory.
2. Integrated Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication with superior RF performance.
3. Adopts USB Type-C interface, no need to worry about forward and reverse plugging.

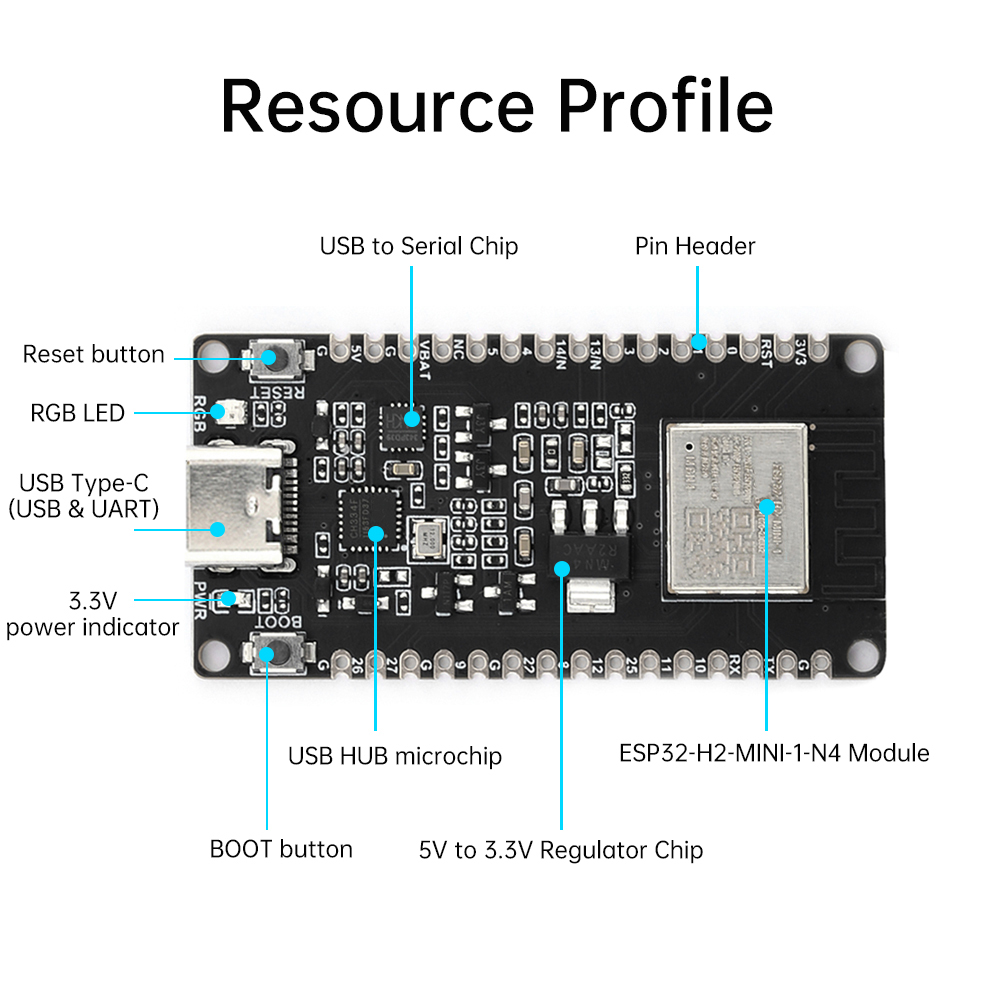

4. On-board CH343 and CH334 chips, through a Type-C interface can meet the needs of USB and UART development.

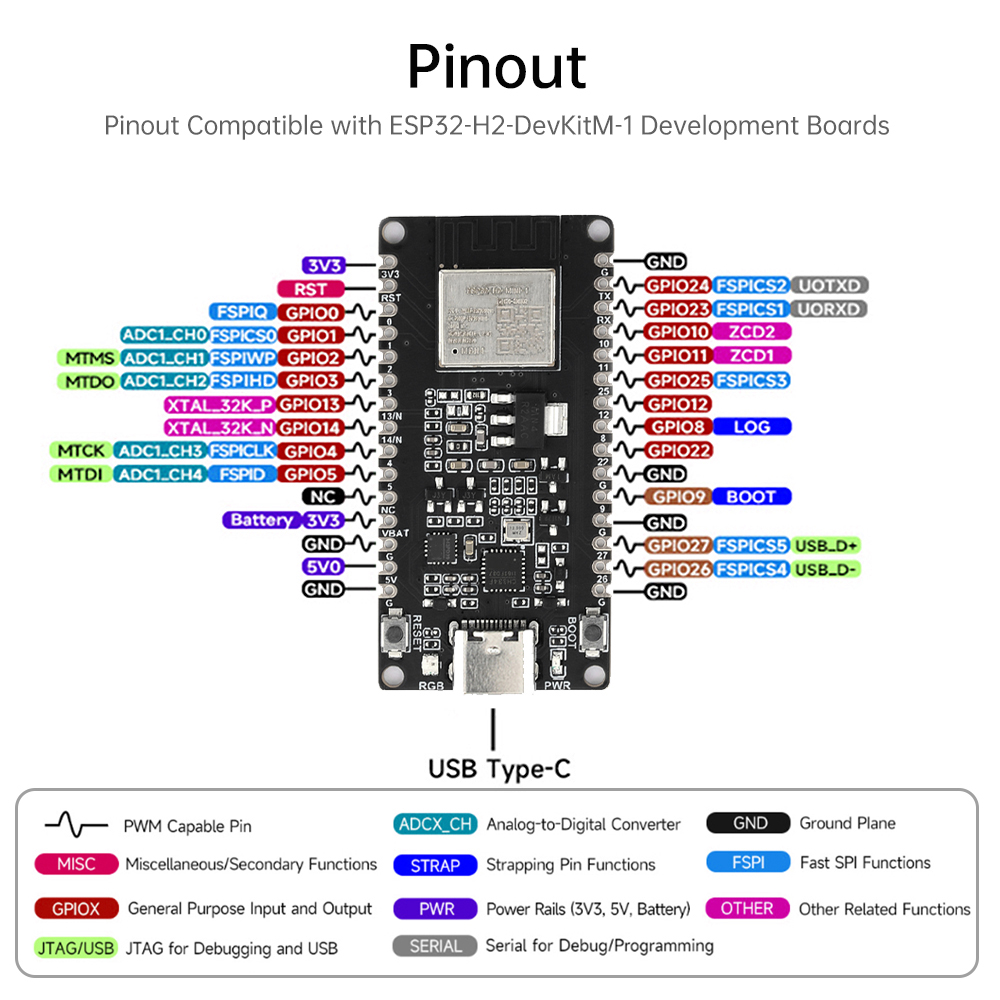

5.Rich peripheral interfaces, pin-compatible with ESP32-H2-DevKitM-1 development board, compatibility and expandability.
6. Stamp hole design, can be directly welded and integrated into the user's own design of the base plate

Specification
Interface: Type-C interface
Processor: RISC-V 32-bit single-core processor, support up to 96MHz main frequency
Flash: 4MB
Bluetooth: supports BLE 5, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread), and its low-power Bluetooth subsystem supports Bluetooth 5(LE) and Bluetooth Mesh.

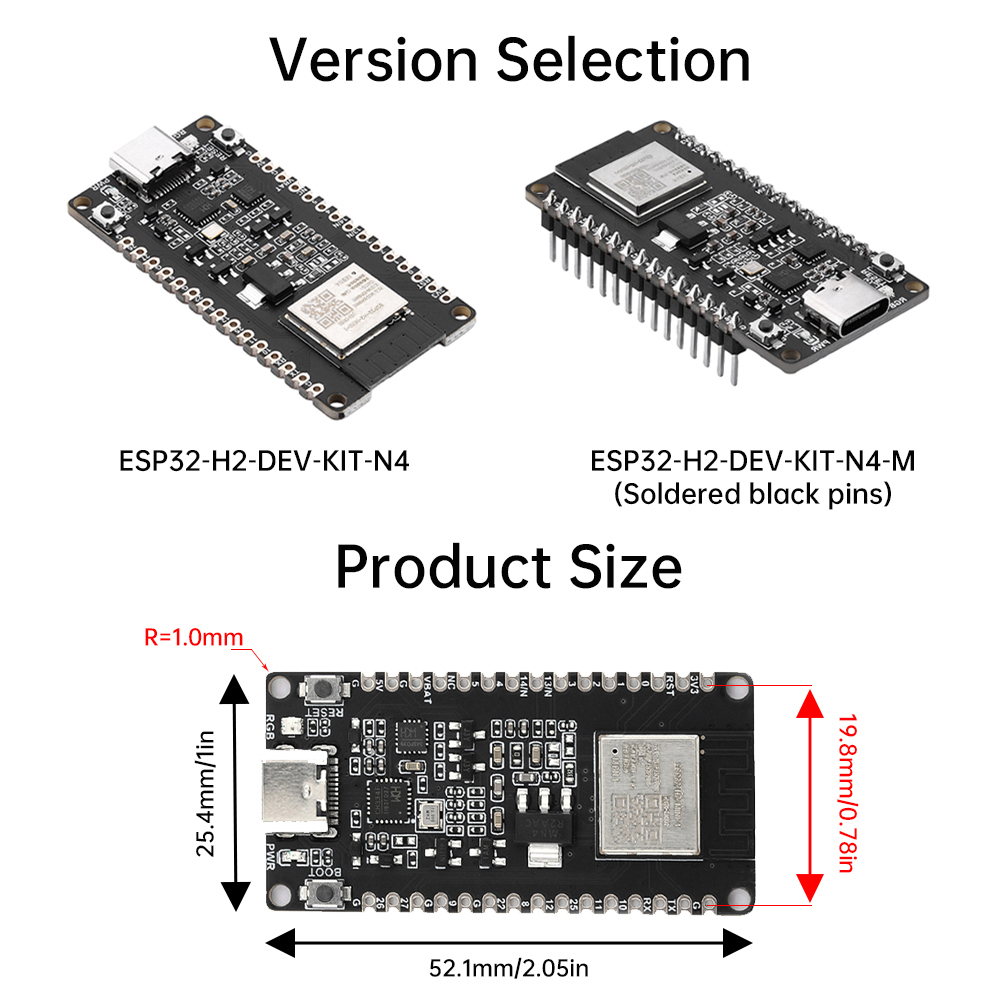

Size: 51.6*25.4mm

List

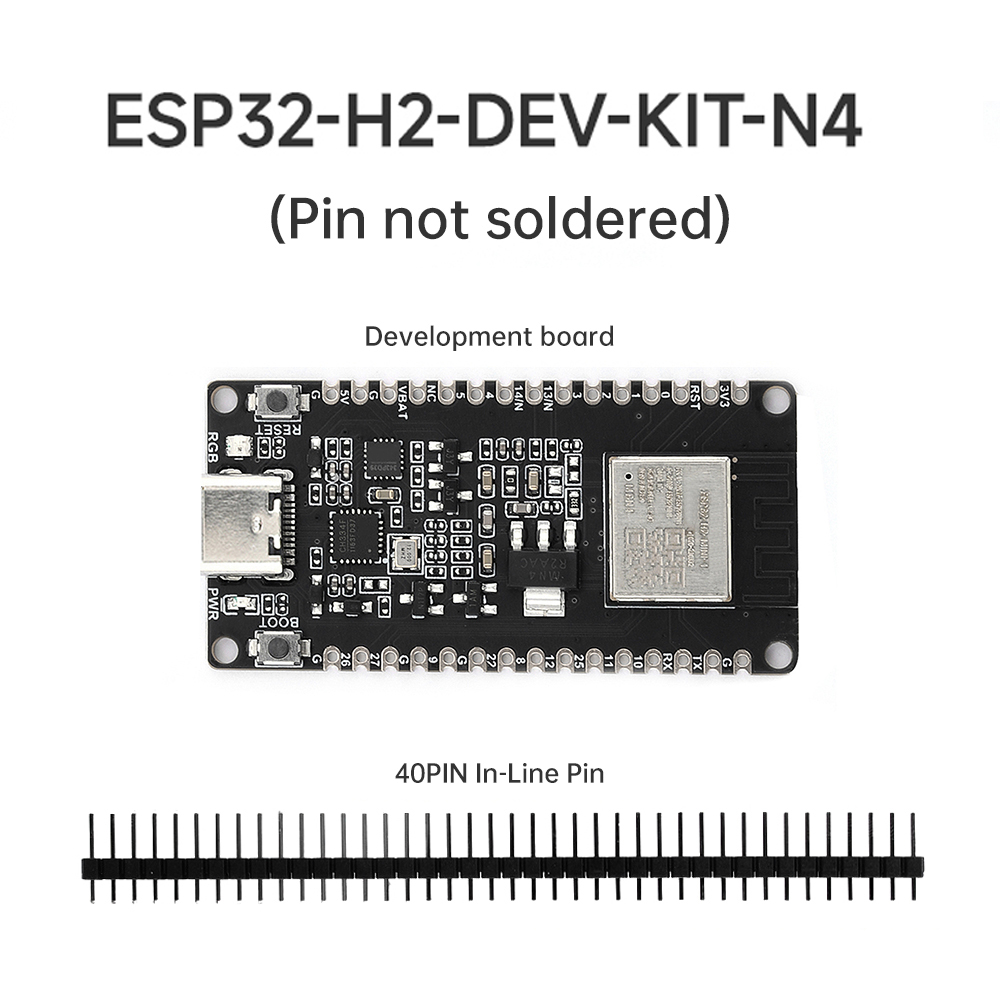

1 x Development Board

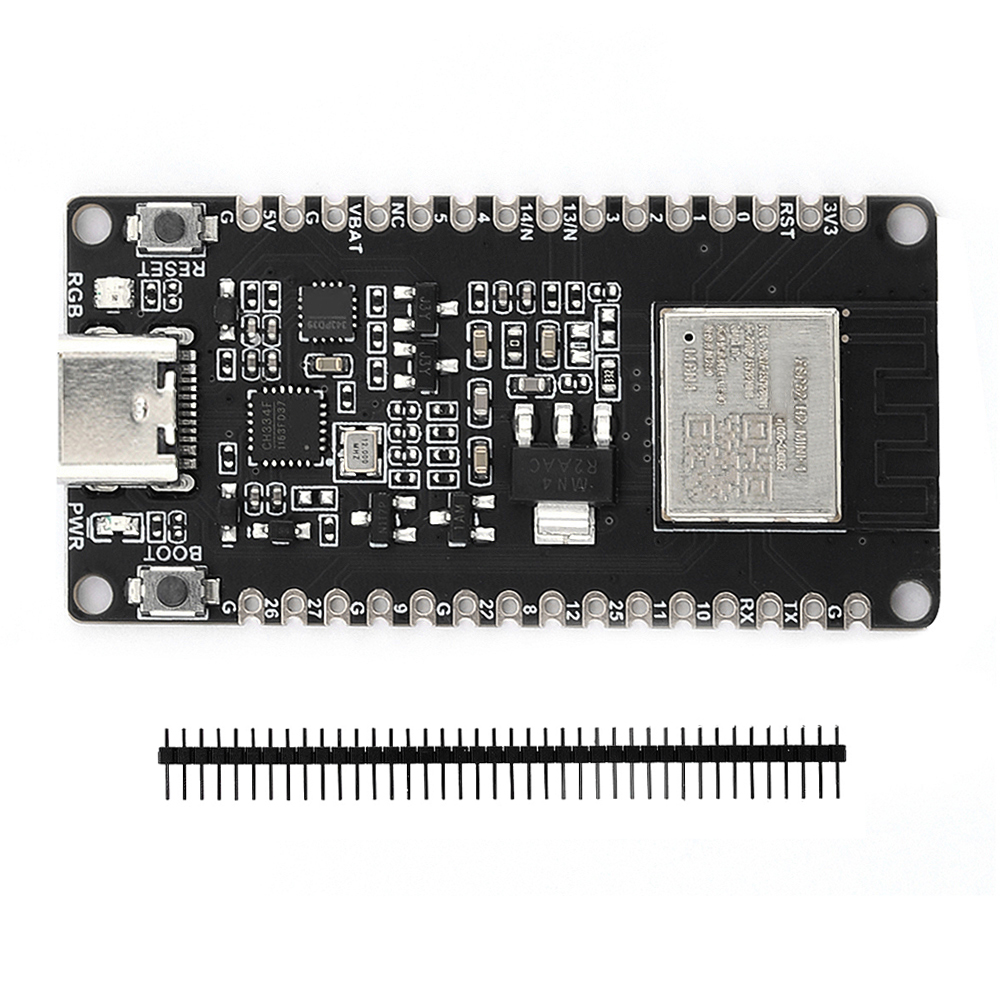

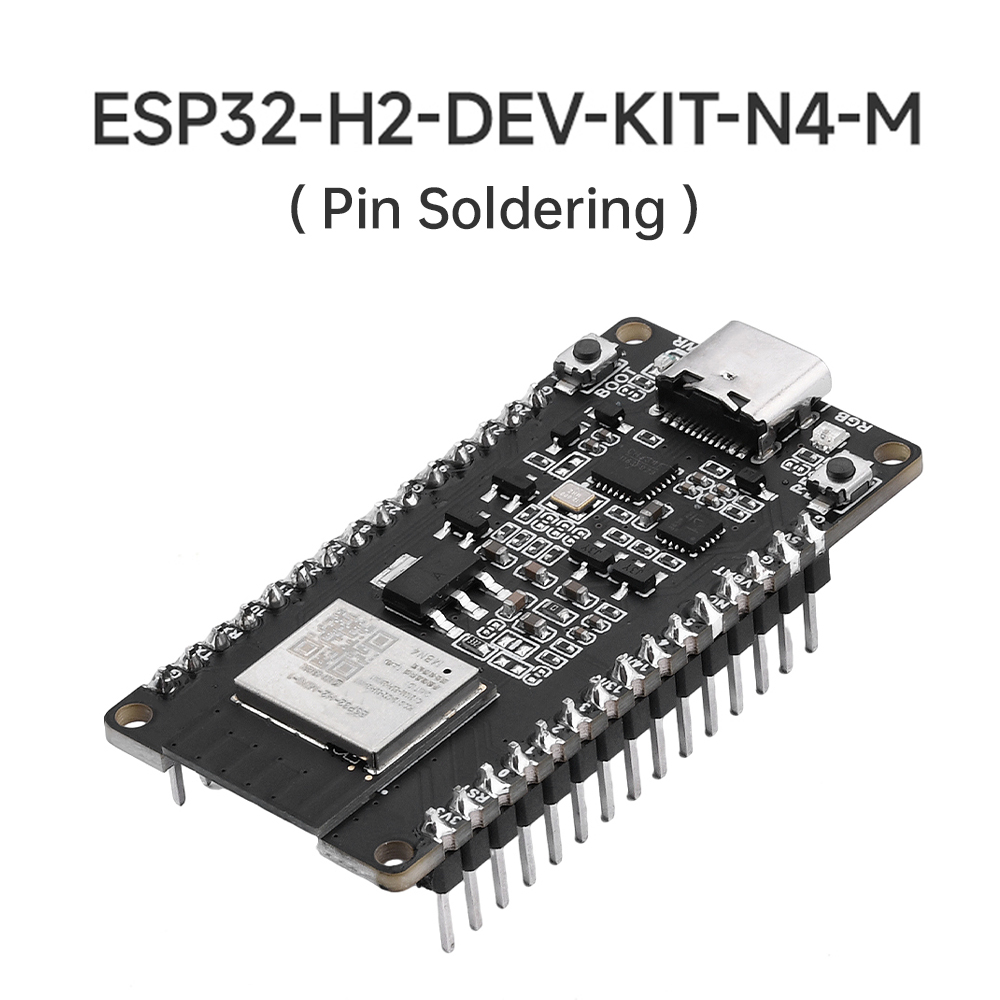

1 x 40PIN (unsoldered pin and soldered pin optional)
