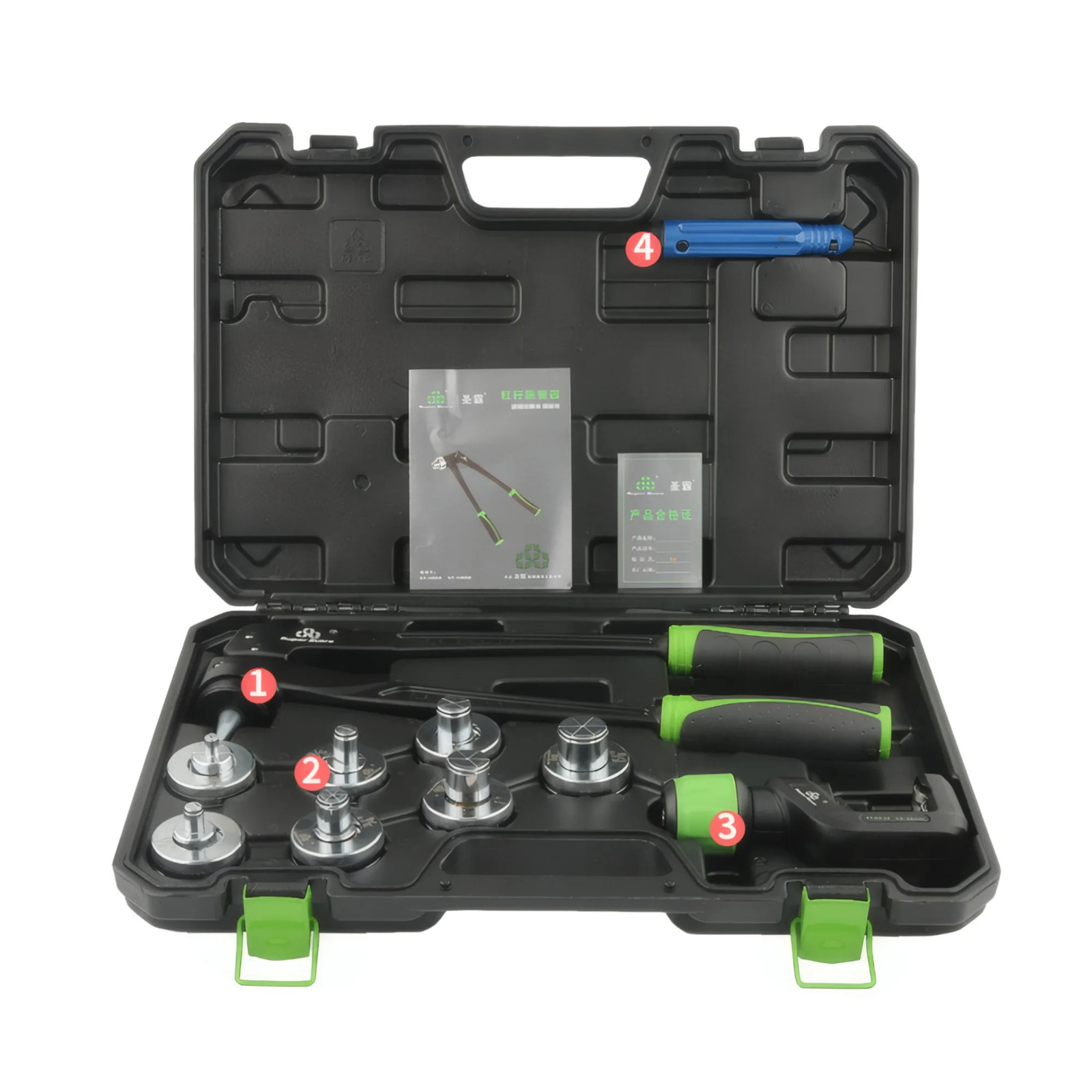

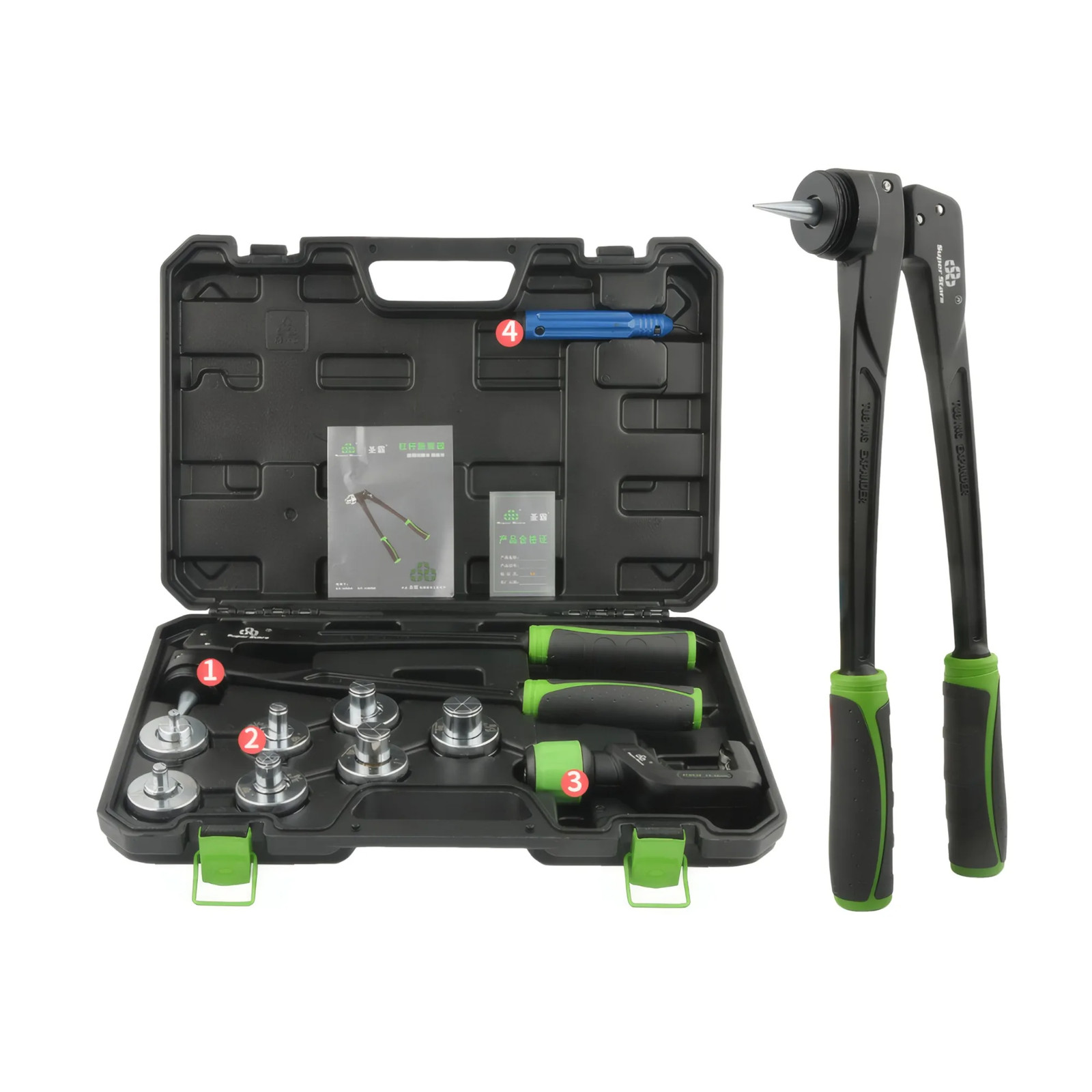

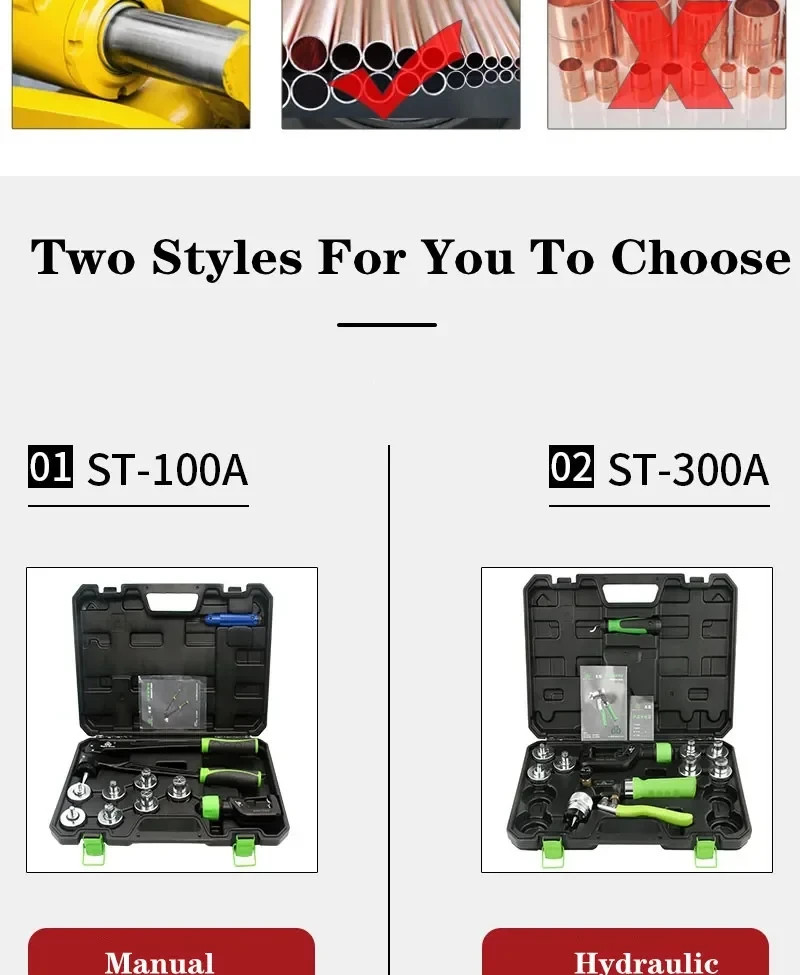

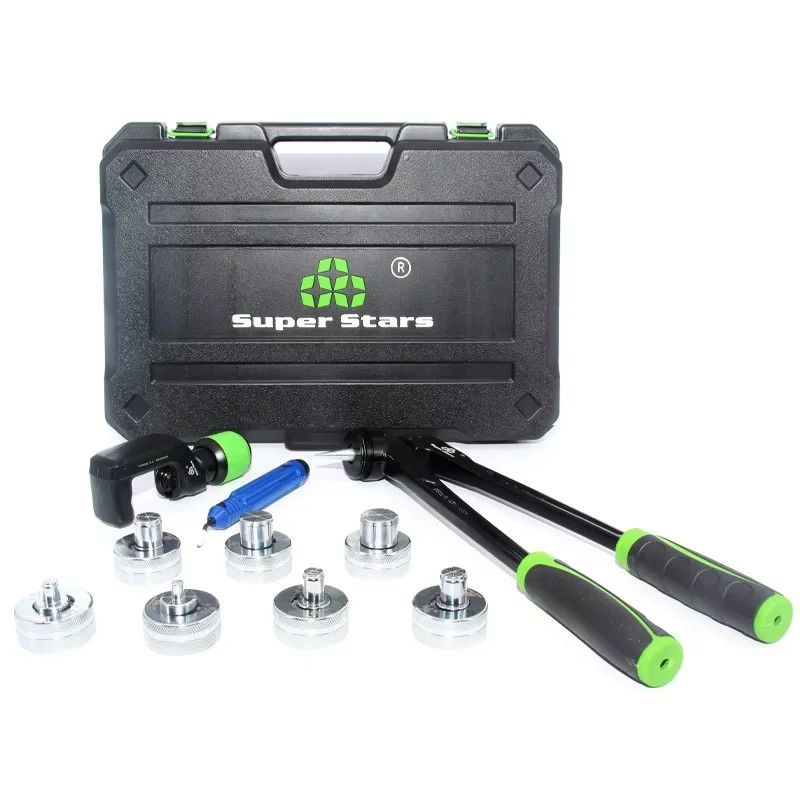

ST-100A parameters
Model: ST-100A
Extended range: 10mm-28mm
Tool: ST-532 (5-32mm)
Support material: copper pipe/aluminum pipe/thick pipe needs to be tempered
Equipped with a trimming knife: CT-207 pencil trimmer
Power source: Leverage pressure

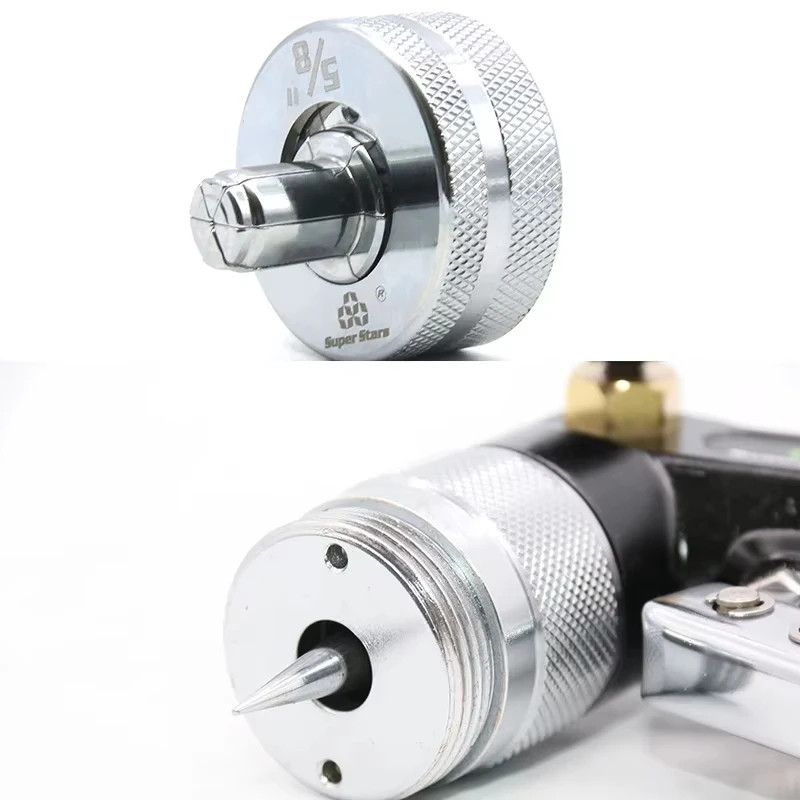

Head configuration: 3/8', 1/2', 5/8', 3/4', 7/8', 1', 1-1/8'

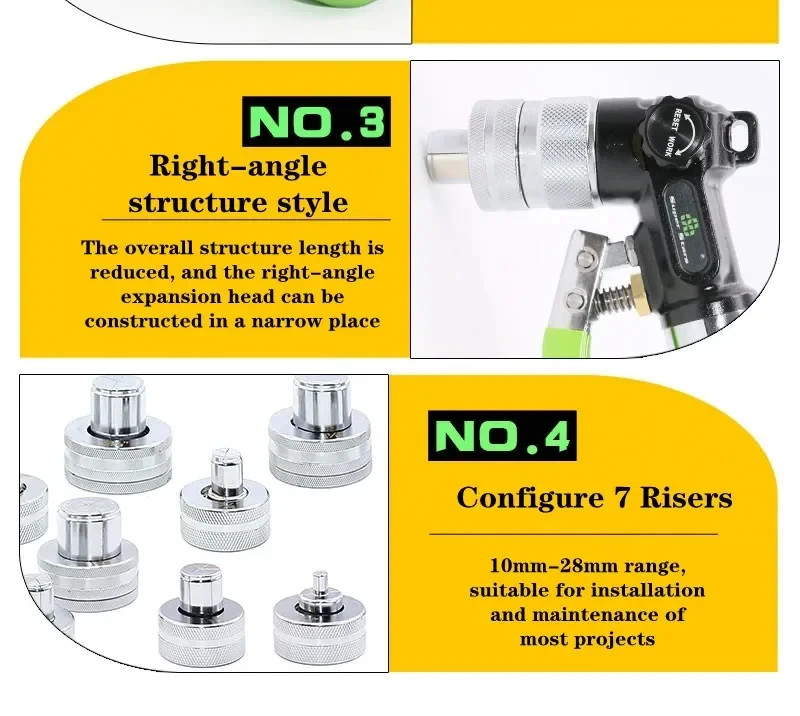

Product Style: 90 degree right angle
Product size: 420*290*80mm
Support thickness: within 1.5mm of pipe thickness
Product weight: 5.6KG

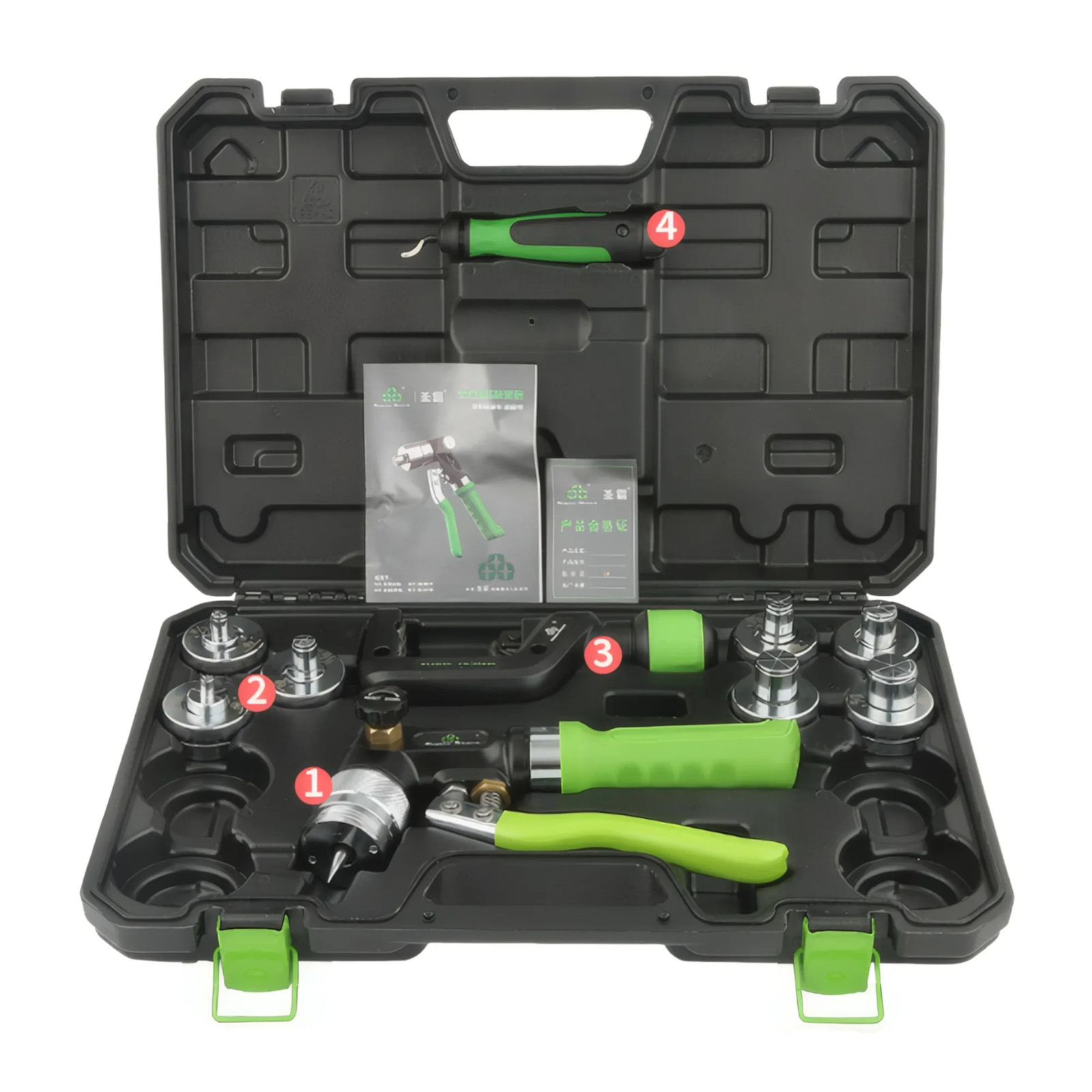

ST-300A parameters
Model: ST-300A
Extended range: 10mm-28mm
Tool: ST-532 (5-32mm)
Support material: copper pipe/aluminum pipe/thick pipe needs to be tempered
Equipped with a trimming knife: CT-207 pencil trimmer

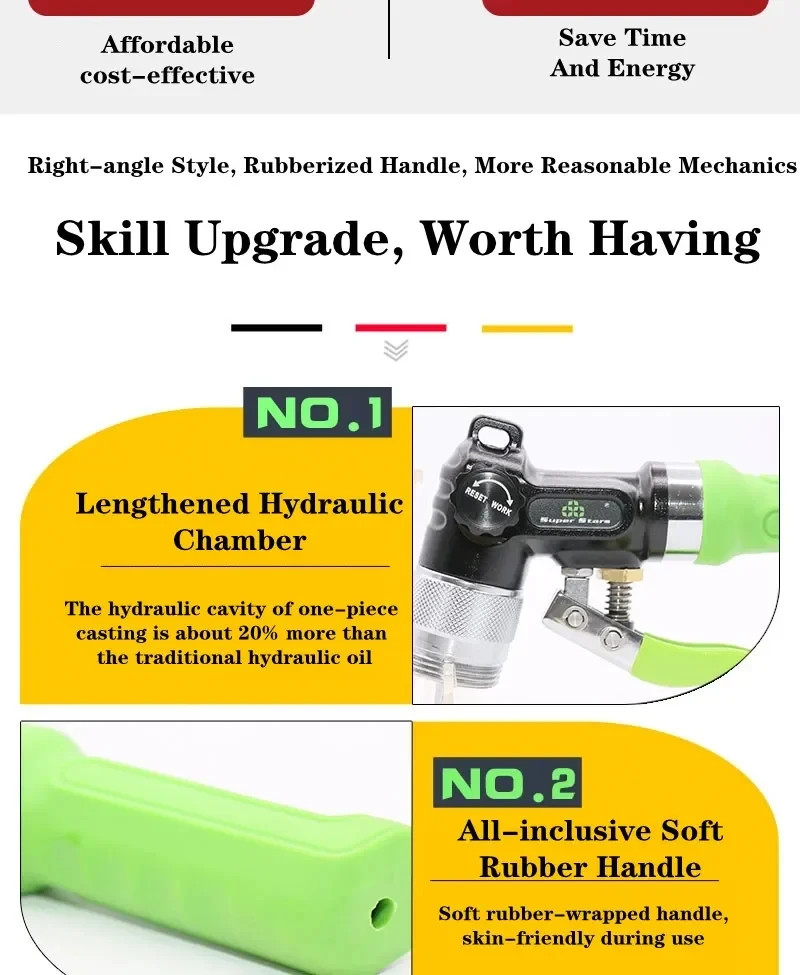

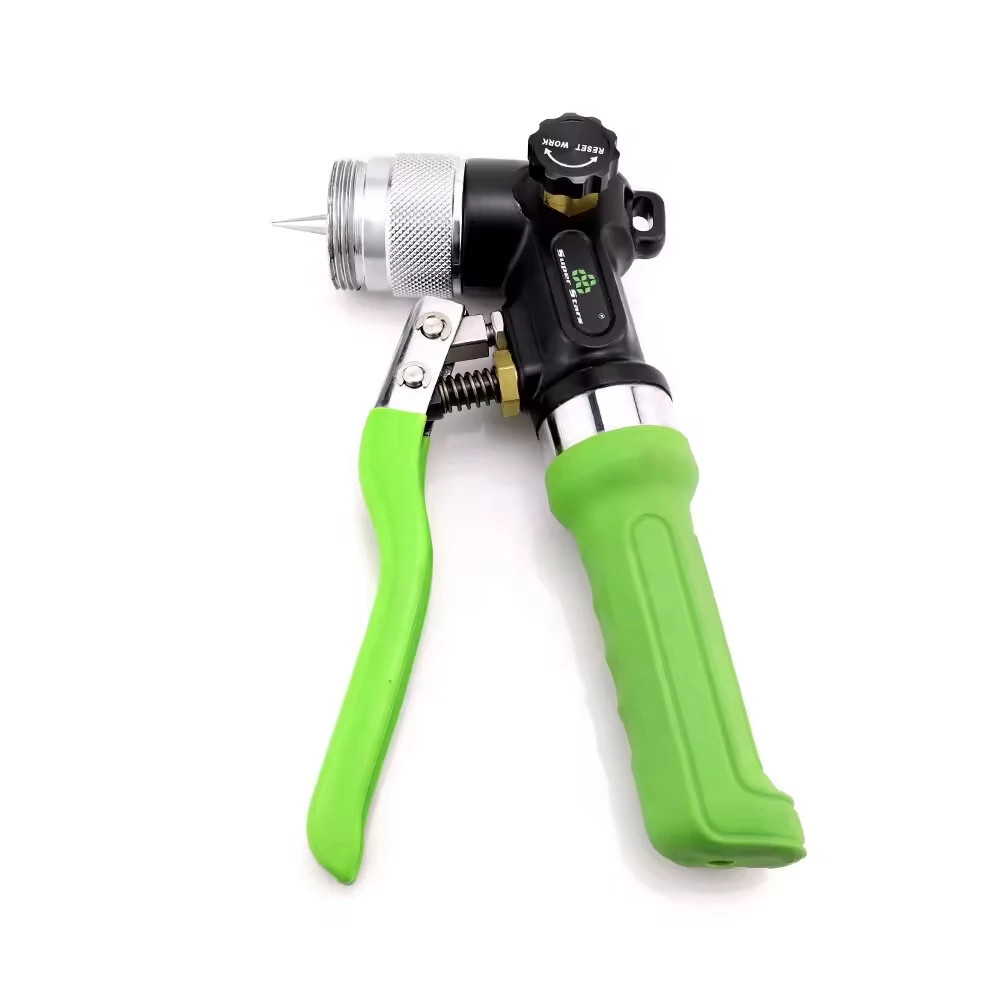

Power source: hydraulic thrust
Head configuration: 3/8', 1/2', 5/8', 3/4', 7/8', 1', 1-1/8'
Product Style: 90 degree right angle
Product size: 420*290*80mm
Support thickness: within 2mm of pipe thickness
Product weight: 5.6KG
