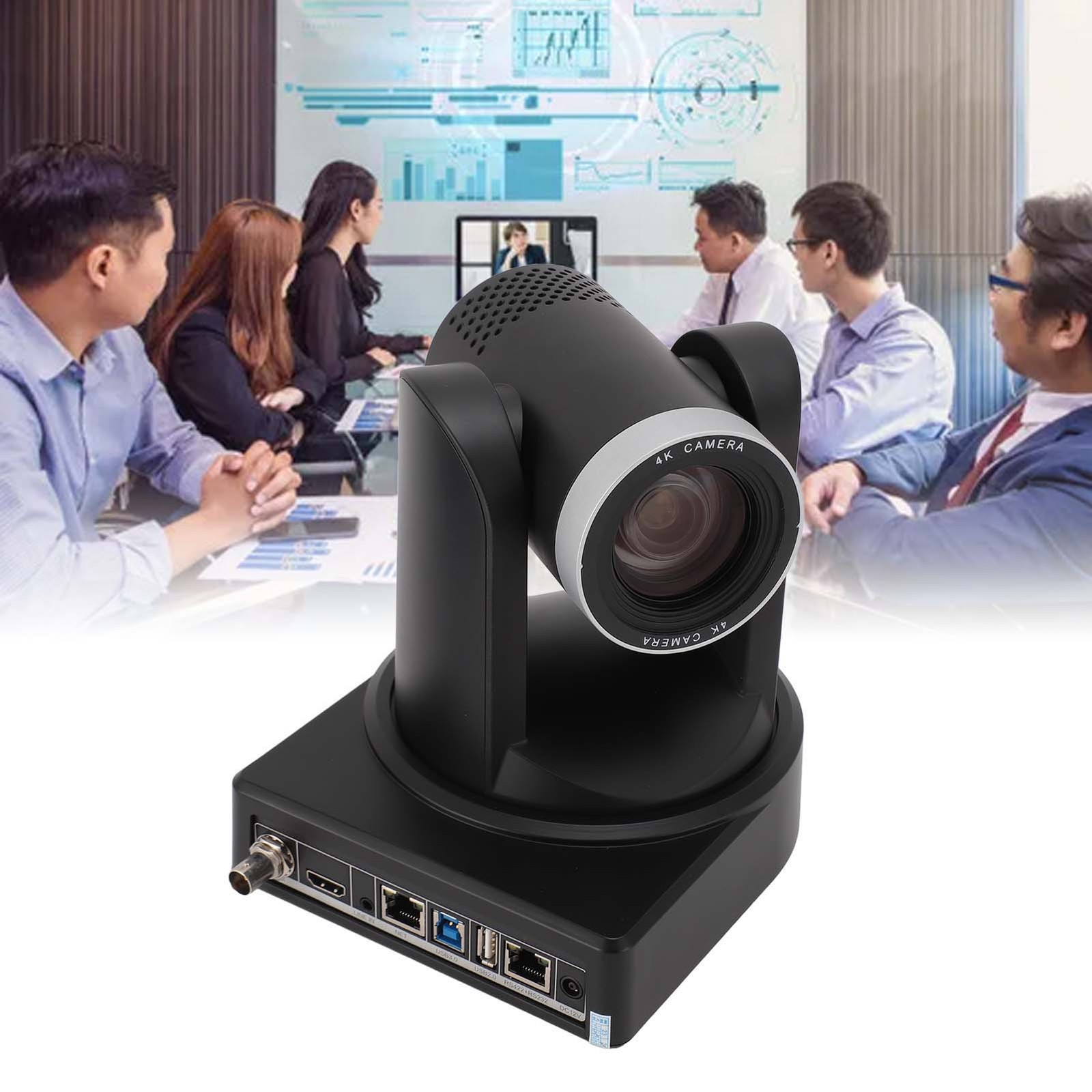

KEY FEATURES & BENEFITS
AI TRACKING: Accurate AI people tracking to ensure a clear picture of the conference presenter. The lens quickly, accurately and stably completes auto focus without blurring every detail.
20X ZOOM: Support 20x digital zoom, capturing details and present a delicate picture. Gathering meeting whiteboard, easy to zoom in details, no damage to the picture quality, more efficient meeting.
NETWORK PROTOCOLS: 4K PTZ camera supports various network protocols such as T28181, RTSP, RTMP, etc., realizing remote control and more convenient meeting.

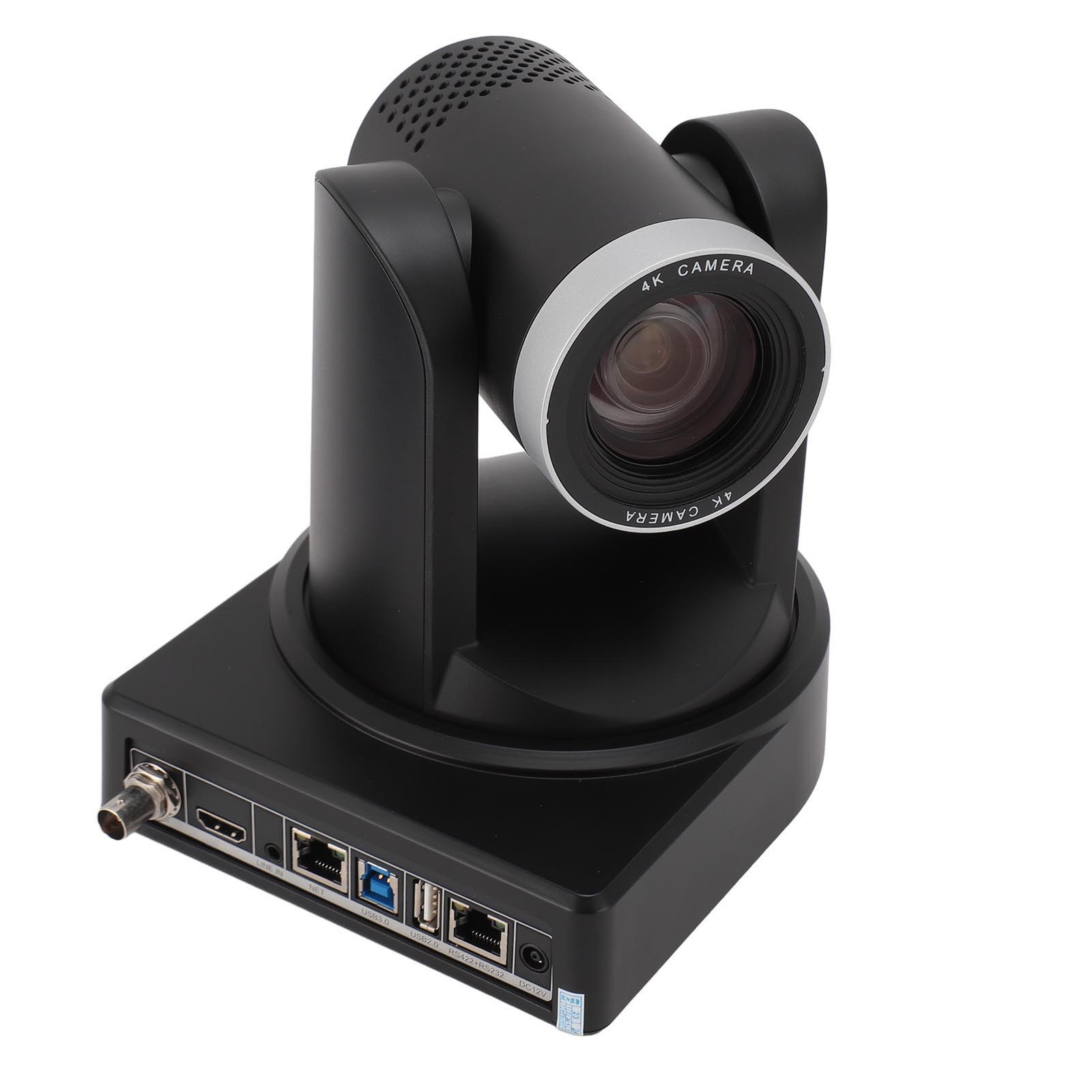

MULTI INTERFACE: With USB3.0, HD Multimedia Interface, IP, SDI and other interfaces, the camera with multi interface design, to meet the needs of different devices connected.

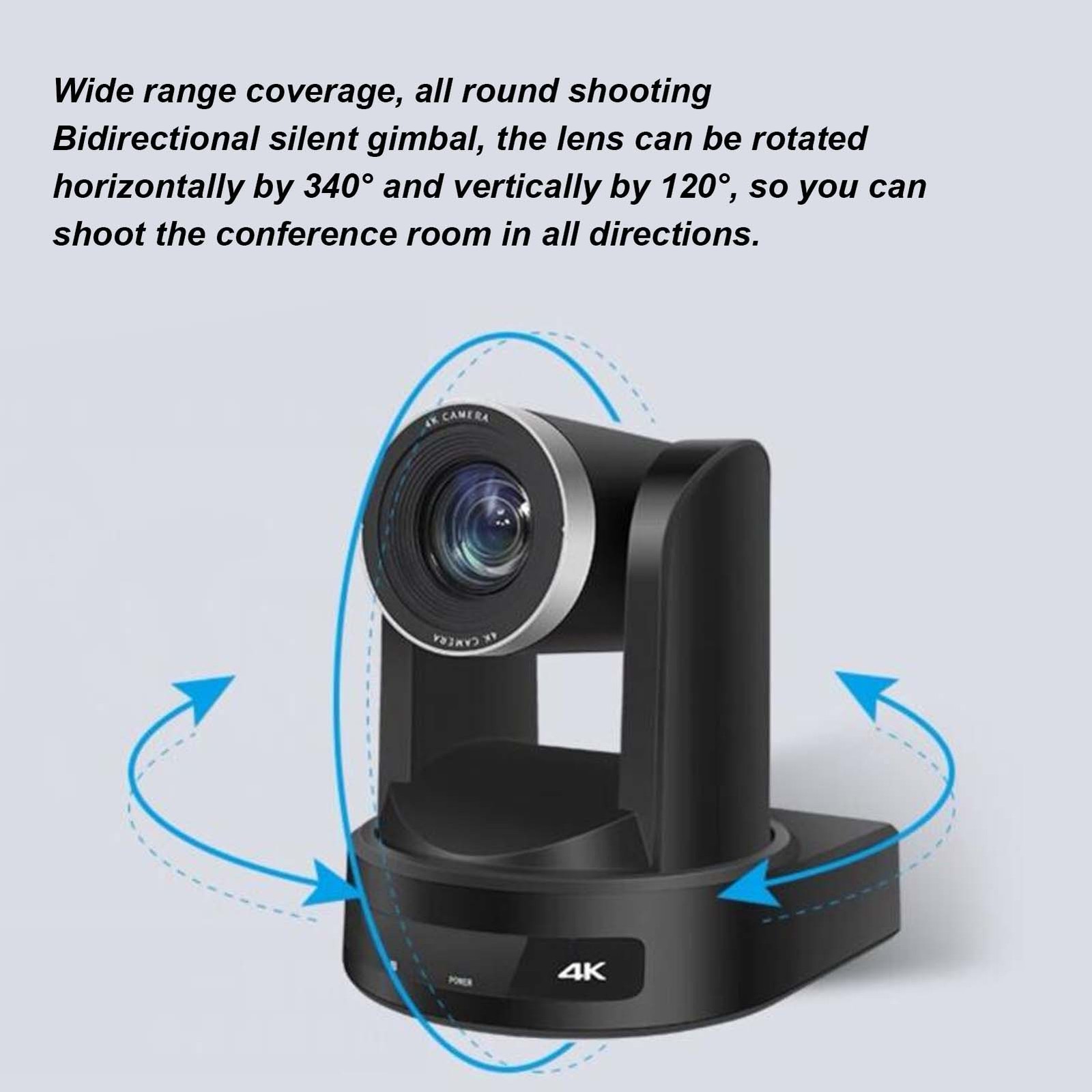

ULTRA WIDE ANGLE: With ultra wide angle horizontal viewing angle, all round recording of the meeting site. The lens can be rotated horizontally by 340° and vertically by 120°, which can shoot the meeting room in all directions.
PRESETS & CONTROL: 256 presets (10 presets for remote control with watchdog function). PTZ control via IR remote control, RS485, RS422, RS232, USB.
SPECIFICATIONS
Item Type: PTZ Camera
Material: ABS
Image Sensor: 1/2.5 Inch Premium HD CMOS Sensor
Effective Pixels: 16:9, 4K 8.51MP Effective Pixels
Video Format: 4K 30/25, 1080P 60/50/30/25, 720P 60/50
Optical Zoom: 20 Times
Digital Zoom: 20 Times
Lens Parameters: F1.6 to F3.5, F=5.5‑110mm
Horizontal Angle of View: 58° (wide End) to 2.9° (far End)
Presets: 256 (10 Presets for Remote Control with Watchdog Function)

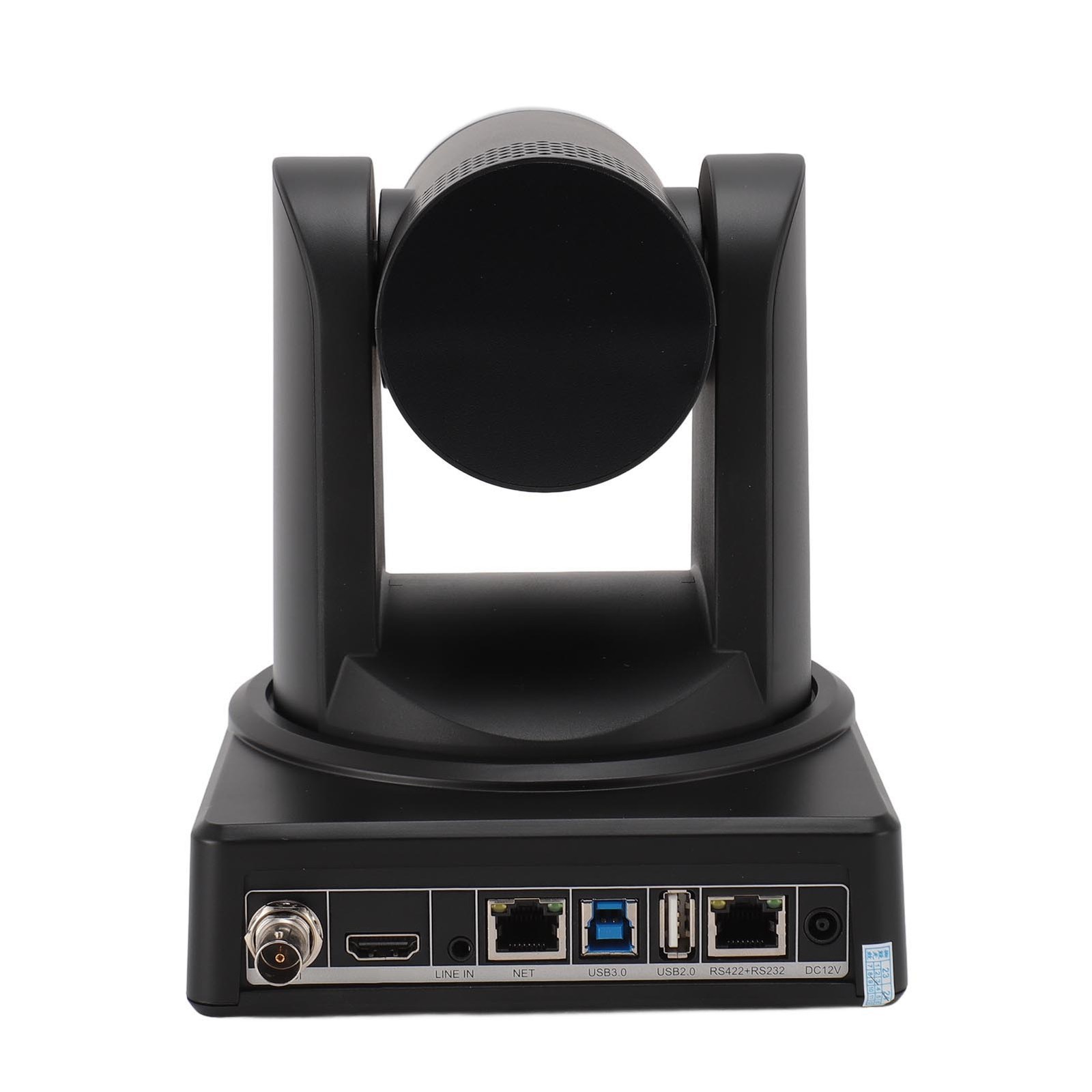

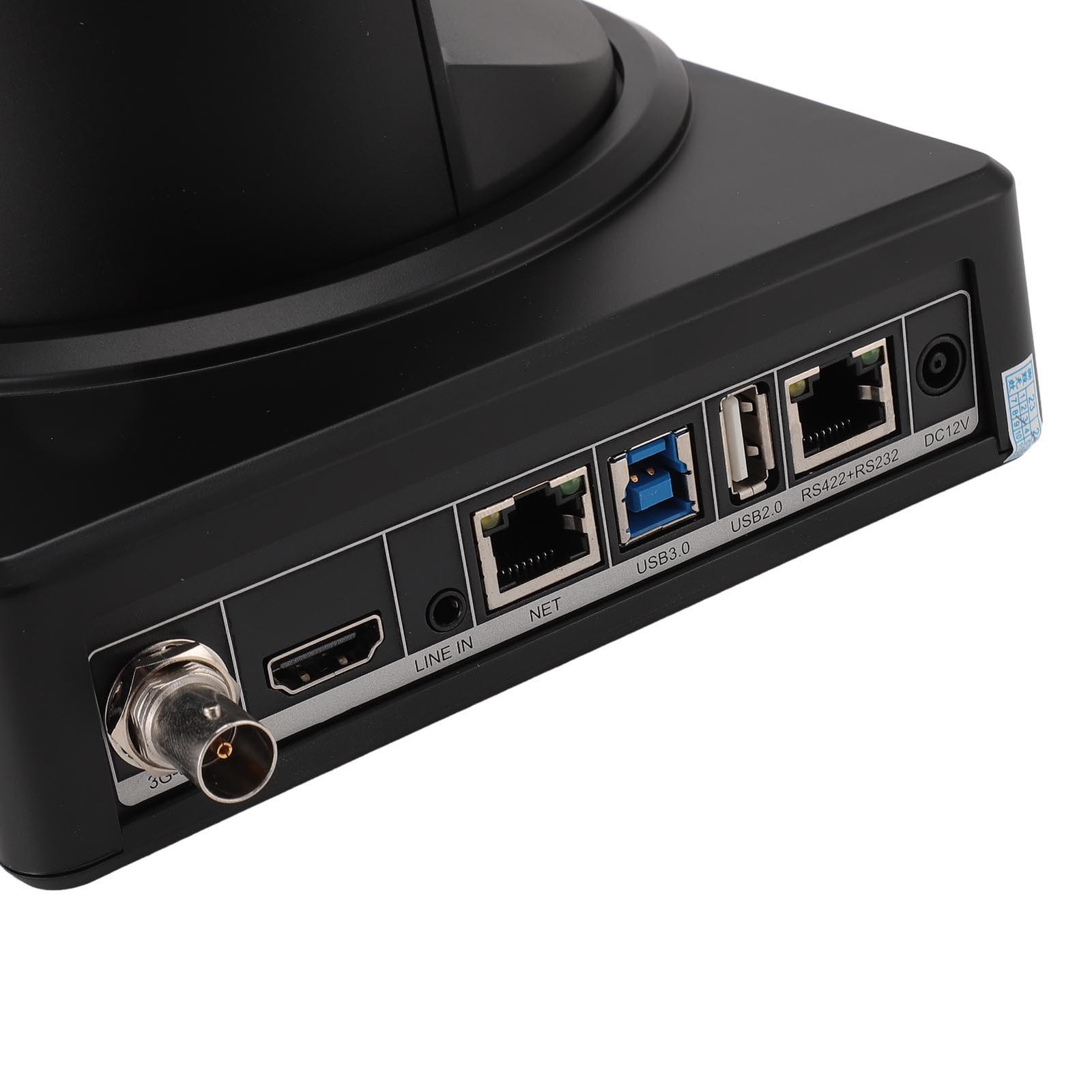

Video Interface: USB3.0, HD Multimedia Interface, IP, SDI
AI Tracking: Support
Local USB External Expansion: Support
One Key Video Format Switching Map: Support
SNR: > 52dB
Minimum Illumination: 0.1 Lx
Gain: Auto, Manual
White Balance: Auto, Indoor, Outdoor, One Button, Manual
AE Control: Auto, Manual
Image Flip: Yes
Backlight Compensation: Yes
Noise Reduction (3D NR): Yes
Focus Mode: Auto, Manual
Menu: Chinese Menu
Support OS: Windows 7, Windows 8, Windows 10
PTZ Control: IR Remote Control, RS485, RS422, RS232, USB
USB Communicating Protocol: UVC1.1
Control Protocol: VISCA, D, P
Communicating Control Interface: RS232, RS422, RS485
Baud Rate: 9600/4800/2400bps
Control Signal Interface: 8 Core Mini DIN Control
Signal Format: Start Bit: 1 Bit, Data Bit: 8 Bits, Stop Bit: 1 Bit
Video Coding: MPEG, YUY2, H.264
Installation: Wall Mounted, Hanging, Tripod
Horizontal Rotation: ±170 Degrees
Pitch Rotation: -30 Degrees to +90 Degrees
Horizontal Control Speed: 1‑100°/sec
Tilt Control Speed: 1‑60°/sec
Preset Speed: Horizontal: 100°/sec; Tilt: 60°/sec
Coding Technology: H.264, H.265
Sound Interface: 3.5mm Line In
Sound Coding Format: AAC, MP3, G711
Sound Sampling Frequency: Support 8000, 16000, 32000, 44100, 48000
Remote Control Battery: 2 x AAA Batteries (Not Included)

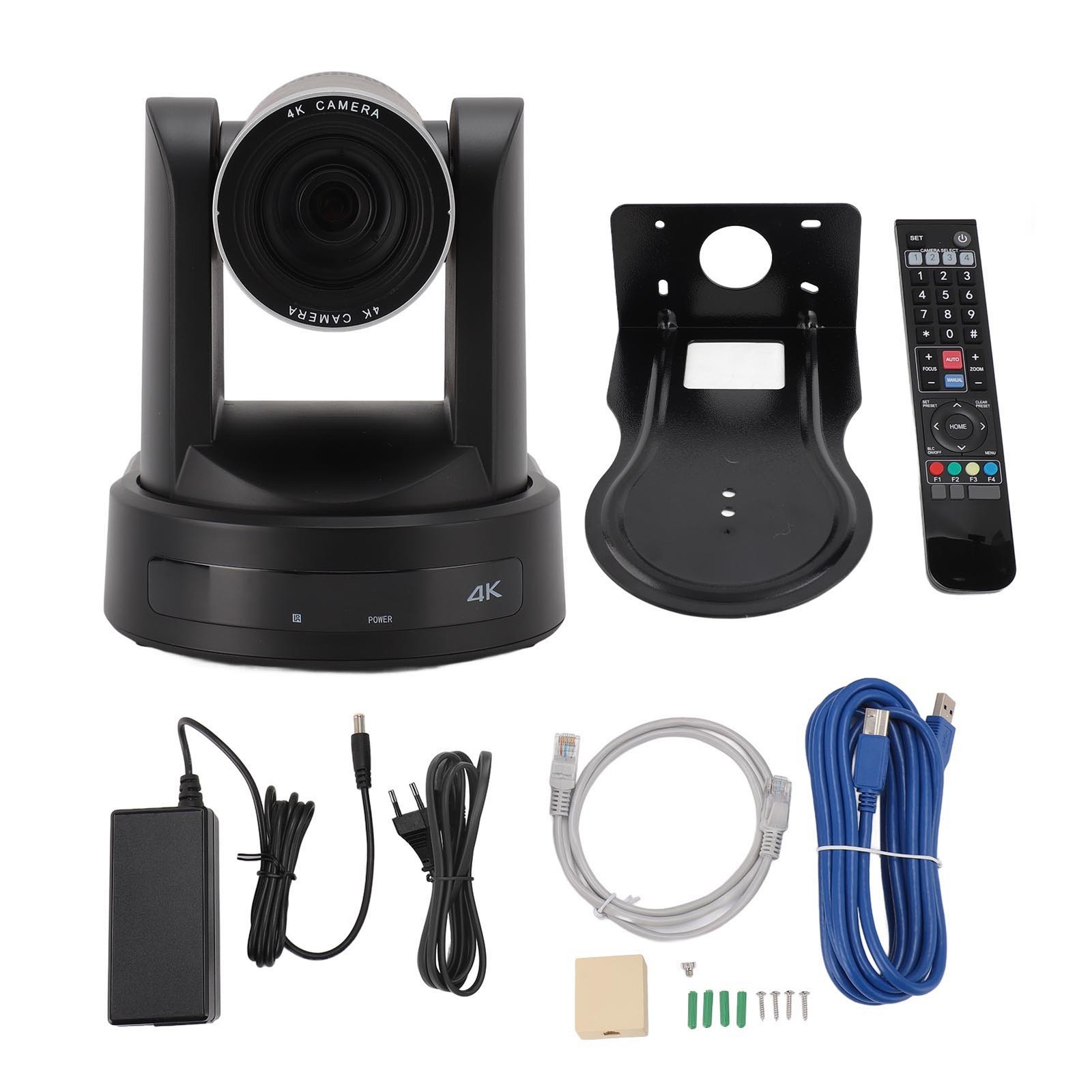

PACKAGE INCLUDES
1 x PTZ Camera
1 x USB Cable
1 x Bracket
1 x Screw Accessory Kit
1 x Remote Control
1 x Network Cable
1 x Network Cable Box
1 x Power Cord
1 x Power Adapter
