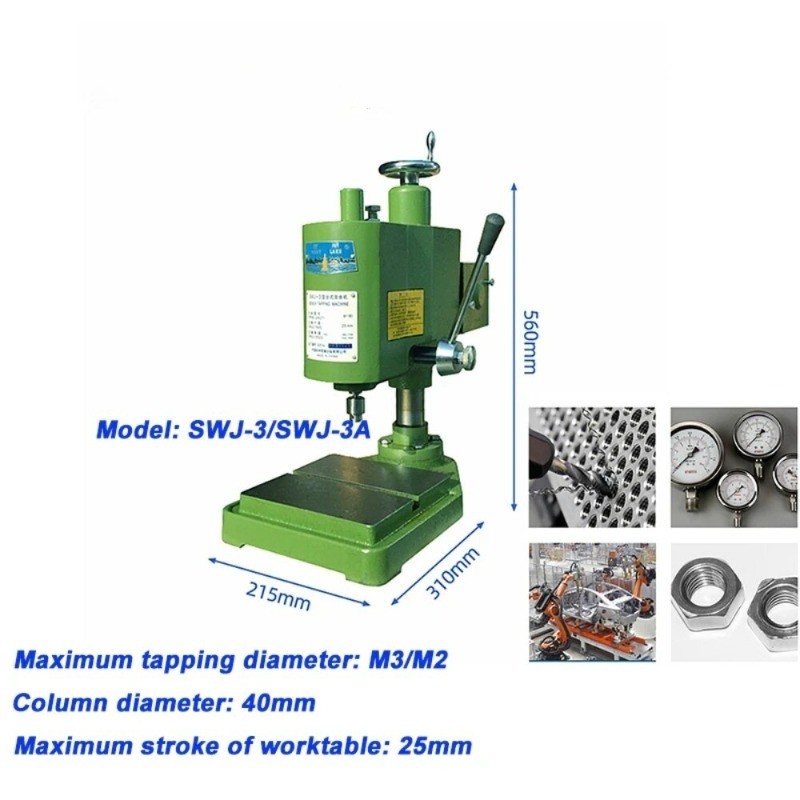

MODEL COMPARISON

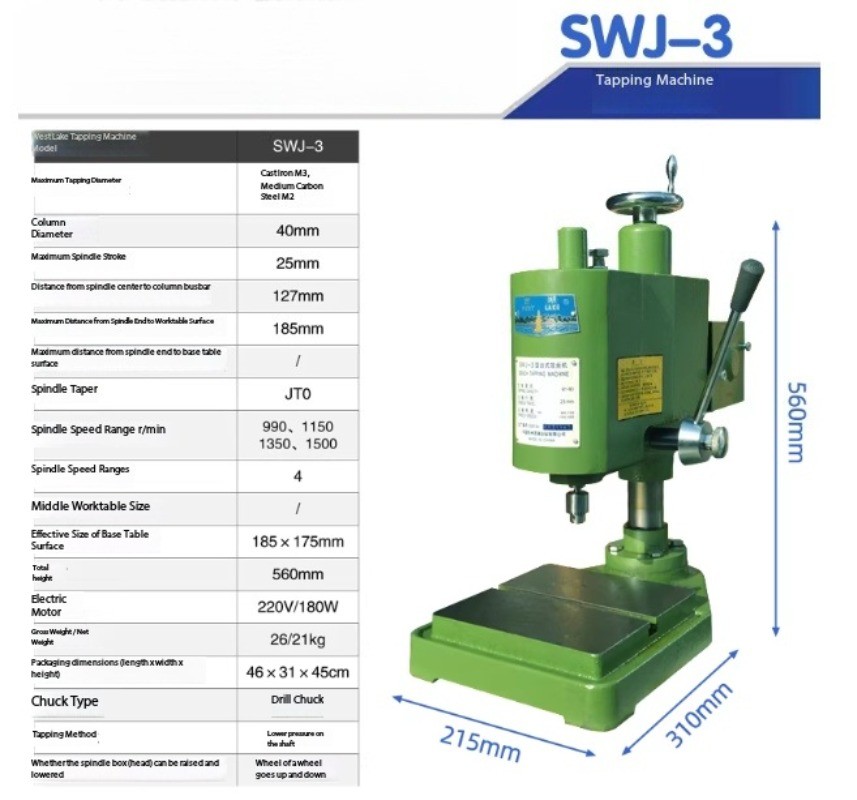

| Parameter | SWJ-3 | SWJ-3A |
|---|---|---|
| Maximum Tapping Diameter | M3 / M2 | M3 / M2 |
| Column Diameter | 40 mm | 40 mm |
| Maximum Stroke of Worktable | 25 mm | 25 mm |
| Distance (Spindle Center to Column) | 127 mm | 127 mm |
| Maximum Distance (Spindle to Worktable) | 185 mm | 185 mm |
| Spindle Taper | JTO | JTO |
| Spindle Speed Range | 990 / 1150 / 1350 / 1500 rpm | 90 ~ 1350 rpm |
| Spindle Speed Series | 4 speeds | Infinitely variable speed |
| Base Table Size | 185 x 175 mm | 185 x 175 mm |
| Height | 560 mm | 560 mm |
| Power | 220V / 180W | 220V / 120W |
| Weight | 26 / 21 kg | 26 / 21 kg |
| Packing Size | 46 x 31 x 45 cm | 46 x 31 x 45 cm |
KEY FEATURES
PRECISION TAPPING: Maximum tapping diameter: M3 / M2 for fine threading applications
STURDY CONSTRUCTION: Column Diameter: 40 mm for stability during operation
ADJUSTABLE WORKTABLE: Maximum Stroke of Worktable: 25 mm for positioning flexibility
CLEARANCE: Distance from spindle center to column: 127 mm, Maximum distance from spindle to worktable: 185 mm
SWJ-3: 4-Speed gearbox with speeds: 990, 1150, 1350, 1500 rpm, Power: 220V / 180W

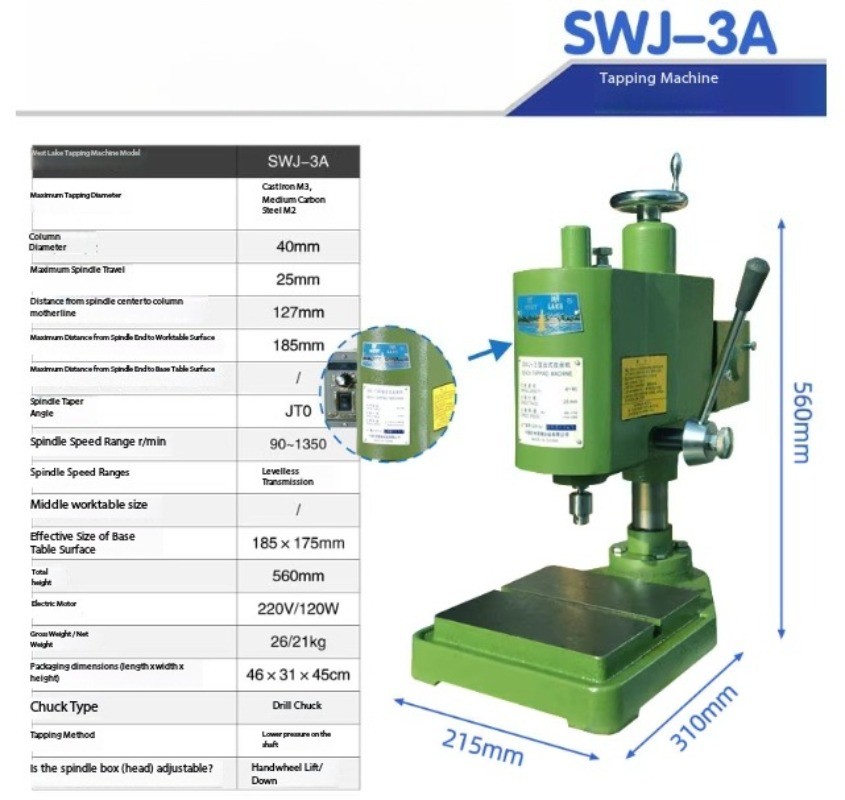

SWJ-3A: Infinitely variable speed (90-1350 rpm) for precise speed control, Power: 220V / 120W
COMPACT DESIGN: Base table size: 185 x 175 mm, Height: 560 mm
PORTABLE: Weight: 26 / 21 kg, Packing size: 46 x 31 x 45 cm
PACKAGE INCLUDES

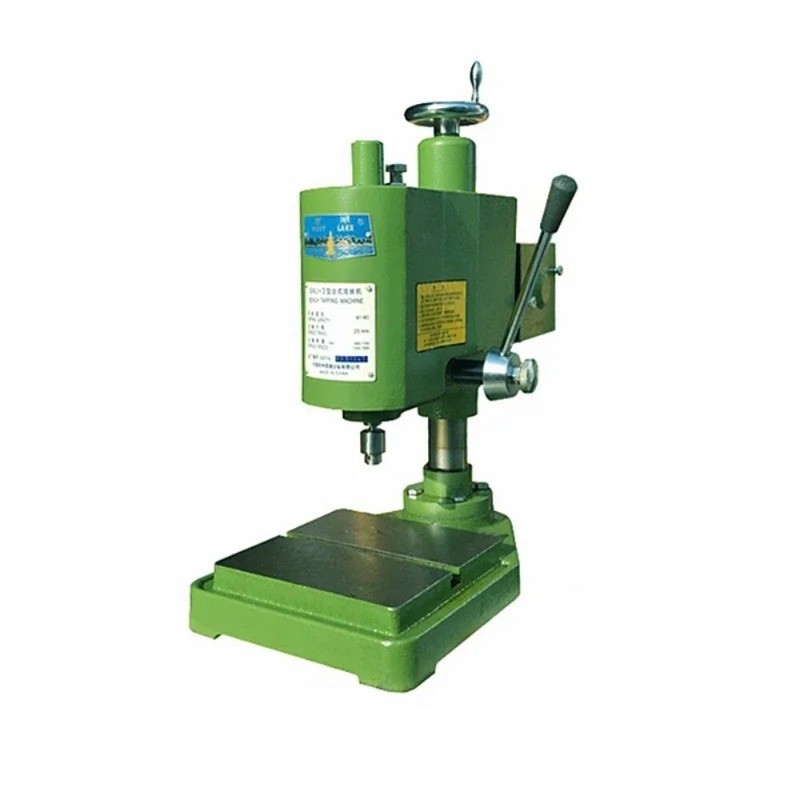

1 x Bench Tapping Machine (Model as selected)
