Coilovers Shocks Struts Kit For Toyota Yaris XP130 XP150 13-17 Adjustable Height

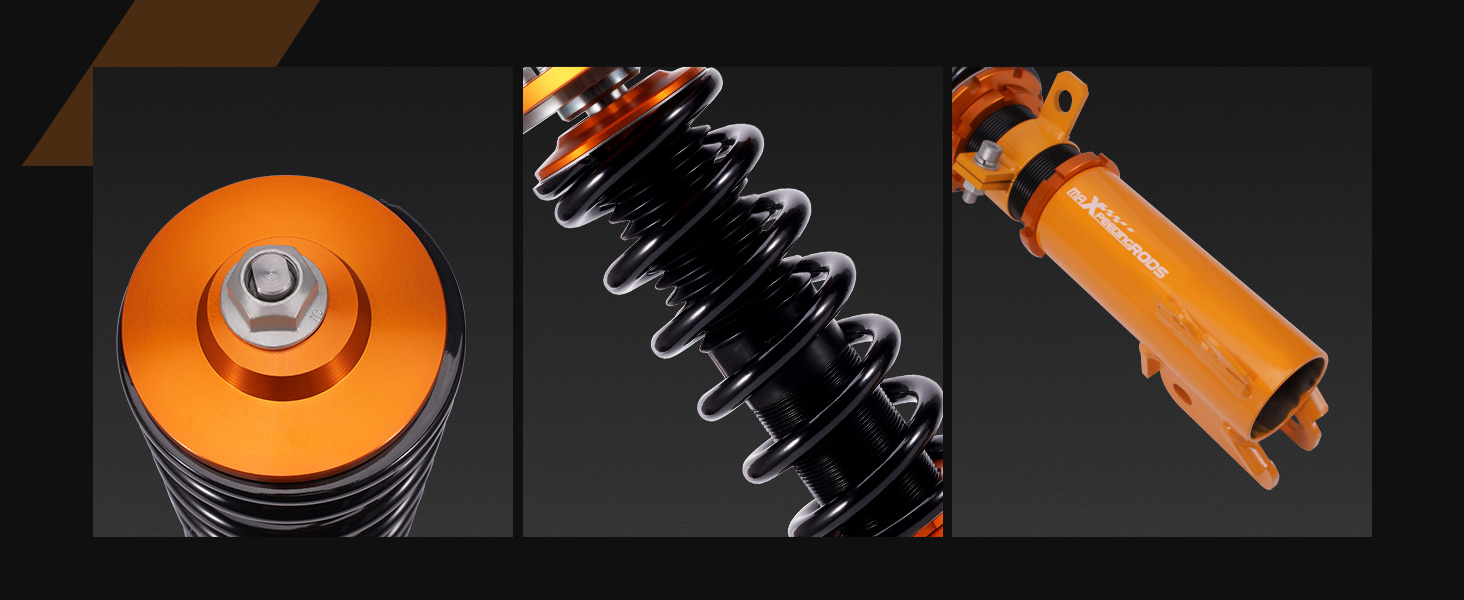

55mm Large Diameter Damper Body
High Oil Capacity For Superior Heat Dissipation, Consistent Damping Performance, And Extended Service Life.
Anodized Shock Body With Anti-Corrosion Coating
Manufactured From High Quality With Anodized Finish For Superior Strength And Corrosion Protection.

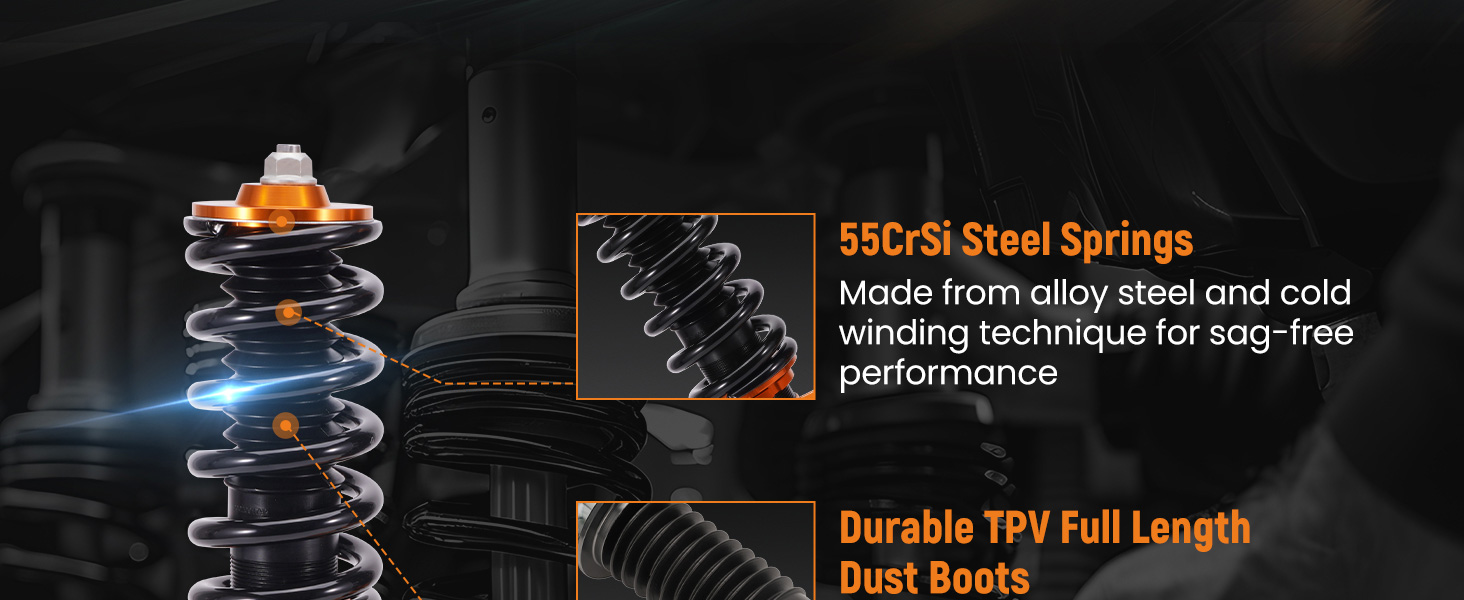

High Rigidity 55CrSi Steel Cold-bent Coil Springs
720-Hour Salt Spray Tested — Exceptional Corrosion Resistance.

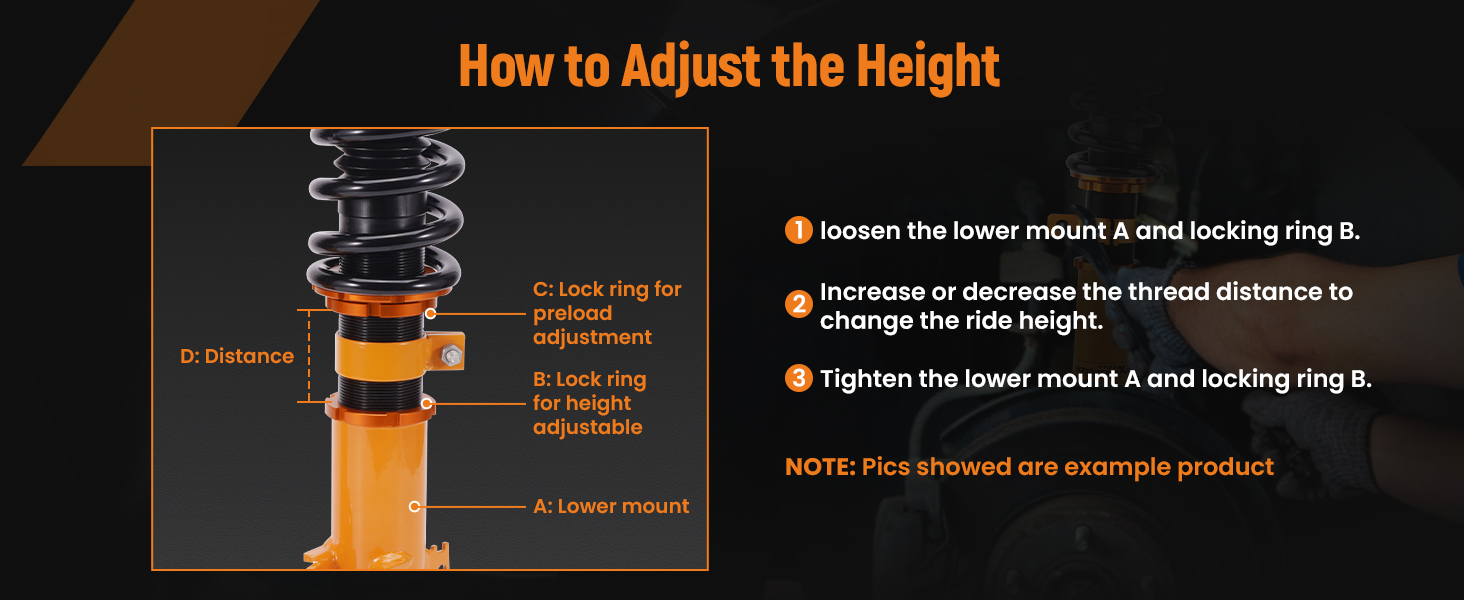

Full Length Adjustable Type
Allows ride height adjustment without affecting suspension stroke, maintaining comfort while customizing height.
Specifications
| Height adjustable | Yes, Lowering 1-3 inch |
| Front Spring length | 200 mm |
| Rear Spring length | 183 mm |
| Front spring length | 10 kg/mm(560 lbs/in) |
| Rear spring length | 7 kg/mm(392 lbs/in) |
| Front spring inner diameter | 70.5 mm |
| Rear spring inner diameter | 63-66 mm |
| Front Damper Body Diameter | Φ55mm (2.17") |
| Rear Damper Body Diameter | Φ55mm (2.17") |
| Package Including | 2 Front + 2 Rear |
| Condition | 100% brand new |
Key Features
Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height

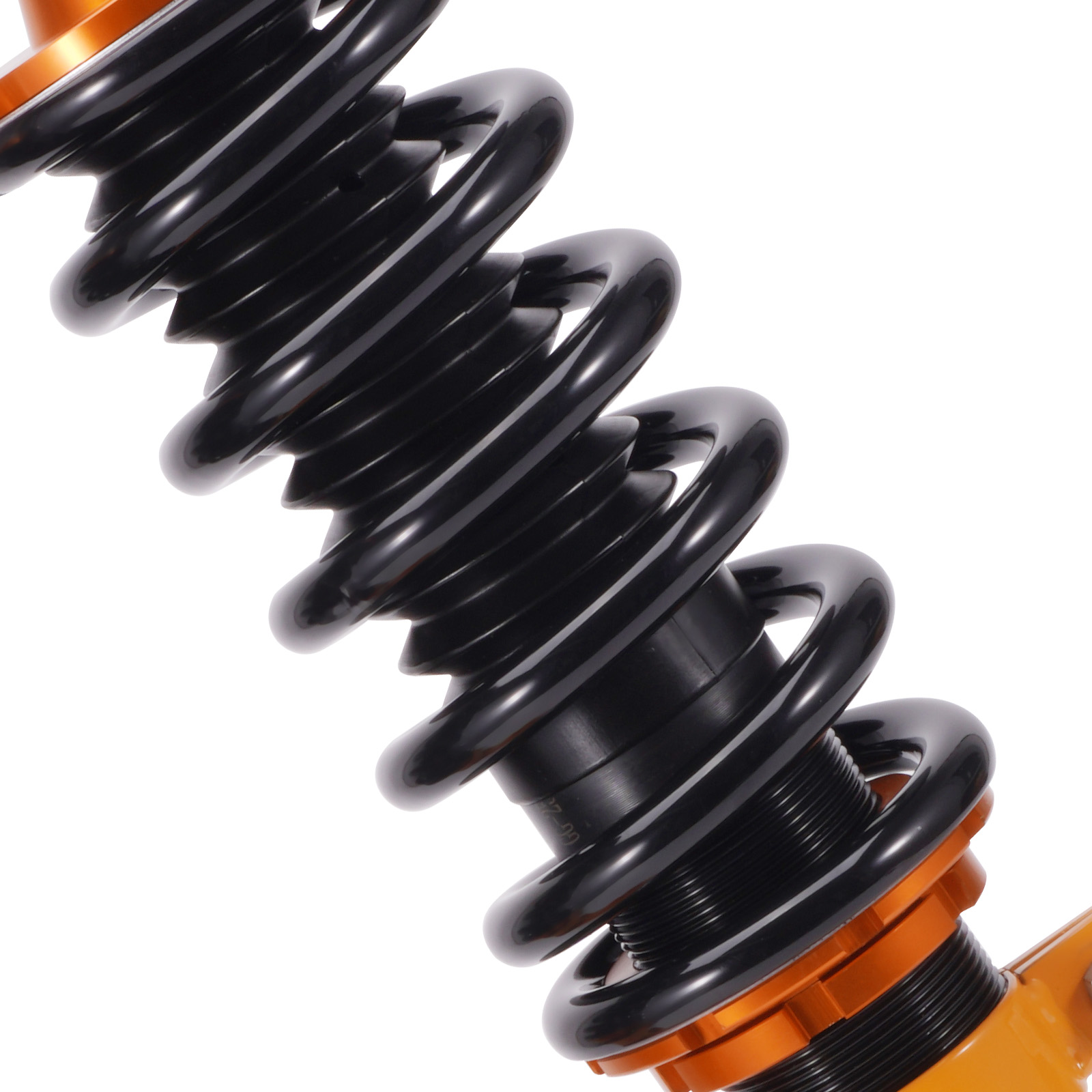

High Rigidity 55CrSi Steel Cold-bent Coil Springs

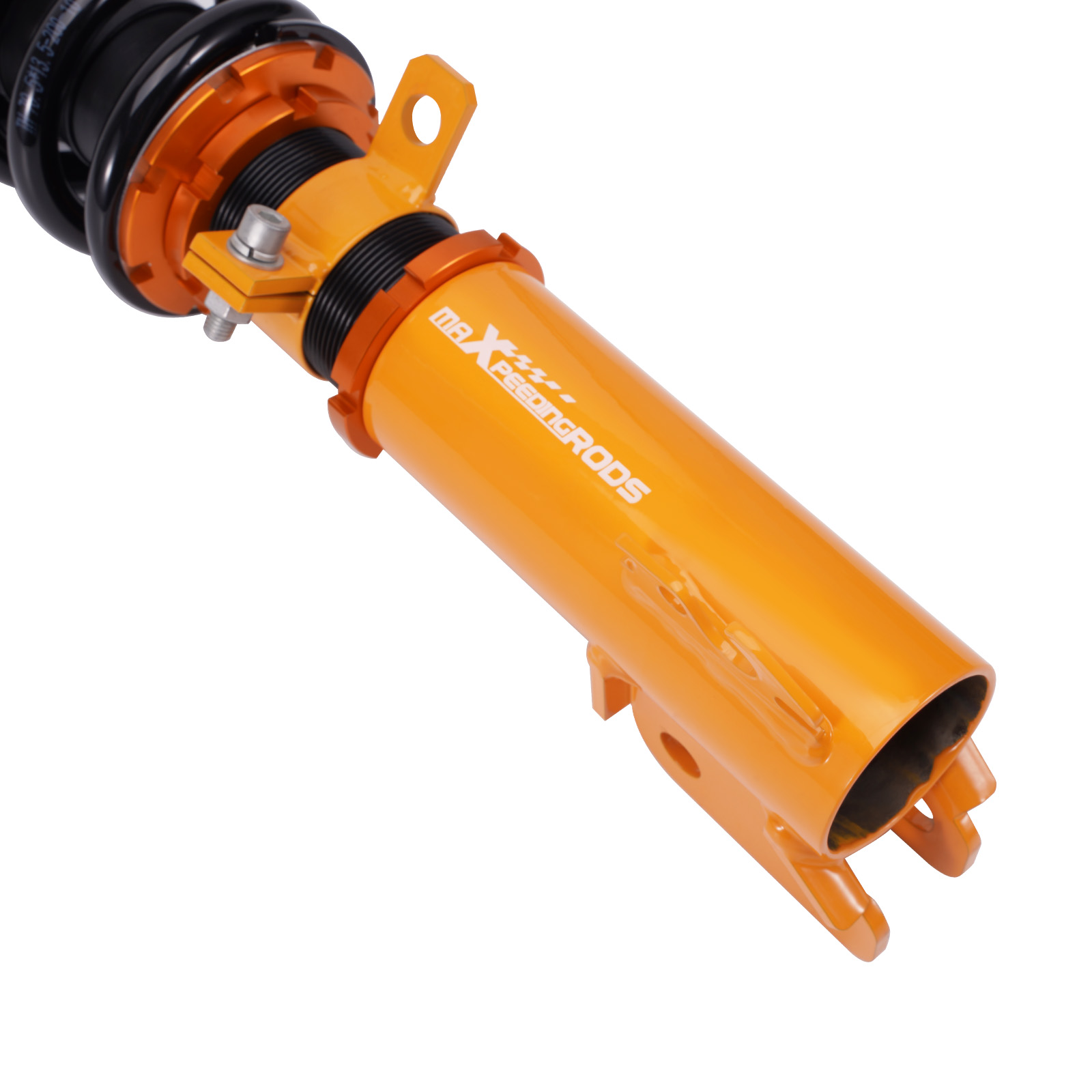

Weight Saving Aluminum Lower Mount Brackets
Anodized Shock Body With Anti-Corrosion Coating
Twin-Tube System for Comfortable Ride on Streets
Optimal Pre-Set Soft and Hard Settings - No Manual Damping Adjustment Required
Adjustment spanner wrenches and pictured hardware are included
Full 1 Year Limited Warranty From Date of Purchase
Application
For Toyota Yaris (XP130/XP150) 2013-2018
Specification
- Front and Rear top mount: OE top mounts required
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Damping adjustable: No, Optimal preset damping (no adjustment required)
- Spring rate Front: 10 kg/mm (560 lbs/in)
- Spring rate Rear: 7 kg/mm (392 lbs/in)
- Front Damper Body Diameter: Φ55mm (2.17")
- Rear Damper Body Diameter: Φ55mm (2.17")
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 63-66 mm
- Spring length Front: 200 mm
- Spring length Rear: 183 mm
- Spring Preload advised: 7-10 mm
- Color: Golden body with black spring
- Package Size:70*50*20 cm
- Weight: 26350 g
Package included

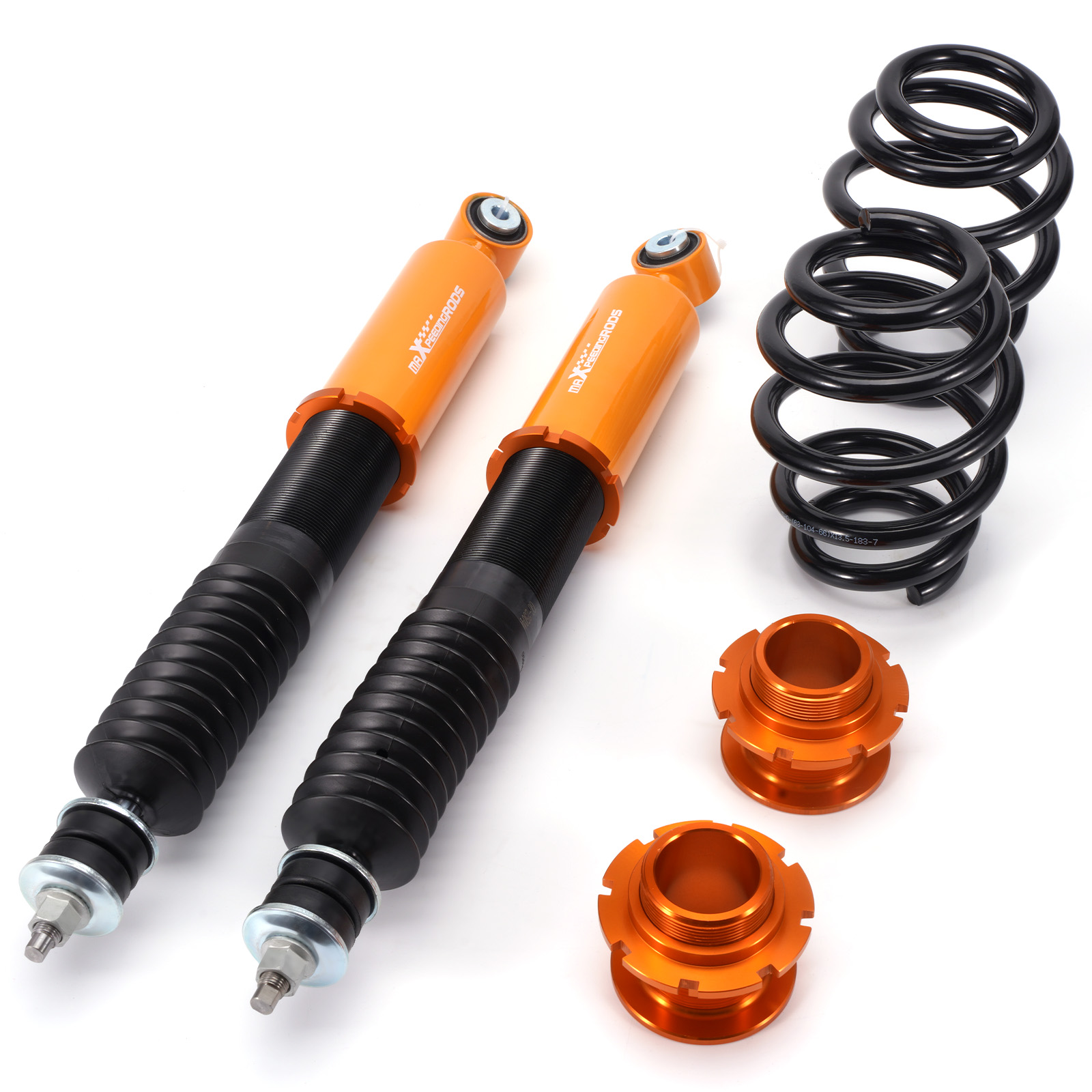

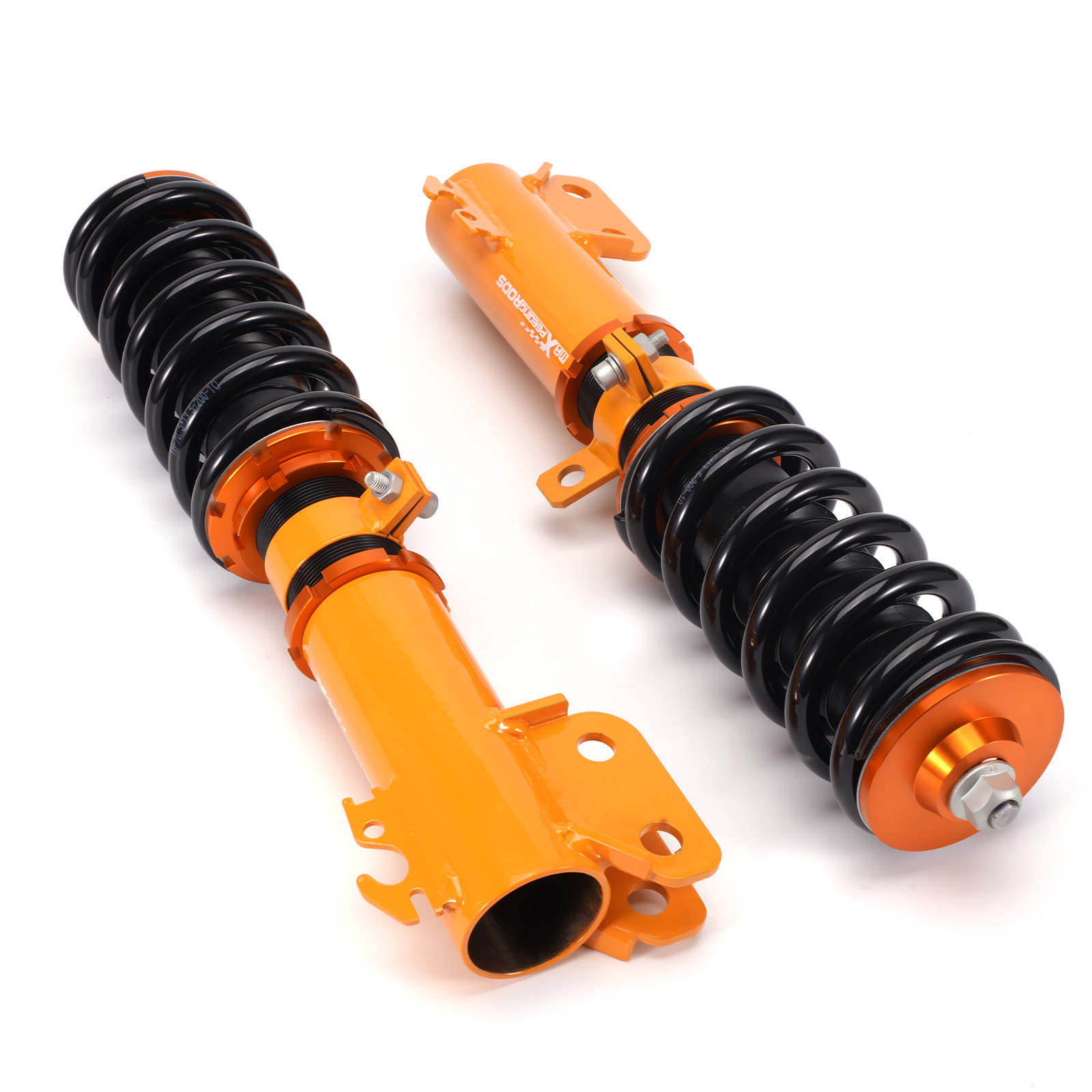

2x Front coil-overs
2x Rear coil-overs
2x C spanners
★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.
