Automatic Transfer Switch 3P 100A Transfer Switch Dual-Power Transfer Switch

Description

Our dual-power transfer switch is a fully functional, simply designed, and easy-to-use power device. It consists of high-class components with stable and powerful functions. It is a good helper for your work and life, and is widely used on many occasions.

Key Features

Built to Last: It is made of high-class cold-rolled sheet with a plastic spraying process, making it solid and rust-inhibiting, thus meeting your long-term use.

Automatic/Manual Switching: In the event of a main power failure or abnormal voltage, this transfer switch can automatically switch to the backup power supply to ensure a continuous power supply to the equipment.

High Reliability: We are equipped with PC class automatic generator transfer switches for higher loads and harsher operating environments to improve durability, speed up switching, and reduce downtime. In addition, its maximum processing capacity is 100A, which meets the load requirements of a variety of equipment.

Easy Maintenance& Energy-saving: The design is reasonable, the maintenance is simple, and it can also be intelligent and energy-saving, which is highly cost-effective.

Space-saving: Its compact dimension(9.25*9.25*3.54 inches) and wall-mounting feature make it very space-saving when installed.

Details

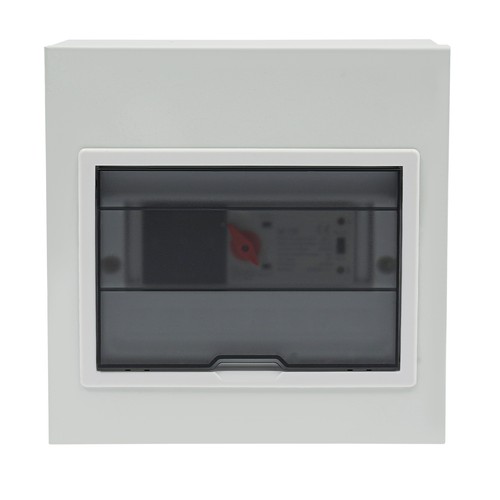

Visible Protective Cover: It can prevent accidental activation, allow for convenient observation of the product's status, and protect the product from being damaged easily..

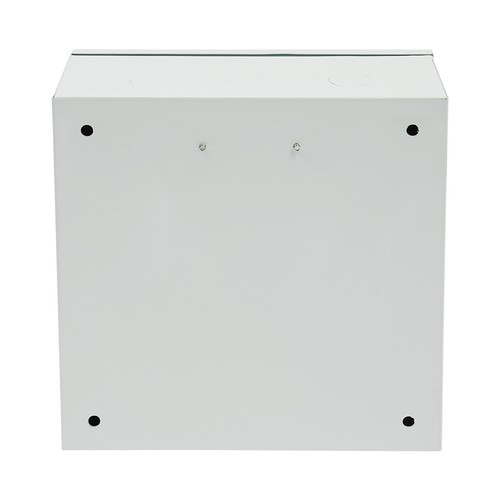

Pre-drilled Holes: The reserved holes on the back of the product make installation convenient.

Application

It is designed for generators and most home appliances, such as lights, electric furnaces, dryers, and air conditioners

Specification

Color: Off-White

Material: Cold-rolled Sheet

Process: Plastic Spraying

Mount Type: Wall-mounted

Conversion Time: ＜0.1s

Power: 24000W

Type: 3P, 100A

Rated Working Current: 100A

Rated Working Voltage: 110V AC

Insulation Voltage: 690V AC

Impact Withstand Voltage: 8KV

Frequency: 50/60Hz

Tse Class: PC

Product Size: 23.5*23.5*9cm/9.25*9.25*3.54in

Package Size: 25*25*13cm/9.84*9.84*5.12in

Gross Weight: 2.5kg/5.5 lbs

Net Weight: 1.95kg/4.3 lbs

Package Included

1* Dual-Power Transfer Switch

1* English Manual

Notes

  • We recommend that a professional electrician install this product.
  • Please always ensure that the power supply is turned off before performing any power-related operations, and verify that the power supply is completely disconnected using a tool such as a power test pen.
  • When a power source fails (testing only normal Phase A voltage and backup Phase A voltage, detecting only loss of voltage or phase), one or more load circuits from one power source will automatically switch to the other power source, ensuring an uninterrupted power supply to the load circuits.
  • Please read the English manual carefully before use, paying particular attention to the safety instructions.
  • Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
