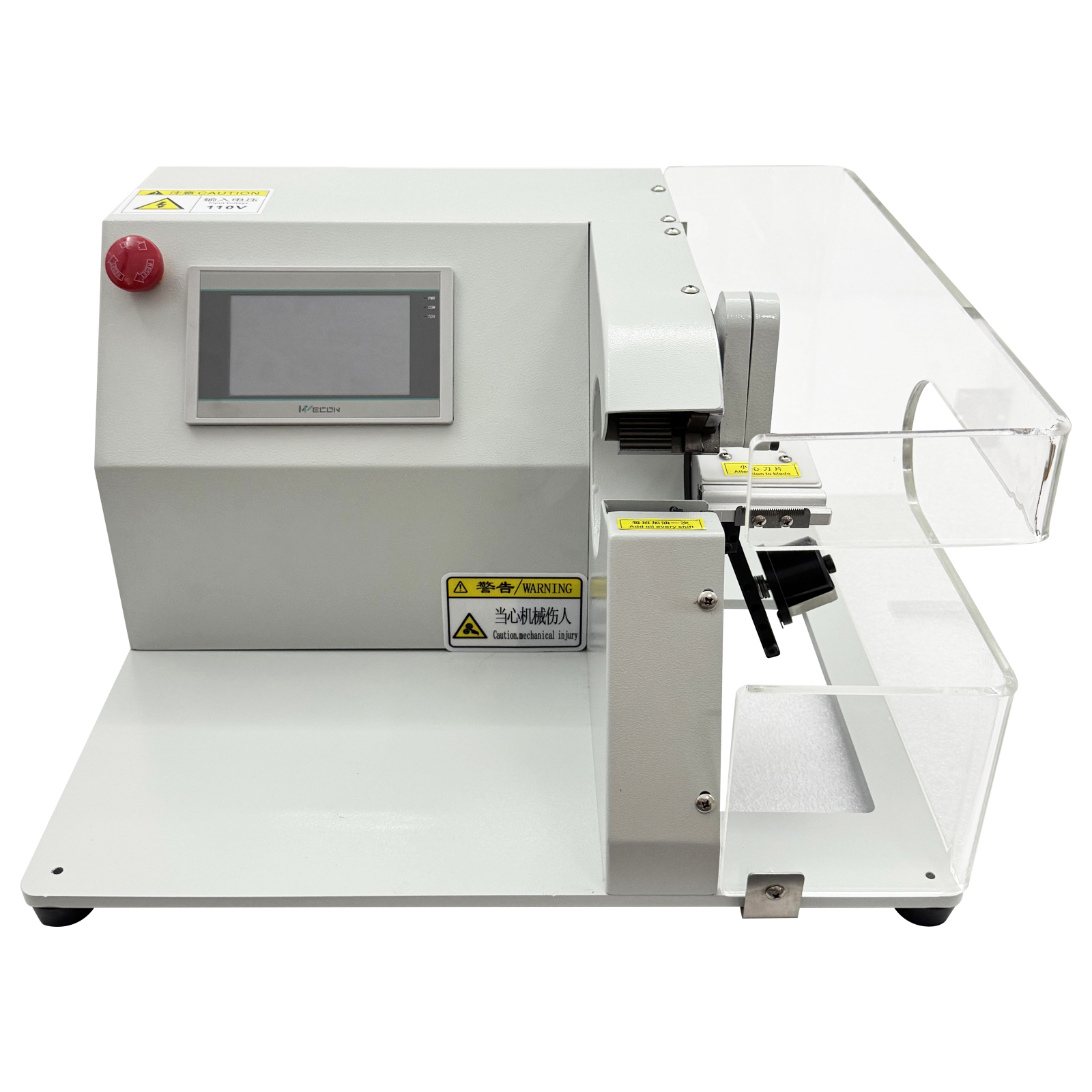

WX-303T 110V Automatic Automotive Wiring Harness Tape Winding Machine Touch Screen With Protective Cover

INTSUPERMAI^®

📄 ITEM DESCRIPTION

Small footprint, space-saving design; smooth operation with low noise emission.
Stepper motor drive enables rapid start/stop, high precision, minimal error, and sustained long-term operation.
Customizable adhesive tape holder (inner diameter options) to meet diverse application requirements.
Switchable winding modes (full/point wrapping) to accommodate various production needs; custom modes available upon request.
Programmable winding count & speed setting with real-time output display.

Automatic tape winding machine — an essential automated device for complex wire harness forming and mechanical bundling. It elevates workflow automation, drastically reduces labor intensity, improves production efficiency, and lowers operational costs. An excellent solution for harness manufacturing.

⚙️ ITEM PARAMETERS

Operation:	Touch screen & foot switch
Work mode:	Rotary wrapping
Power:	AC110V
Air pressure:	≥4P
Tape length:	No limited
Tape wire OD range:	0.12" - 0.98" (3-25mm)
Tape dimension:	Inner φ38mm or 32mm, outer φ≤100mm, width ≤25mm
Tape mode:	PVC, Fabric cloth and etc.
Work temperature:	32-113℉, 10-90%RH (0-45℃, 10-90%RH)
Cool way:	Nature cooling
Wrapping high frequency:	400R/S
Package size:	21.6" * 20" * 17" (55cm50cm43cm)
Net weight / Gross weight:	55.8LB(25.3kg) / 80LB(36.3kg)

🛡️ ITEM MAINTENANCE & PRECAUTIONS

Confirm power voltage matches device requirements; voltage instability may cause damage.
Keep hands away from rotating parts during operation to prevent mechanical injury.
Use only in dry indoor environment; avoid moisture or corrosive substances.
Regularly inspect tape tension device and transmission components for looseness or wear.
Not intended for use by children or untrained personnel.
If abnormal overheating or unusual noise occurs, disconnect power immediately and contact support.
Add oil every shift (routine lubrication).
Use only tape rolls meeting manufacturer specifications to prevent jamming or reduced effectiveness.

🔍 ITEM DETAILS

Control Panel

LCD touch control panel — clear data visualization. Adjust tape width, speed, wire diameter, language, etc. Emergency stop button on side ensures operator safety.

Fixing Bracket

Holds tape firmly, stabilizes wire centrally for even winding. Easy tape replacement, compatible with different tape sizes.

Blade Assembly

Precision blade for clean tape cutting, improves production quality. Caution: sharp edge.

Heat Emission Hole

Rear ventilation dissipates motor heat, ensuring stable long-term performance.

Protective Guard Plate

Acrylic guard above blade prevents scratching, ensures operational safety. Note: Keep closed during use.

Anti-skid Support Legs

Four rubber feet provide stable support, anti-slip, vibration dampening, and reduce noise.

📋 ITEM OPERATING INSTRUCTION

Verify machine is level with the work surface.
Turn on the power switch.
Select English version to enter system interface.
Select wrapping method: Full wrap or Point wrap as per product requirement.
A. Running speed: 1 (lowest) to 7 (high speed).
B. Point wrapping: Input target laps, press foot pedal to start; machine stops automatically after set laps.
C. Full wrapping: Choose full wrap mode, press foot switch – machine starts slowly; continue pressing to reach high speed; release to stop.
D. Point wrapping with pre-set lap quantity; press foot pedal, machine stops when count completes.

📦 ITEM INCLUDED (053281)

Automatic tape winding machine *1	Foot switch *1
Power cord *1	Hexagonal wrench *1
