Specification:

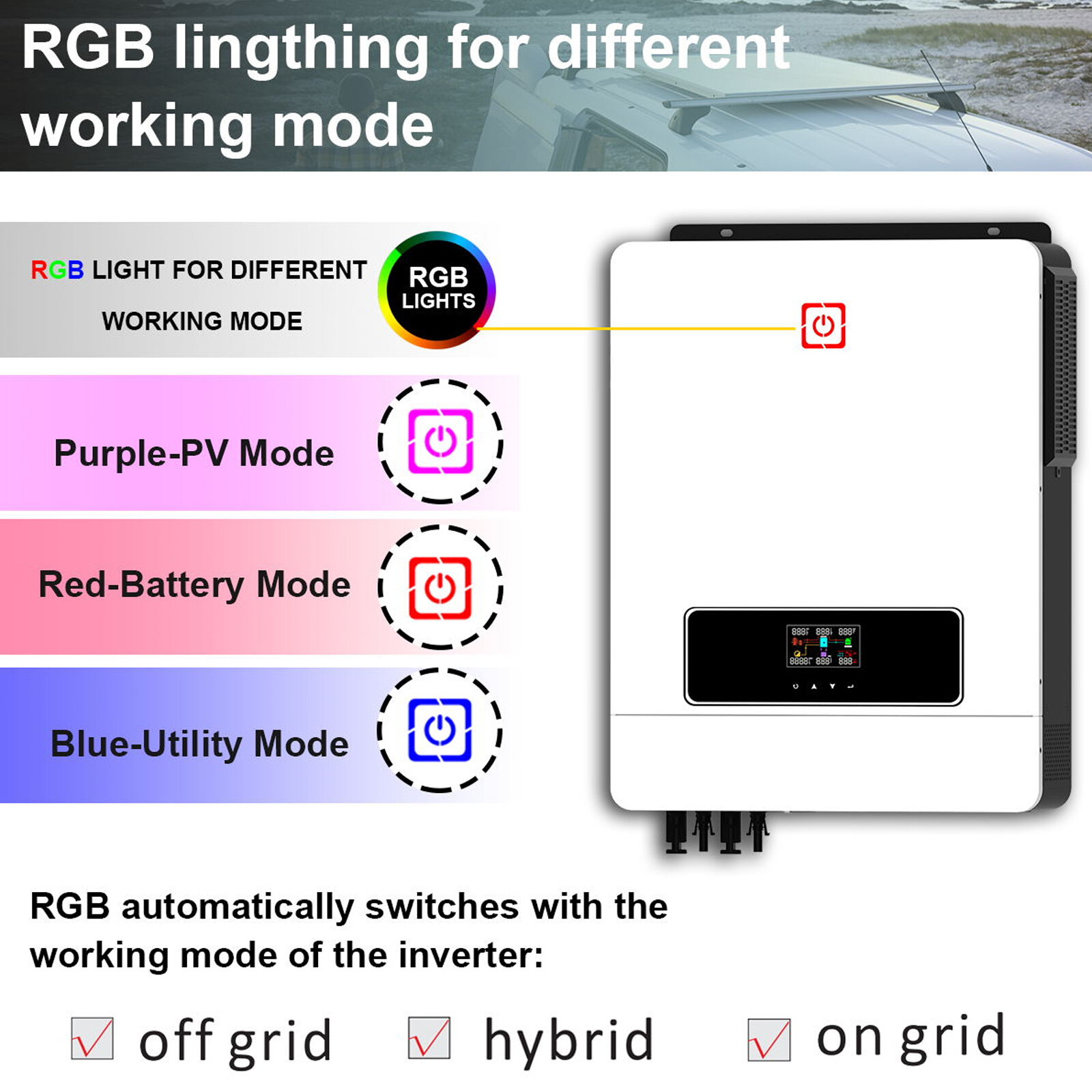

【Pure sine Wave Inverter】10200W Pure sine Wave Inverter is a new all-in-one hybrid solar inverter charger, Support dual PV input, dual MPPT voltage tracking.RGB lingthing for different working mode(Purple-PV Mode;Red-Battery Mode;Blue-Utility Mode)

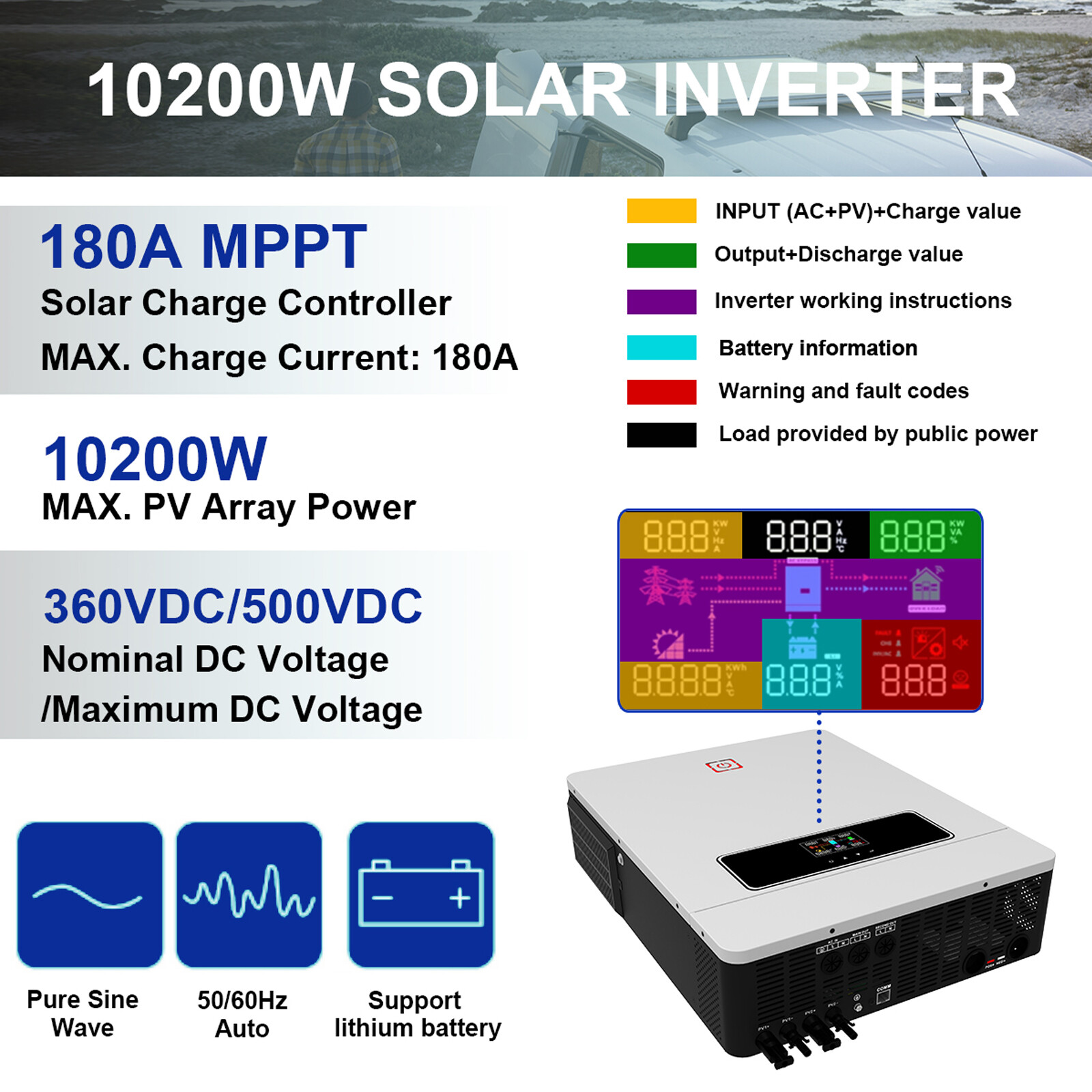

【TECHNICAL SPECIFICATIONS】10.2KW Hybrid Solar Inverter Max.PV Input Power: 10200W, Voltage range: 90-450Vdc, Max.PV Input VOC: 500V DC, Starting voltage >150V; The best working voltage is 300-360V;Recommended PV cable size: 10AWG, Max. charge current: 180A. Nominal Input Frequency: 50/60Hz; Output Power: 10200W, surge Capacity: 20400W.fit for 48V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery
【WIDE RANGE OF USES】MPPT Inverter Charger Pure sine Wave 10200W for RV Camping Boat Home Emergency ect.. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.（Be careful not to install it near the bedroom, the fan will make a sound when the inverter is running. Avoid affecting your rest
Introduction:

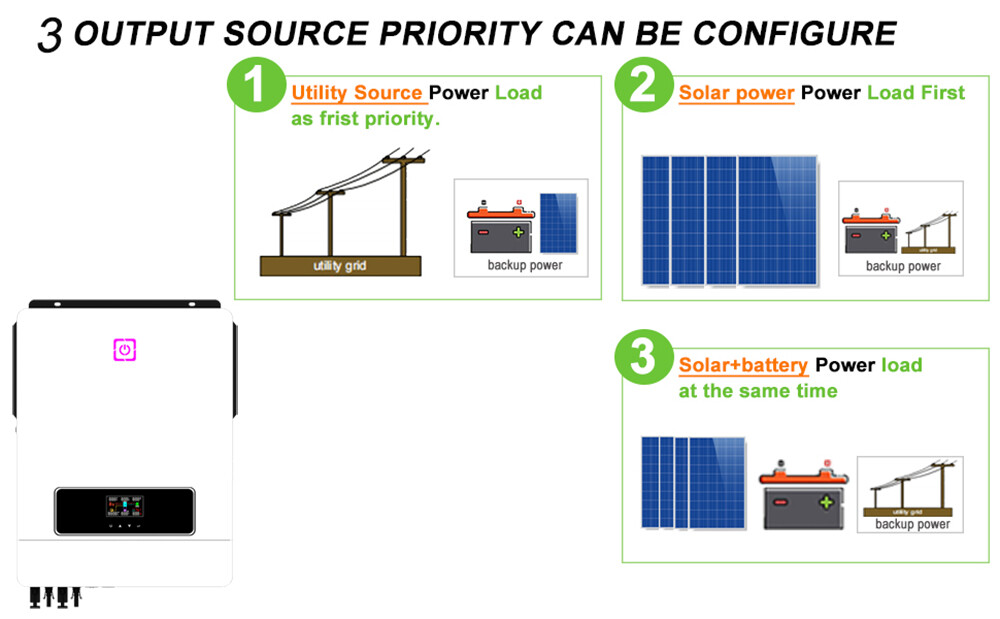

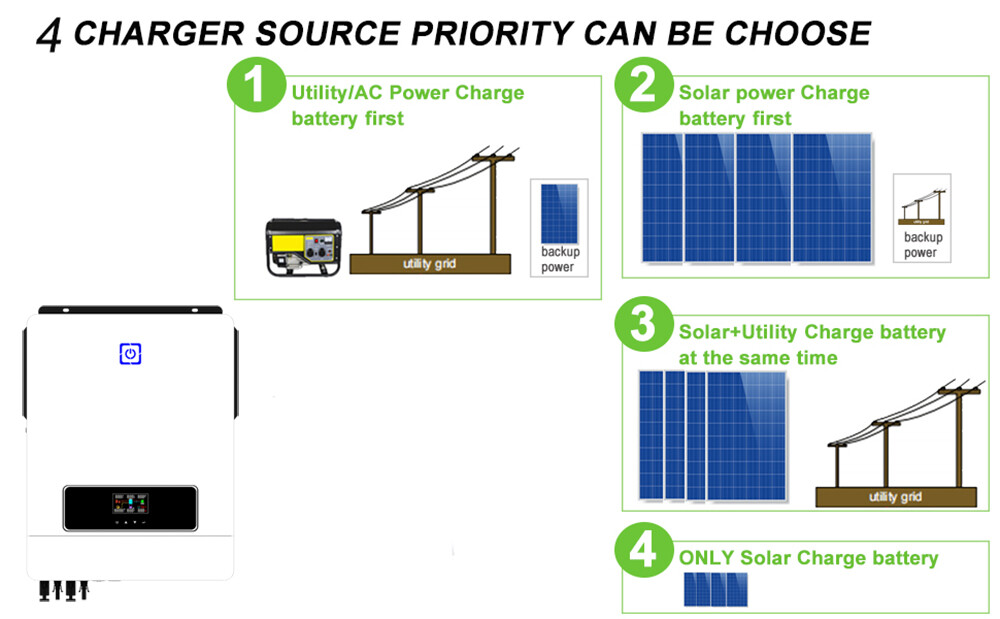

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offeruninterruptible power support with portable size.Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current,AC/solar charger priority, and acceptable input voltage based on different applications.
Features of 48VDC solar power inverter：
Pure sine wave solar inverter
Output power factor 1.0
Wifi&GPRS available for IOS and android

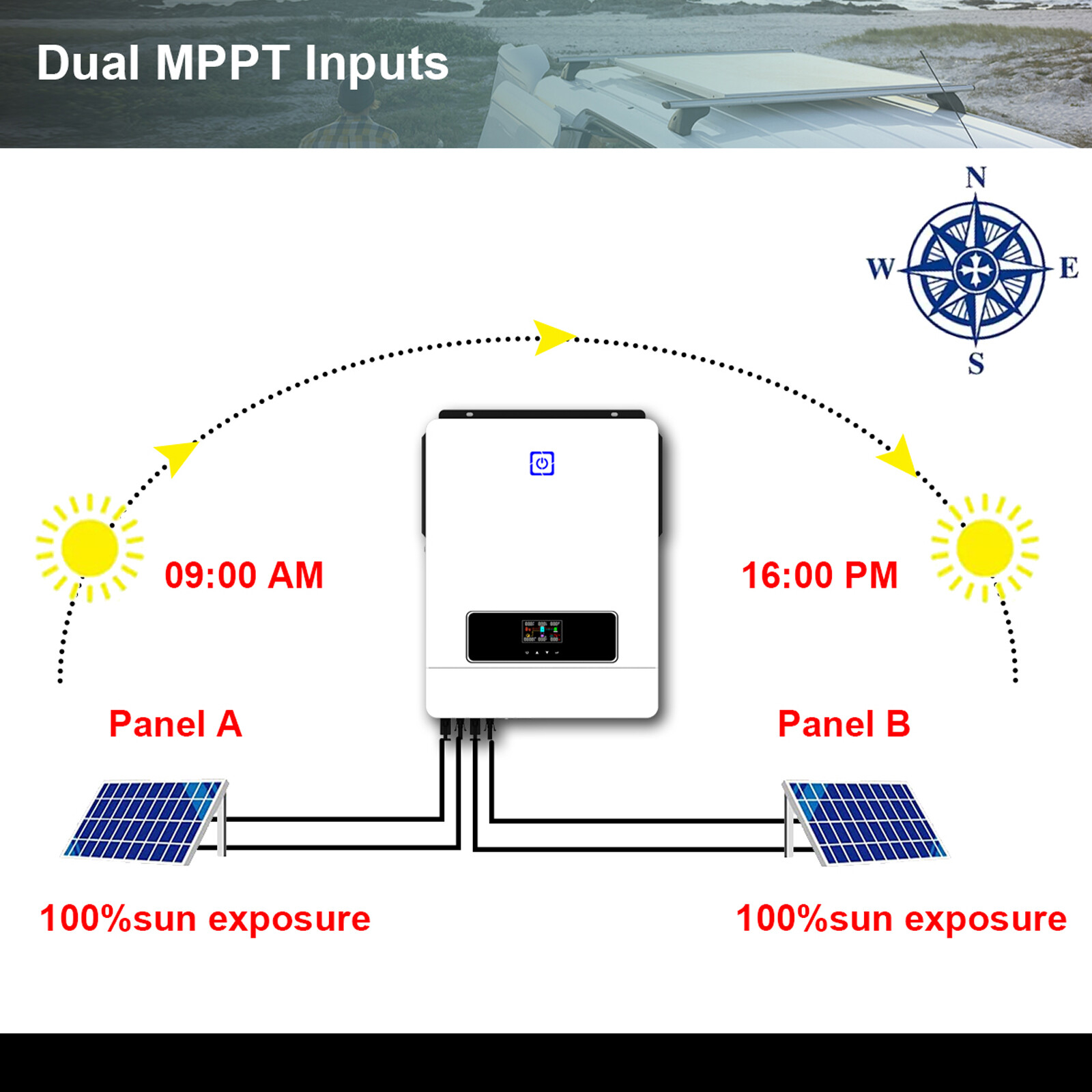

Dual MPPT input, dual AC output
Built-in 160A MPPT solar charge controller
High PV input voltage range(120~500VDC)
Built anti-dusk kit for harsh environment
Smart battery charger design for optimized battery life

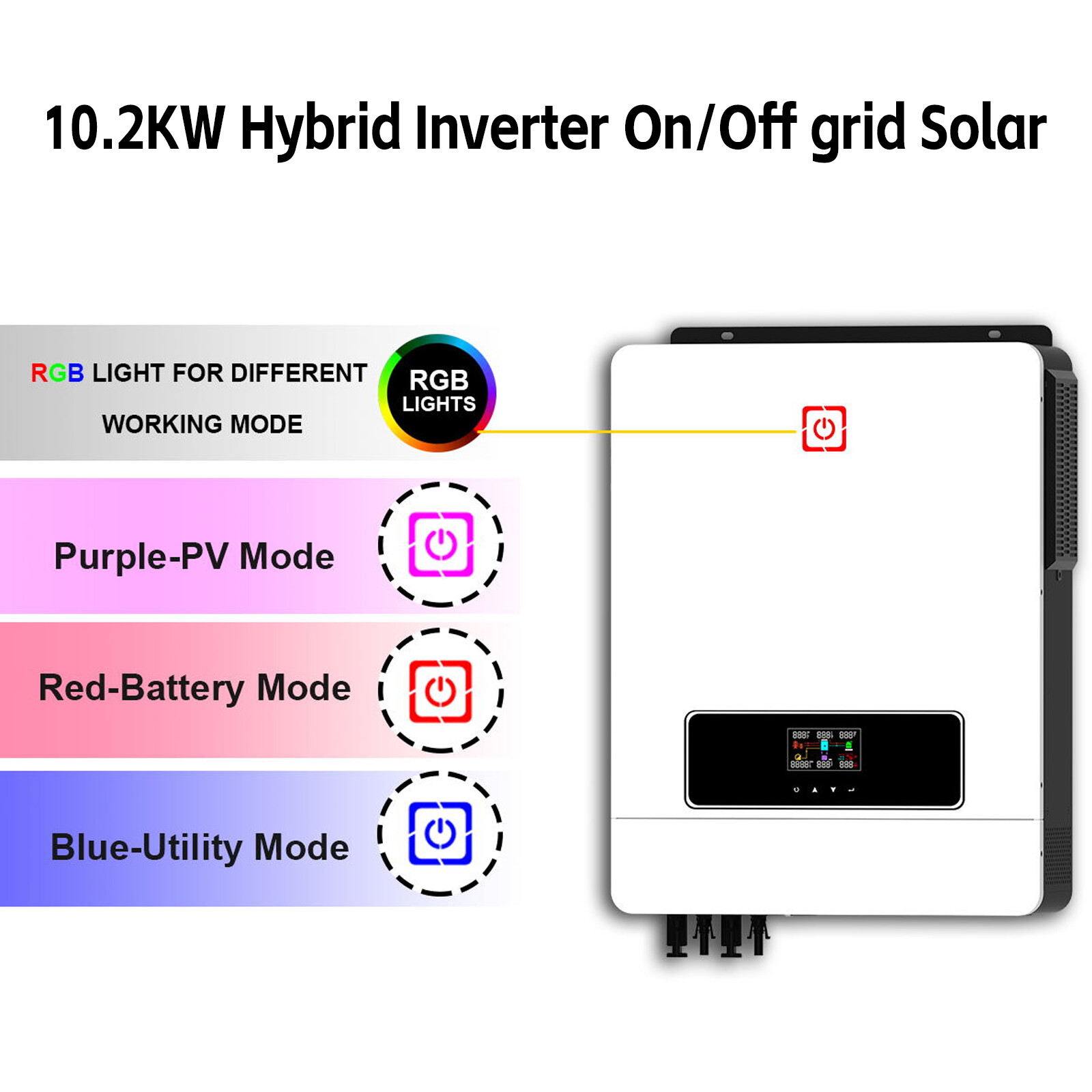

RGB automatically switches with the working mode of the machine
On/off-grid,Touch screen display
Inverter running without batteryBasic

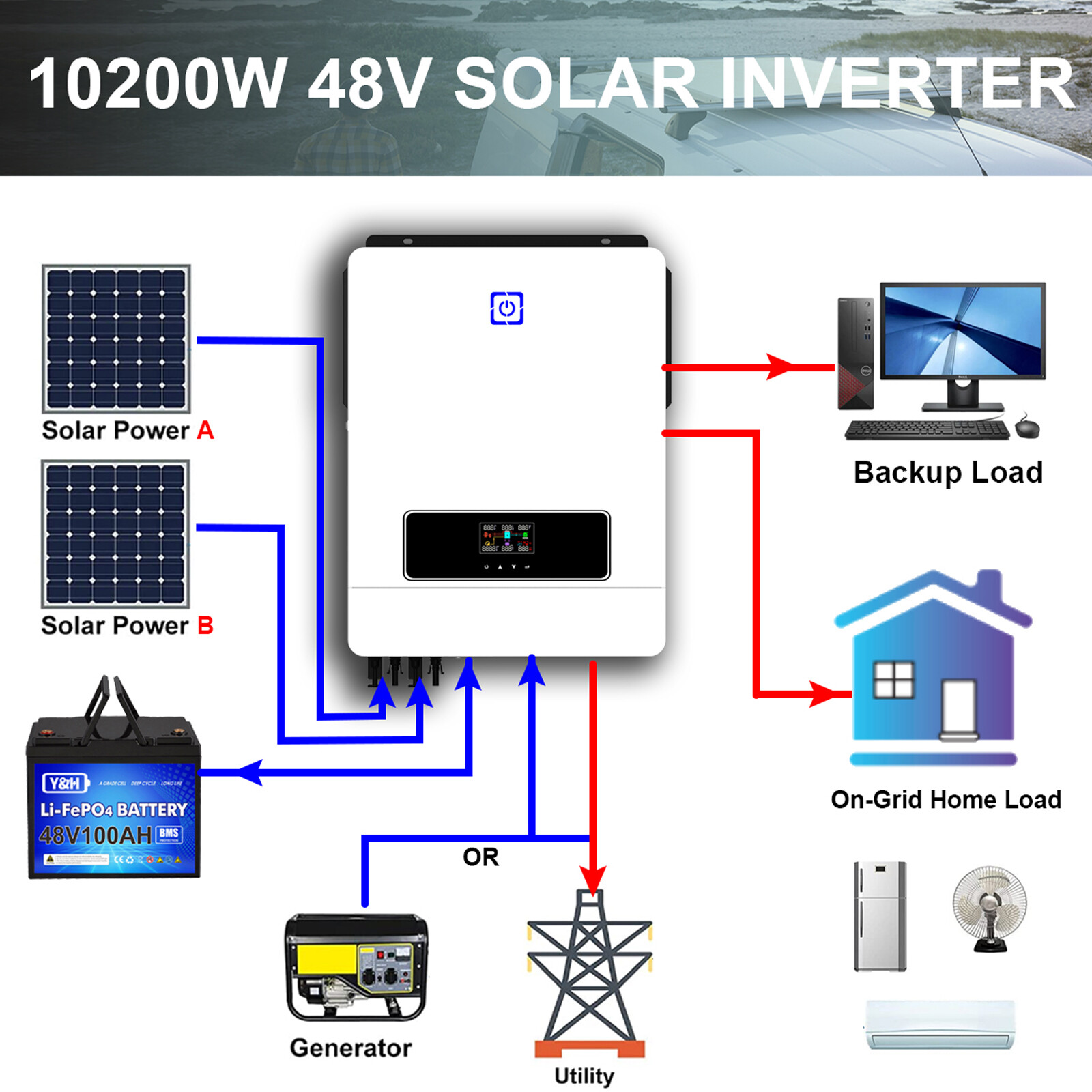

System Architecture:
The following illustration shows the basic application for this inverter/charger. It also includes the following devices to have a complete running system:1.Generator or Utility.2.PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.
Note:
Photo color might be a little different from the actual product due to color display of different monitors.
Packing Included:

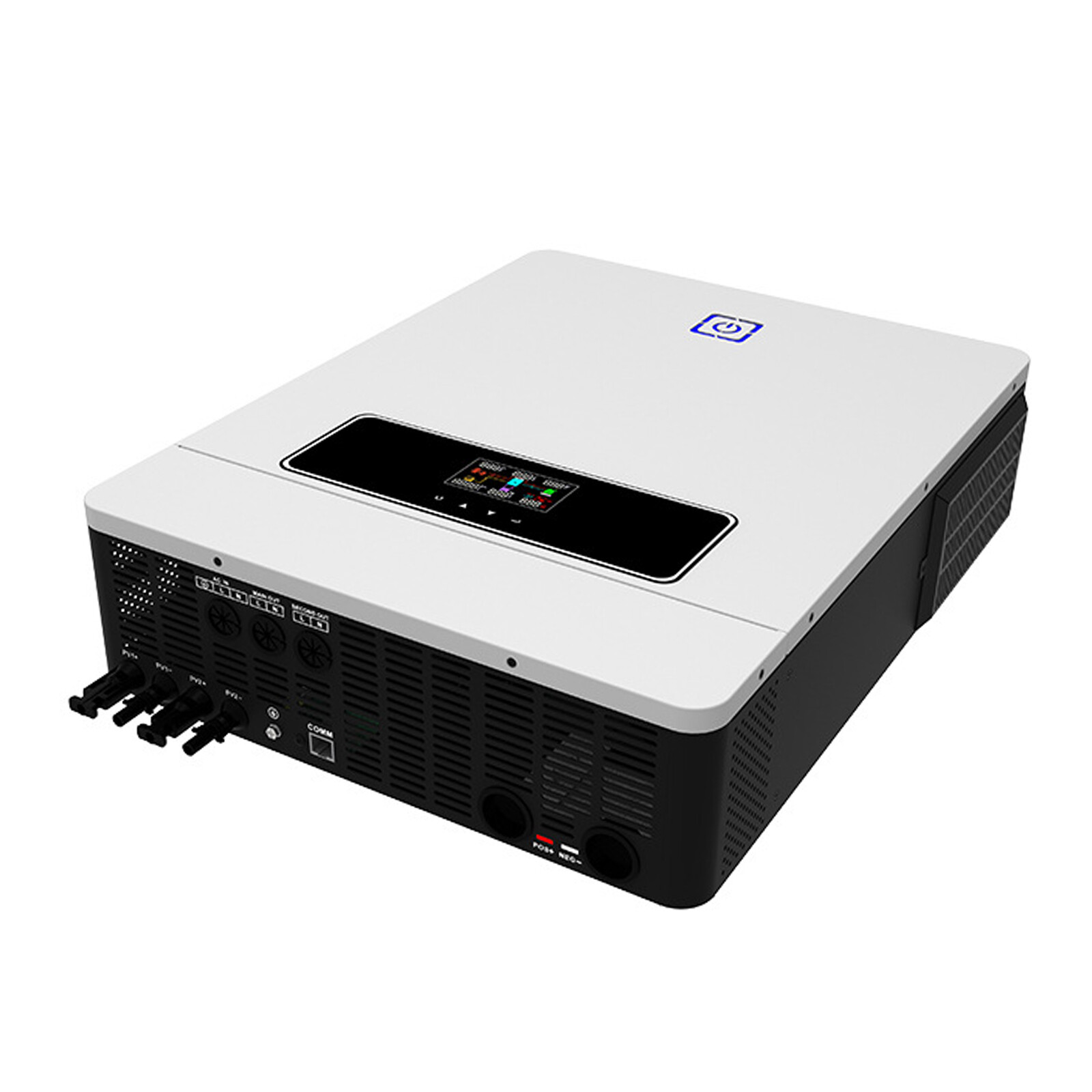

1 x 10.2KW Hybrid Inverter
