KEY FEATURES

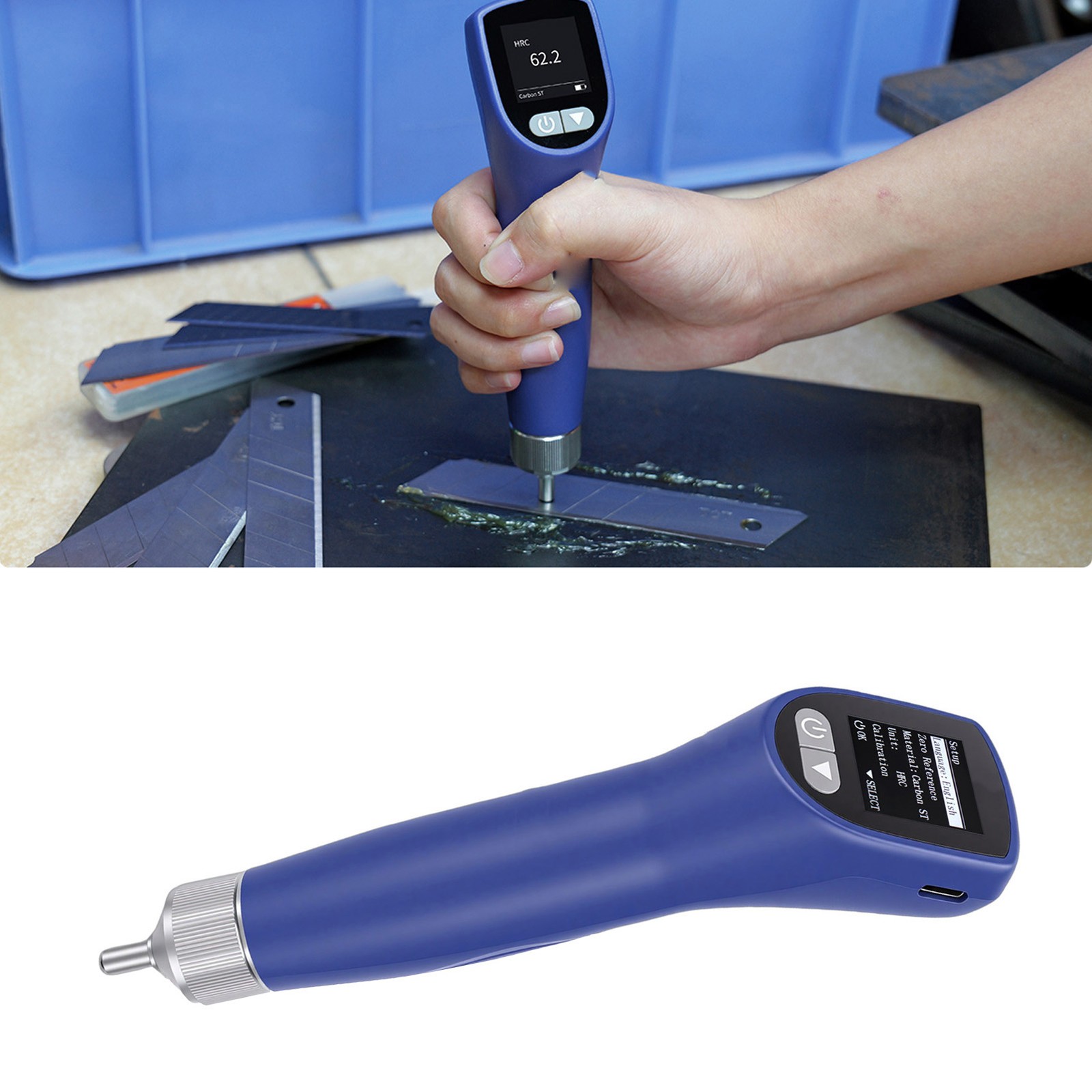

NON-DESTRUCTIVE MEASUREMENT: Using ultrasonic contacting impedance method, this tester ensures extremely tiny indentations on the workpiece surfaces during testing, causing no significant damage to the component surfaces. It meets the hardness measurement needs for accuracy or finished parts, and is also suitable for ultra thin workpieces (if the sample does not meet the minimum need of 300g in mass or 5mm in thickness, it can be coupled to a sturdy support using grease for testing).
SIMPLE TO OPERATE: This ultrasonic hardness tester requires no cumbersome settings; Just turn it on and start using it, quickly completing measurements and displaying results. It is practical for batch testing and rapid quality control, significantly enhancing detection efficiency and work pace.
DUAL TEST HEAD CONFIGURATION: The kit comes with dual test heads, allowing flexible handling of hardness testing tasks for workpieces of different shapes and sizes. Whether it is flat materials, small workpieces, or irregularly shaped complex parts, it can easily accommodate them all.

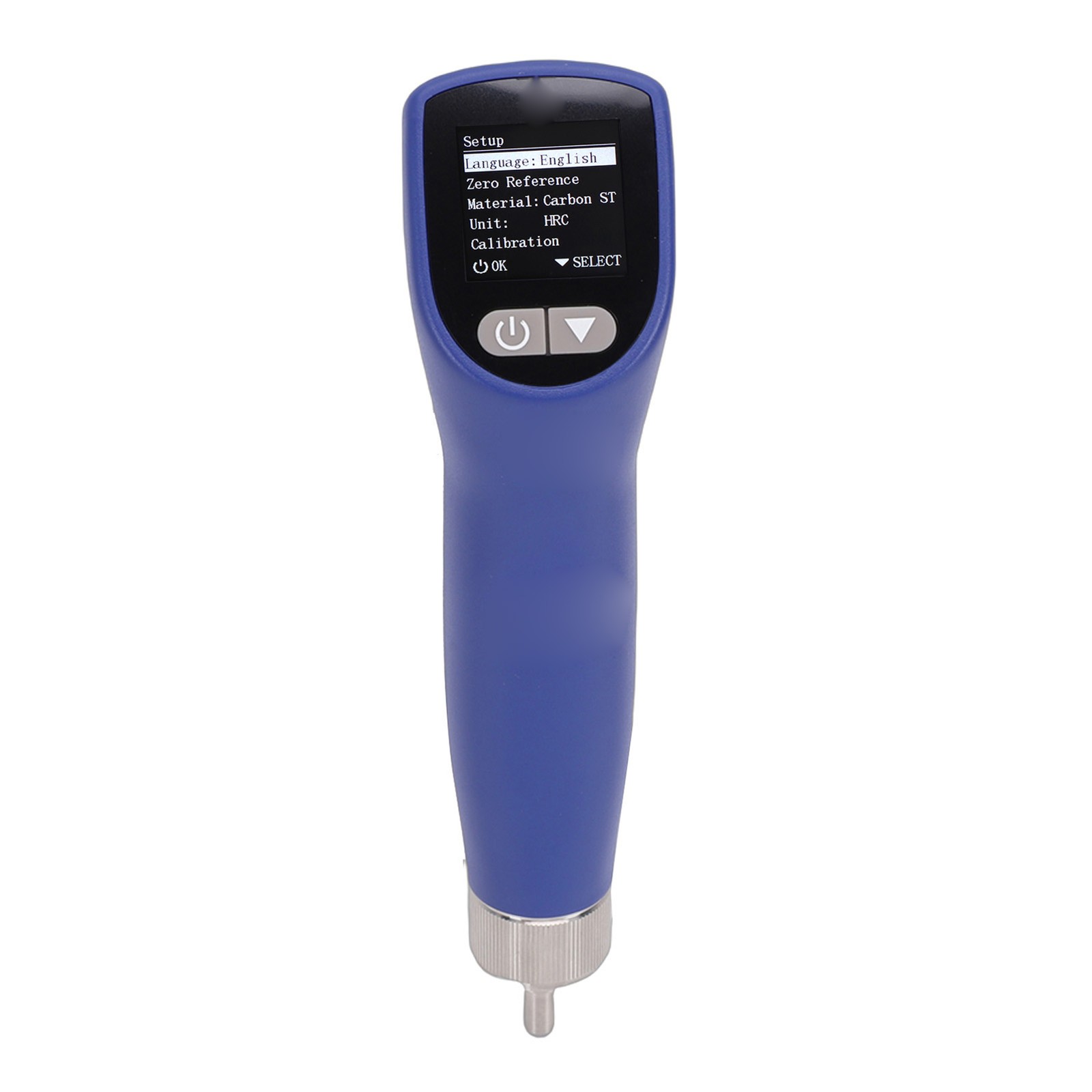

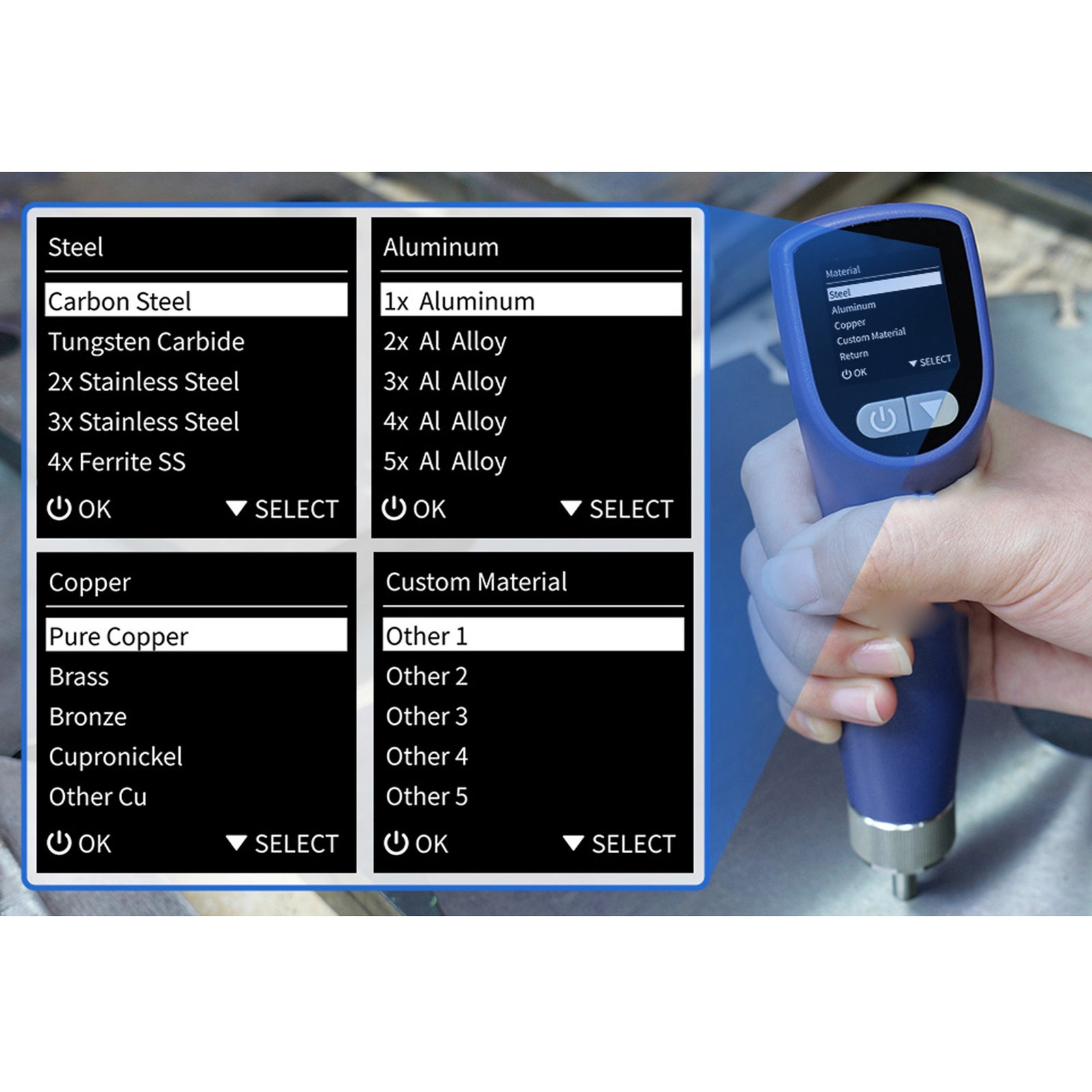

VERSATILE FUNCTIONS: It offers a built in selection of various metal materials to meet diverse measurement needs; features a stable base to ensure well repeatability and high consistency in test results; and includes a built in storage function capable of saving 9 sets of measurement data for convenient viewing or result comparison at any time.
MULTIPLE UNIT SWITCHING: It incorporates common hardness scales such as HV, HRC, HRB, HB, and more, allowing for one click switching based on detection requirements, eliminating the tediousness of manual table lookups and improving measurement efficiency.
USER CALIBRATION AND APP CONNECTIVITY: Provides a user calibration function, enabling self calibration of the instrument using standard hardness block to effectively eliminate systematic errors; connects to a mobile APP via BT for multi group data storage and sharing of measurement data.

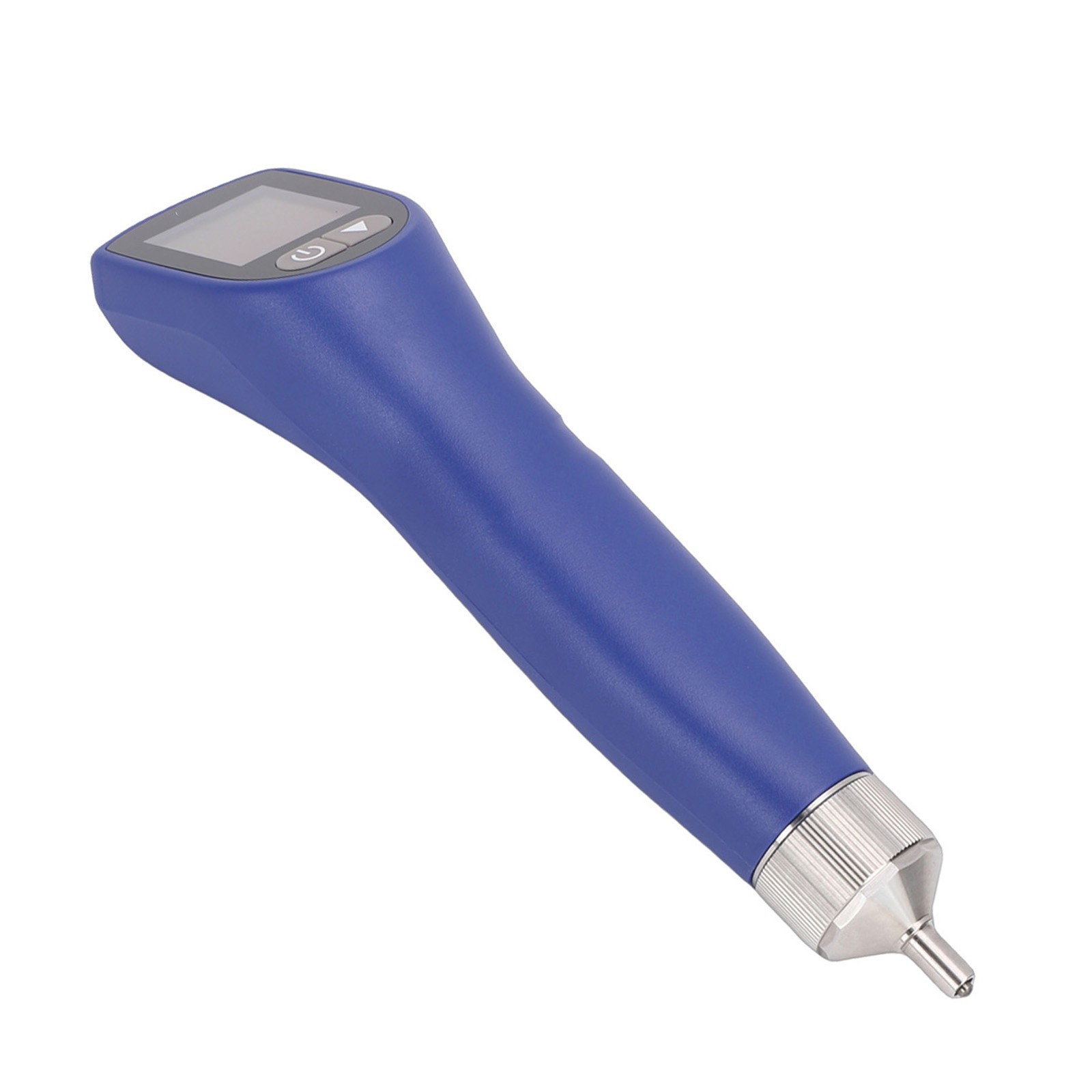

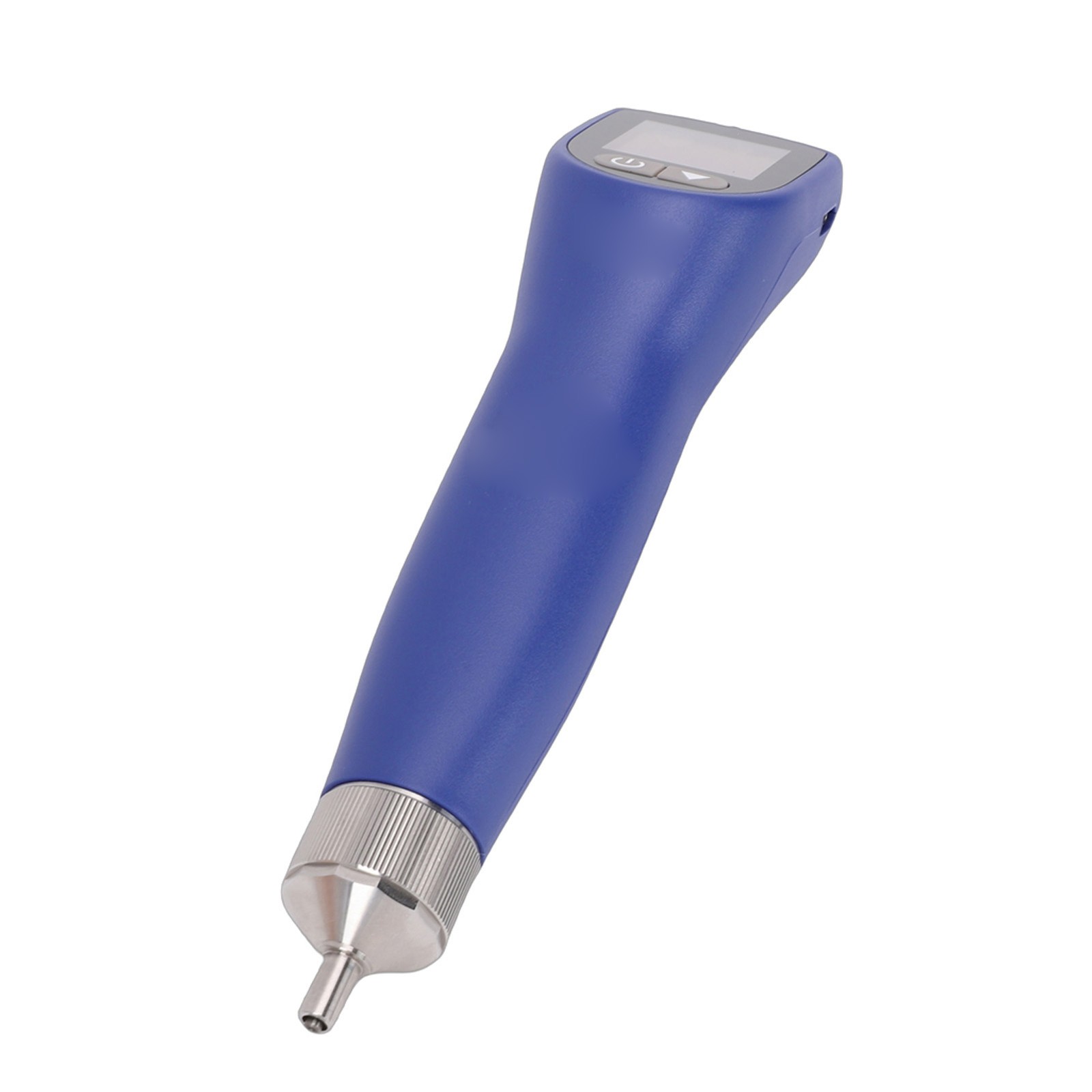

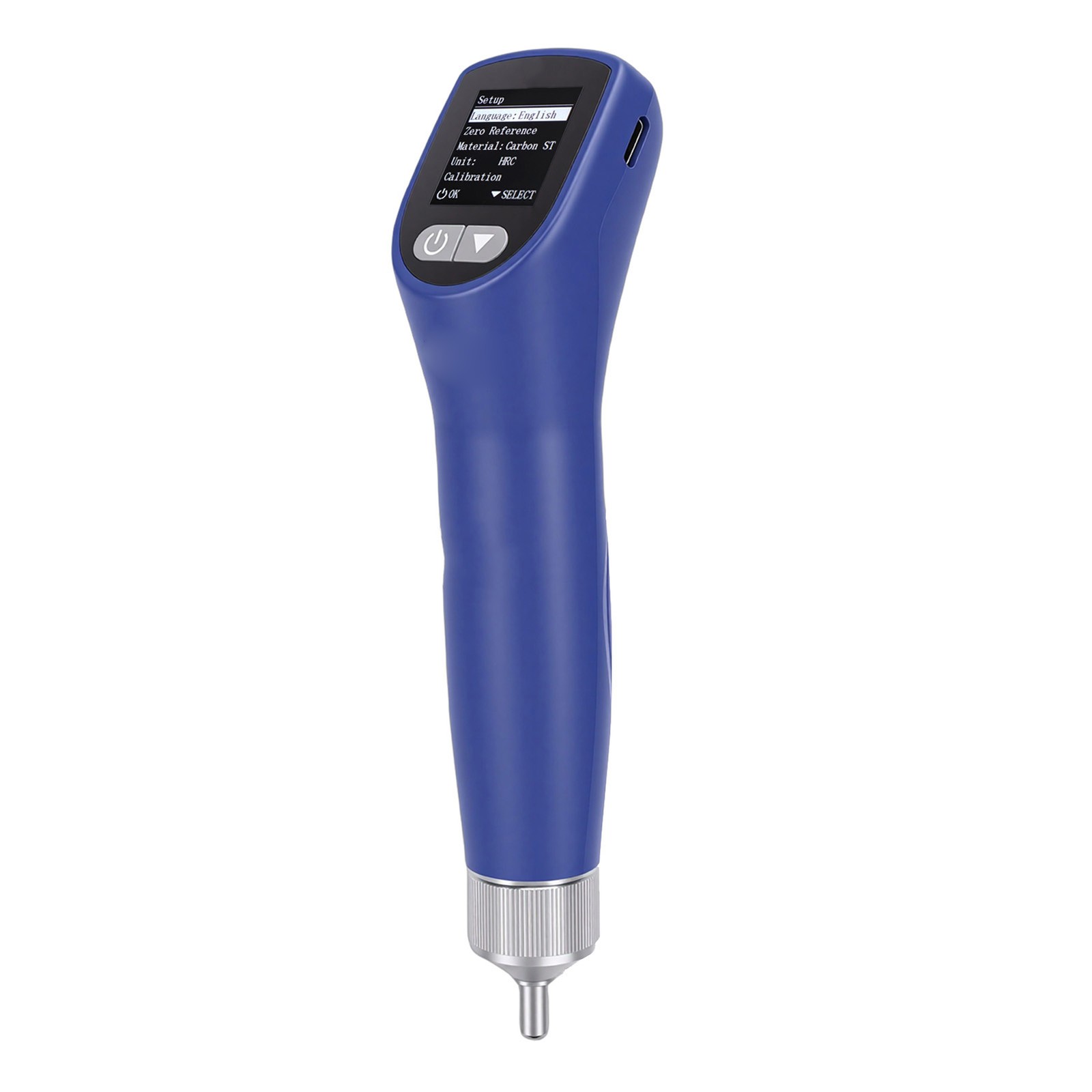

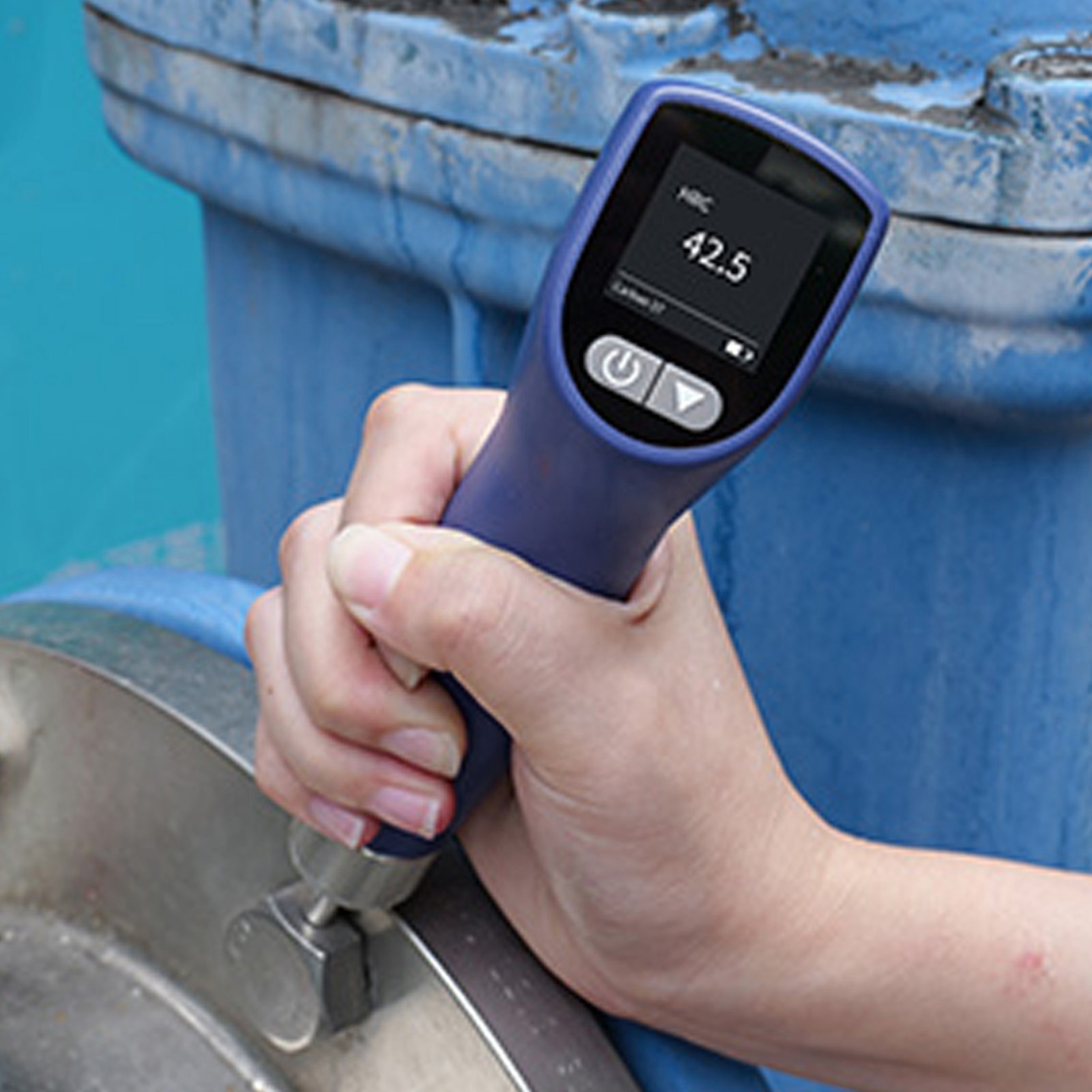

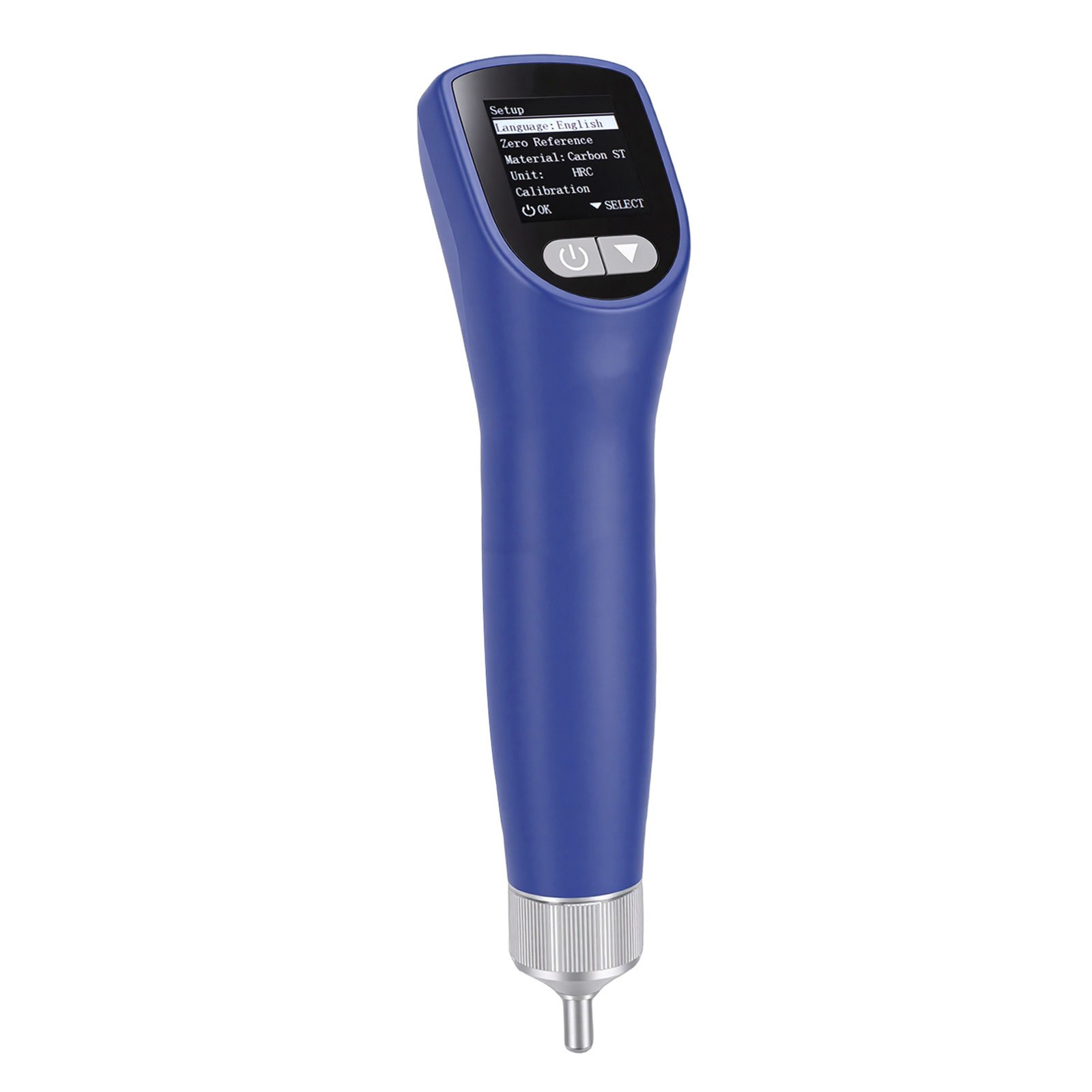

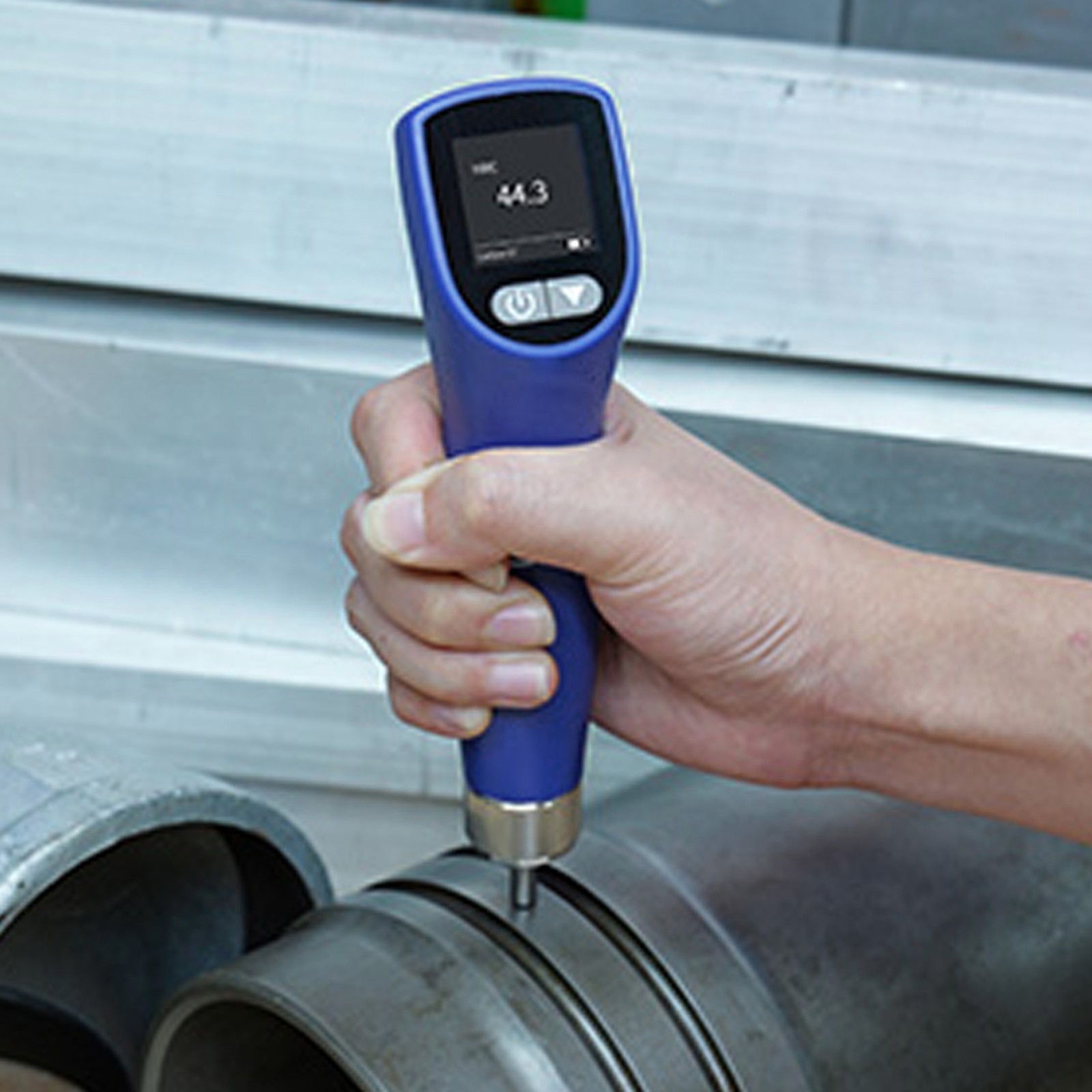

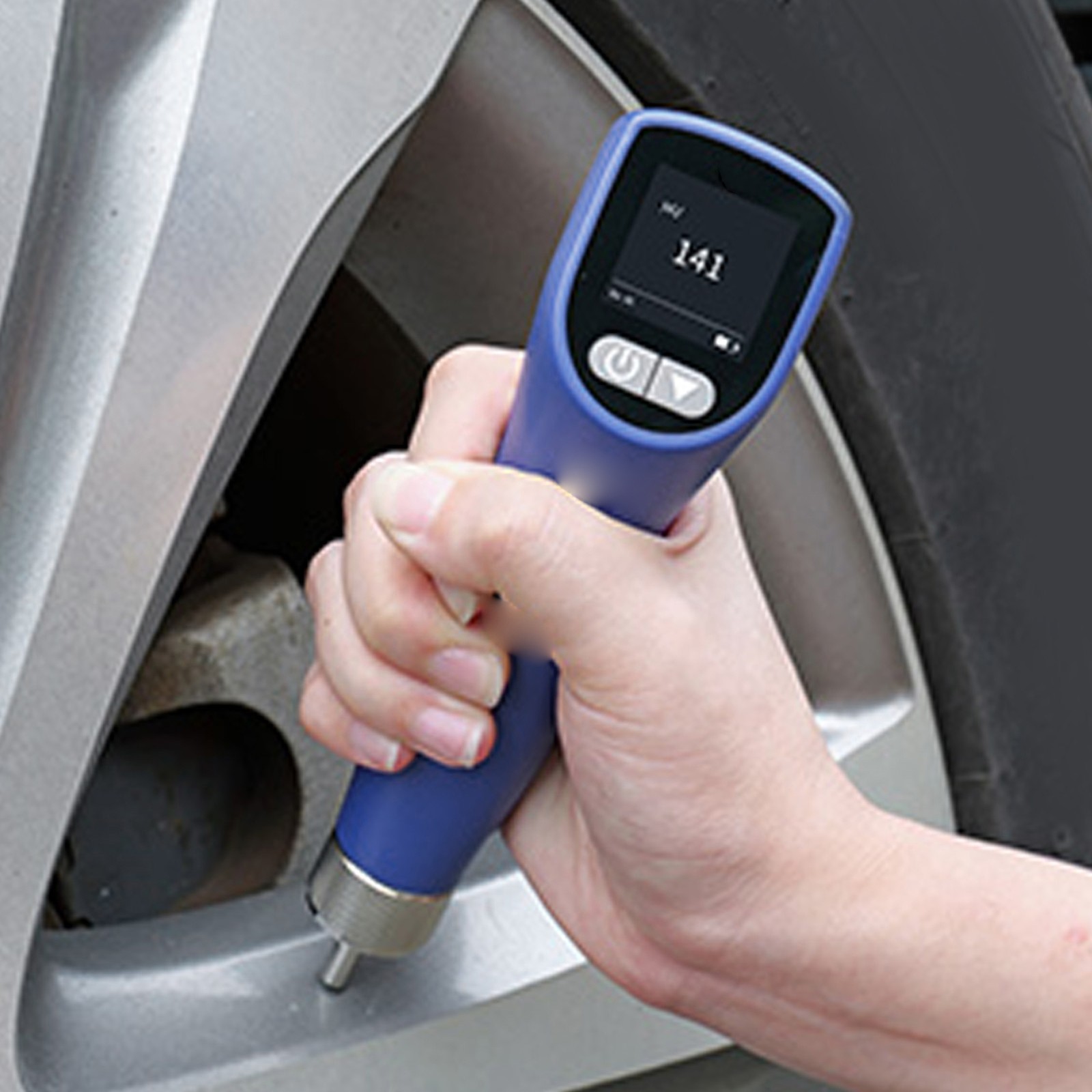

COMPACT AND PORTABLE: This ultrasonic hardness tester adopts an integrated design, compact and lightweight for easy carrying and single handed use, making it highly suitable for on site rapid testing; its ergonomic design ensures a comfortable grip, reducing fatigue during prolonged use.
SPECIFICATIONS
Item Type: Ultrasonic Hardness Tester
Product Material: ABS
Hardness Units: HV, HRC, HRB, HRA, HS, HL, HB
Measurement Range: HV(50-1700); HL(170-960); HRC(20-70); HRB(13-100); HRA(60-85.8); HS(26.4-99.5); HB(30-651); HR E(20-70); HRF(60-100)
Resolution: 1HV, 0.1HRC
Measurement Accuracy: ±4%H+10HV, ±2.5HRC (Use Hand Press Test Stand, H as Standard Value)
Repeatability: 3%H+8HV, 2HRC (Use Hand Press Test Stand, H as Standard Value)
Test Force: 20N

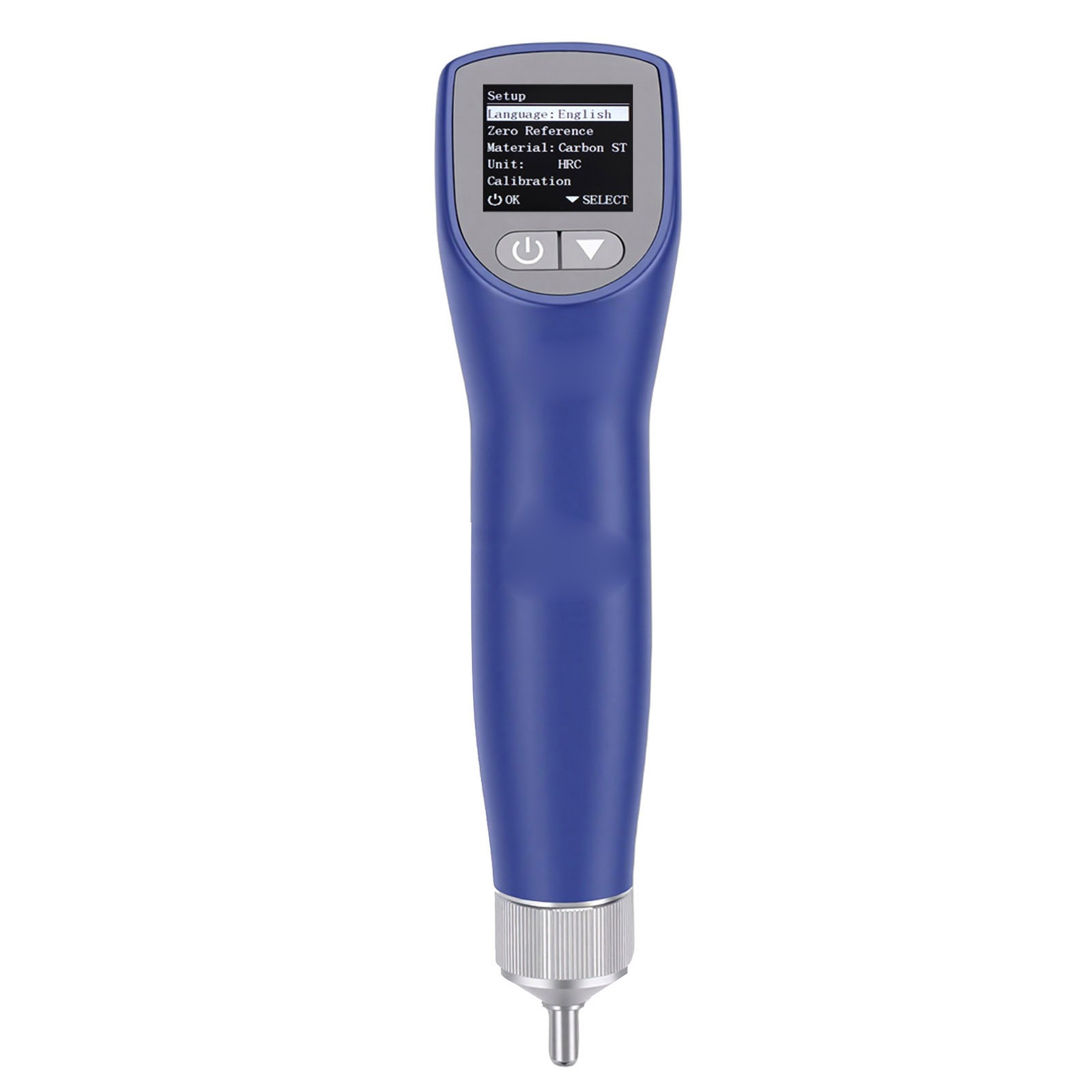

Display: 240x240 Dot Array LCD
Power Supply: 1 x Rechargeable Li Battery 1000mAh (Built in), Fully Charged for Over 5000 Continuous Measurements

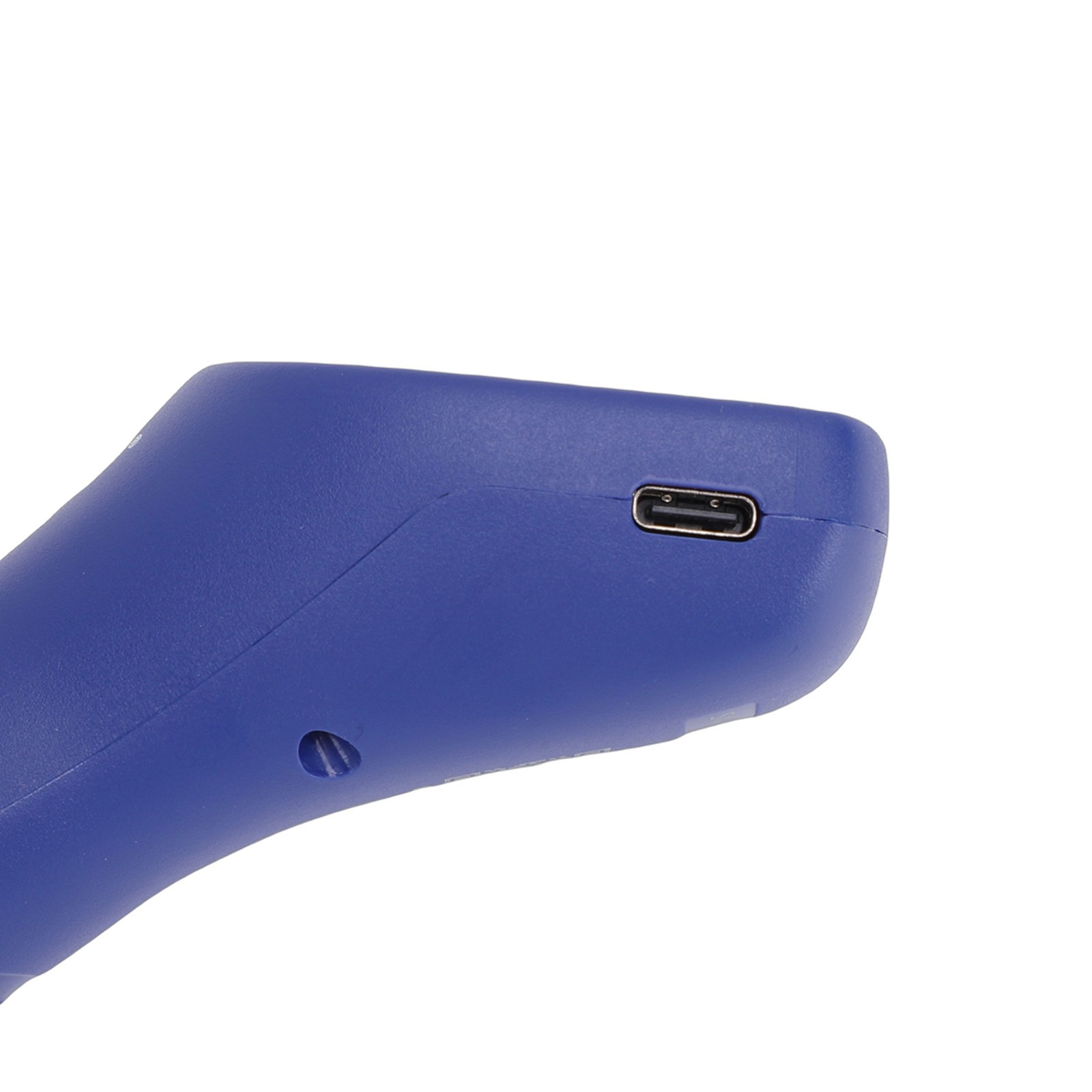

Charging Interface: USB (Type C)
Working Temperature Humidity: -10-50℃, 0-85%RH (No Condensation)
Storage Temperature Humidity: -10-60℃, 0-85%RH (No Condensation)
Working Current: 60mA
Product Size: Approx. 43 x 45 x 185mm / 1.7 x 1.8 x 7.3in
PACKAGE LIST
1 x Hardness Tester
1 x Testing Head
1 x USB Cable
1 x Testing Block
1 x Storage Box
