Features:
1. Intelligent Voltage Adaptation and Wide Compatibility
Supports 12V/24V system voltage adaptation, compatible with different battery pack specifications. The maximum photovoltaic input voltage is adapted to 12V batteries (<18V-23V) and 24V batteries (<36V-46V), adapting to mainstream photovoltaic panel scenarios.
2. Precise Management of Multiple Battery Types
Built-in preset modes for lead-acid, lithium, and lithium iron phosphate batteries, which can be switched with a single click via the LCD interface, corresponding to precise charge and discharge voltage parameters:
Charge Cut-off Voltage: Lead-acid 14.4V, Lithium 12.6V, Lithium Iron Phosphate 14.6V
Discharge Cut-off Voltage: Lead-acid 10.7V, Lithium 9V, Lithium Iron Phosphate 10.8V
Discharge Recovery Voltage: Lead-acid 12.6V, Lithium 11V, Lithium Iron Phosphate 12.6V
Effectively protects battery life and avoids overcharging and over-discharging.

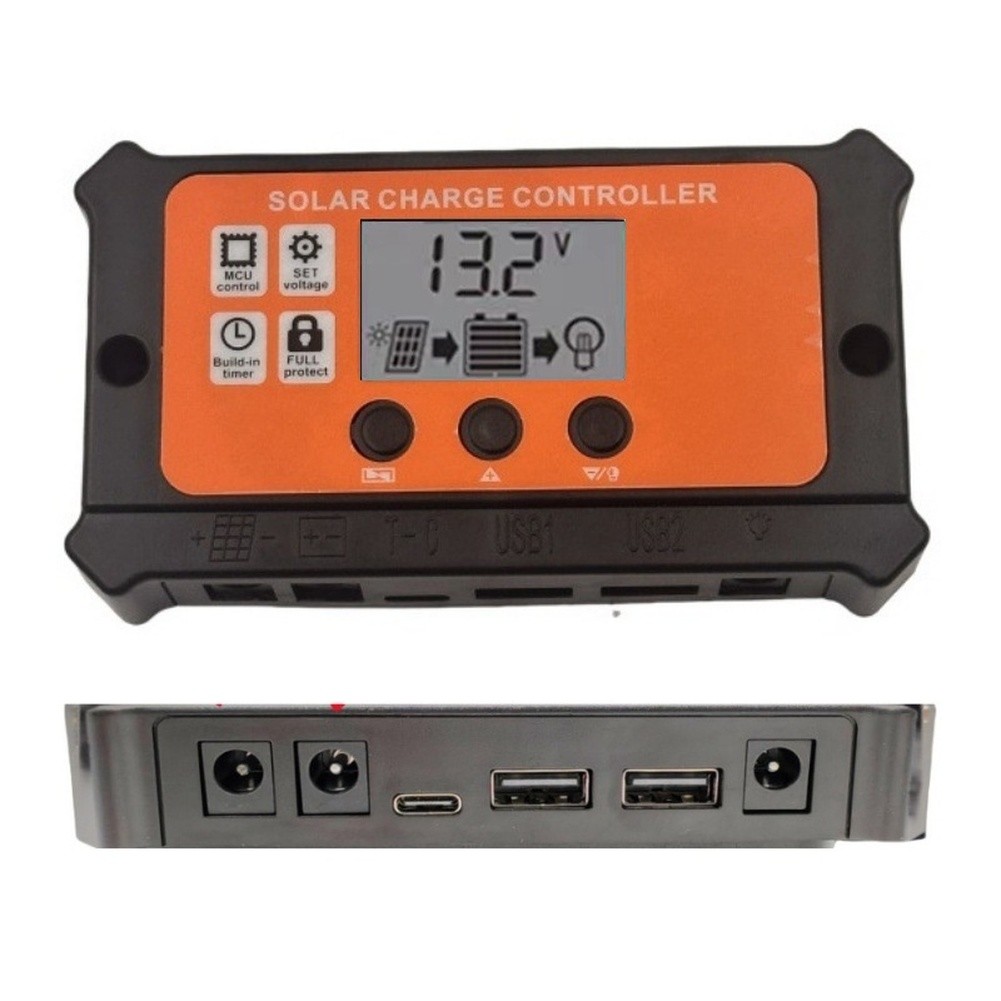

3. **Multiple Fast Charging Interfaces:** Equipped with dual ports, a port, and dual DC ports, supporting simultaneous fast charging of multiple devices. Compatible with smartphones, tablets, and other digital devices, eliminating the need for external adapters. It can directly power mobile devices in outdoor scenarios, enhancing portability and practicality.

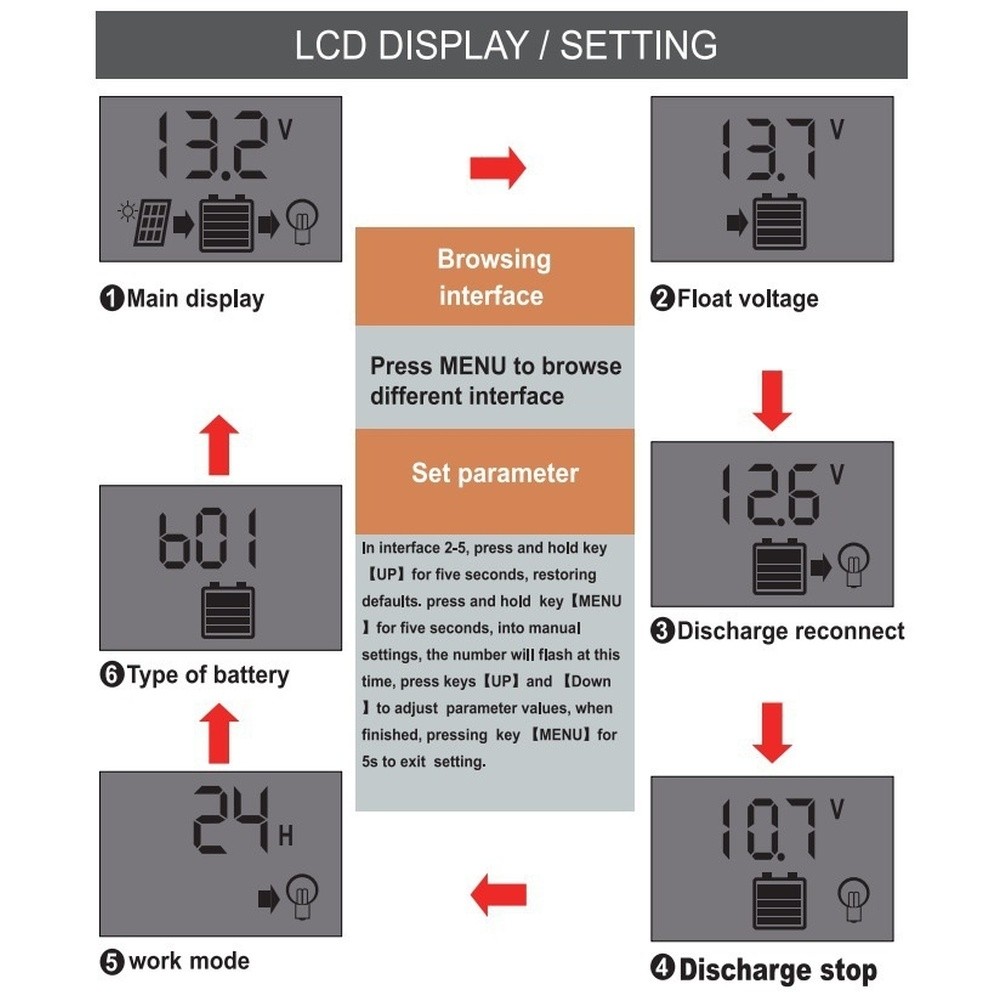

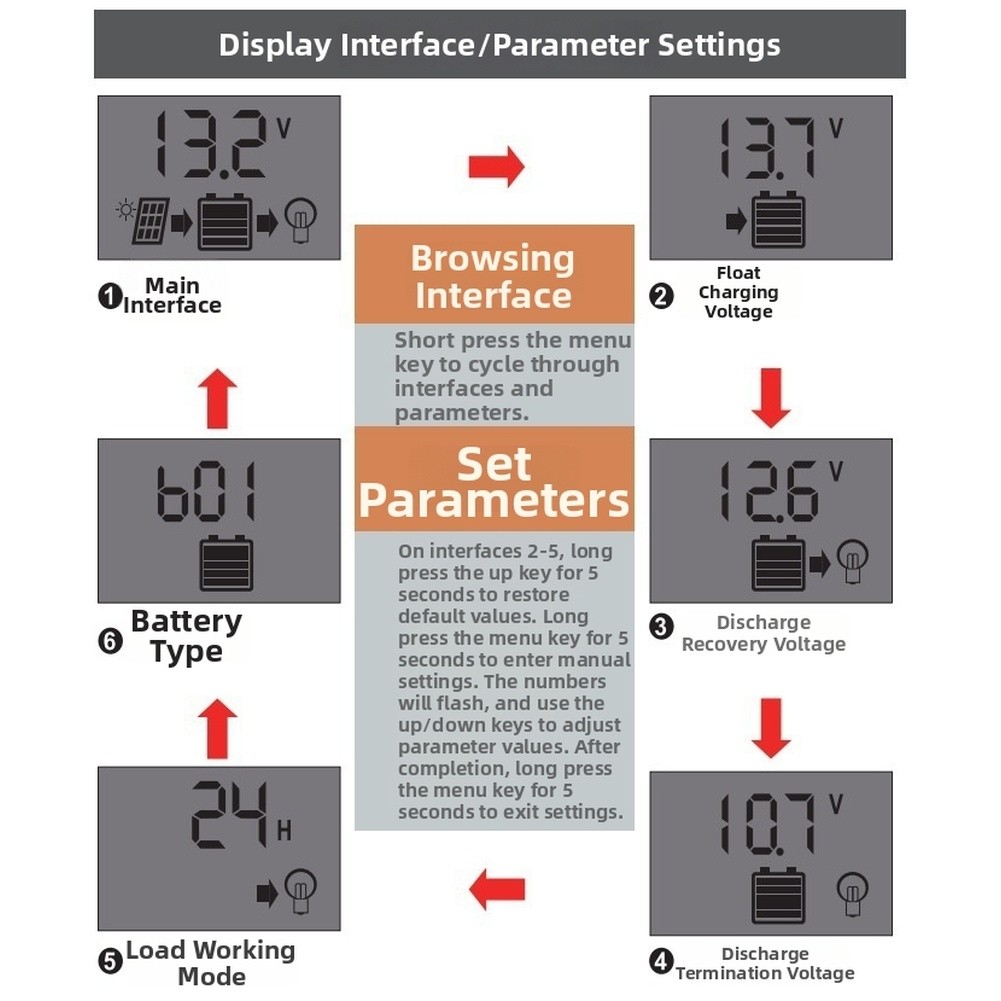

4. **Visual LCD User Interface:** Featuring a high-definition LCD screen, it allows users to view real-time voltage, charging status, battery type, and other key parameters. Manual settings for float charge voltage, discharge cut-off voltage, and load operating mode are supported. A long press of the menu button accesses parameter adjustments, making operation intuitive and convenient, even for beginners.
5. **Stable Protection and Intelligent Load Control:** Built-in multiple protection mechanisms, including overcharge, over-discharge, overload, short circuit, and reverse connection protection, for ensure device and battery safety. It supports a timed load operating mode, allowing flexible setting of load on/off times, adapting to scenarios such as streetlights and outdoor monitoring, and improving energy efficiency.
Specifications:
*Product Name:Charging controller
*Material:ABS
*Color:As the picture

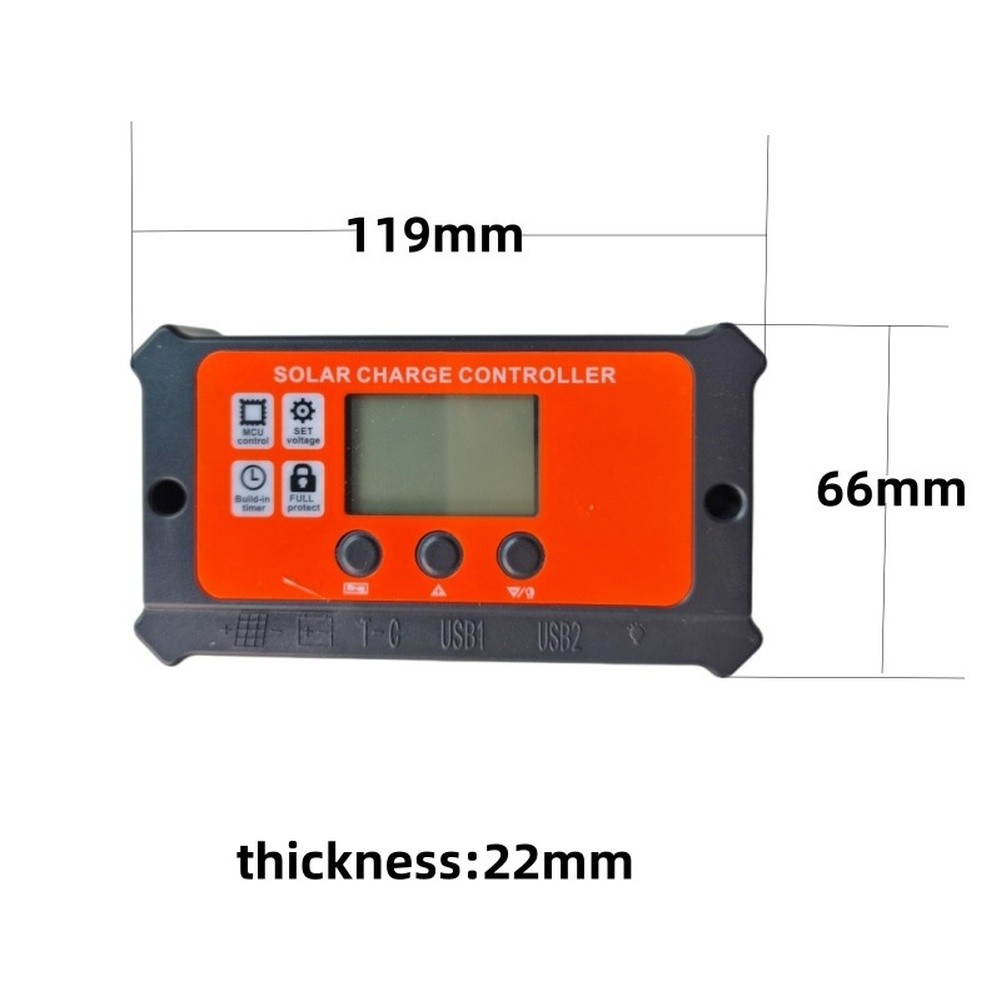

*Size:11.9*6.6*2.2cm
Package Content:
1* controller
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
