Rim:

Material: Toray T700 carbon fiber

Size: 700C

Depth: 6560 mm

Width:External width 28mm, internal width 22mm, U shape

Weave: UD / 3K / 3K Twill / 12K / 12K Twill
Finish: Matte / Glossy

Hub:

Axle: Front 12x100mm, Rear 12x142mm (If you need other axle specifications, please contact us)

Compatible: Shimano 8/9/10/11 speed (If you need Campagnolo and Sram XD/XDR,please contact us)

Spoke:

Model: Pillar 1432/1423 (If you need to upgrade to lighter 1420 or sapim cx-ray,please contact us)

Weight:

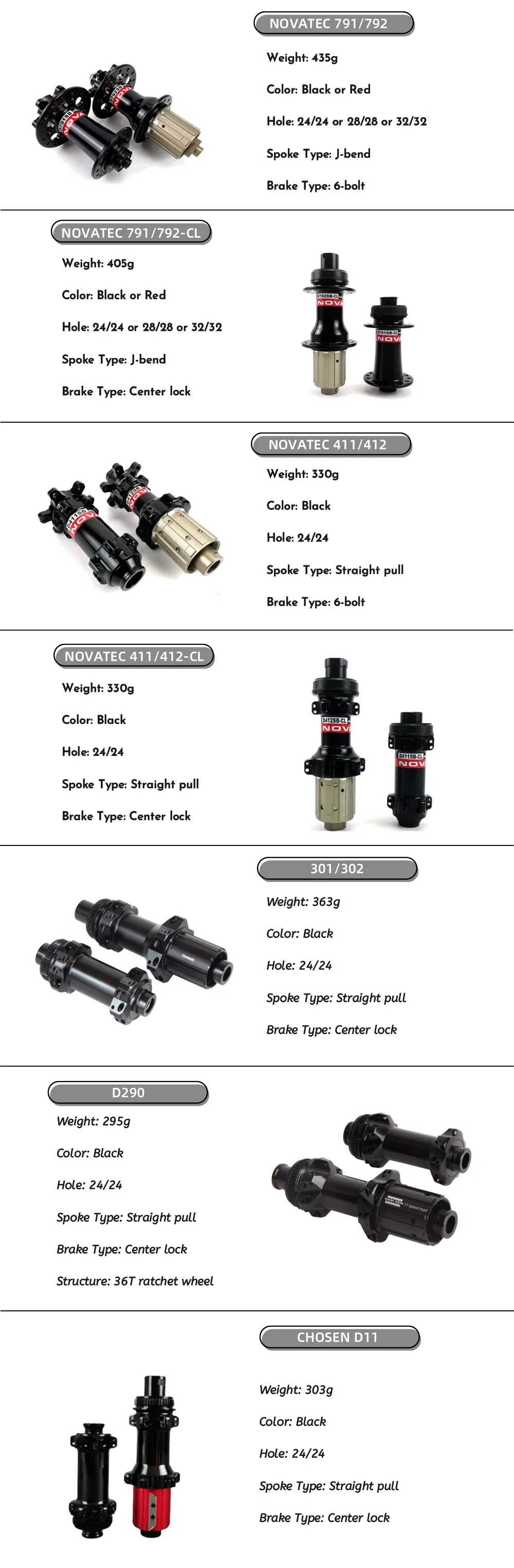

1841±30g For Clincher/Tubeless, 1751±30g For Tubular, with Novatec 791-792 hub

1736±30g For Clincher/Tubeless, 1646±30g For Tubular, with Novatec 411-412 hub

1769±30g For Clincher/Tubeless, 1679±30g For Tubular, with 301/302 hub

1767±30g For Clincher/Tubeless, 1677±30g For Tubular, with NEW DT350-SL hub

1711±30g For Clincher/Tubeless, 1621±30g For Tubular, with DT240-EXP hub

1696±30g For Clincher/Tubeless, 1606±30g For Tubular, with DT180-Ratchet EXP hub

1701±30g For Clincher/Tubeless, 1611±30g For Tubular, with D290 hub

(If you need to upgrade the light version of the rim, please contact us)

Gift:

3 pcs spare spokes

2 pcs rim tapes (Only clincher has)

NOTE：

WHen you order,please note the specifications you need and confirm with us.If not,we will make and ship it for you according to the following default specifications.

RIM WEVAE:UD

FINISHING:Matte

HUB COLOR:Black

HOLE COUNTS:24/24

HUB COMPATIBILITY:Shimano 11 speed

HUB AXLE SPECIFICATION:Front:12×100mm,Rear:12×142mm

SPOKES:Black Pillar 1432/1423

NIPPLES:Black Aluminum
