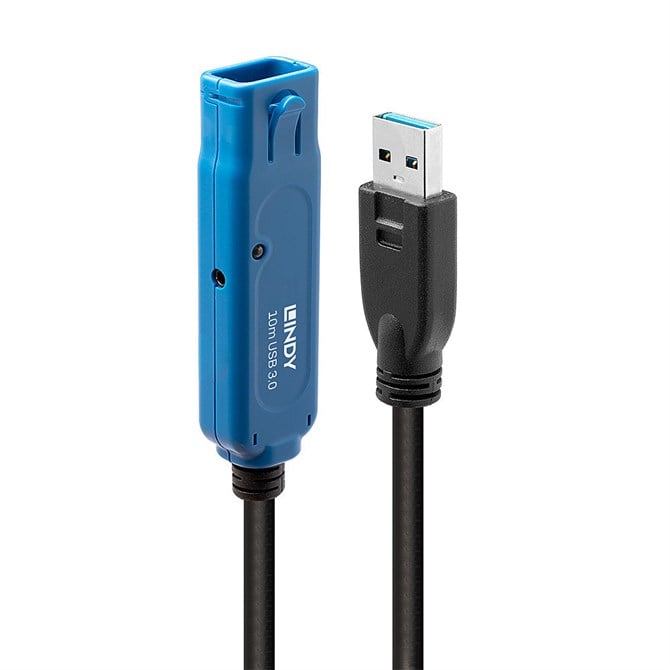

Lindy 10M USB 3.0 Active Extension Pro
The Lindy 10m USB 3.0 Active Extension Cable Pro is a high-performance cable that allows a computer to connect to USB 3.0 SuperSpeed peripherals over long distances. It supports data transfer speeds of up to 5Gbps, making it ideal for quickly and reliably transferring large amounts of data.
The cable incorporates proven active technology and locking connectors to ensure reliable signal integrity, even in demanding environments.
This 10m extension cable can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that combines multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).
Using this cable as part of the USB 3.0 Active Extension System Pro
If you would like to use this cable as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.
The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.
The final part of the extension can be any cable or hub from the Extension System Pro range.
If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit (No. 43159) with its power supply as the final part of the extension.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specs
Features
USB version
Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.
USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1
This is the first connector in the device.
USB A
Connector 2
This is the second connector in the device.
USB A
Connector 1 gender
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2 gender
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
Female
Connector 1 form factor
Straight
Connector 2 form factor
Straight
AWG wire size
24/24/20
Connector material
Nickel
Contact material
Brass
Connector contacts plating
What the connector contacts are covered with (layer on top).
Gold
Cable jacket material
Polyvinyl chloride (PVC)
Conductor material
Tinned copper
Connector shielding
Connector shield material
Aluminium
Connector housing material
Plastic
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
5000 Mbit/s
Maximum data transfer rate
5 Gbit/s
Product colour
The colour e.g. red, blue, green, black, white.
Black
Cable type
Type of cable e.g. electicity cable, optical cable.
Round cable
Transmission medium
Twisted pair
Features
Nominal attenuation
0.064MHz - 0.08dB 0.256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB
Power
Power note
2.5/0.7mm DC
Weight & dimensions
Cable length
How long the cable is.
m
Cable diameter
The distance from one side of the cable to the other, with a straight line going through the middle of the cable.
7 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
750 g
Bend radius (min)
3.6 cm
Connector 1 dimensions (WxDxH)
x 49 x 8 mm
Connector 2 dimensions (WxDxH)
x 80 x 13 mm
Packaging data
Package type
The type of product package e.g. box.
Box
Package width
The distance from one side of the packaging to the other.
240 mm
Package depth
The distance from the front to the back of the packaging.
70 mm
Package height
The distance from the top to the bottom of the packaging.
0 mm
Package weight
Weight of the packaged product.
900 g
Packaging content
Quantity per pack
1 pc(s)
Manual
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 ?C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 ?C
Certificates
Certification
CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Logistics data
Harmonized System (HS) code
84733080
