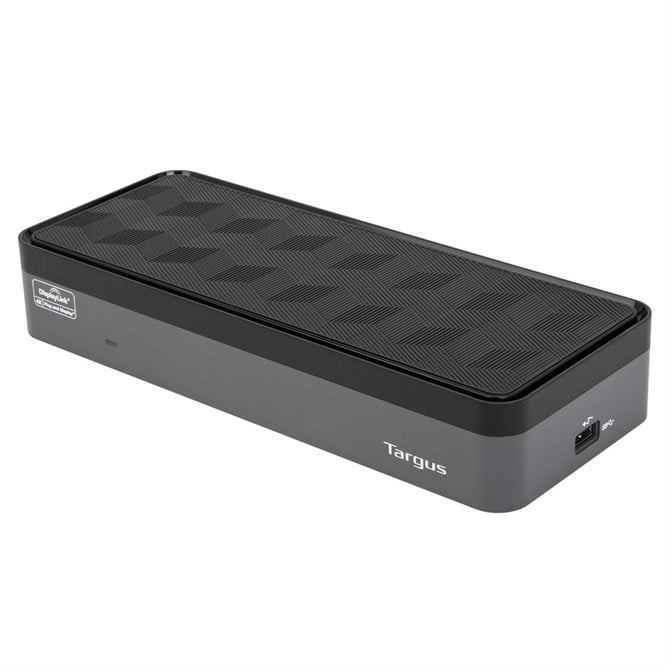

Targus DOCK570EUZ notebook dock/port replicator Wired Black
Boost productivity and performance with the world-s first enterprise-class universal docking station to deliver four 4K extended displays. Ideal for large enterprises - the Targus USB-C- Universal Quad 4K (QV4K) Docking Station maximises workstation viewing. Dual DisplayLink- DL-6910 chip technology supports up to four DisplayPort (3840 x 2160 p60) or HDMI (3840 x 2160 p50) displays. The docking station includes numerous additional ports to connect your essential USB 3.0 peripherals and Ethernet network.
This sleek dock helps reduce clutter by providing the ease of a single connection for key peripherals like your mouse, keyboard and more. Its rubberised, padded bottom protects against scratches, while the VESA bracket mounting provision allows for use of the Targus VESA Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings. Your most advanced configurations become easy with compatibility across virtually any laptop and most standard peripherals including Thunderbolt 3-, Display Port Alt-Mode, and USB 3.0, 3.1 and Type-C devices. Charging tips and a USB-C to USB-A adapter included to make this dock compatible with a variety of major laptop brands.
Supports DisplayPort and HDMI Monitors
Your workstation has never been more powerful with a high-performance quad-monitor dock that supports full 4K (3840 x 2160 p60) resolution or DisplayPort (3840 x 2160 p60) on all four displays as well as viewing modes for two and three monitors. The eight available video out ports allow you to decide between HDMI or DP++ display options to ensure compatibility for your configuration.
Powering Your Devices
The Universal USB-C- Quad 4K Docking Station with 100W Power Delivery is the first quad-docking solution designed to keep your devices running no matter how long your day is. A simple front-panel blue light lets you know when power is connected, and a switch allows you to turn your power on or off in a snap. Offering 100W USB power delivery on PD 2.0, you can power laptops and larger devices through your dock, further reducing your clutter and making it easy to keep going all day.
Onboard USB 3.0 for Advanced Peripherals and Charging
Four USB 3.0 ports make it easy to customise workspaces with the latest keyboards, external drives and other essential peripherals. Efficient charging is close at hand with one powered USB 3.0 port for keeping smartphone, tablet or other devices powered up and ready to go.
Specs
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
4
HDMI version
2.0
DisplayPorts quantity
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
4
Headphone outputs
Number of sockets /ports where headphones are connected.
1
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Performance
Product colour
The colour e.g. red, blue, green, black, white.
Black
Country of origin
Country where the device is made. Aka Country of manufacture (COM).
China
Software
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 7, Windows 8.1
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Weight & dimensions
Width
The measurement or extent of something from side to side.
85 mm
Depth
The distance from the front to the back of something.
260 mm
Weight & dimensions
Height
The measurement of the product from head to foot or from base to top.
9 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
2 kg
Logistics data
Products per master (outer) case
6 pc(s)
Master (outer) case width
295 mm
Master (outer) case length
410 mm
Master (outer) case height
320 mm
Master (outer) case gross weight
.3 kg
Products per shipping (inner) case
3 pc(s)
Harmonized System (HS) code
84733020
