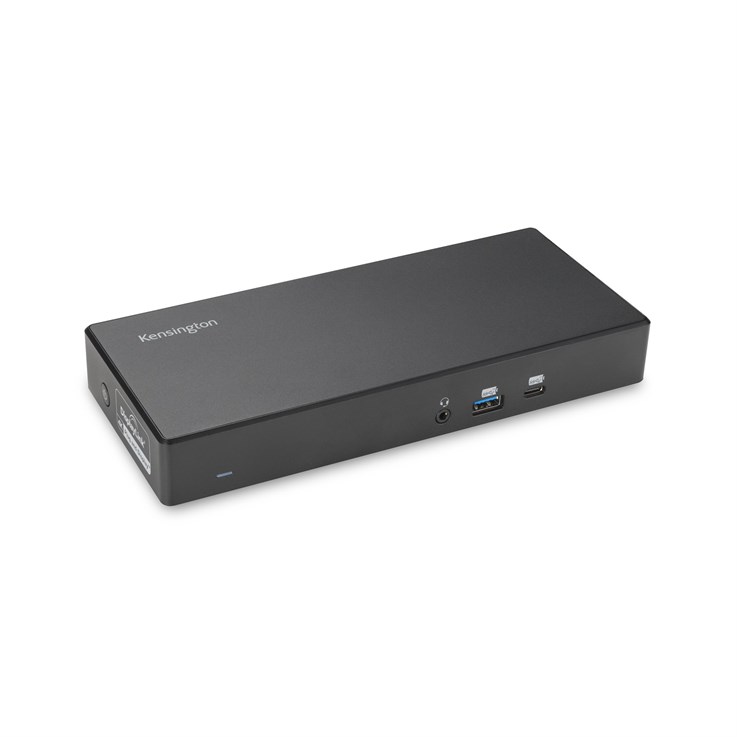

Kensington SD4781P EQ USB-C & USB-A Dual 4K Docking Station

Kensington SD4781P EQ USB-C & USB-A Dual 4K Docking Station

Specs Ports & interfaces Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. Wired Host interface Interface that enables a host controller to communicate with a driver. USB 3.2 Gen 2 (3.1 Gen 2) Type-C USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. 1 USB Power Delivery (USB PD) USB Power Delivery revision 3.0 USB Power Delivery up to 100 W HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. 2 HDMI version 2.0 DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. 2 DisplayPort version 1.2 Microphone in The socket where a microphone is connected to the device. Combo headphone/mic port Headphone outputs Number of sockets /ports where headphones are connected. 1 Headphone connectivity How headphones connect to a device e.g. wirelessly or via a cable and connector. 3.5 mm DC-in jack The socket/plug where the DC electricity supply connects to the device. Network Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 1 Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. 10, 1000 Mbit/s Performance Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card. Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. 10 Gbit/s HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). 4K Ultra HD Maximum digital resolution 4096 x 2160 pixels Number of displays supported The number of displays that can be used with this product. 2 Maximum refresh rate 60 Hz Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. Cable lock slot type Nano, Kensington Product colour The colour e.g. red, blue, green, black, white. Black LED indicators Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. Housing material What the casing of the product is made of. Acrylonitrile butadiene styrene (ABS), Metal, Polycarbonate (PC) Country of origin Country where the device is made. Aka Country of manufacture (COM). Thailand Compatibility The other products, software and hardware this product can be used with. MacBook M-Series Base Chipset Power Power source type What the power source is. DC AC input voltage The voltage of the AC electricity that is inputted into the product. 100 - 240 V Input current 1.8 A Output voltage 20 V Power Output current 8.5 A Compatible power plug types EU, UK Software Windows operating systems supported Windows vesions wich can be used with the device. Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. Other operating systems supported ChromeOS Operational conditions Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 40 ?C Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -18 - 60 ?C Operating relative humidity (H-H) 0 - 55% Sustainability Sustainability compliance Sustainability certificates ErP Weight & dimensions Width The measurement or extent of something from side to side. 210 mm Depth The distance from the front to the back of something. 90 mm Height The measurement of the product from head to foot or from base to top. 30 mm Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 395 g Packaging data Quantity per pack 1 pc(s) Package width The distance from one side of the packaging to the other. 90 mm Package depth The distance from the front to the back of the packaging. 235 mm Package height The distance from the top to the bottom of the packaging. 30 mm Package weight Weight of the packaged product. 1.46 kg Packaging content Warranty card Cables included AC, USB Type-C AC adapter included Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. Interface adapters included USB Type-A male - USB Type-C female Technical details Compliance certificates CB, CE, RoHS, UKCA Logistics data Products per master (outer) case 6 pc(s) Master (outer) case width 285 mm Master (outer) case length 486 mm Master (outer) case height 195 mm Master (outer) case gross weight 9.54 kg Master (outer) case net weight 9.54 kg Other features Minimum system requirements Intel Core i5 6th+ 8Gb RAM Intel HD Graphics 620 Compatible operating systems List of desktop operating systems tested as compatible with this product. macOS 10.14 or above; Windows 7 or above; Chrome OS 44 or above Special features EQ USB ports quantity 6
